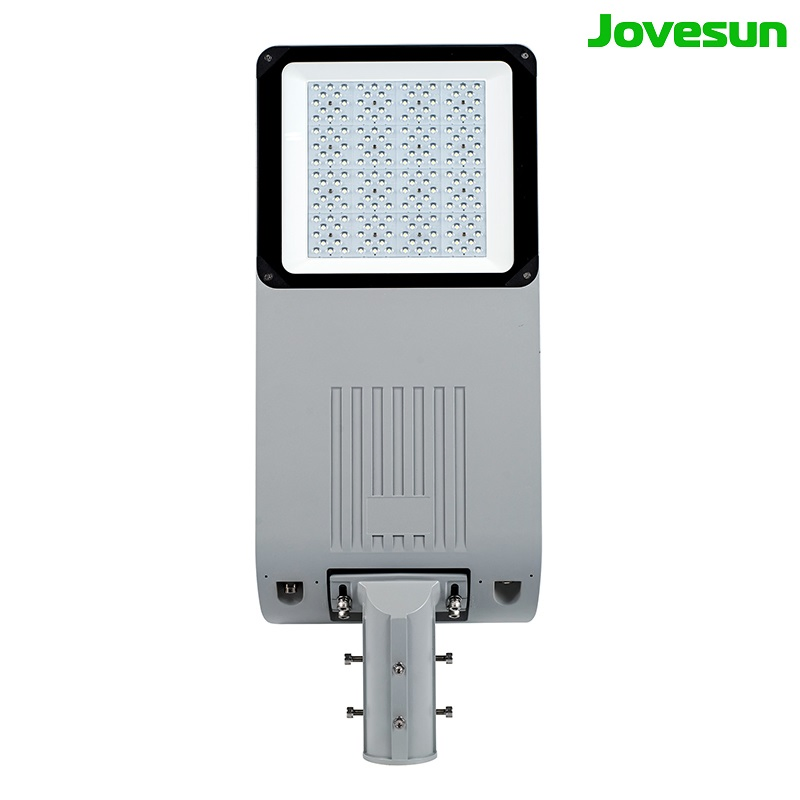

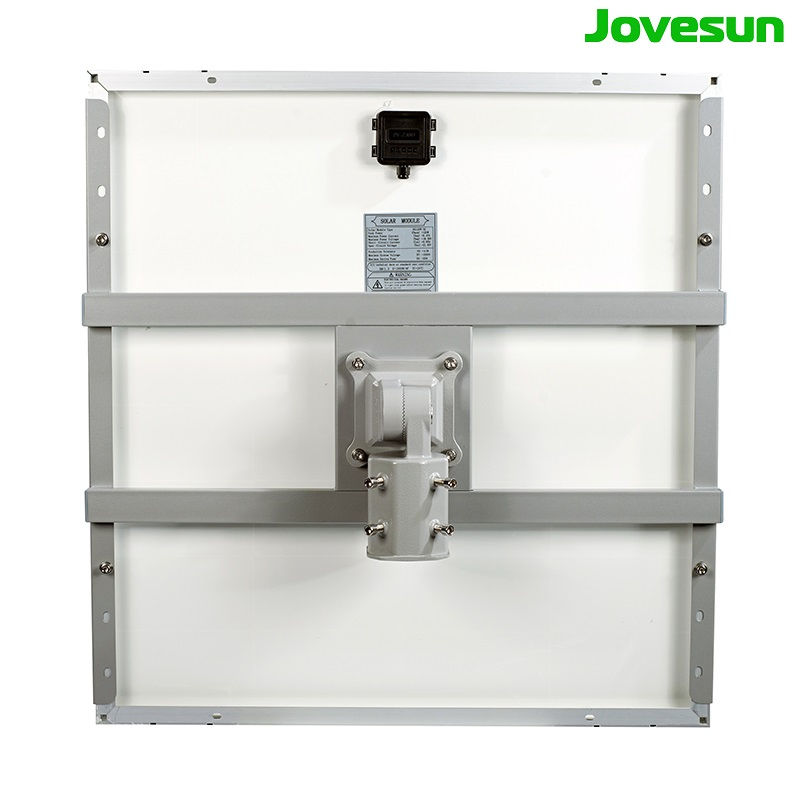

120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
1 / 5
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar
120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar

120W Split Type Solar Street Light 240wp 360wp PV Panel Farola Solar

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

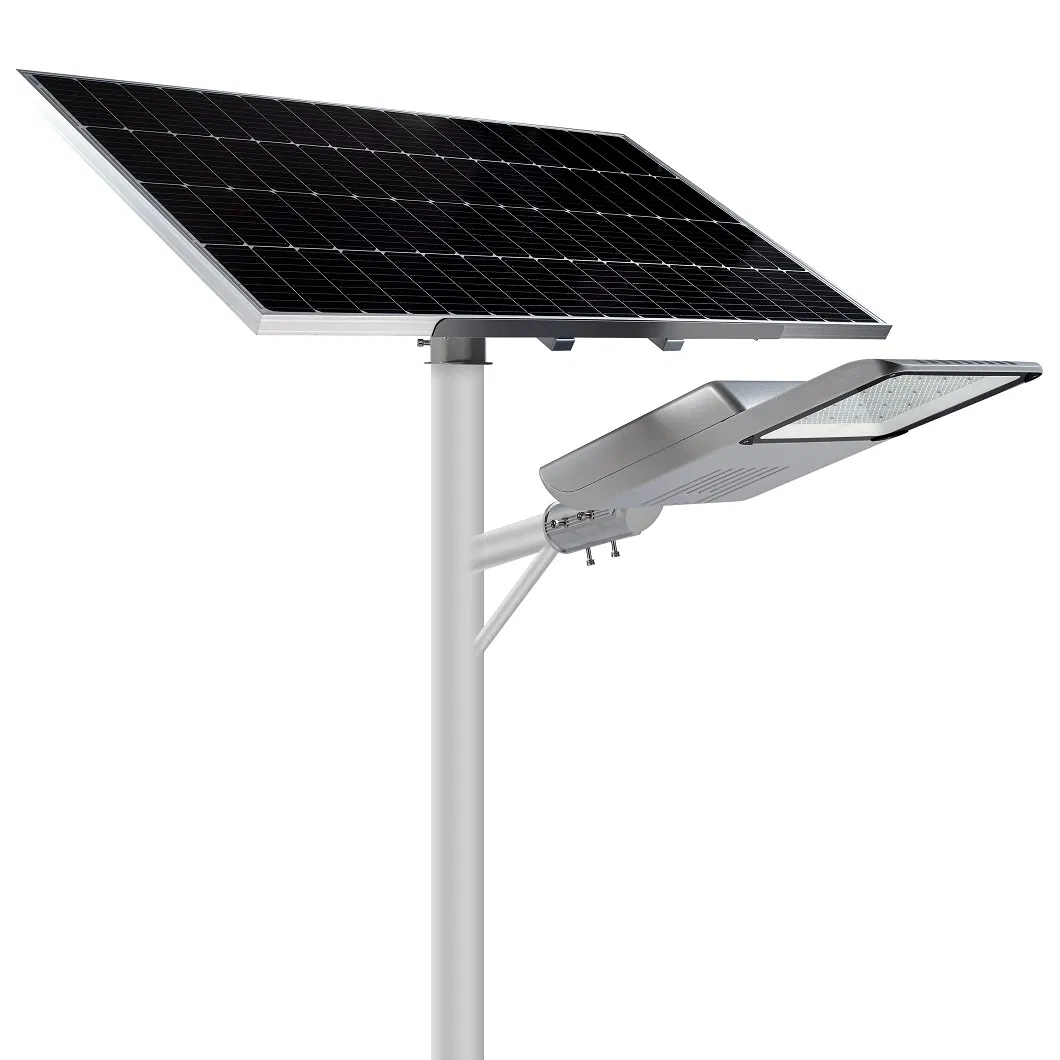

Solar Street Light
Basic Specifications
Model NO.
M26-100-ST
Light Source
LED Lamp
Lamp Body Material
Aluminum
Color Temperature
Pure White
Luminous Efficacy
205lm/W
IP Rating
IP66
Battery Type
LiFePO4 (1152wh)
PV Panel
Mono 240wp
Product Description

Solar street lights model M25/M26 are manufactured according to ISO 9001 standards, featuring 205Lm/W high luminous efficacy, specifically designed for PUBLIC lighting use.

Designed as an integrated fixture, it combines the PV panel, Lithium battery, charge controller, and LED components together for easy installation.

Equipped with a 24% conversion Mono-type solar PV panel, LiFePo4 battery, Constant current driver, and MPPT charging protocol, ensuring excellent charge and discharge performance.

★ 205Lm/W Efficacy
★ MPPT Charging
★ LiFePO4 Battery
★ IP66 Waterproof
Detailed Gallery

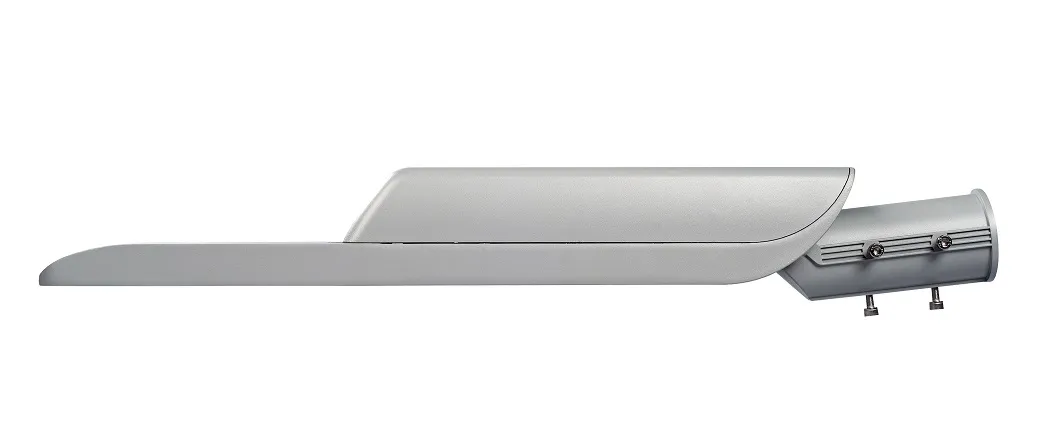

Solar Light Detail 1

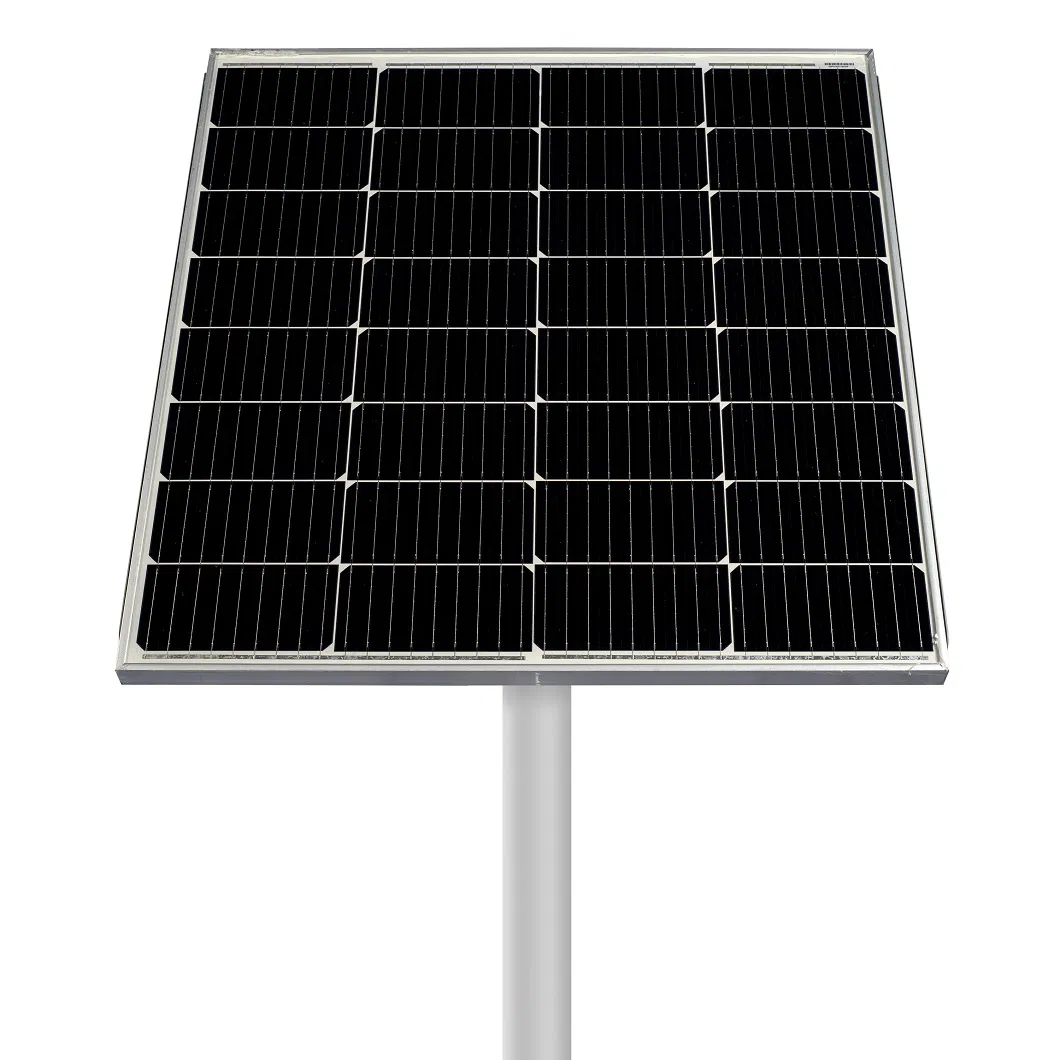

Solar Light Detail 2

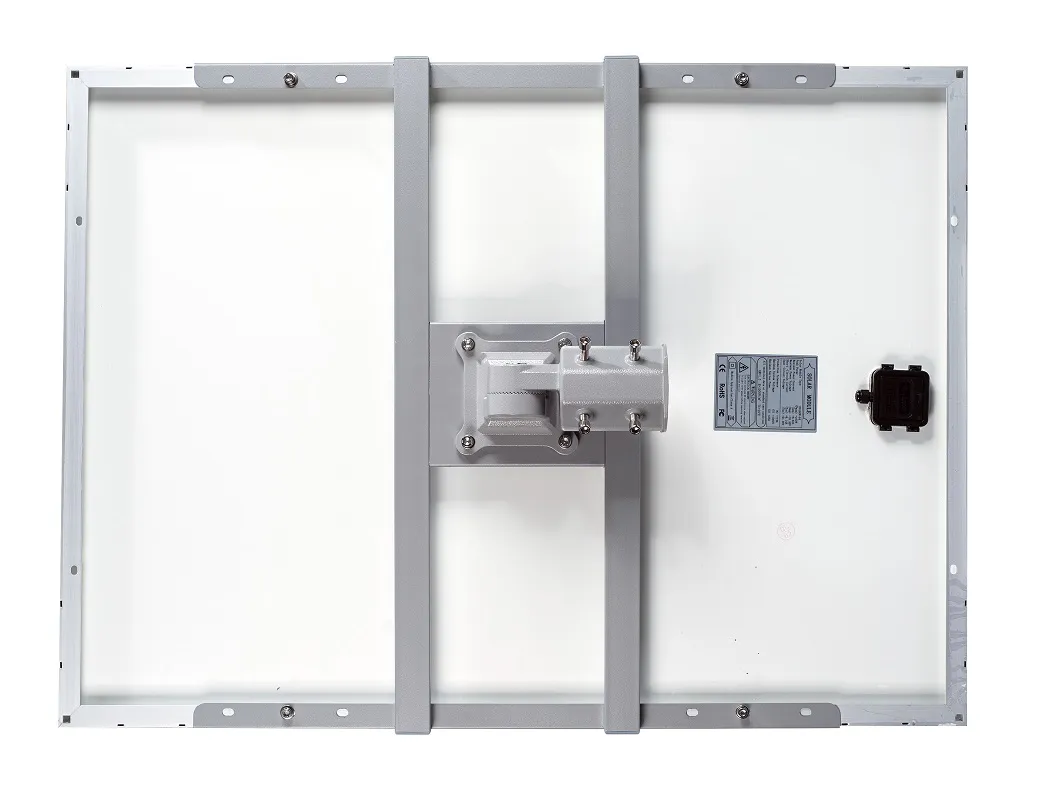

Solar Light Detail 3
Technical Parameters
Parameter M26st-50W M26st-80W M26st-100W M26st-120W M26st-150W
Solar panel 100Wp 18V 160Wp 18V 200Wp 18V 240Wp 18V 300Wp 18V
Battery 244Wh 576Wh 768Wh 960Wh 1152Wh
LED Chips 3030 SMD 3030 SMD 3030 SMD 3030 SMD 3030 SMD
Luminous flux 6150lm 12300lm 16400lm 20500lm 24600lm
Mounting Height 5-6m 8-10m 10-12m 12-14m 14-16m
Efficacy 205 Lm/W
Professional Certifications

Fully certified for project tender use:

  • IEC 60598, IEC 61215, IEC 61730, IEC 62109, IEC 62133, IEC 62471
  • LM79, LM80, TM21
  • IP66, IK, CE, RoHS
Packaging & Installation

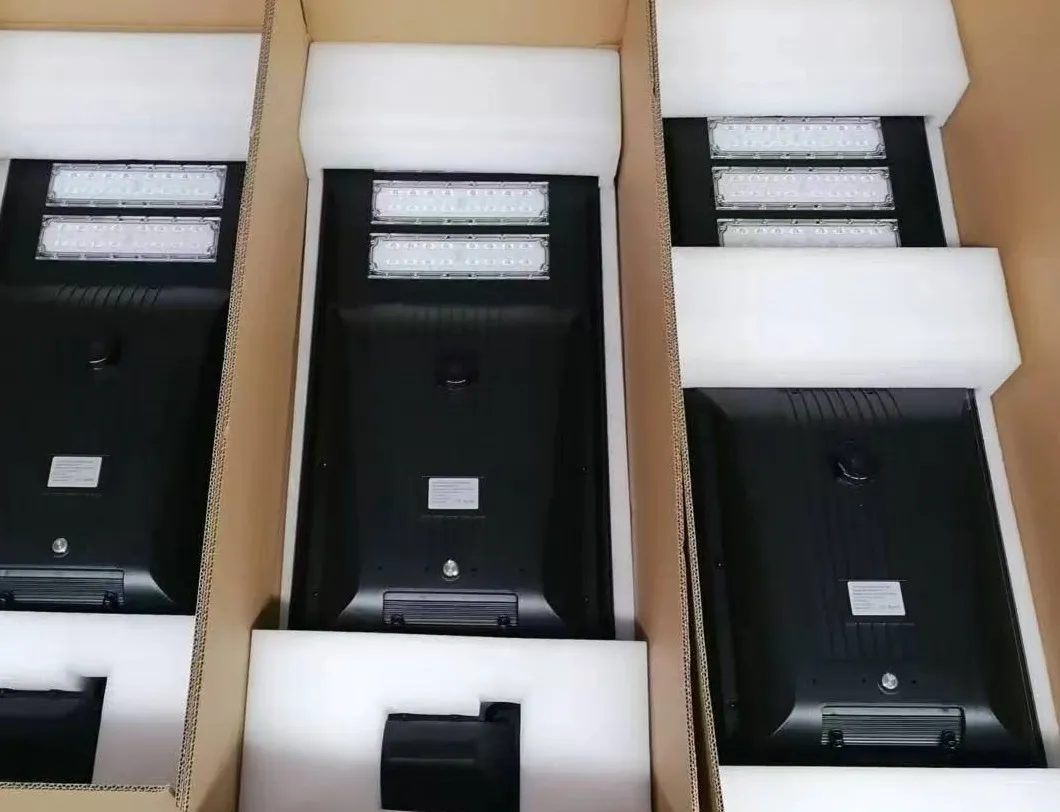

Packaging
Shipping
Installation Note: This model provides a flexible mounting tilt system, supporting horizontal to vertical installation. Ideal for replacing traditional HID street lights using existing poles.

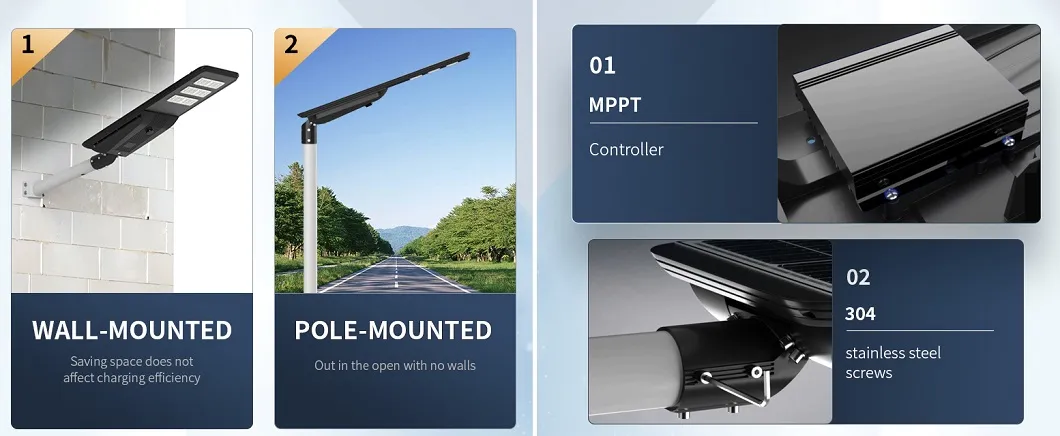

Installation Instructions
Frequently Asked Questions
What is the luminous efficacy of this solar street light?
The M26 series features a high luminous efficacy of up to 205lm/W, making it highly efficient for public lighting projects.
What type of battery is used in the M26 model?
We use high-quality LiFePO4 batteries (lithium iron phosphate) which offer longer life cycles and better safety compared to standard lithium batteries.
How long does it take to fully charge and how long will it light up?
It typically takes about 5-6 hours of sunlight to charge. Once fully charged, it can provide 12 to 14 hours of illumination per night, with up to 3 nights of backup via the BMS.
Is the light suitable for high-speed roads?
Yes, with different optical lens options (Type I to Type V) and mounting heights up to 15 meters, it is perfectly suited for expressways, highways, and large areas.
What intelligent features are included?
The light supports MPPT charging, IoT Lora connectivity, and integrated motion sensors with intelligent timer working models (100%-75%-50%-100%).
Is it waterproof and durable for outdoor use?
Absolutely. It has an IP66 rating for water and dust resistance and an IK rating for impact resistance, encased in a durable casting aluminum body.
