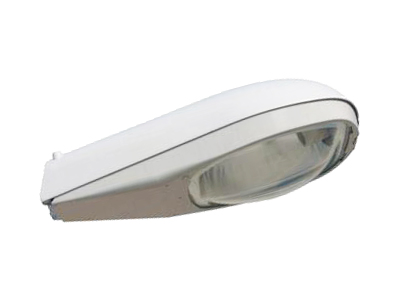

150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
1 / 5
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light
150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light

150W 250W 400W Sodium Lamp Die Cast Aluminum Street Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LD205
Lamp Body Material
Dia Cast Aluminum
Lamp Power
250W 150W
Power Supply
AC
Average Life
5 years
Application
Highway, Square, Garden
IP Rating
IP65
Certification
CE, RoHS, CCC, ISO, FCC, EMC, GS
Voltage
220V 110V
Mounting Hole
48mm
Mounting Height
6m~8m
Transport Package
Pallet with Carton
HS Code
94054090
Capacity
500PCS Per Week
Packaging & Delivery
Package Size
65.00cm * 30.00cm * 20.00cm
Gross Weight
4.000kg
Product Description
Street Light Main View

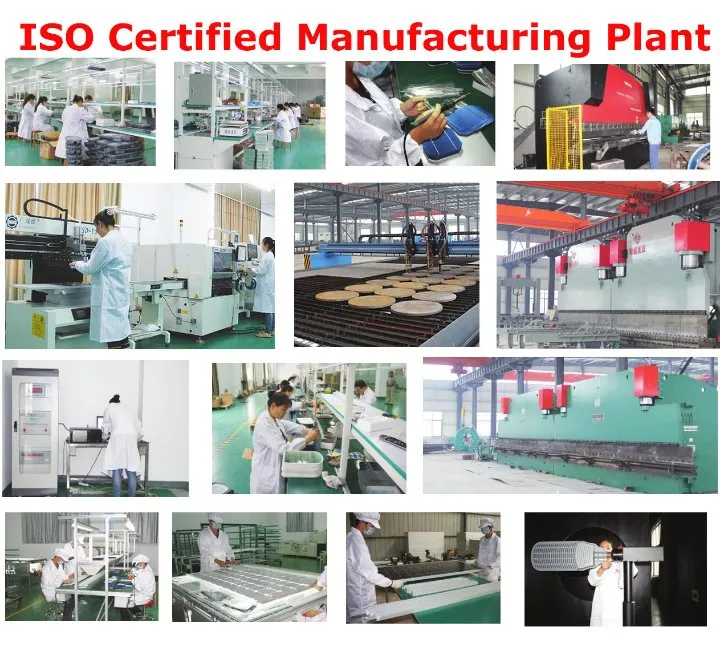

The LD205 street lamp is ideal for roadways, streets, parking areas, residential neighborhoods, and bridge structures. Production is strictly managed under the ISO9001 quality system and inspected by SGS to ensure premium reliability.

A. Housing Die-cast aluminum housing and latch, standard grey polyester powder coat finish.
B. Reflector Optical system features a hydroformed anodized aluminum reflector with a silicone gasket.
C. Door Die-cast aluminum door frame with integral hinges for hands-free installation and maintenance.
D. Lens Removable reflector for use with HPS, Metal Halide, and Mercury sources. Features flat tempered glass.
E. Socket High-quality Mogul-base porcelain socket E39/E40.

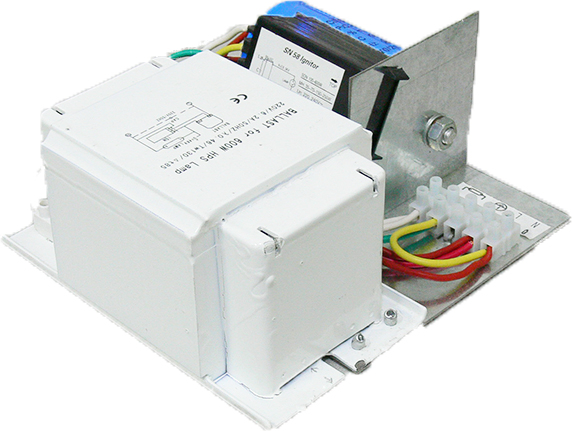

F. Ballast Assembly Hard mounted ballast with standard two-position tunnel type compression terminal block.
G. Mounting Four-bolt/one bracket slipfitter with cast-in pipe stop and leveling steps. Fits Dia.42/48mm arms.
H. Photocontrol Twist-lock photocontrol receptacle available for automated lighting management.
Streetlight Benefits
✓Create safe, sustainable communities
✓Reduce crime and energy usage
✓Customizable controls for adjustable light levels
✓Enhanced safety, performance, and repair times
✓Simplified system start-up and lower field errors
✓Reduced costs and simplified long-term maintenance

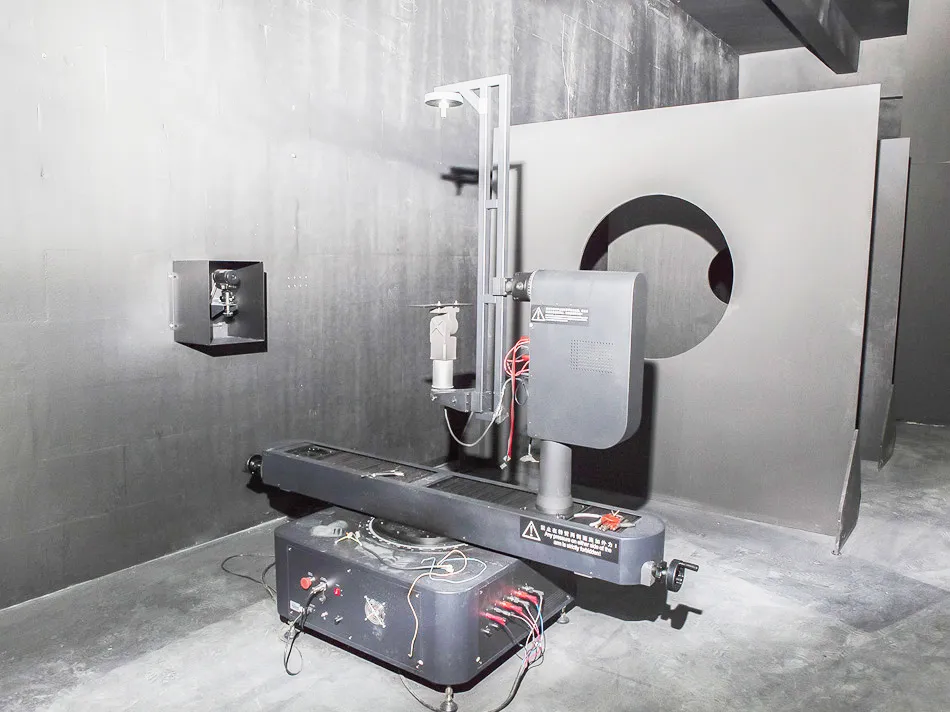

Street Light Detail 1 Street Light Detail 2
Street Light Detail 3 Street Light Detail 4
Street Light Structure
Technical Specifications
Type Bulb Power IP Class Distribution Dimensions Altitude Photocontroller Spigot (mm)
LD4570w/100w/150wIP65Semi-cutoff56*26*17cm6M-8MNo42/48/60
LD762*150w/2*250wIP66Semi-cutoff86*38*24cm8M-10MNo42/48/60
LD80150w/250wIP65Semi-cutoff70*30*28cm8M-10MNo42/48/60
LD8970w/100w/150wIP65Semi-cutoff67*32*18cm6M-8MWith42/48/60
LD102150w/250wIP65Semi-cutoff69*27*17cm8M-10MNo42/48/60
LD20570w/100w/150wIP65Semi-cutoff67*29*20cm6M-8MWith42/48/60
LD308250w/400wIP65Semi-cutoff75*37*25cm8M-10MNo42/48/60
LD790250w/400wIP65Semi-cutoff77*35*25cm8M-10MWith42/48/60
LD89070w/100w/150wIP65Semi-cutoff50*24*19cm6M-8MWith42/48/60
LD908150w/250w/400IP65Semi-cutoff75*37*25cm8M-10MNo42/48/60
Frequently Asked Questions
What materials are used in the LD205 street lamp?
The lamp features a high-quality die-cast aluminum housing for excellent durability and heat dissipation, paired with a hydroformed anodized aluminum reflector.
Is the street light waterproof?
Yes, the LD205 model is IP65 rated, making it fully protected against dust and resistant to water jets, ideal for outdoor environments.
What is the recommended installation height?
For the LD205 model, the recommended mounting height is between 6 to 8 meters, suitable for highways and residential streets.
What types of bulbs are compatible with this housing?
The housing is designed with a removable reflector compatible with High Pressure Sodium (HPS), Metal Halide (MH), and Mercury lamp sources using an E39/E40 socket.
Does it support automatic lighting control?
Yes, the LD205 comes with a twist-lock photocontrol receptacle option, allowing for automated dusk-to-dawn operation.
What certifications does the product hold?
The lighting fixtures are certified by CE, RoHS, CCC, ISO, FCC, EMC, and GS, ensuring international quality and safety standards.

Related Products

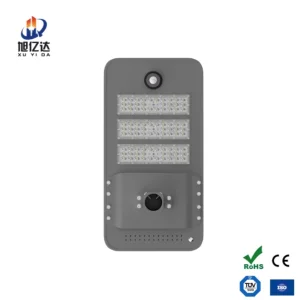

IP67 Die Casting Aluminium 60W-150W Integrated LED Solar Street Light

IP67 Die Casting Aluminium 60W-150W Integrated LED Solar Street Light
IP66 Waterproof Outdoor Die-Casting Aluminum SMD 3030 50W 100W 150W 200W 240W LED Street Light

IP66 Waterproof Outdoor Die-Casting Aluminum SMD 3030 50W 100W 150W 200W 240W LED Street Light
Allgreen 100W 150W 200W Agsl25 LED Street Light OEM/ODM Factory Price Die Casting Aluminum Wholesale Global Sources Lamp Housing Energy Saving Bulb with ENEC

Allgreen 100W 150W 200W Agsl25 LED Street Light OEM/ODM Factory Price Die Casting Aluminum Wholesale Global Sources Lamp Housing Energy Saving Bulb with ENEC

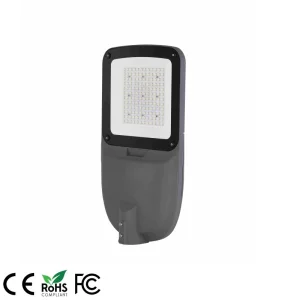

IP66 Die-Casting Aluminum Ik08 100W Engineering Roadyway Lights 140lm/W LED Street Light

IP66 Die-Casting Aluminum Ik08 100W Engineering Roadyway Lights 140lm/W LED Street Light

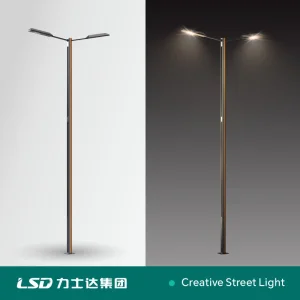

Direct Sale Two Arm Waterproof IP68 Die-Casting Aluminum Housing 250W LED Street Light Road Lamp Pole Customization

Direct Sale Two Arm Waterproof IP68 Die-Casting Aluminum Housing 250W LED Street Light Road Lamp Pole Customization

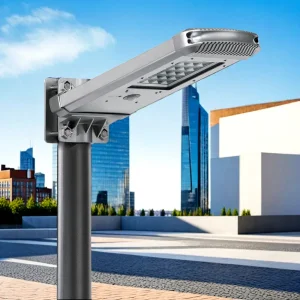

Hot Sale Good Price Die Cast Aluminum Outdoor Solar LED Street Light

Hot Sale Good Price Die Cast Aluminum Outdoor Solar LED Street Light

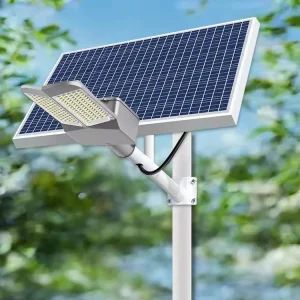

Nei Solar Street Light All in One Solar Street Light Square 100 W LED with Lithium Iron Oxide Battery Die Casting Aluminum Housing Body

Nei Solar Street Light All in One Solar Street Light Square 100 W LED with Lithium Iron Oxide Battery Die Casting Aluminum Housing Body
Outdoor Waterproof IP66 Die-Casting Aluminum 50W 100W 150W 200W SMD LED Street Light

Outdoor Waterproof IP66 Die-Casting Aluminum 50W 100W 150W 200W SMD LED Street Light

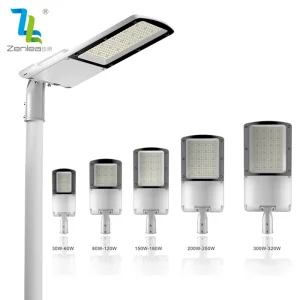

Outdoor Street Lamp Road Lighting Die Cast Aluminum IP65 Waterproof Project SMD LED Street Light

Outdoor Street Lamp Road Lighting Die Cast Aluminum IP65 Waterproof Project SMD LED Street Light

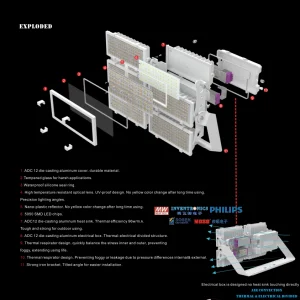

High Brightness LED Stadium Light Module Lighting LED Street Light with Die-Casting Aluminum Cover
