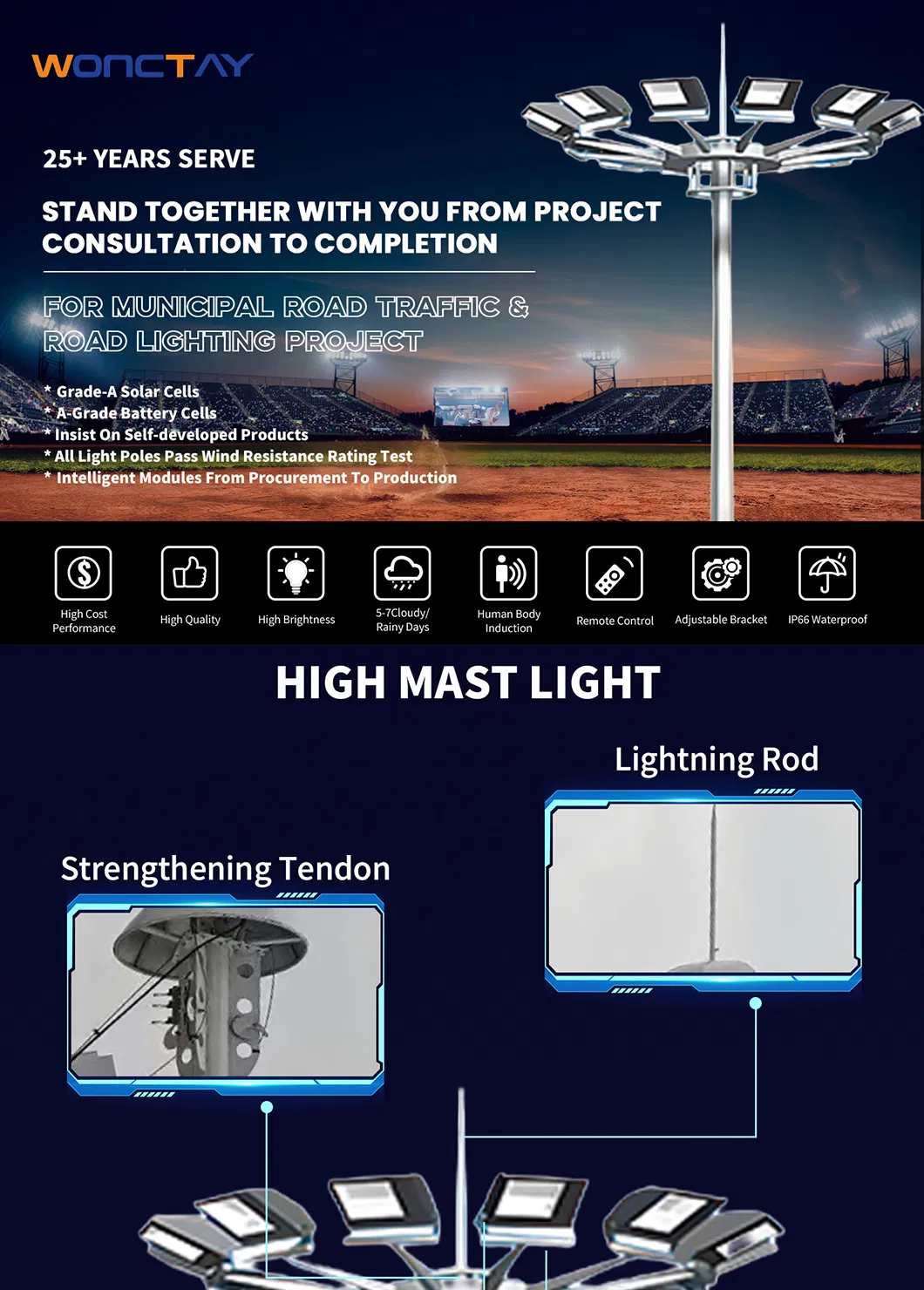

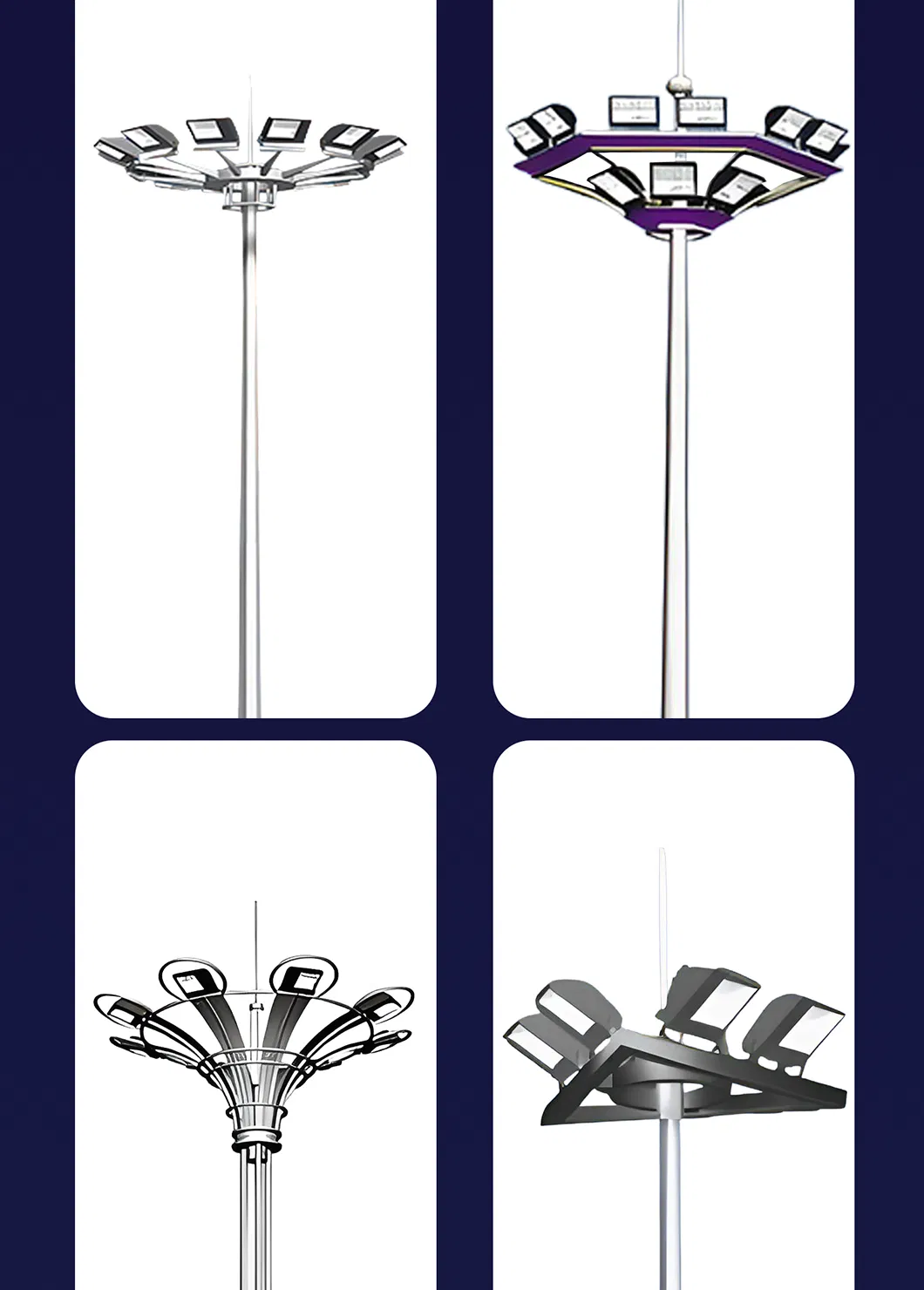

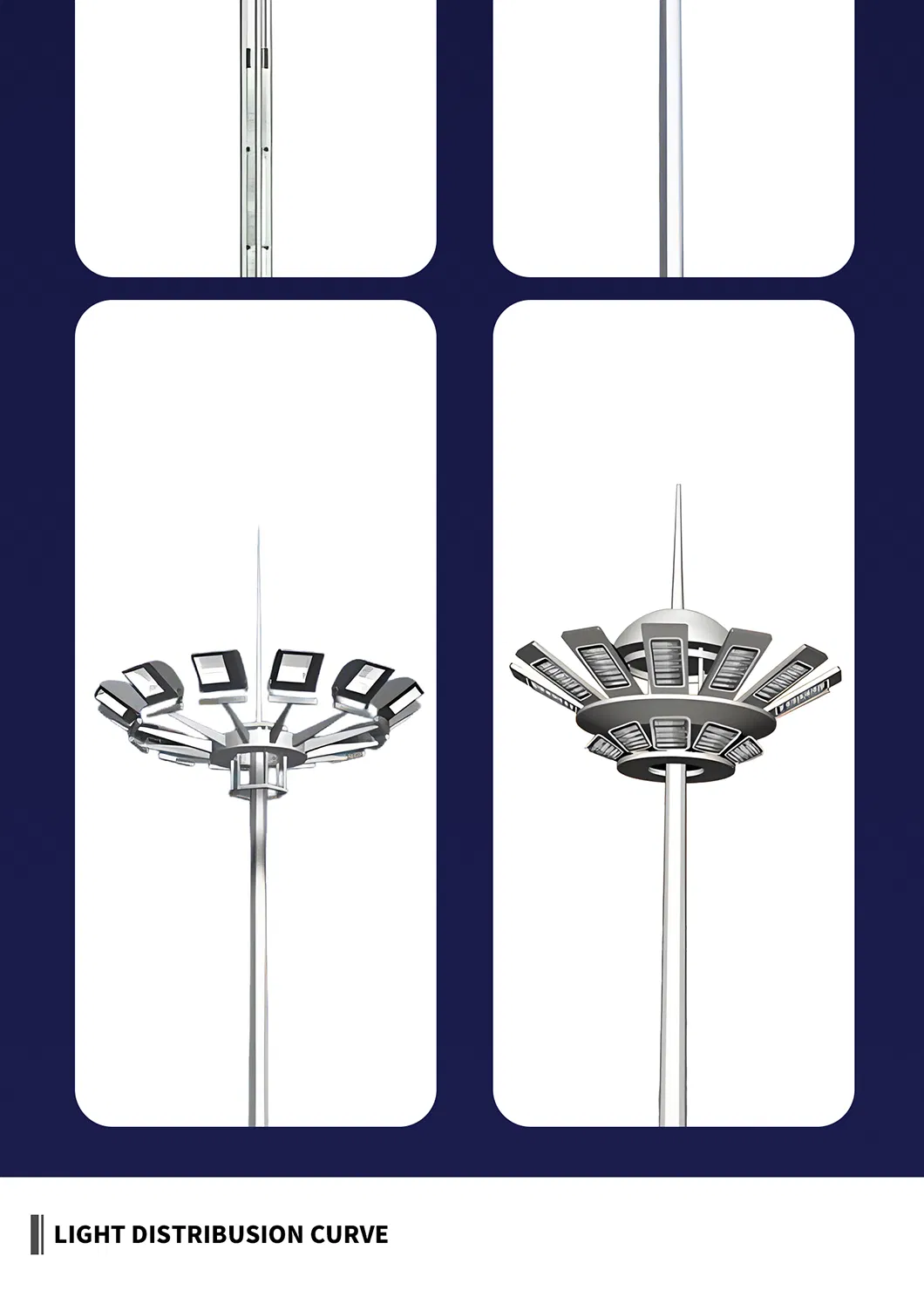

High mast light is a large lighting device designed for large-scale, high-intensity outdoor lighting. It is usually composed of ultra-high poles (15-40 meters), multiple sets of high-power LED modules and intelligent control systems. Its core function is to provide wide-area uniform lighting. It is suitable for scenes that require large-area coverage and high brightness, such as squares, ports, airports, stadiums, and transportation hubs. With its high efficiency, energy saving, intelligent controllability, reliability and durability, high pole lamps have become a landmark facility for modern urban infrastructure and industrial lighting.

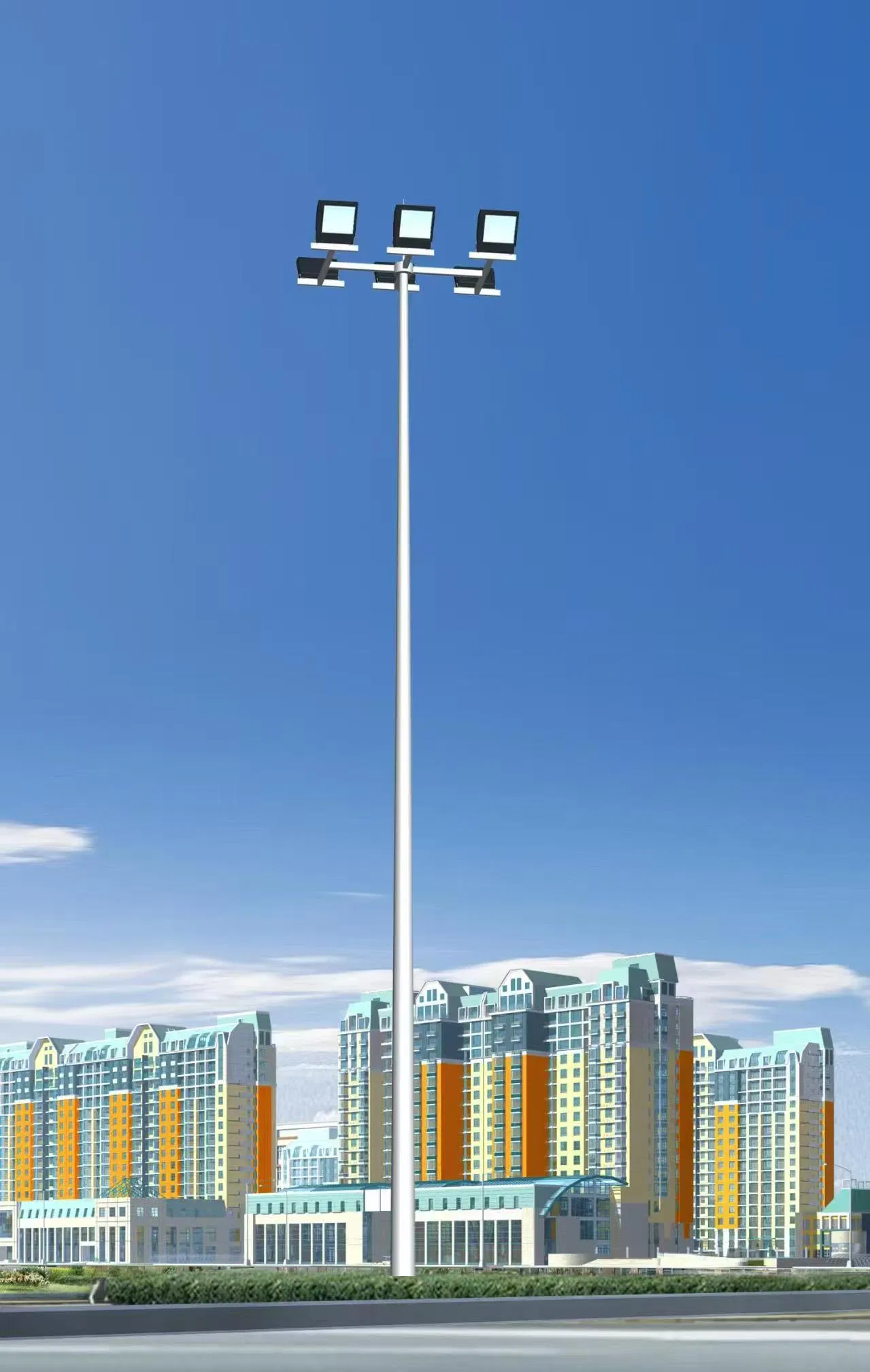

The lamp pole height is 15-40 meters, equipped with multiple sets of high-power LED modules (total power of a single pole can reach 1000W-30,000W), the lighting radius is 50-150 meters, and a single lamp covers thousands of square meters.
Professional lighting design (symmetrical/asymmetrical light type), eliminating lighting blind spots, uniformity (Uo) ≥ 0.4, meeting the "Urban Road Lighting Design Standard" (CJJ45).
Adopting high-efficiency LED light source (120-200 lumens/watt), it saves 60%-70% energy compared with traditional high-pressure sodium lamps, and has lower long-term use costs. Support time-sharing dimming (such as automatic power reduction after midnight) to further reduce energy consumption.
Integrated Internet of Things (IoT) module, supports remote control, fault monitoring, brightness adjustment, and can be connected to the smart city management platform. Optional human body sensing and traffic sensing functions to achieve "on-demand lighting".
The lamp pole is made of hot-dip galvanized steel or aluminum alloy, with plastic spraying on the surface for corrosion resistance, and the wind resistance level is above level 12 (wind speed 40m/s). Protection level IP65/IP66, -40ºC to +50ºC wide temperature operation, suitable for coastal, high humidity, dusty and other harsh environments.

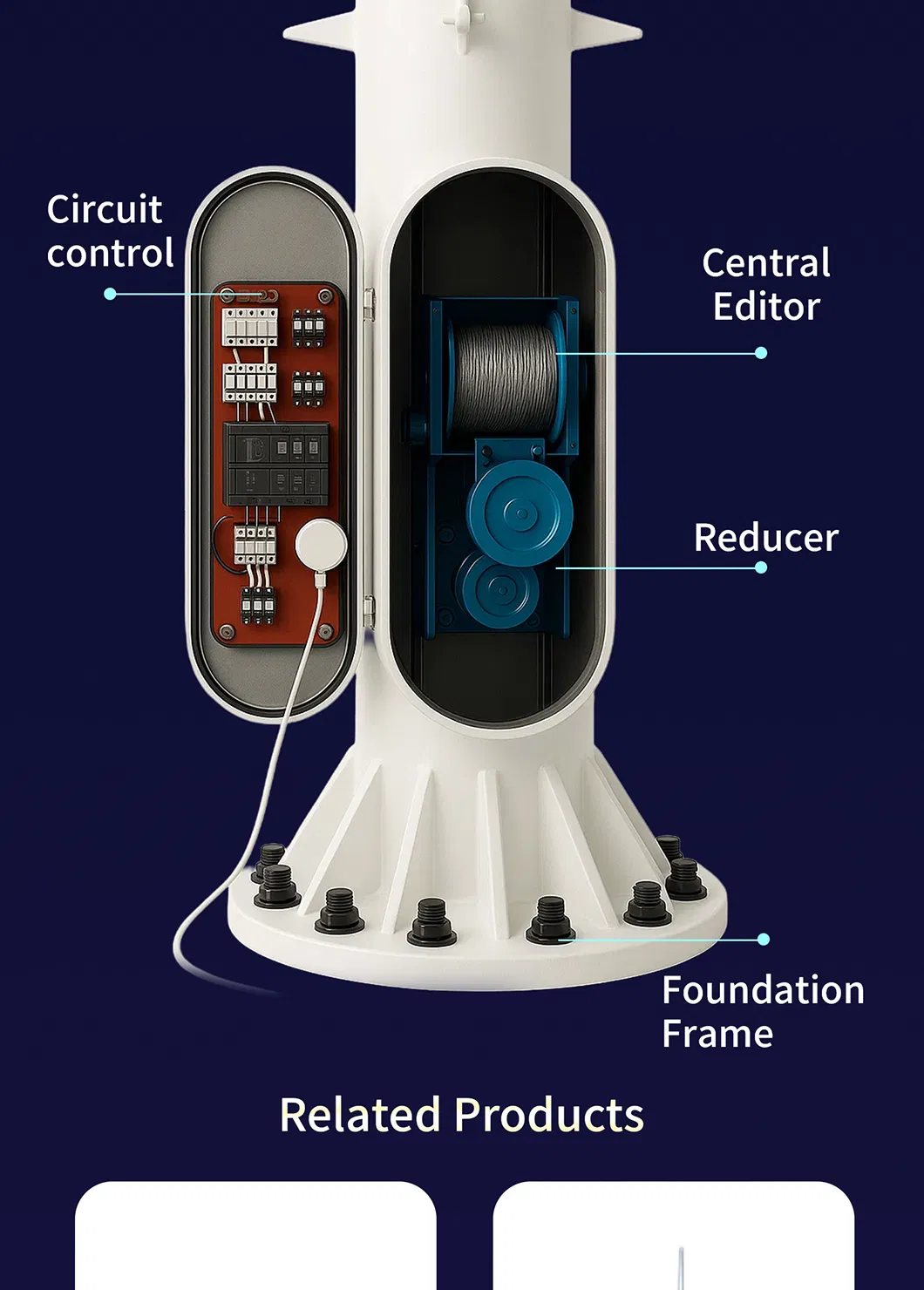

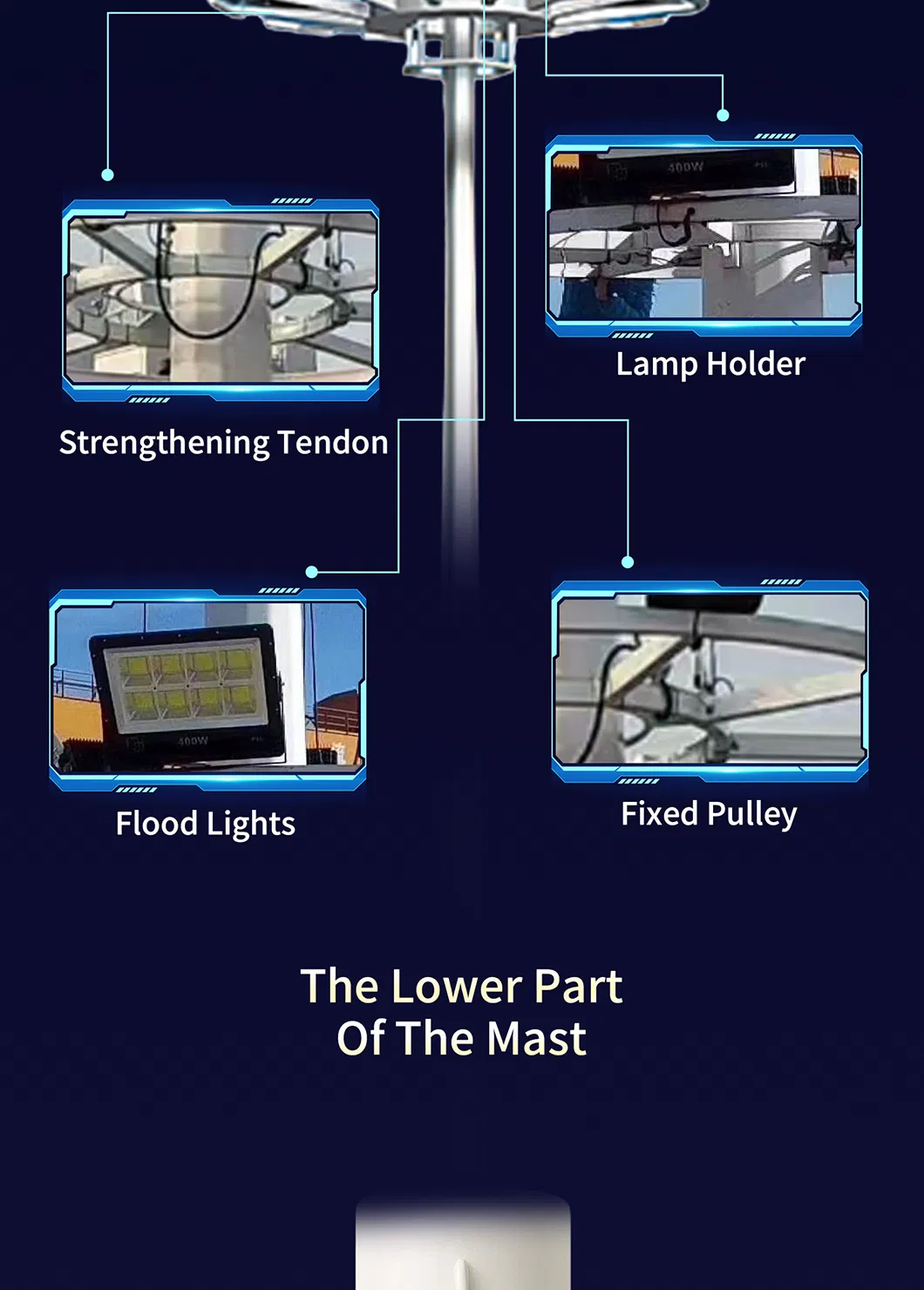

Electric lifting system: The lamp panel is automatically lifted and lowered through the winch device (2-3 meters above the ground), and maintenance does not require high-altitude operations. Modular design, light source and power supply can be quickly replaced to reduce maintenance costs.
