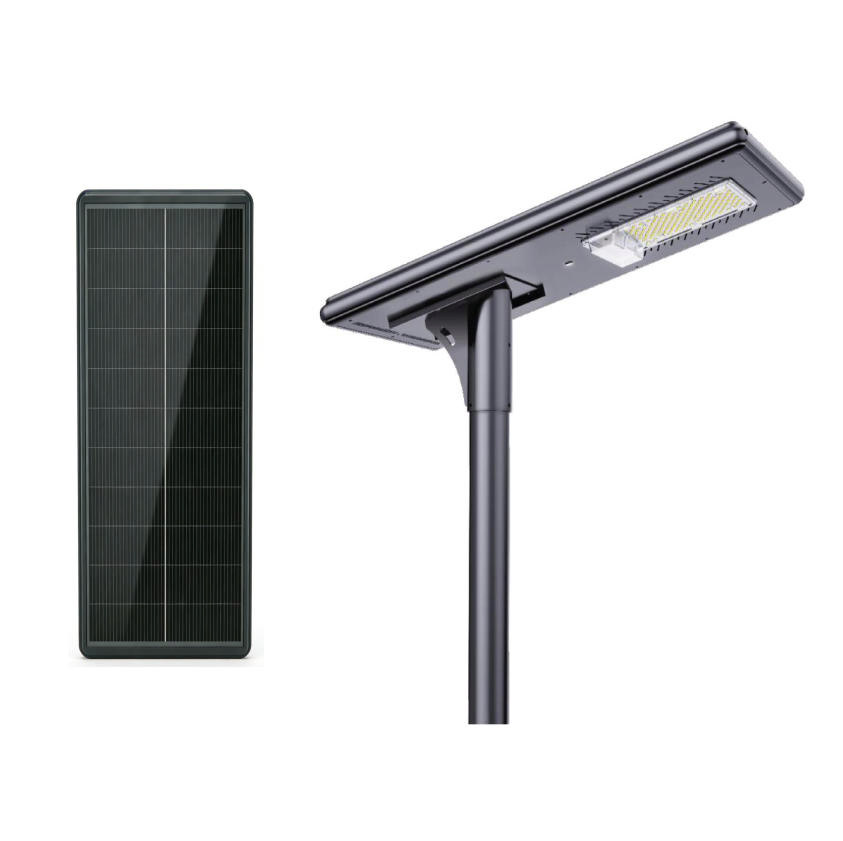

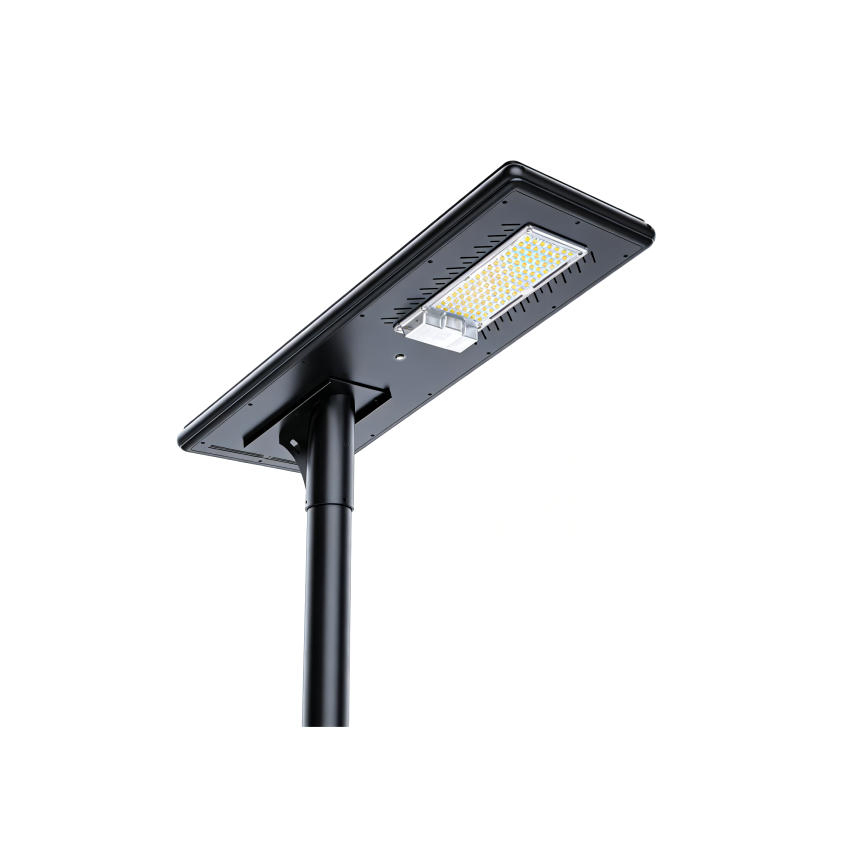

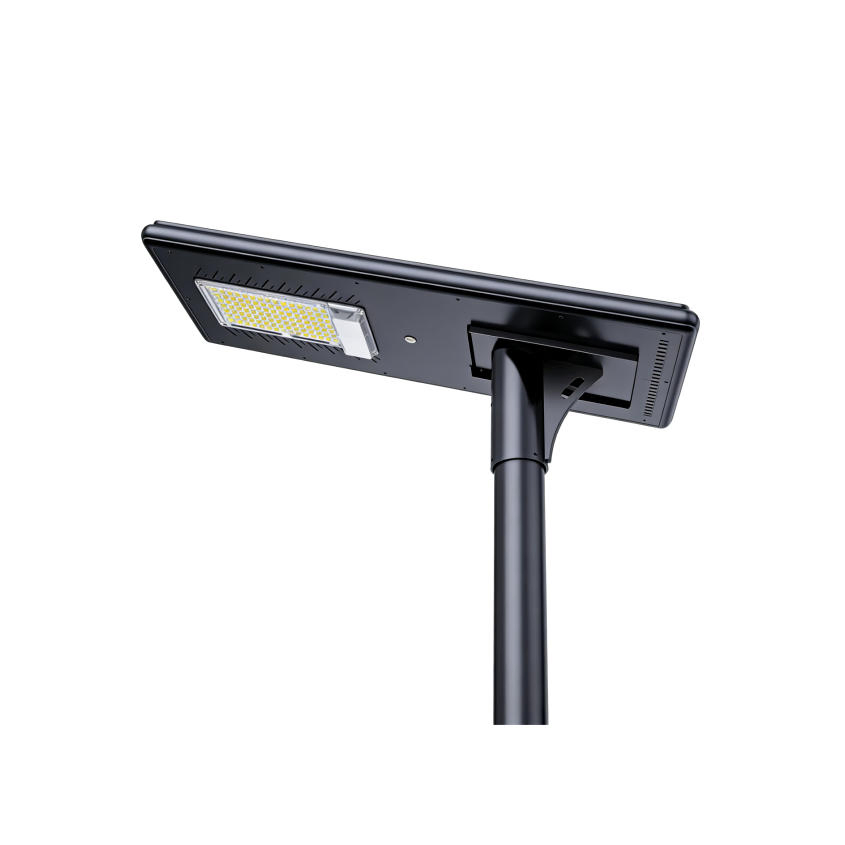

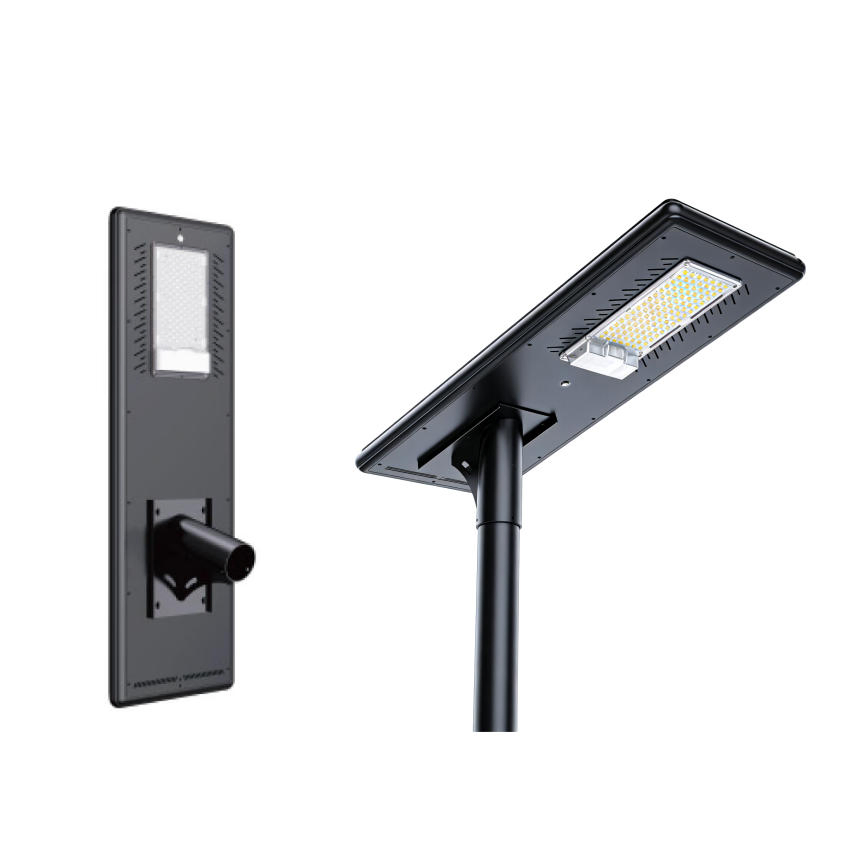

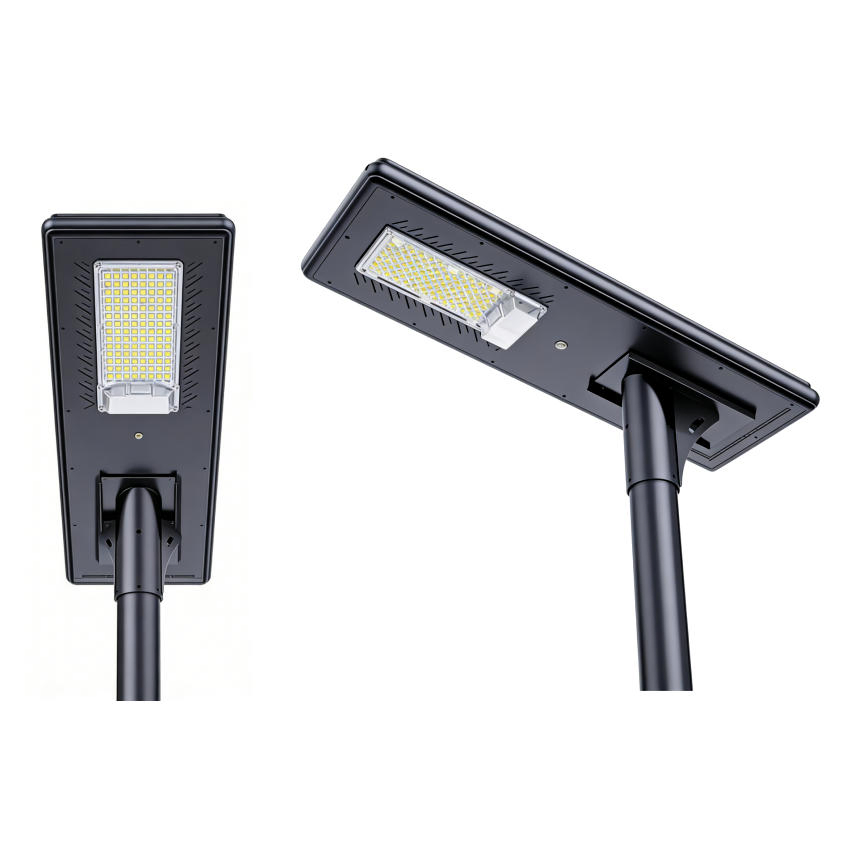

60W Modern Design High Brightness Energy Saving All in One Solar Street Light

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
ZDK-40
Material
Aluminum Alloy
Light Type
Solar
Color Temp
Cool/Warm/Pure White
Power
≥30W, 60W
Illumination Time
12h
Battery Type
LiFePO4
IP Rating
IP65
Certification
CE, RoHS
Solar Panel
60W Mono
Solar Street Light Overview

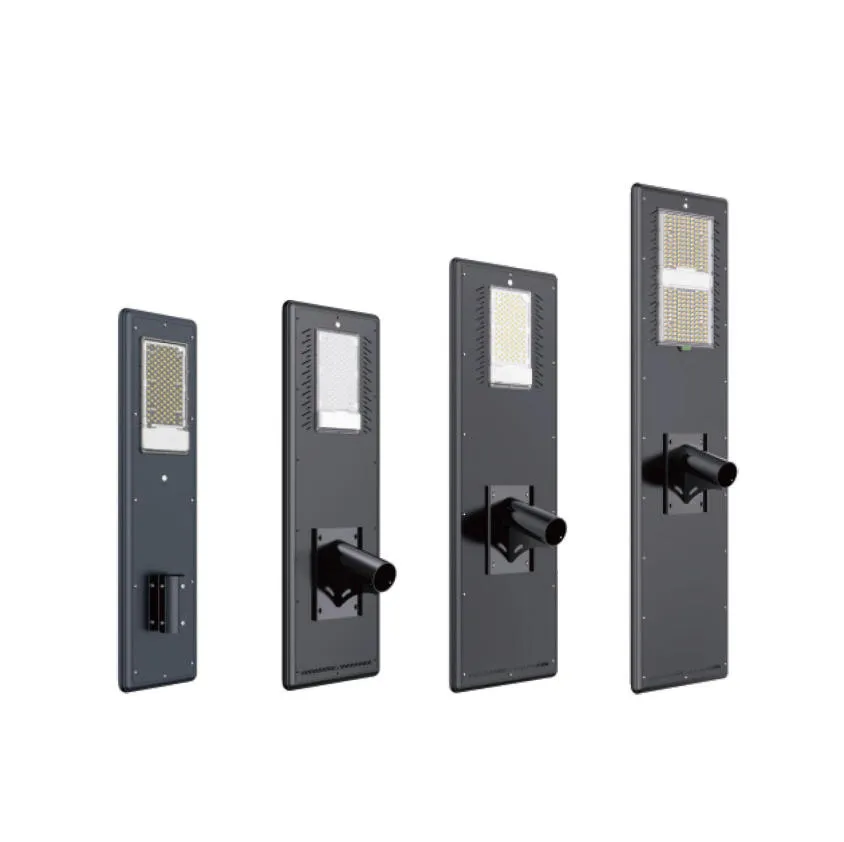

Design Details
Product Description
ZDK Series All-in-One Solar Street Light

The ZDK series all-in-one solar street light is designed with a clean, fully integrated structure that combines the solar panel, LED module, controller, and battery into one compact unit. We focus on simplifying installation and reducing overall project costs. The tool-free mounting design enables fast deployment, making this solution ideal for large-scale outdoor lighting projects.

This solar street light features an intelligent charging and discharging system that protects the battery from overcharge and deep discharge, significantly extending battery lifespan. Adaptive brightness control and programmable timing modes allow the light to optimize energy usage throughout the night. It is engineered for streets, parks, parking areas, and municipal projects requiring durable, energy-efficient lighting systems.

Features & Advantages
Upgraded 3.2V MPPT Performance Advanced 3.2V MPPT control minimizes cell mismatch impact and isolates single-cell issues, boosting stability and lifespan by up to three times.
Flexible Dual-Axis Adjustment The lamp head supports vertical and horizontal angle adjustment, allowing precise positioning for maximum coverage.
High-Output LED Efficiency Premium A-grade LED chips deliver lighting efficiency up to 180 lm/W, ensuring brighter illumination.
IPC 5.0 Smart Power Regulation Intelligently adjusts discharge strategies based on weather, ensuring longer lighting during cloudy or rainy periods.
ICD Advanced Control Grade-A LiFePO4 battery paired with current equalization retains over 90% capacity after 2,000 cycles.

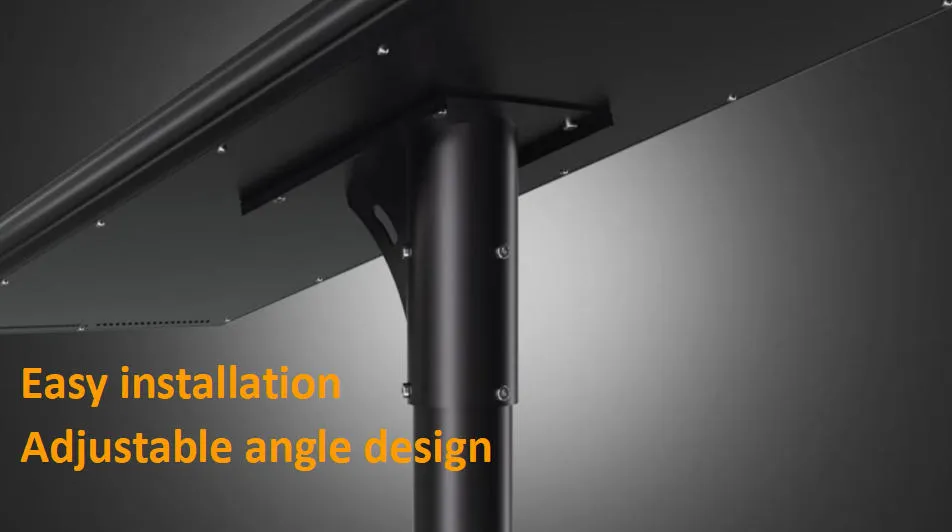

Installation

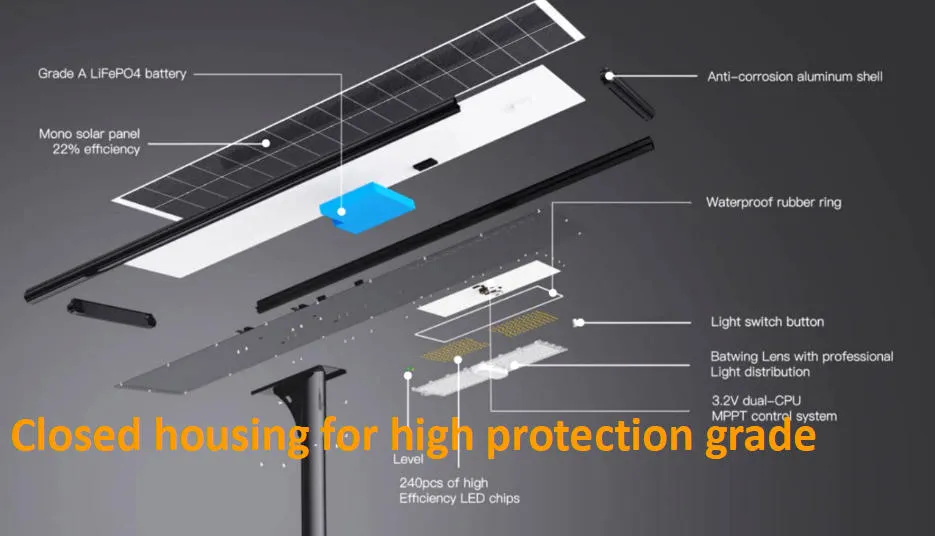

Housing Design

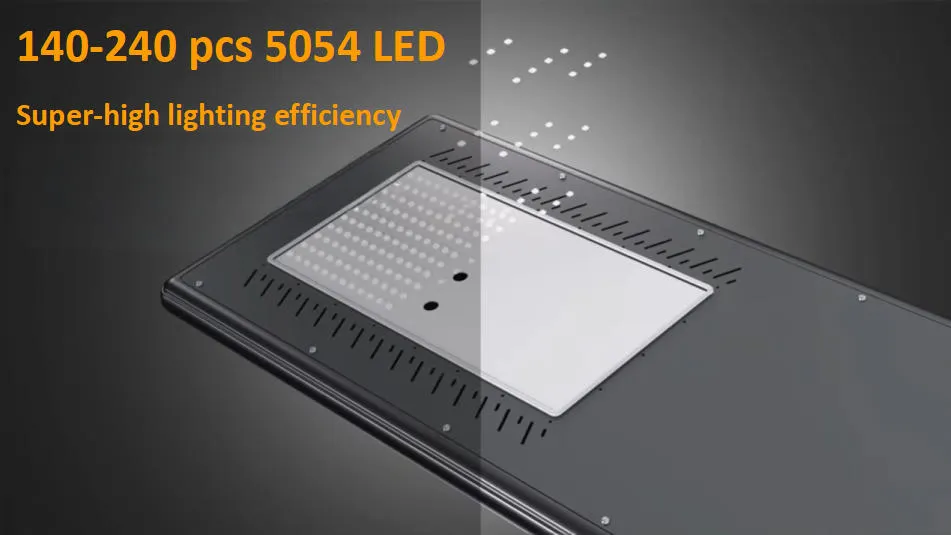

LED Chips
Technical Specifications
Model ZDK-60 ZDK-80 ZDK-120
Lamp Power60W80W120W
LED Quantity140pcs140pcs240pcs
Lumen Output6000lm10000lm15000lm
Solar Panel60W/18V90W/18V120W/18V
Battery Capacity240WH384WH640WH
Installation Height6-7m6-8m8-10m
IP GradeIP65IP65IP65
Product Size1070×330×55mm1300×430×55mm1690×430×57mm

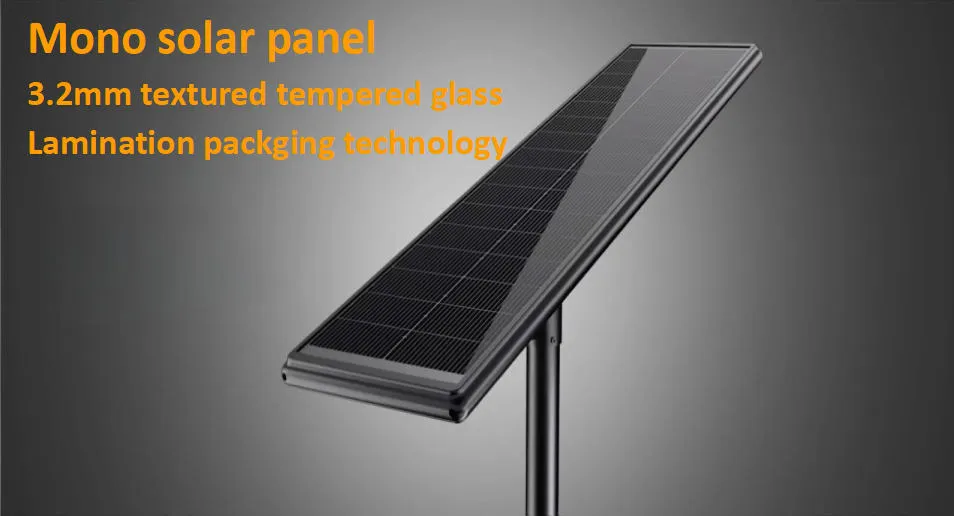

Solar Panel Tech

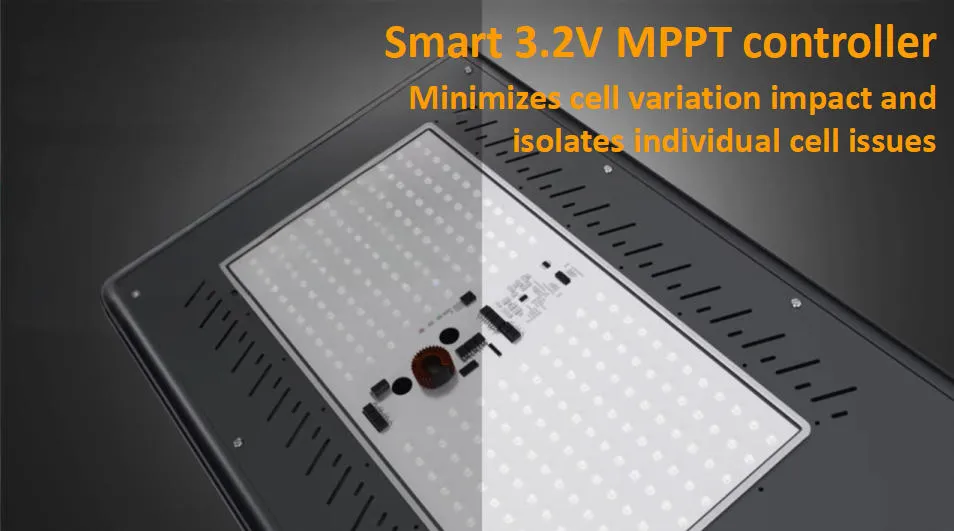

MPPT Controller
Frequently Asked Questions
Q1: What is an all-in-one solar street light?
An integrated lighting system that combines the solar panel, lithium battery, charge controller, and LED light source into a single compact unit. It is easy to install and requires no external wiring.
Q2: How many hours can the solar street light work at night?
Depending on battery capacity and sunlight conditions, it typically provides 8–24 hours of continuous lighting after a full charge.
Q3: Can the light work during rainy or cloudy days?
Yes. The built-in lithium battery is designed to support 2–5 consecutive rainy or cloudy days, depending on the specific model and configuration.
Q4: What installation height is recommended?
Recommended installation height usually ranges from 5 to 12 meters, depending on the wattage, lumen output, and road width.
Q5: Does it support motion sensors or dimming?
Yes. Most ZDK models support PIR motion sensors and intelligent dimming functions to maximize energy efficiency.
Q6: What materials are used for the housing?
The housing is typically made of high-quality die-cast aluminum with an anti-corrosion coating, suitable for harsh outdoor environments.
