6meters Pole 36W CREE Chip LED Split Solar Street Lights

1 / 5

6meters Pole 36W CREE Chip LED Split Solar Street Lights

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

6-8-10M-S7 Sox Solar Street Light

Material

Q235 Hot-dip galvanized steel

Lamp Power

36W

Power Supply

Solar

Average Life

18000 Hrs

IP Rating

IP65 / IP68

Voltage

12V

Design Type

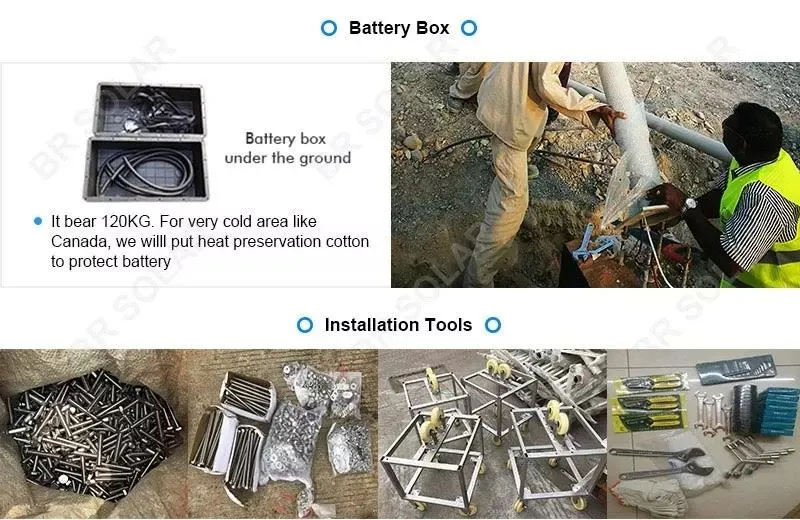

With Battery Bury Under Ground

Certification

CE, RoHS, CCC, ISO, FCC, EMC

Capacity

2000PC/Month

Product Description

💡

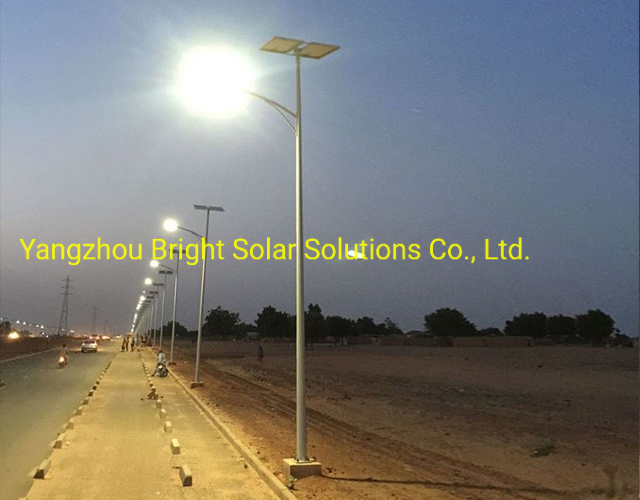

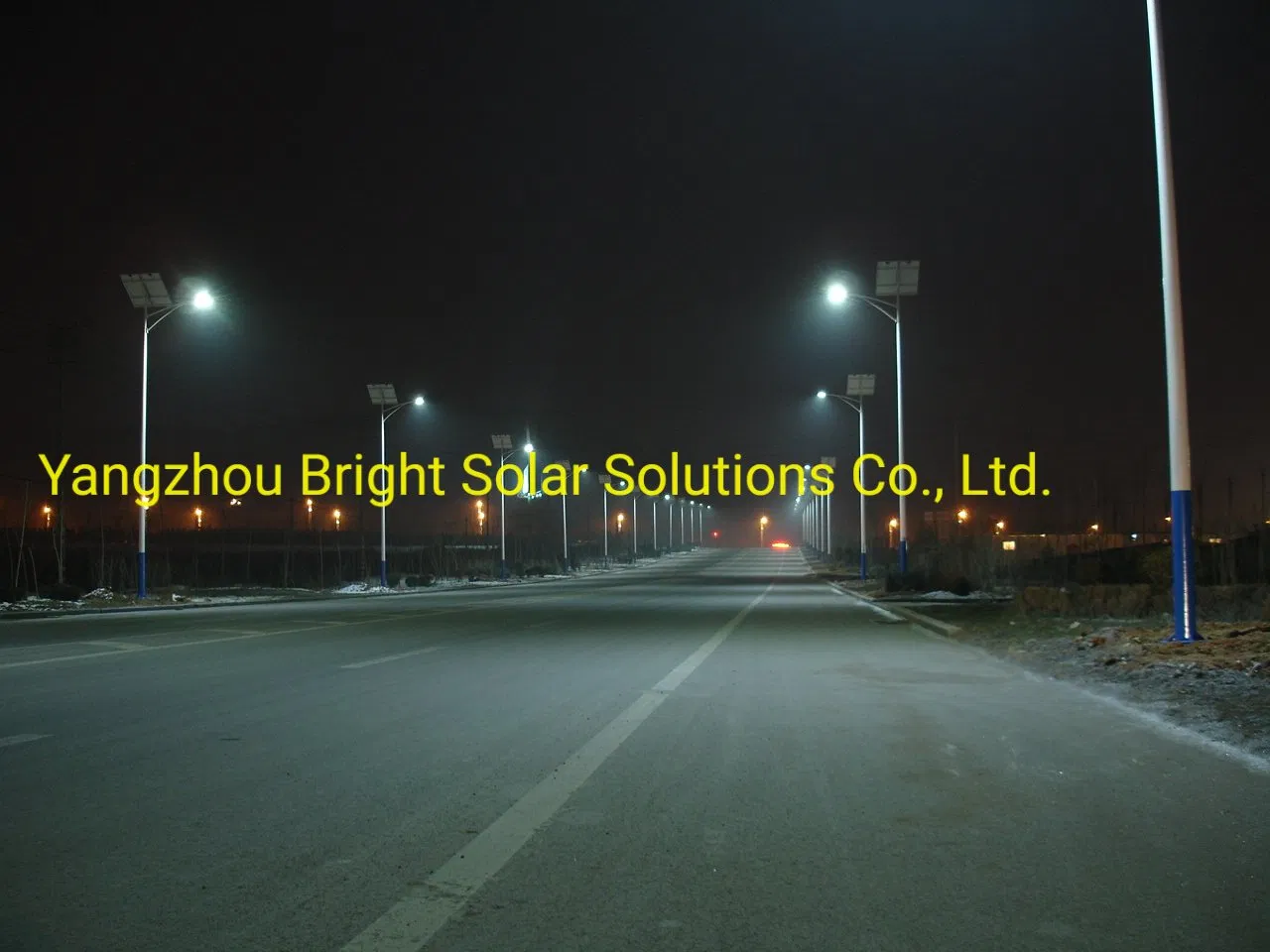

6 Meters Pole 36W Cree Chip LED Split Solar Street Lights
High-performance lighting solution for highways, squares, and gardens.

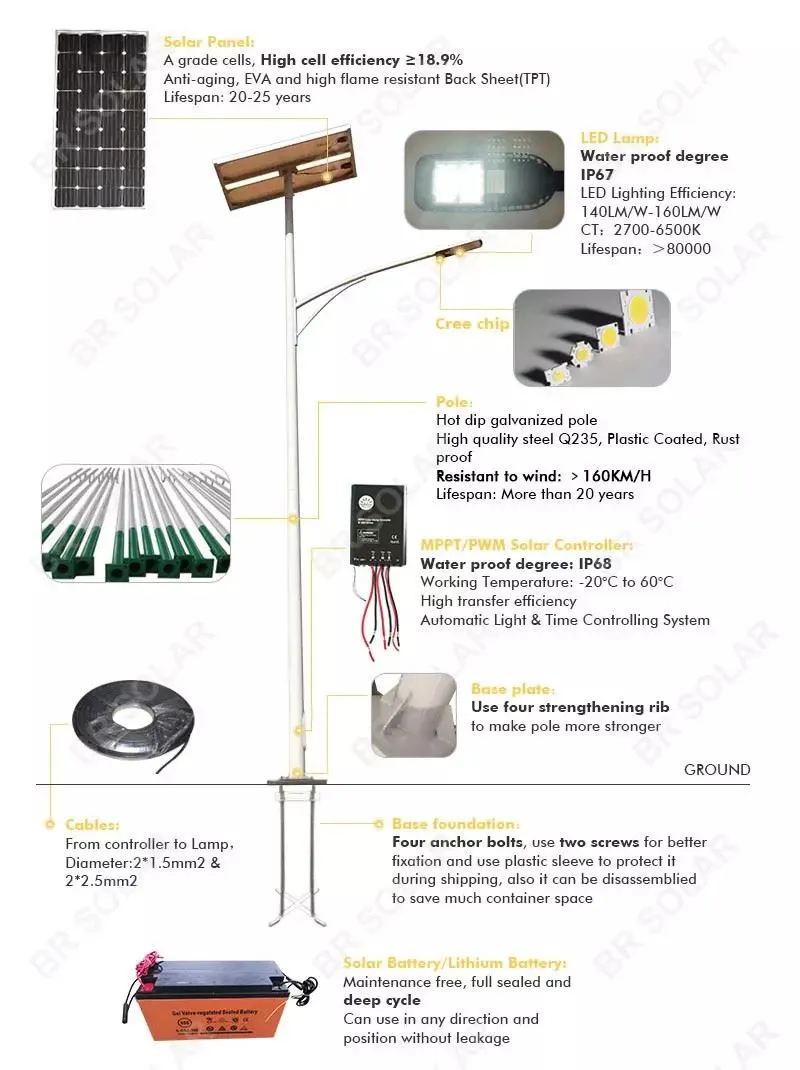

Technical Description:
• Pole Height: 4M-12M. Material: plastic coated on hot-dip galvanized steel pole, Q235, anti-rust and wind resistance.
• LED Power: 20W-120W DC type, 20W-500W AC type.
• Solar Panel: 60W-350W MONO or POLY type solar modules, A grade cells.
• Intelligent Solar Controller: IP65 or IP68, Automatic light and time Control. Over-charging and over-discharging protection.
• Battery: 60AH/12V-250AH/12V*2PC. Fully-sealed maintenance-free gelled battery.
• Lighting hours: 11-12 Hrs/Night, 2-5 backup rainy days.

4.0KWH Design Specification (11-12 Hours/Night)

Pole Height	LED Lamps	Solar Panel	Solar Battery	Controller
6M	30W	140W*1pc, Poly	120Ah/12V*1pc	10A/12V
7M	40W	80W*2pcs, Poly	150Ah/12V*1pc	15A/12V
8M	60W	140W*2pcs, Poly	120Ah/12V*2pcs	15A/24V
9M	80W	160W*2pcs, Mono	150Ah/12V*2pcs	20A/24V

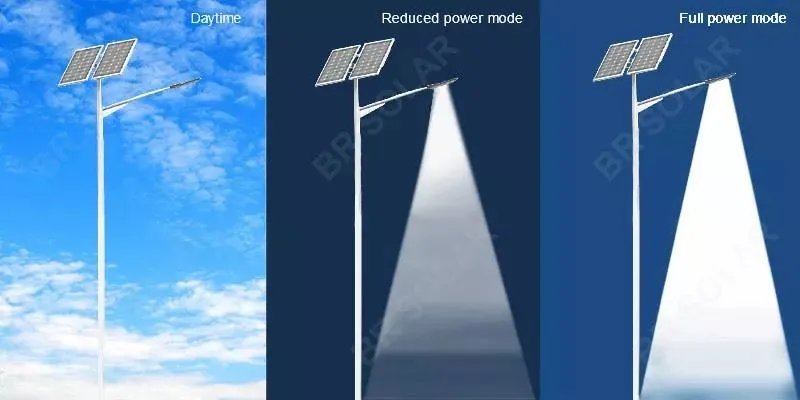

Intelligent Lighting Mode

Quality Assurance & Components

We prioritize A-grade materials for long-term stability and efficiency.

Feature	Standard Solution	Our High-Efficiency Panel
Solar Cells	B grade cells	A grade cells
Conversion Rate	~15%	Up to 20%
Bus Bar	2 grid lines	5 silver bus bars for better conduction
Protection	2 diodes in junction box	4 diodes in junction box
Frame	Thin aluminum	Thick, wind-resistant aluminum

Key Component Advantages

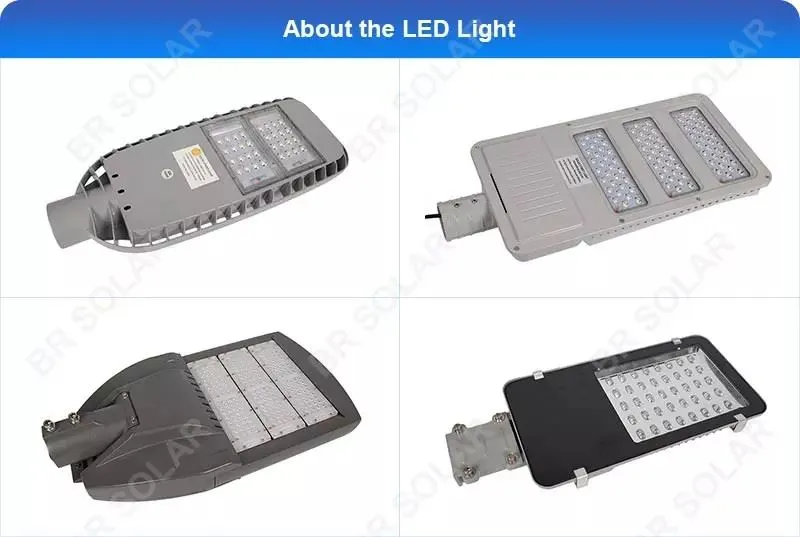

LED Lamps: High pressure die-casting aluminum, Cree chips (140LM/W-190LM/W), IP66-IP68.

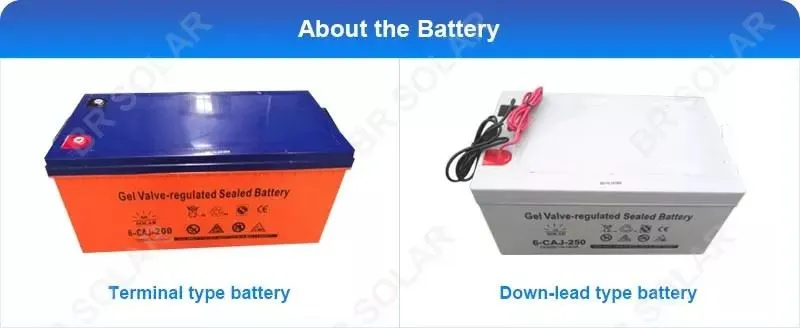

Battery: Nanomaterial Gel, IP68 waterproof, lifespan > 1000 cycles at 25°C.

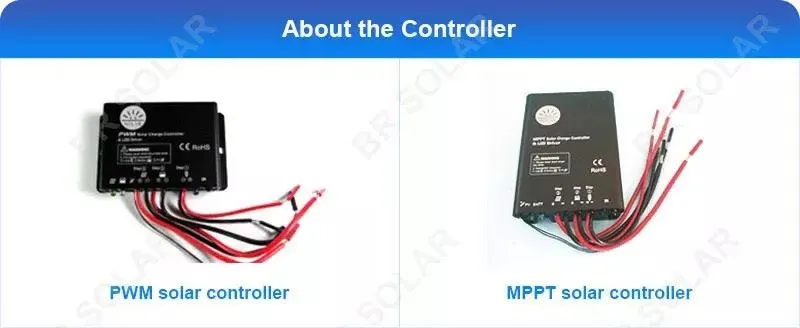

Controller: MPPT/PWM options, IP68, 98% conversion efficiency, automatic identification system.

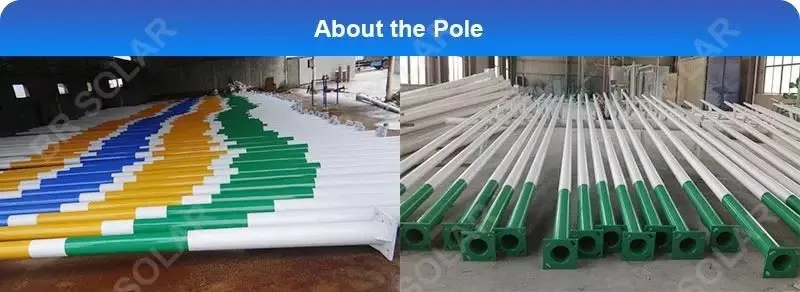

Steel Pole: Q235 hot-dip galvanized, 160KM/H wind resistance, 3mm thickness for 6M poles.

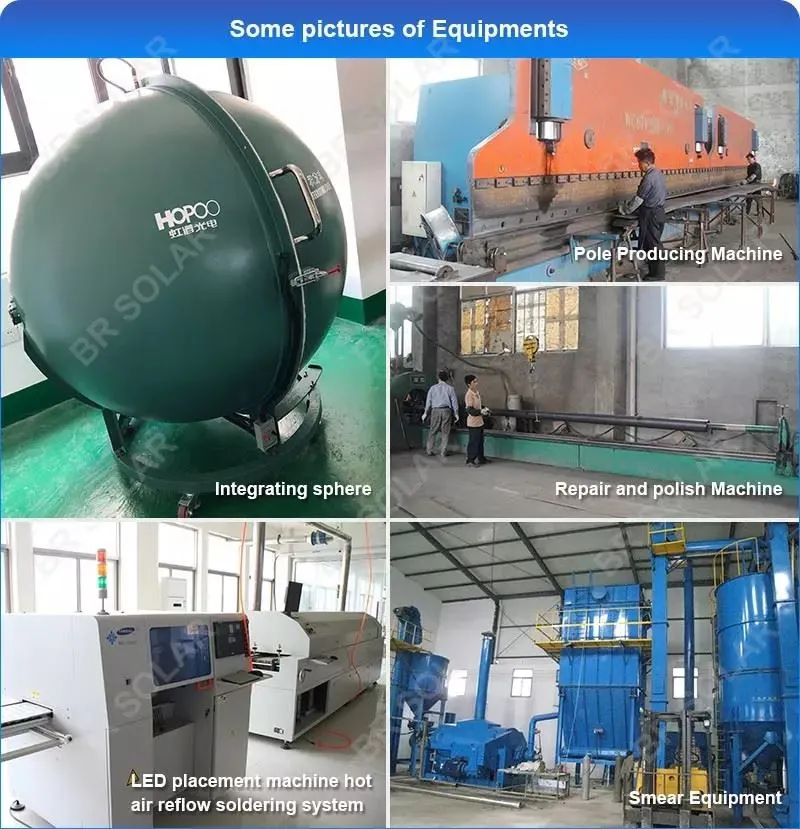

Manufacturing Excellence

Strict adherence to 6S management standards (SEIRI, SEITON, SEISO, SEIKETSU, SHITSUKE, SECURITY).

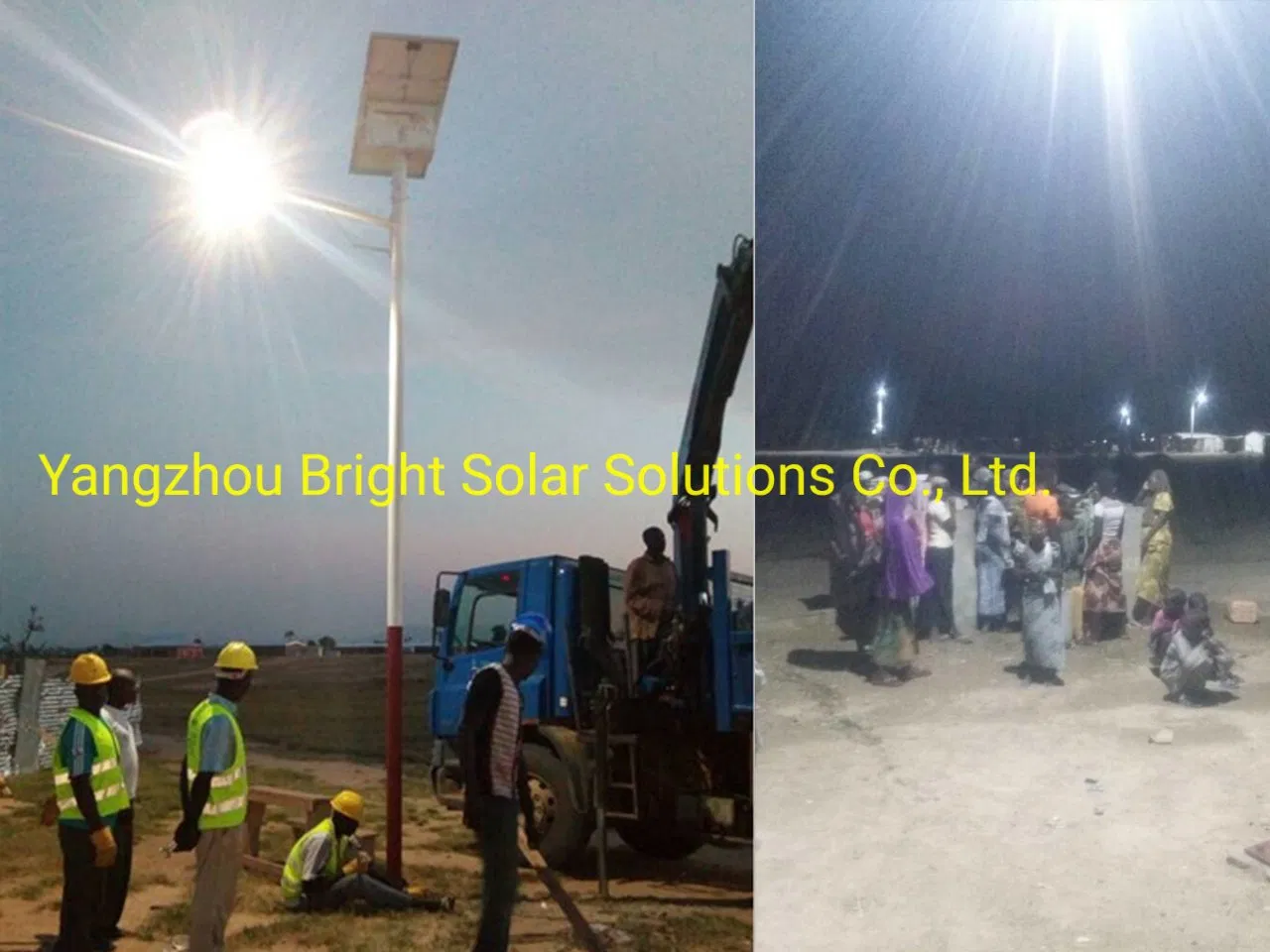

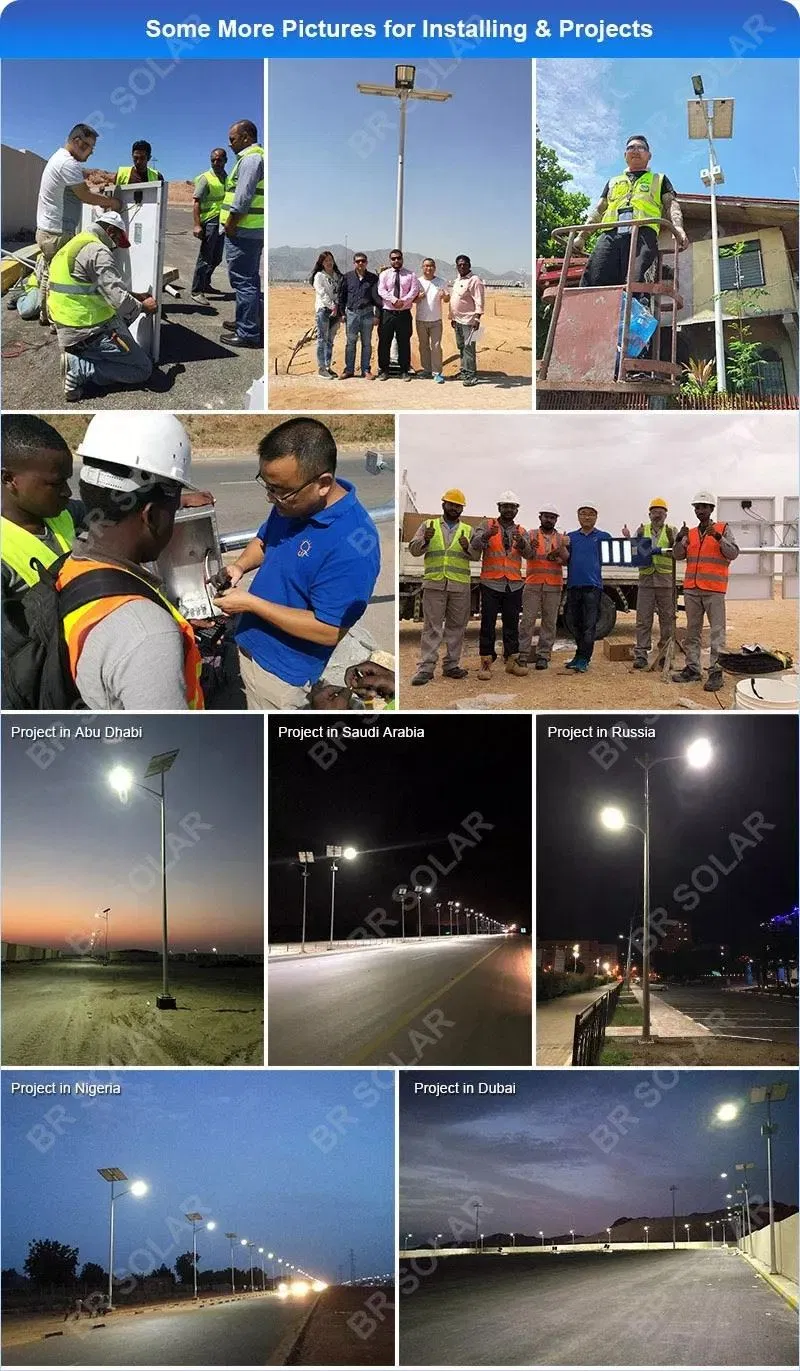

Installation & Global Presence

Frequently Asked Questions

How long does the solar street light last?

The system features an average lifespan of 18,000 hours, with batteries designed for over 1,000 cycles. We provide a 3-year standard warranty (5-year optional).

What happens during rainy or overcast days?

The system is designed with a backup capacity to support 3-5 consecutive overcast or rainy days while maintaining 11-12 hours of lighting per night.

Are the solar street lights wind-resistant?

Yes, the poles are made from Q235 hot-dip galvanized steel with a wind resistance rating of up to 160KM/H.

Is the system waterproof?

The intelligent solar controller and gel battery are rated IP68, and the LED lamp head is rated IP66-IP68, ensuring full functionality even in heavy rain.

What certifications do your products hold?

Our products are fully certified with CE, RoHS, CCC, ISO, FCC, and EMC standards, ensuring high quality for international projects.

Can the lighting mode be customized?

Yes, the intelligent solar controller supports automatic light and time control, which can be adjusted via a remote controller.
