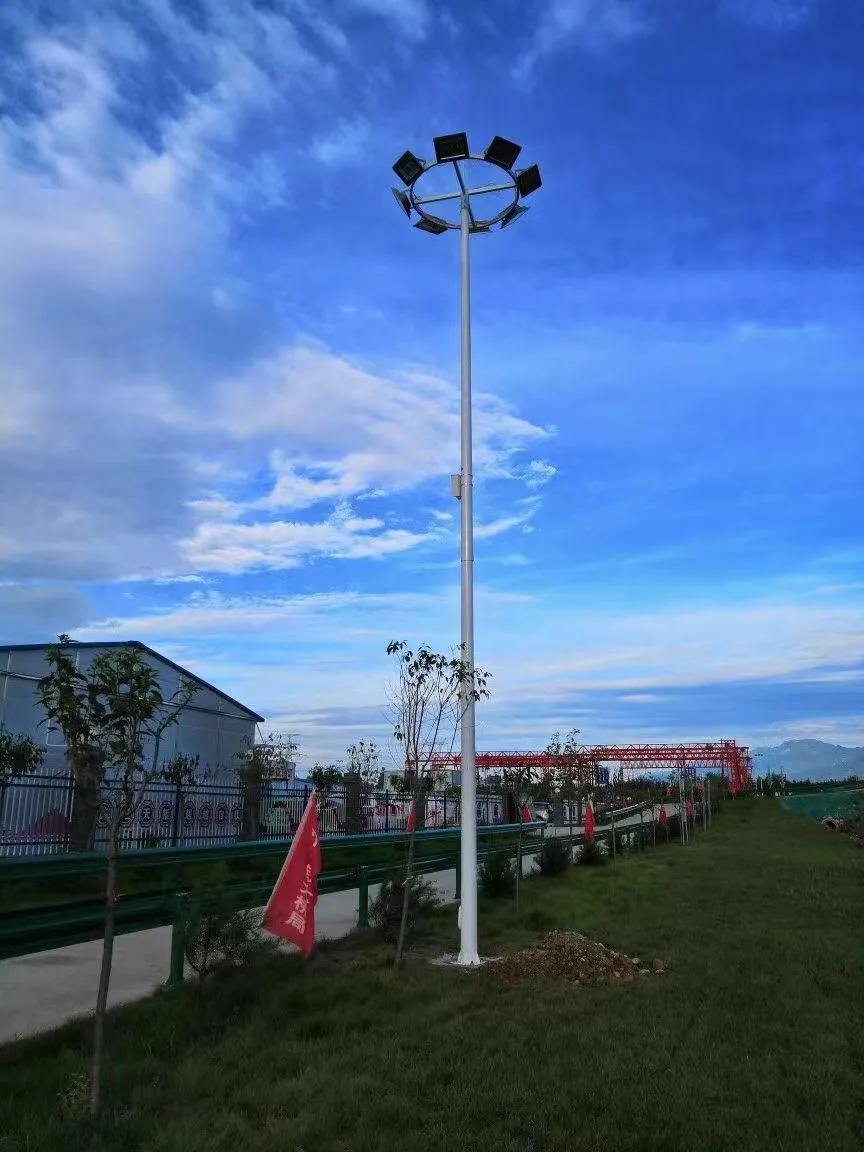

Customized Height High Mast Lighting Poles Galvanized High Pole Street Light

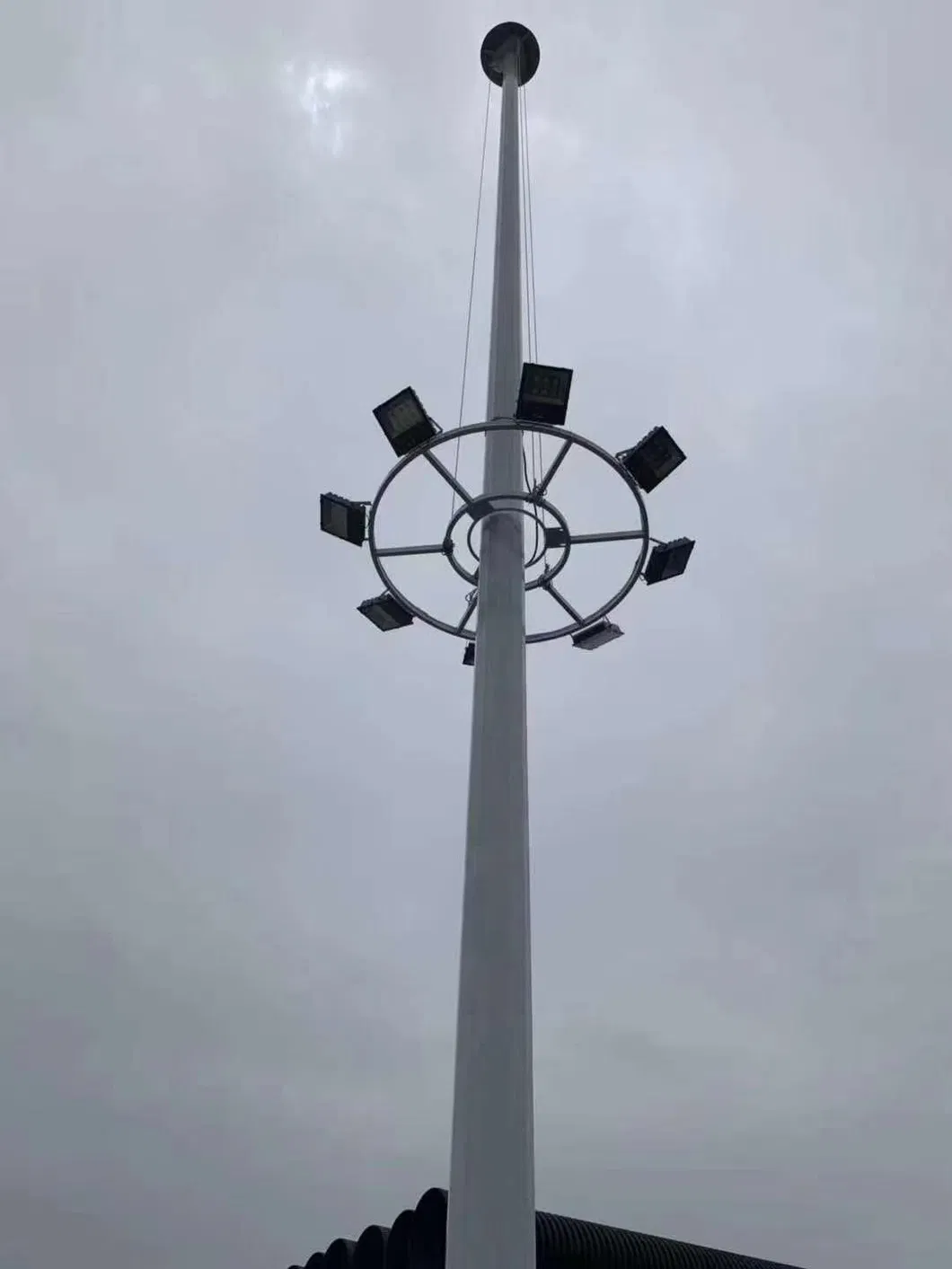

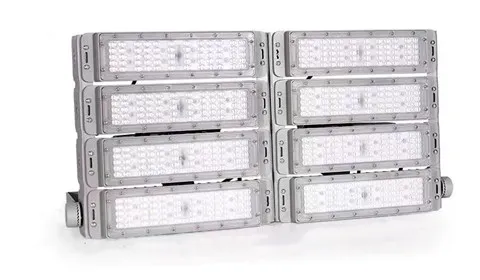

The shape of the lamp head can be determined according to requirements, the surrounding environment and the lighting needs; the internal lights are mostly composed of floodlights and LED lights with a lighting radius of up to 60 meters.

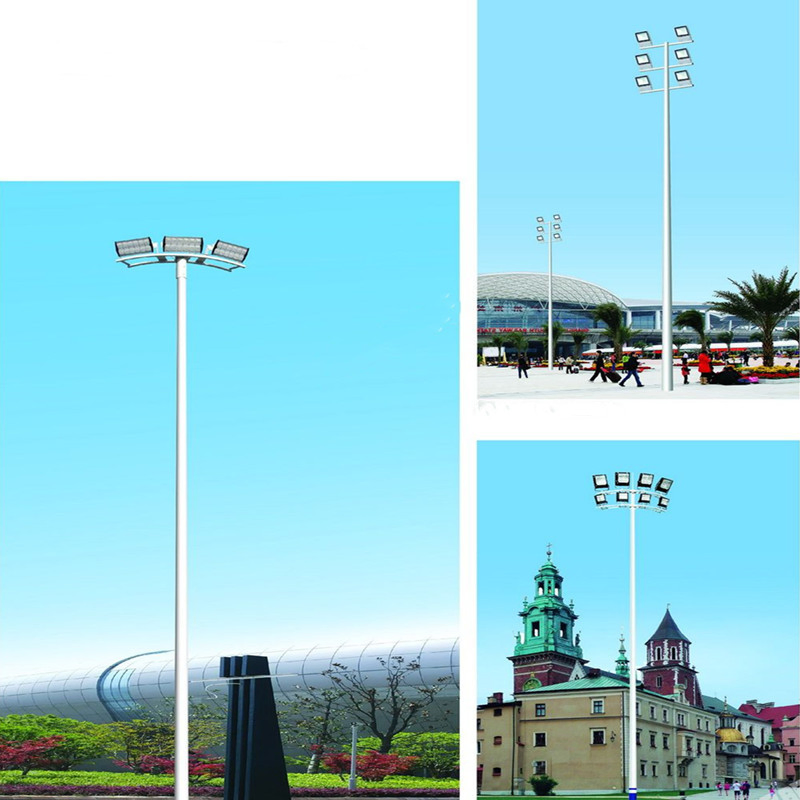

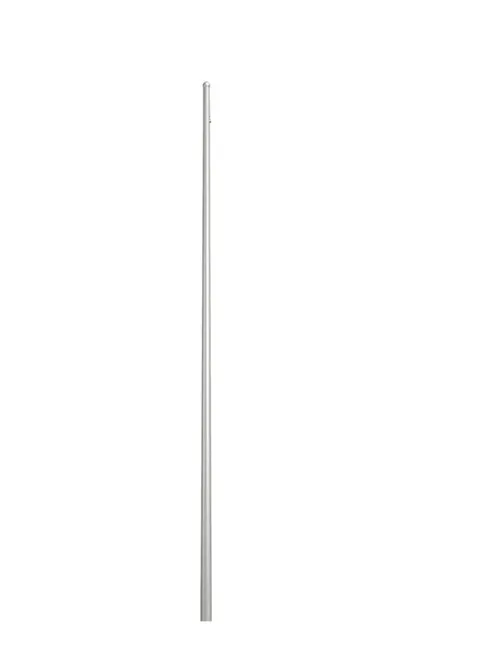

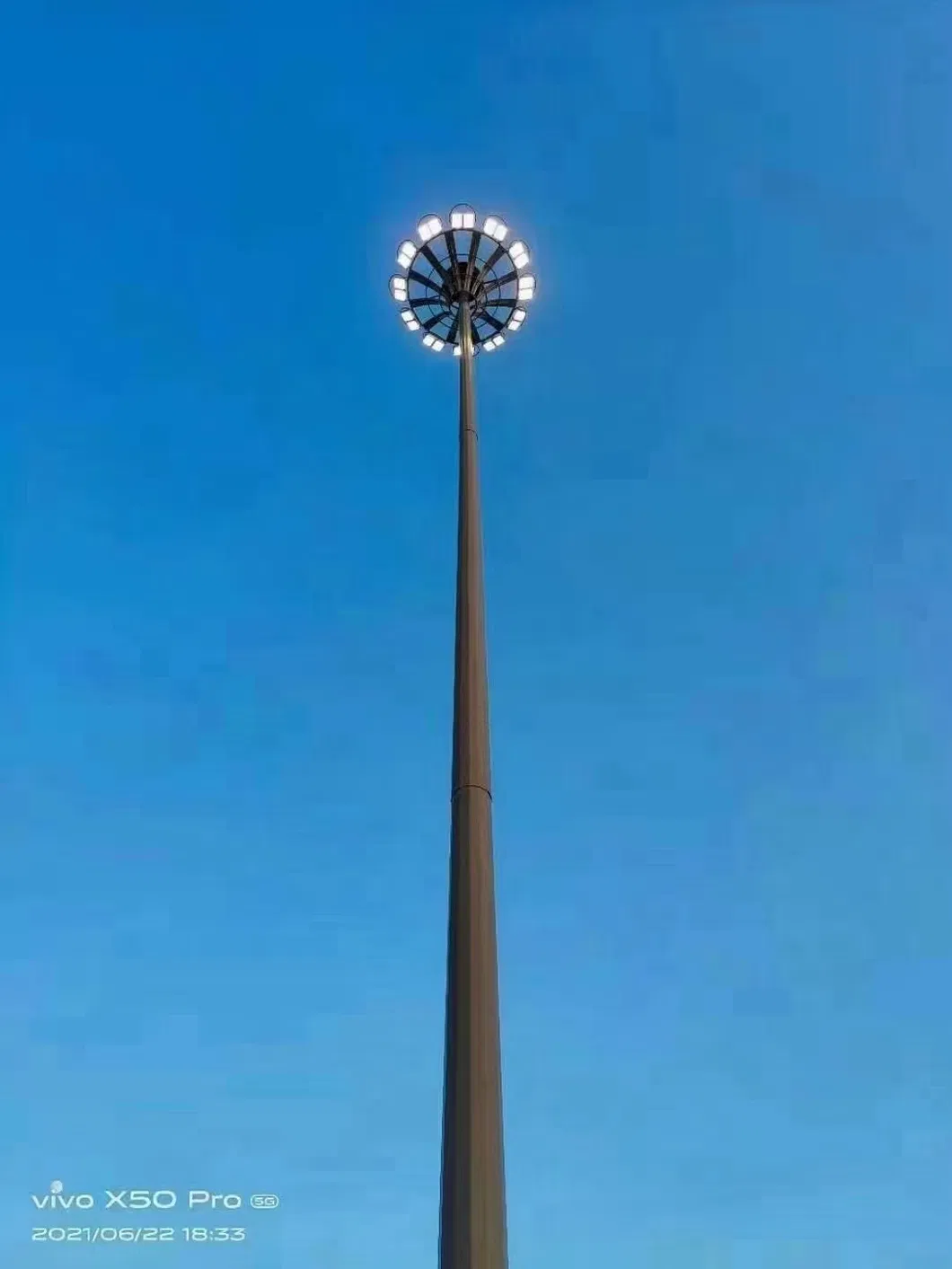

The pole body features a pyramidal structure, rolled from steel plate with heights ranging from 15 to 40 meters. It is composed of two to three sections with excellent weldability and forming ability. These conical lamp poles are designed for high power combined lamp holders.

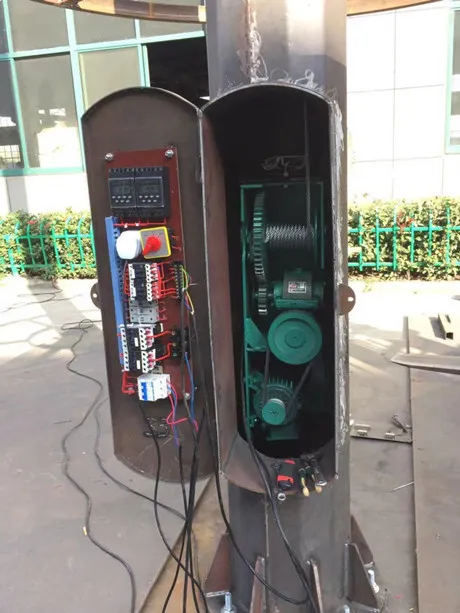

The automatic lifting system controls the movement of street lights through a mechanical structure composed of motors, reducers, and chains. Equipped with limiters and controllers to ensure safety and stability during the maintenance process.
|
Height: 4m Thickness: 2.5mm | Diameter: φ60/φ120 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 240mm*240mm*14mm |
Height: 5m Thickness: 2.5mm | Diameter: φ60/φ140 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 260mm*260mm*14mm |
|
Height: 6m Thickness: 3mm | Diameter: φ60/φ180 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 260mm*260mm*16mm |
Height: 7m Thickness: 3mm | Diameter: φ60/φ180 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 280mm*280mm*16mm |
|
Height: 8m Thickness: 3.5mm | Diameter: φ80/φ180 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 280mm*280mm*16mm |
Height: 9m Thickness: 4mm | Diameter: φ80/φ180 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 300mm*300mm*16mm |
|
Height: 10m Thickness: 4mm | Diameter: φ80/φ200 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 300mm*300mm*18mm |
Height: 11m Thickness: 4.5mm | Diameter: φ80/φ210 Material: Steel Q235 Galvanizing: 80μm | Spraying: 100μm Flange: 350mm*350mm*18mm |

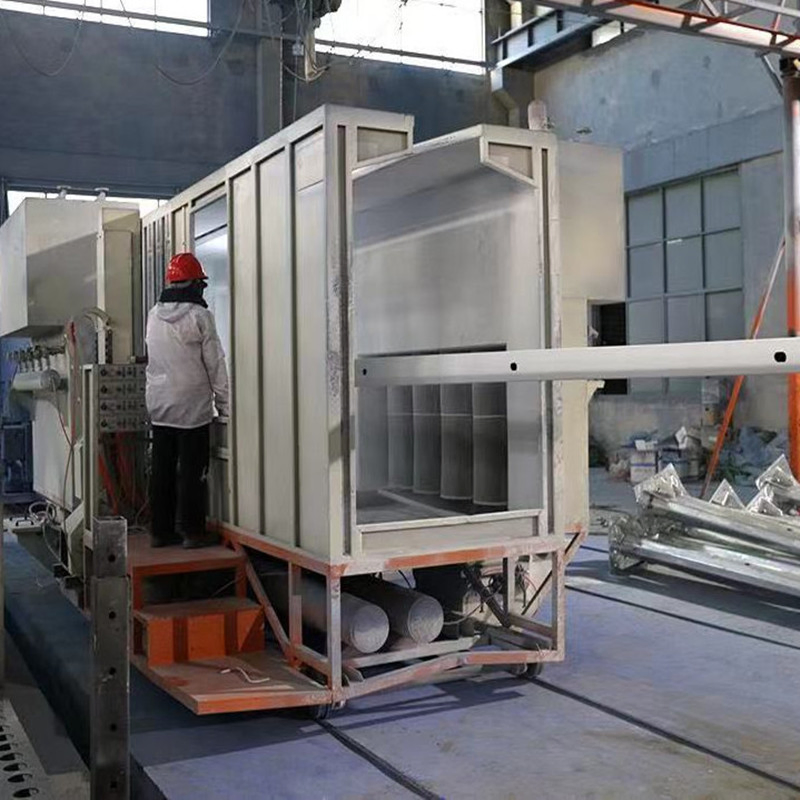

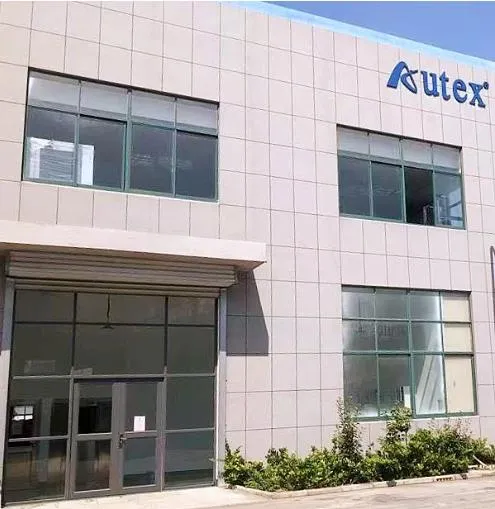

We are a high-tech group integrating R&D, design, manufacture, and technical services. Our facility covers 30,000 square meters and includes specialized workshops for street light poles, solar panels, LED lamps, lithium batteries, and laser cutting.

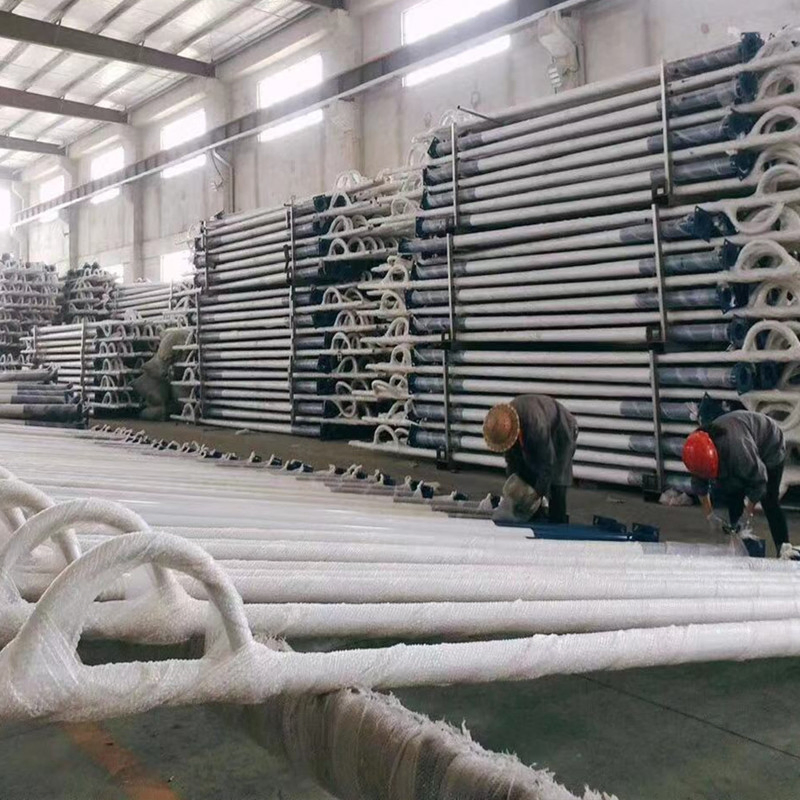

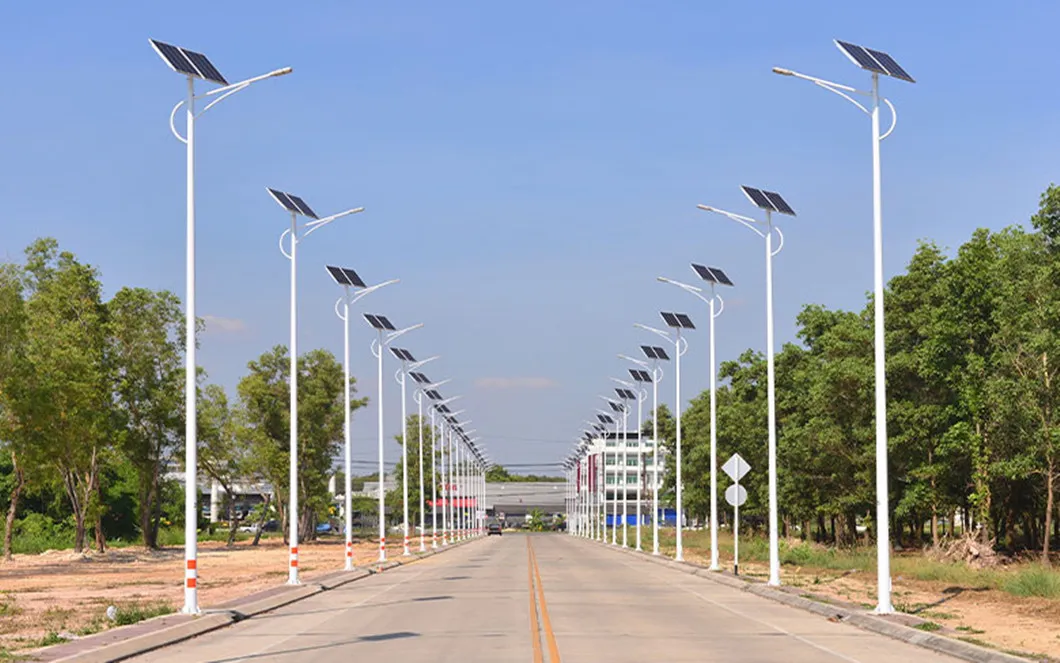

Main product lines include: Solar street lights, intelligent lighting, landscape and garden lights, solar power stations, and traffic signage. Annual output reaches 80,000 sets of solar lights and 100,000 poles, serving markets in Europe, Middle East, Southeast Asia, and Africa.
