⚡ Basic Information
Model NO.SL-C017
Lamp Body MaterialAluminum Alloy
Power60-100W
ApplicationSquare, Highway, Garden, Parking Lot
IP RatingIP65
CertificationCCC, CE, CQC, Energy Star, FCC
Input Voltage100-240V
LED Chips BrandEpistar
OriginChina
HS Code9405409000
📝 Product Description
Core Advantages:
- Competitive Pricing: Manufacturing process allows for optimized cost-efficiency.
- Timely Delivery: Guaranteed lead times to ensure project schedules are met.
- Professional Expertise: Deep knowledge of production processes and technical advice.
- One-Stop Purchasing: Full range of light equipment available to meet various needs.
Technical Features:
| Product |
Spec. |
Number |
Remarks |
| LED light |
DC40W |
1 |
High power LED chips, 3 years warranty. Luminous flux: 4000lm, 3000~6000k |
| Lamp pole |
6m |
1 |

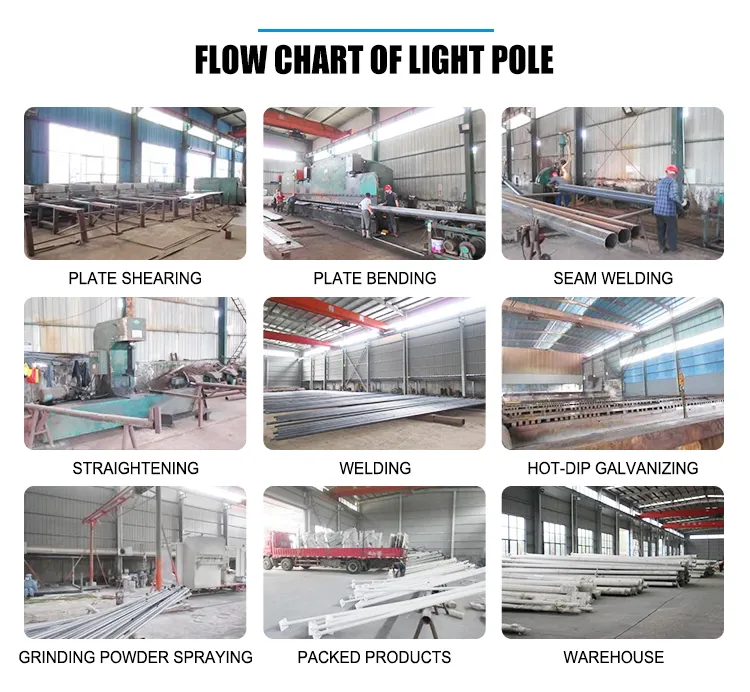

Q235B hot-dip galvanized and sprayed, wind resistant grade 10, life span 20+ years. |
| Foundation cage |
Φ16 Round steel |
1 |
Height: 75cm, Material: Q235B |
| Protection class: IP67 |
| Light source: 20W-200W LED |
| Rated voltage and frequency: 12-24-220V(±10%) 50Hz |
| Caliber: 60mm |
| Die-cast aluminum casing, anti-corrosive powder polyester coating |
| Installation height: 4m-13m |
Recommended Specification for Pole: 60W LED Street Light

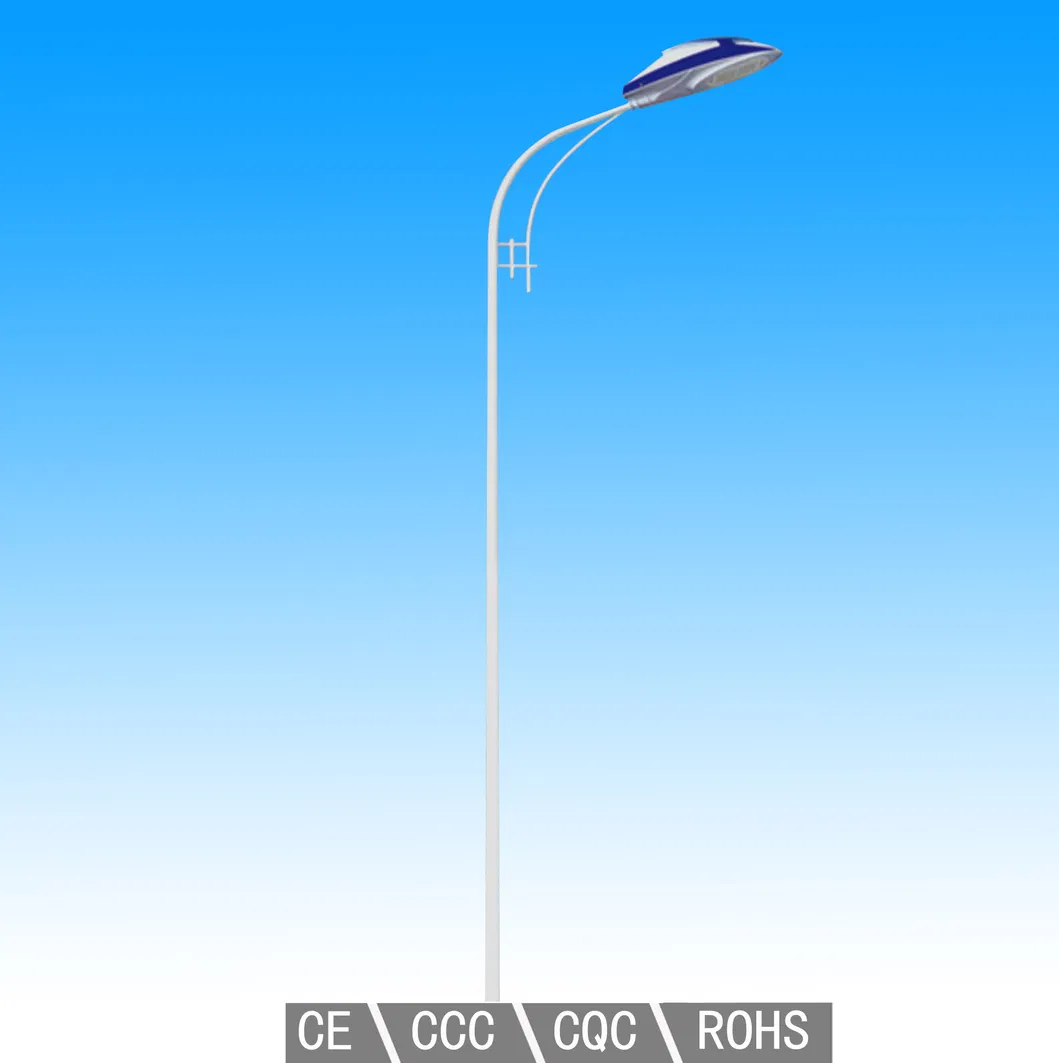

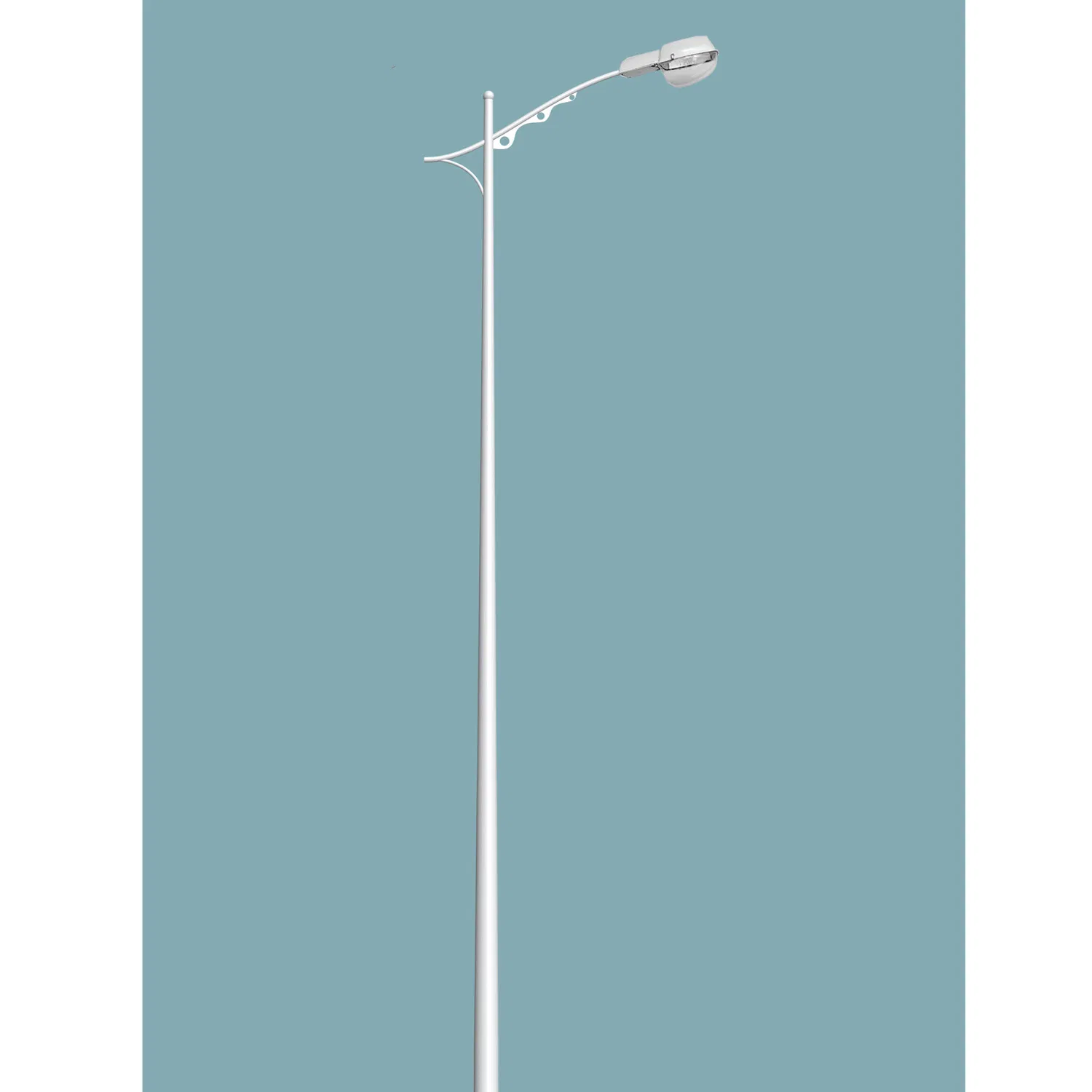

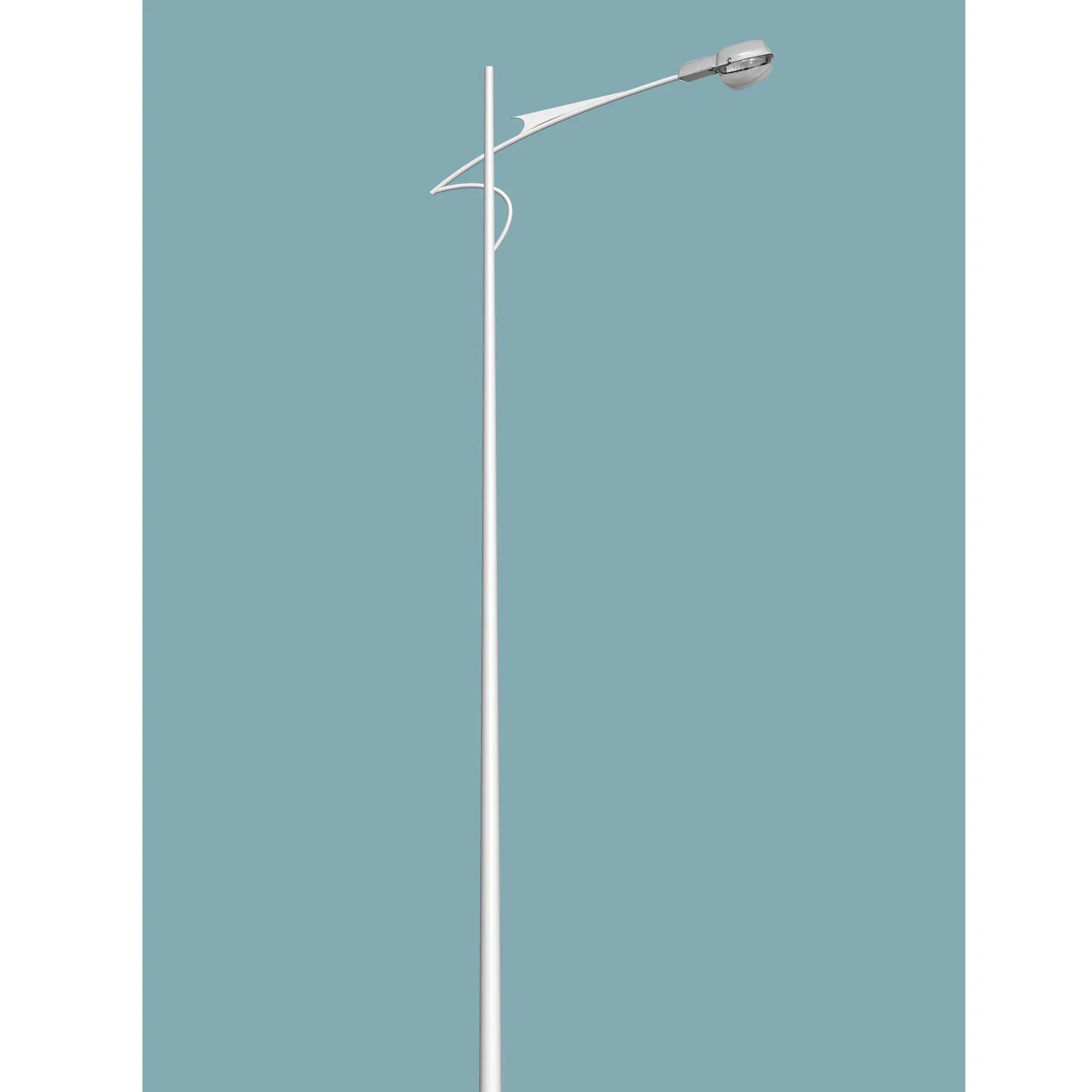

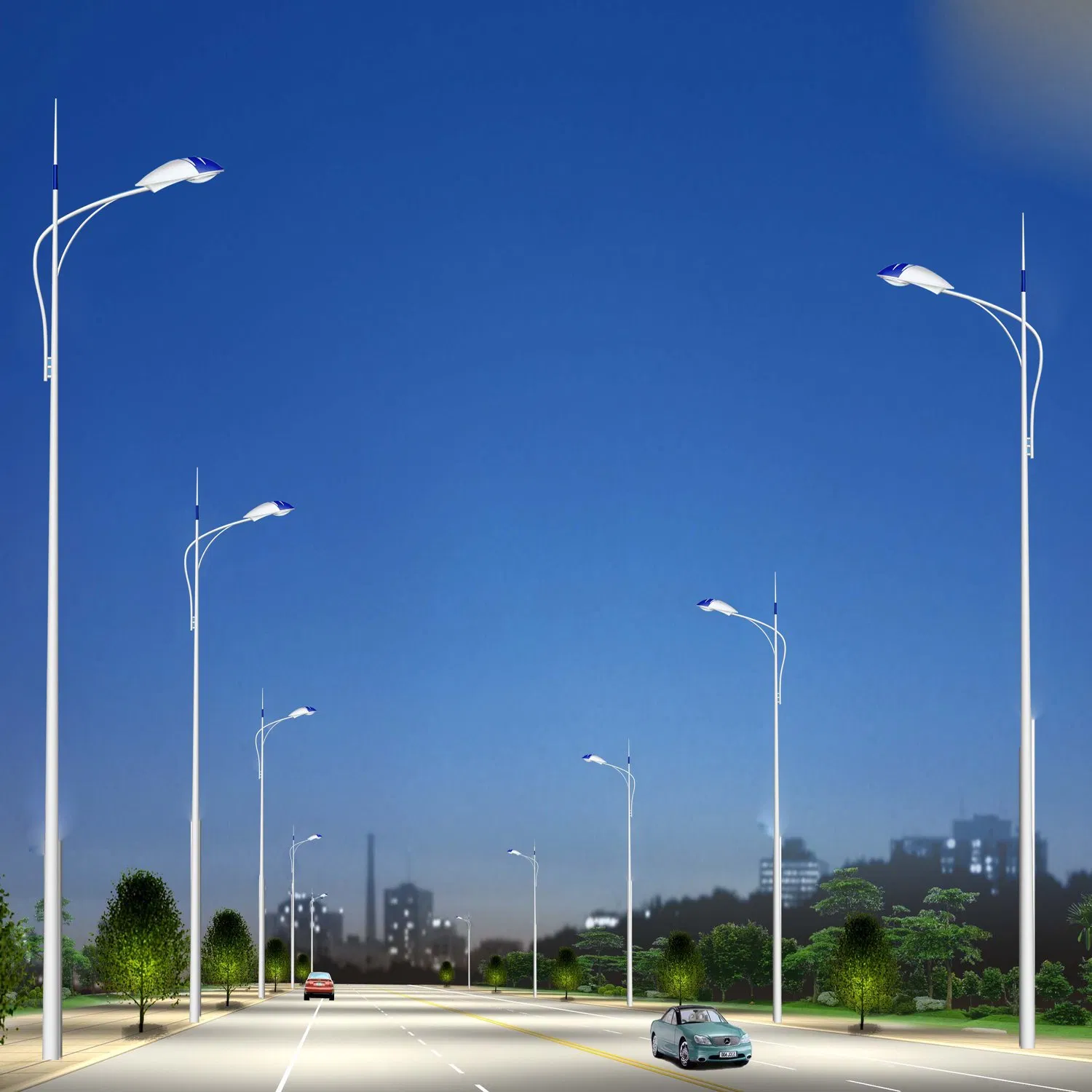

This 60W LED street light is specifically designed for outdoor use in urban areas, roadways, and public spaces, providing energy-efficient and long-lasting lighting solutions.
| Pole Height |
Aperture (mm) |
Thickness (mm) |
Flange (mm) |
| 6M | 65~140 | 2.75 | 260*260*12 |
| 8M | 70~160 | 3 | 280*280*14 |
| 10M | 80~185 | 3.25 | 320*320*16 |
| 12M | 85~200 | 4 | 400*400*20 |
❓ Frequently Asked Questions
Q1: What is the weather resistance rating of this street light?
The LED street light features an IP65 or higher rating (up to IP67 for certain components), ensuring protection against dust and heavy rain, making it suitable for all outdoor environments.
Q2: What material is used for the lamp pole?
The pole is made of high-quality Q235B steel, which undergoes a hot-dip galvanizing and spraying treatment for superior corrosion resistance and a lifespan of over 20 years.
Q3: Are the LED chips reliable?
Yes, we use high-quality Epistar LED chips known for their stability, high luminous flux (4000lm for 40W), and long-term energy efficiency.
Q4: Can the pole height be customized?
Absolutely. We offer standard pole heights ranging from 4m to 13m, with varying thicknesses and aperture sizes to meet specific project requirements.
Q5: What is the warranty period for this lighting system?
The LED light source typically comes with a 3-year warranty, while the lamp pole structure and solar supports include up to a 10-year warranty against structural defects.
Q6: Is this light compatible with solar power systems?
Yes, the design includes compatibility for solar powered supports and built-in cabling systems (RVV2*1.5m^2) suitable for various power configurations.
