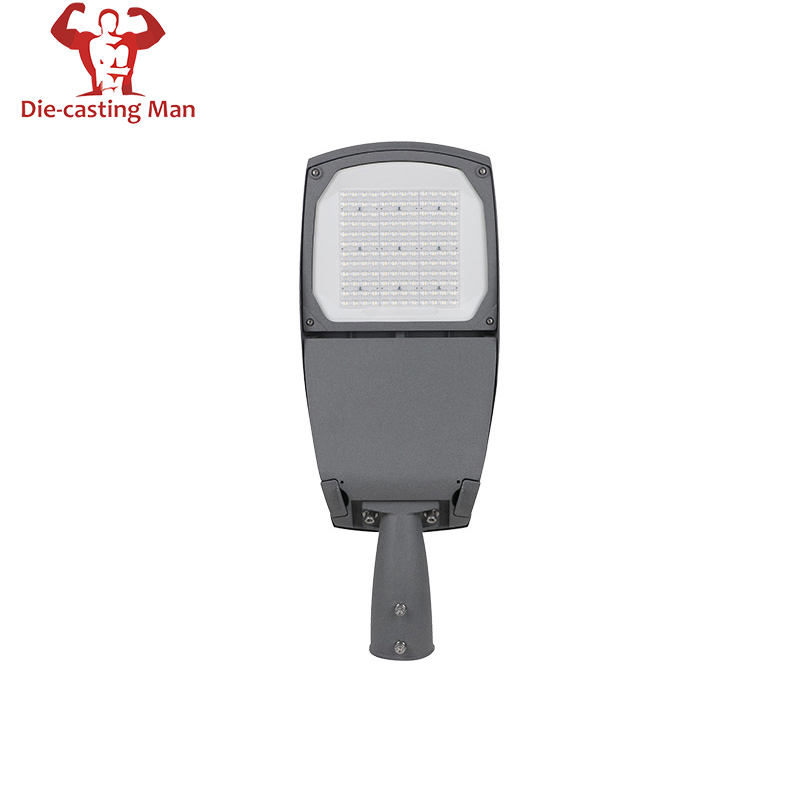

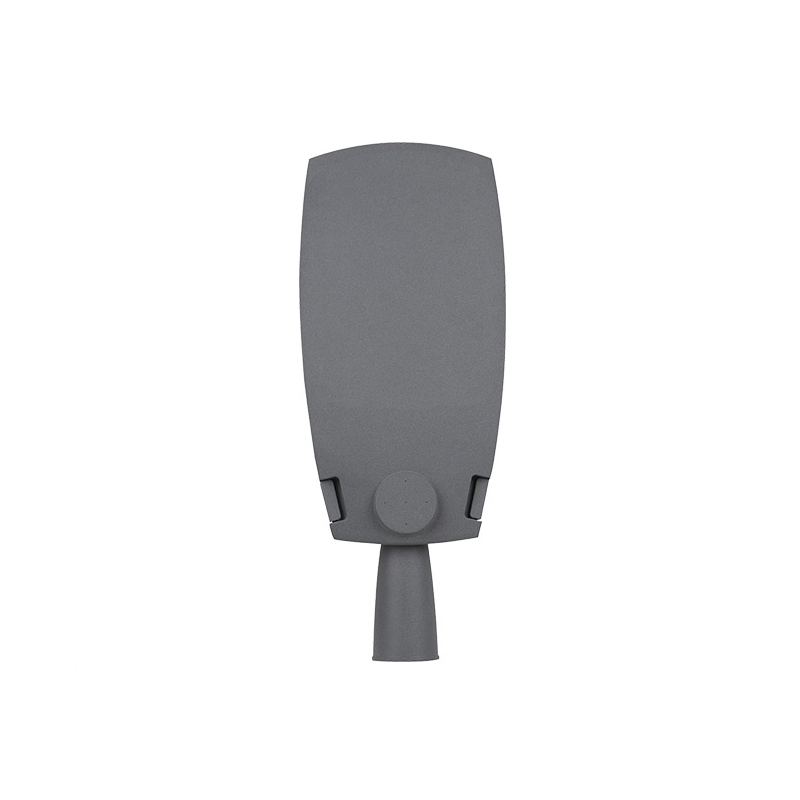

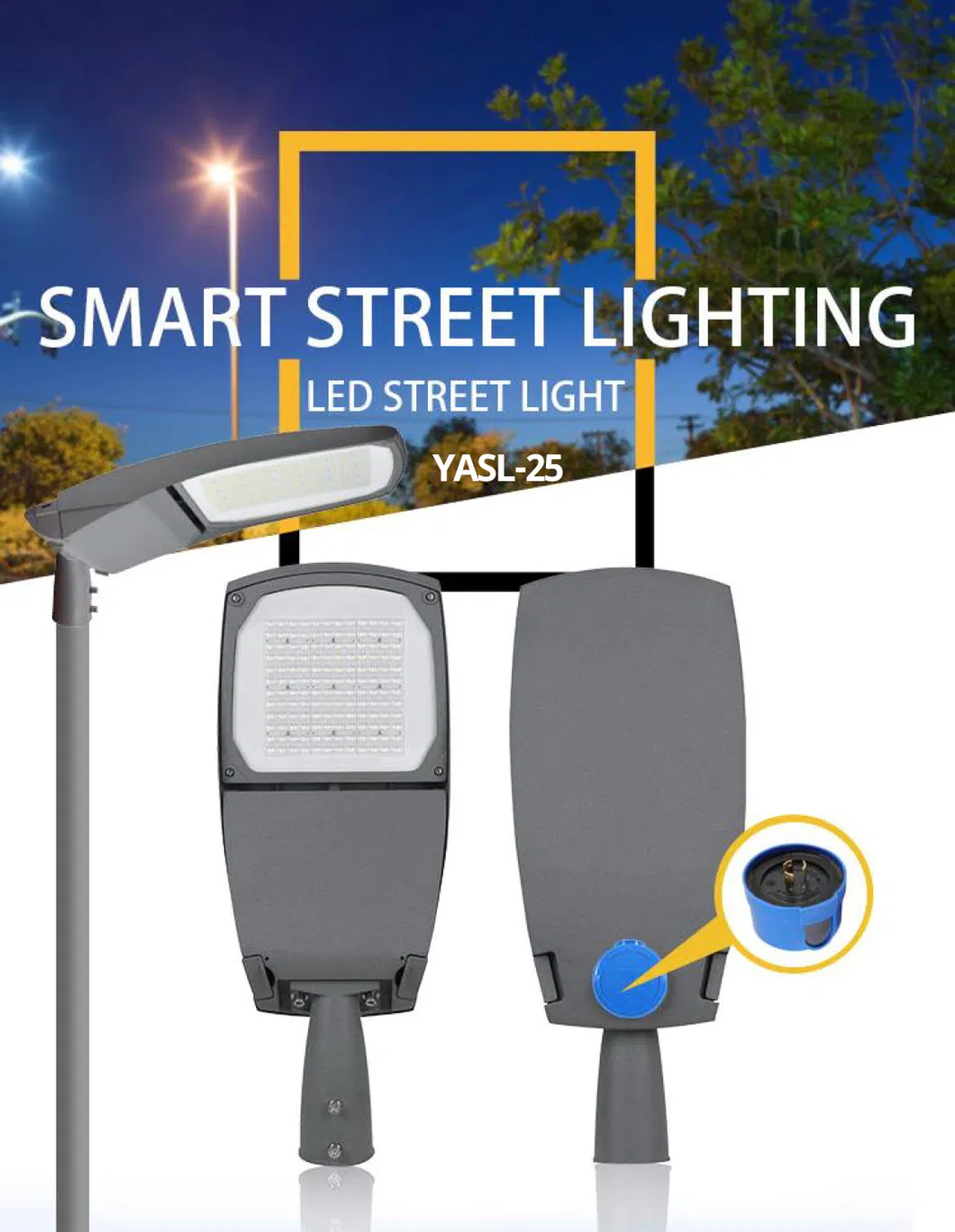

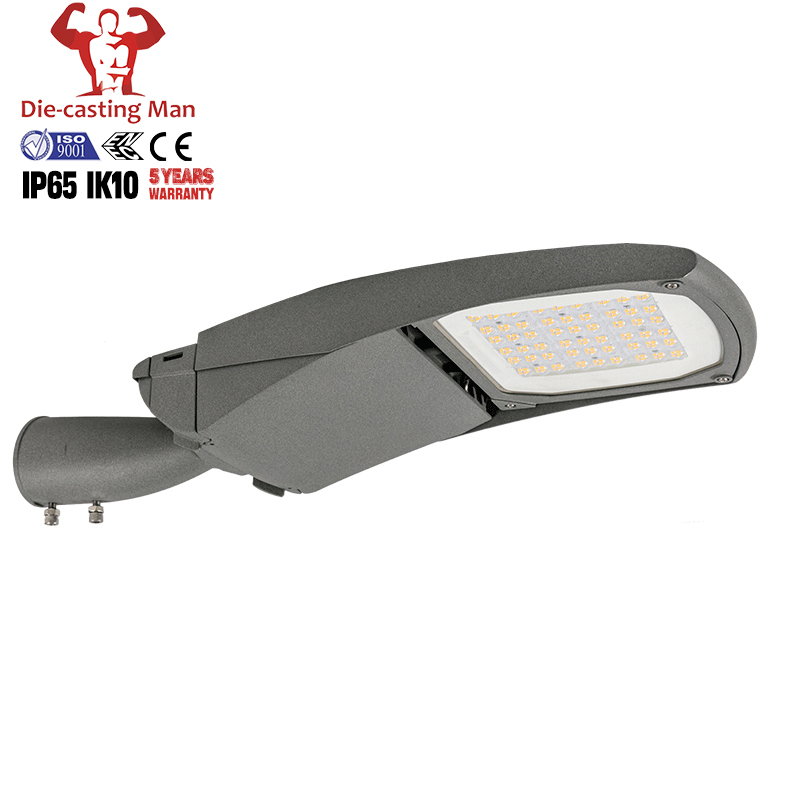

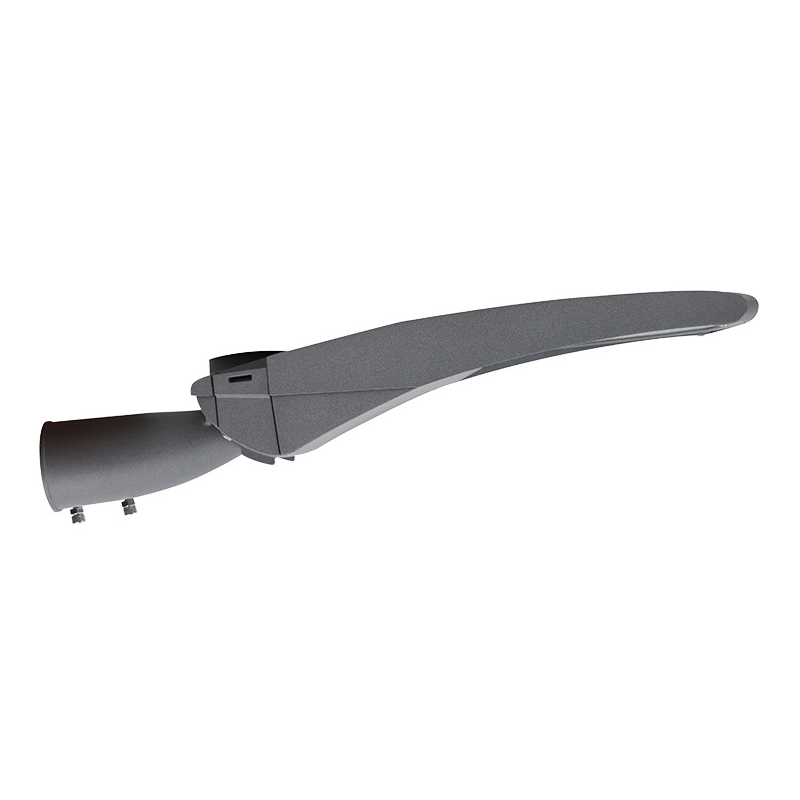

LED Street Light YASL-25 - High-performance outdoor street lighting and pole-top luminaires designed for durability and efficiency.

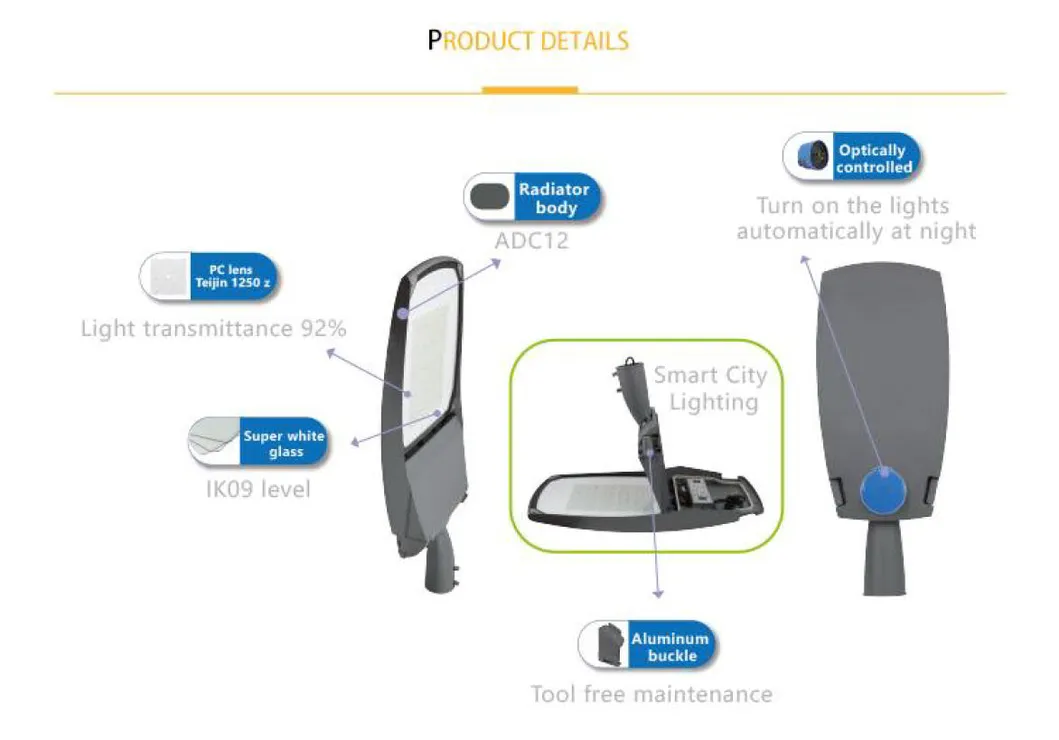

✓ Housing: Corrosion-resistant pressure die-cast aluminium, seawater resistant powder-coated.

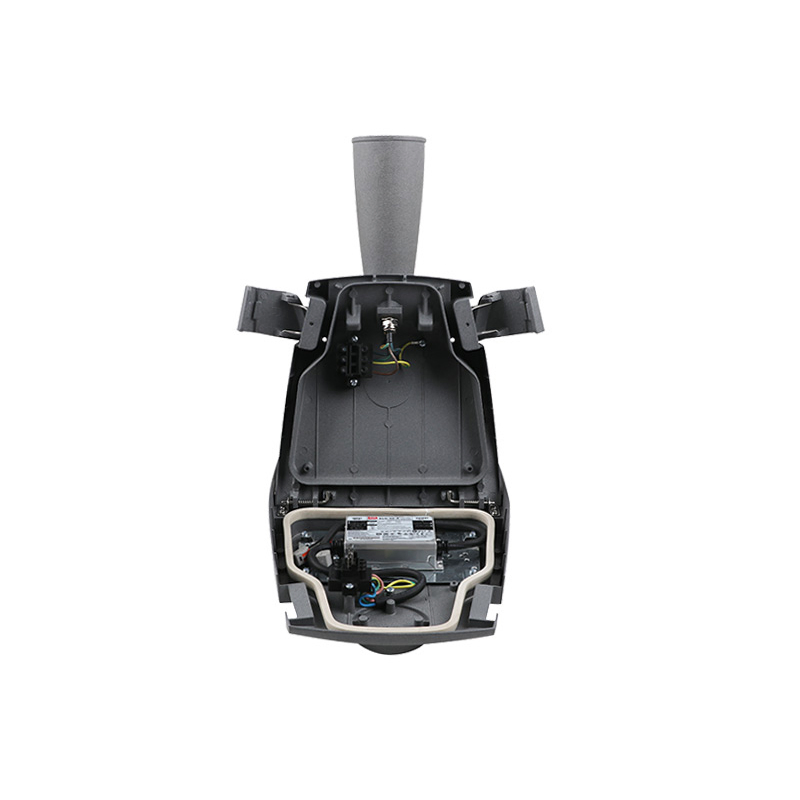

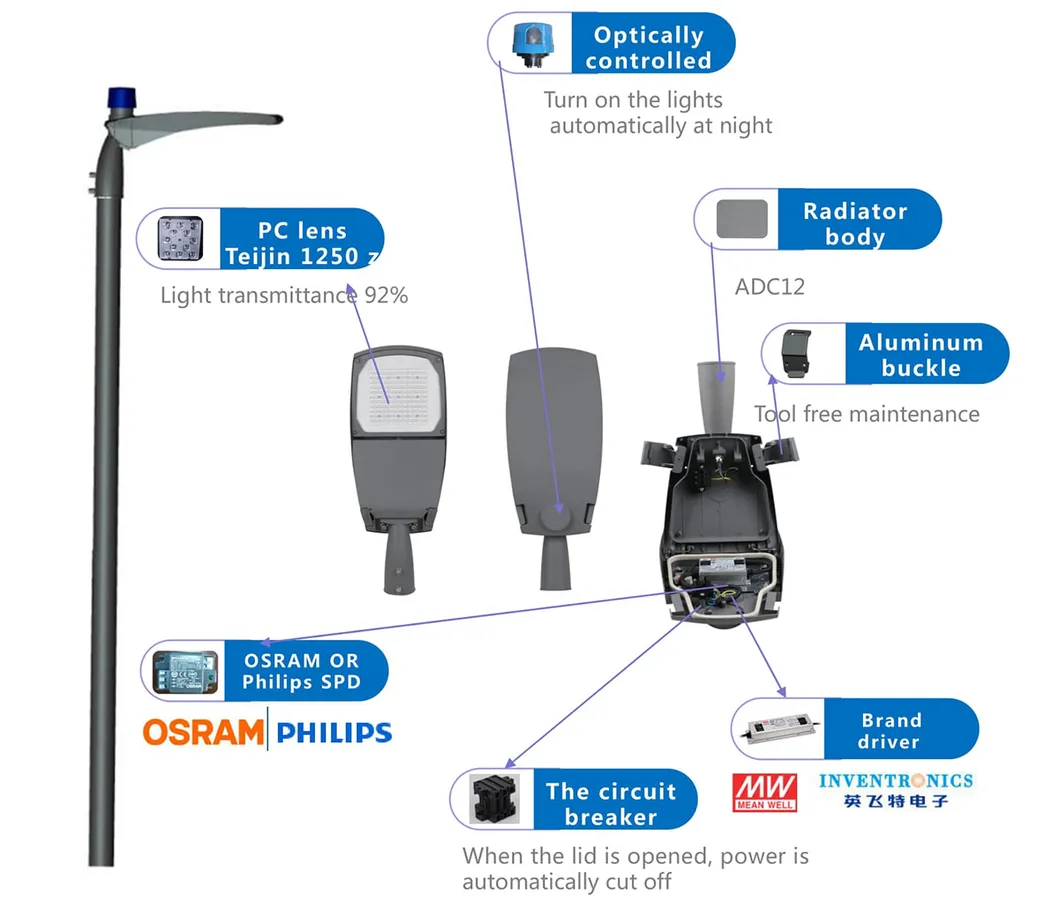

✓ Maintenance: Tool-free maintenance and replacement with disconnect plug for safety.
✓ Adjustable: Tilt angle can be adjusted and locked in 15-degree steps with an angular scale.

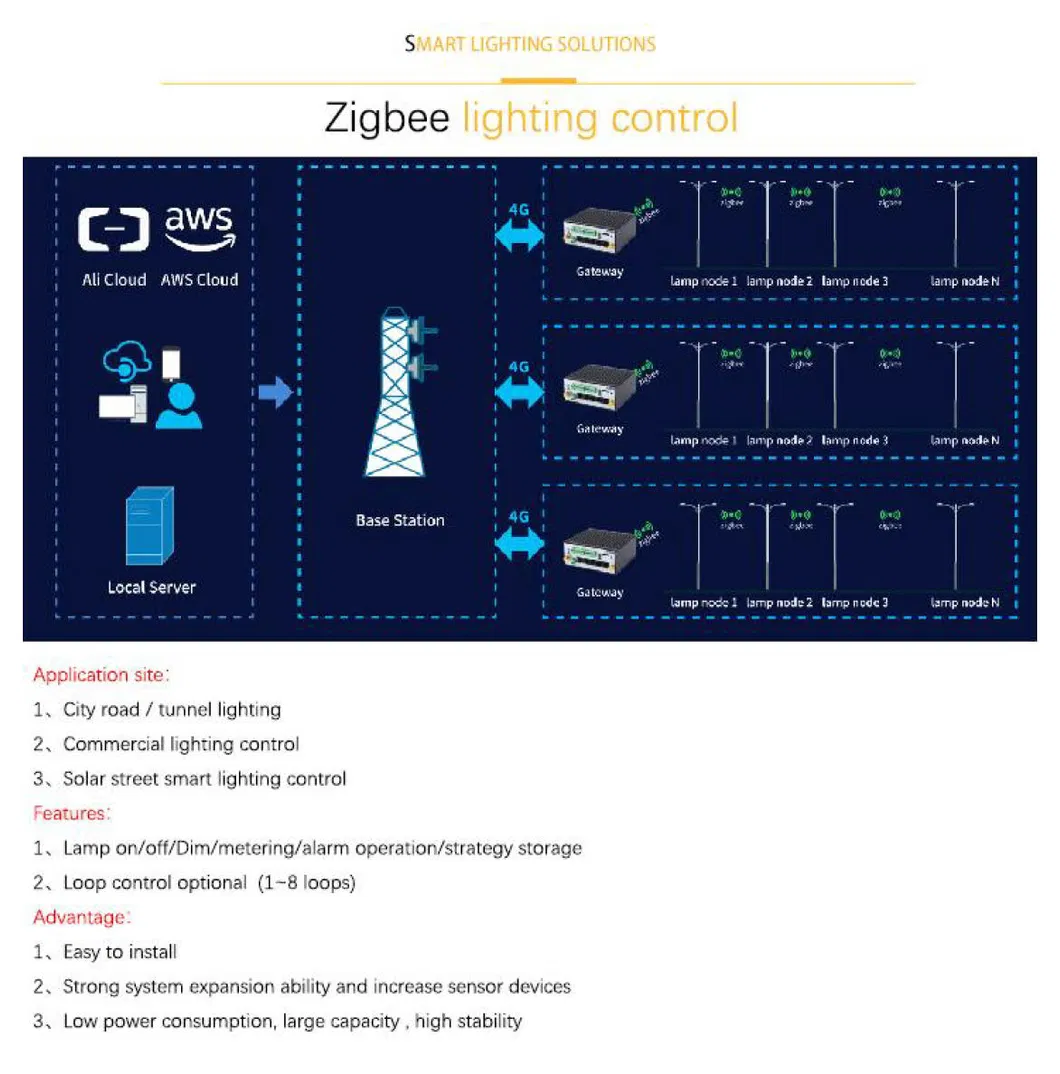

✓ Smart Ready: Supports Dali, Dali Zhaga, 1-10V, and PWM dimming options.

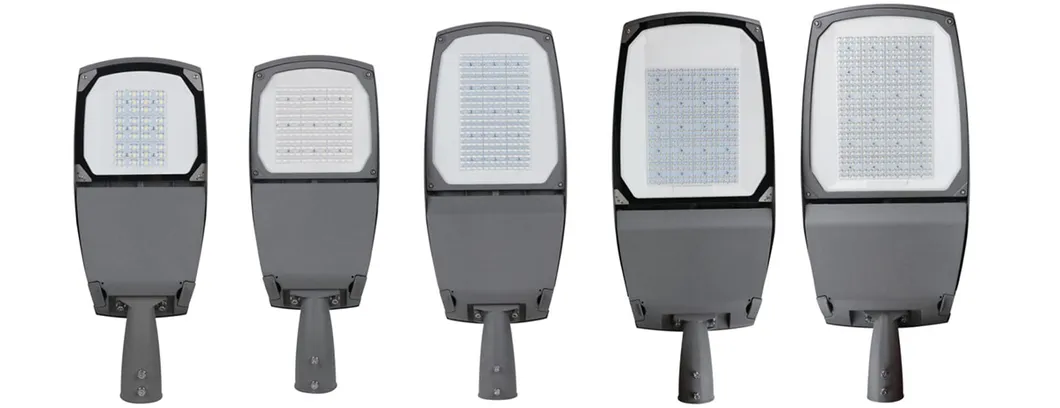

| Product Code | Wattage | Luminous Flux | Net Weight | Packing Size (mm) |
|---|---|---|---|---|
| YASL-25-40M | 30/40/50/60W | 3900-7500lm | 2.9kgs | 600*260*165 |
| YASL-25-100M | 80/100/120W | 7800-15000lm | 3.8kgs | 680*270*160 |
| YASL-25-150M | 150/180/200W | 15600-22500lm | 5.7kgs | 820*320*160 |
| YASL-25-240M | 240/300W | 26000-36000lm | 7.2kgs | 920*370*180 |
ENERGY SAVINGS: High efficiency LED technology provides approximately 70% energy reduction compared to metal halide lamps and 90% compared to halogen lamps.

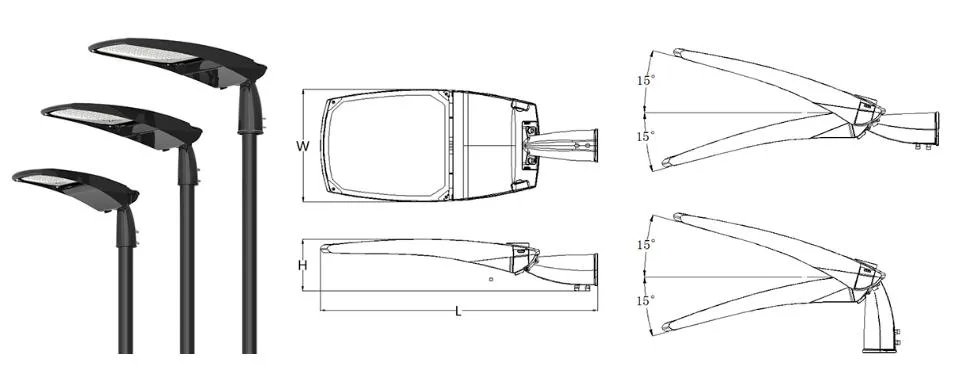

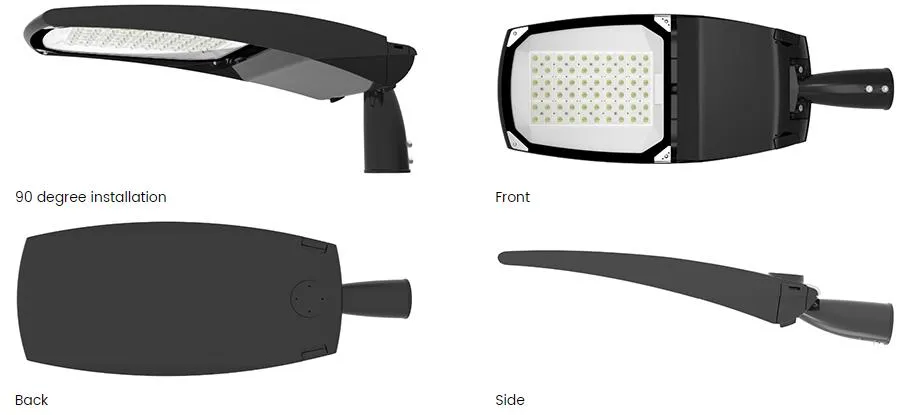

INSTALLATION: Ideal for residential streets and parking lots. Fixture is mounted on 4-16m poles. Both horizontal and vertical installation available with adjustable angles (-15° to +15°).

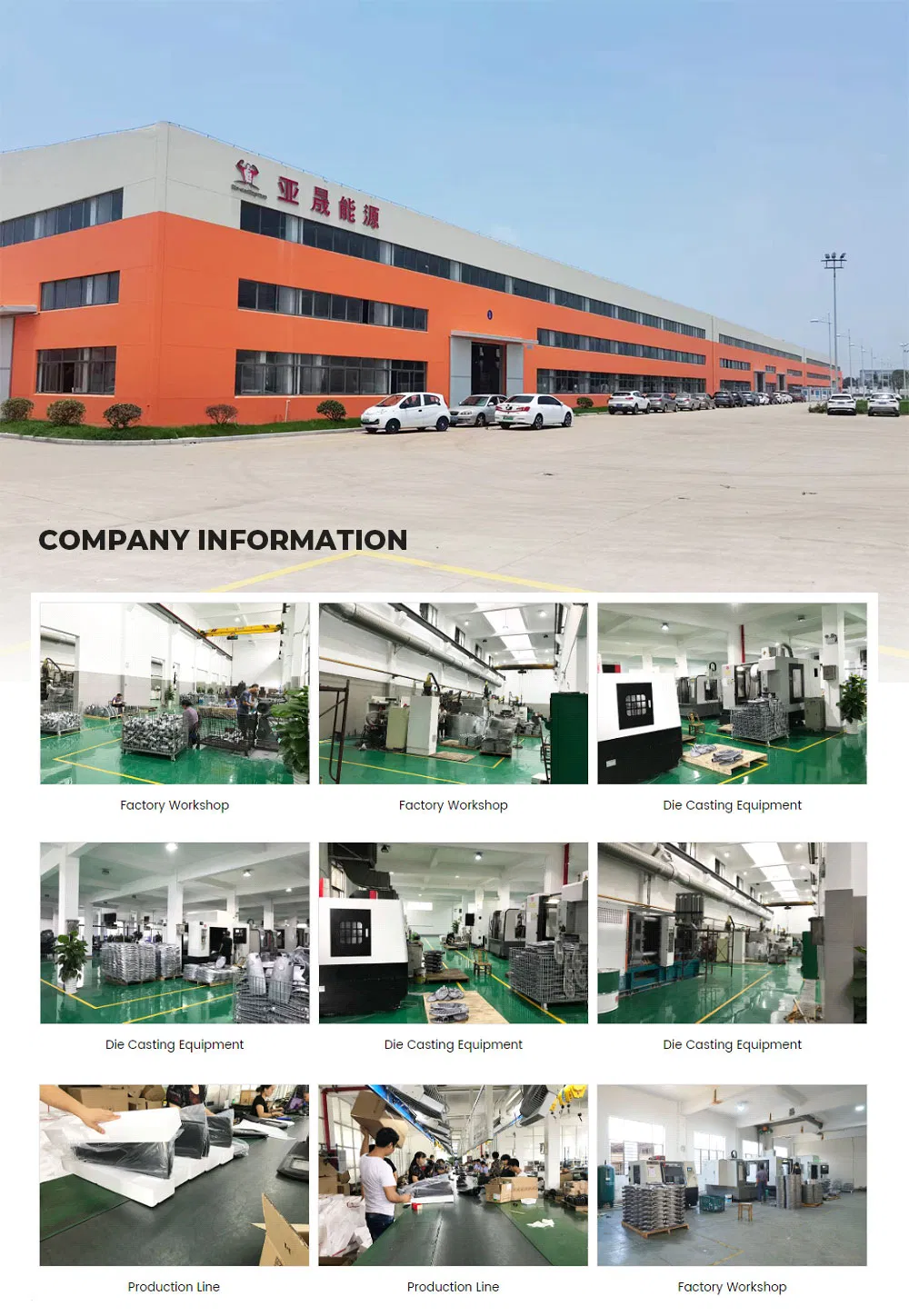

Founded in 1996, our facility integrates design, development, production, and testing. We provide a superior range of street lights, high bay lights, and die-casting OEM products. Our engineering team ensures all products meet strict international standards through rigorous performance testing in recognized laboratories.
