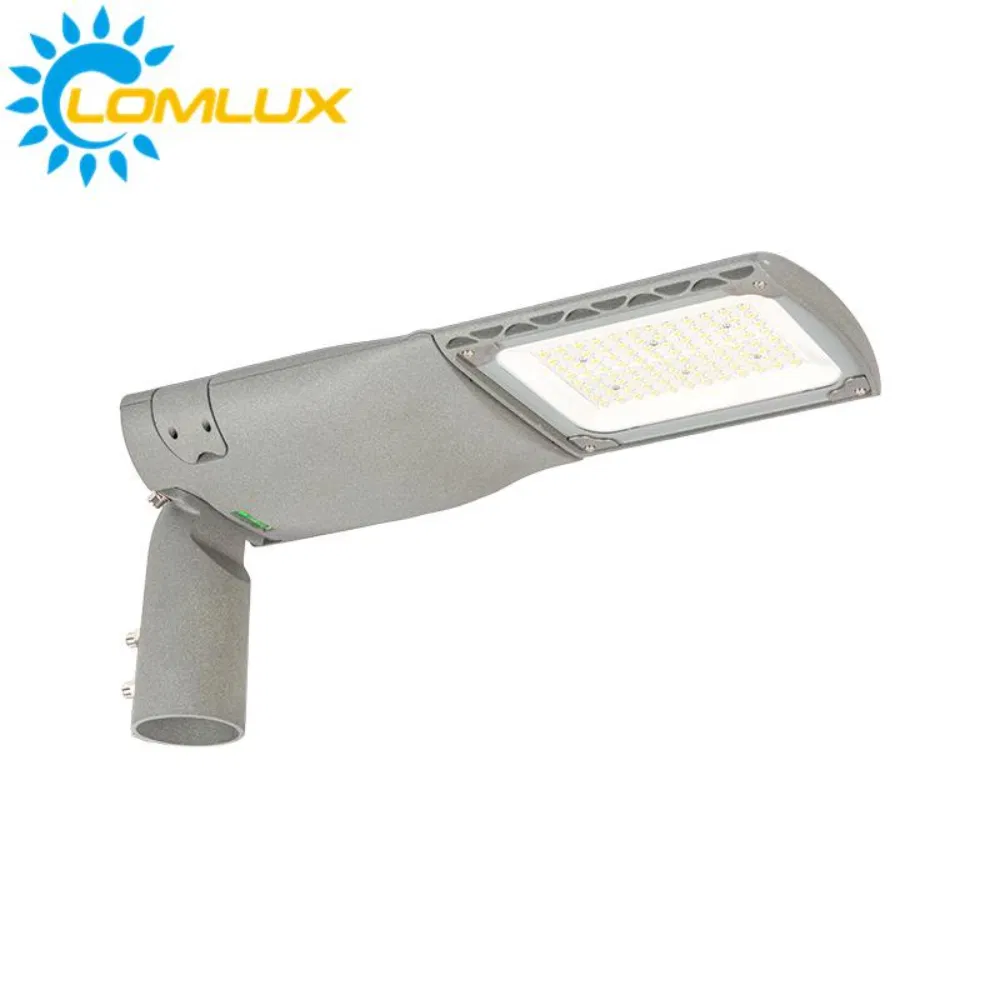

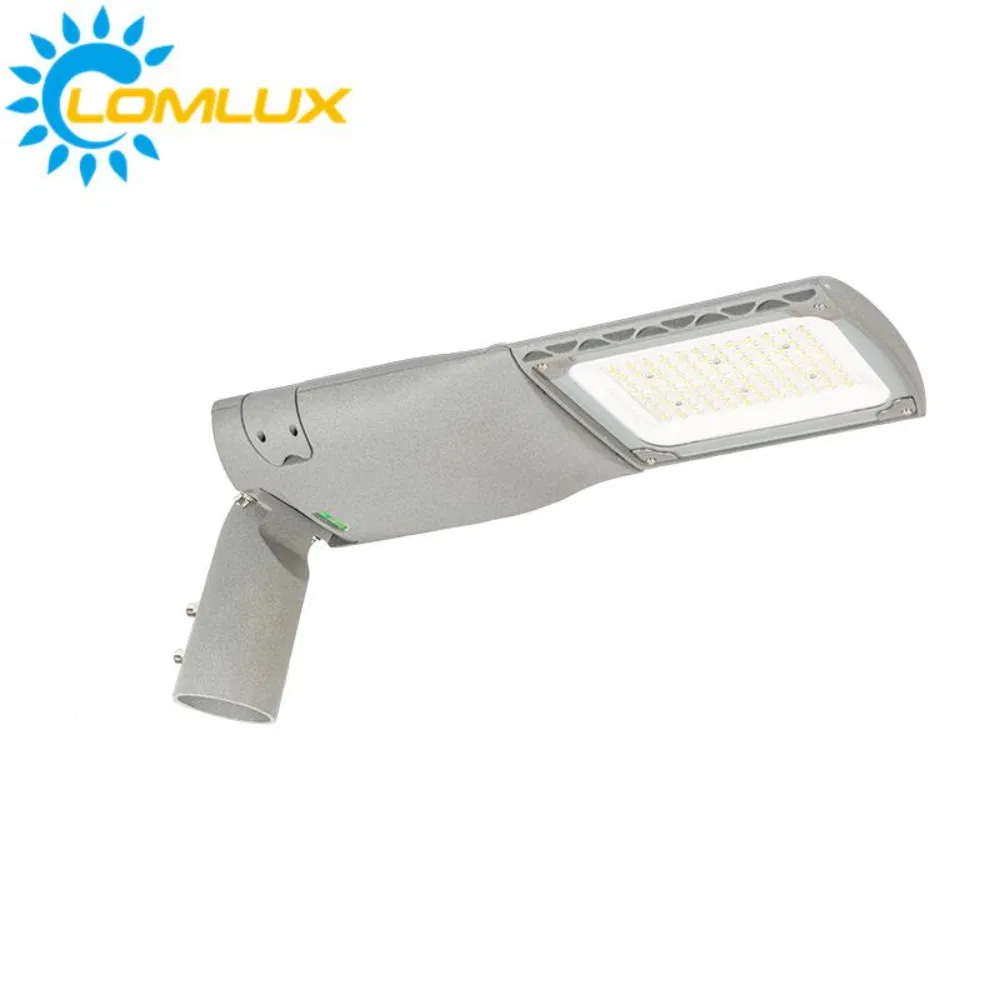

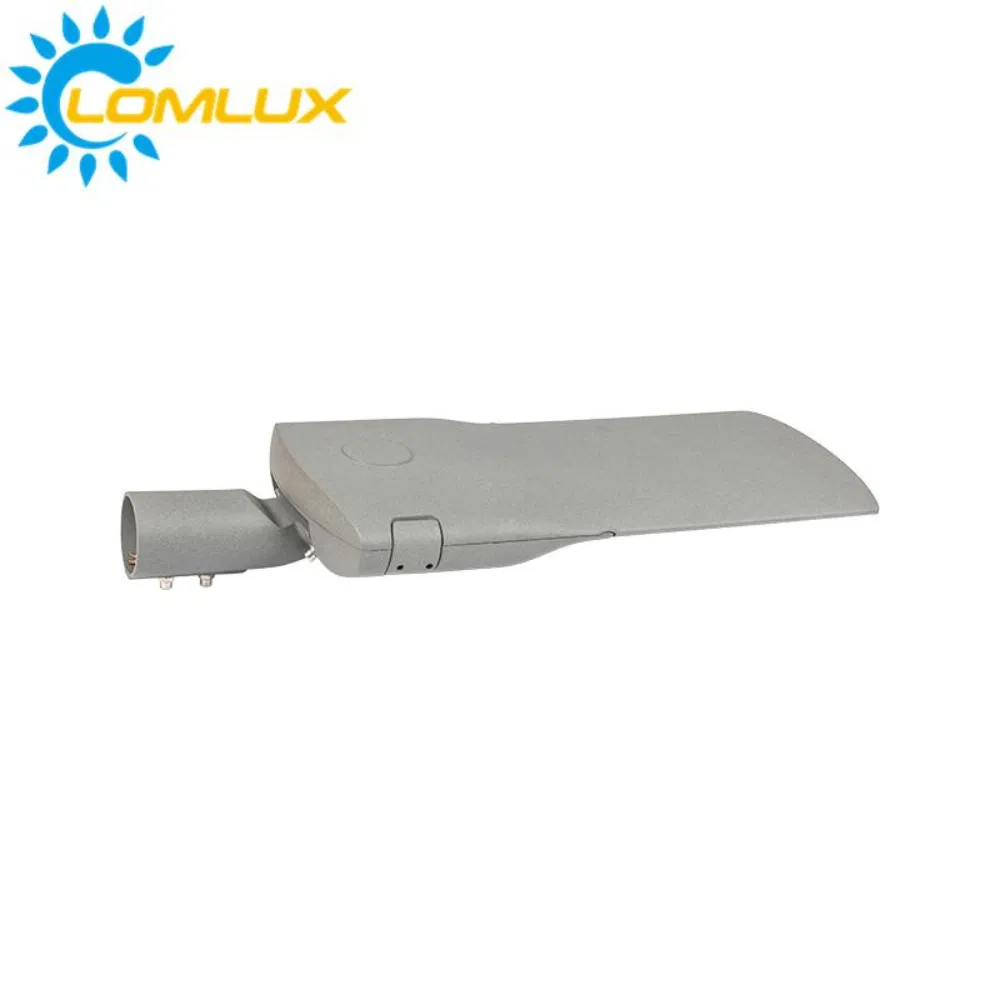

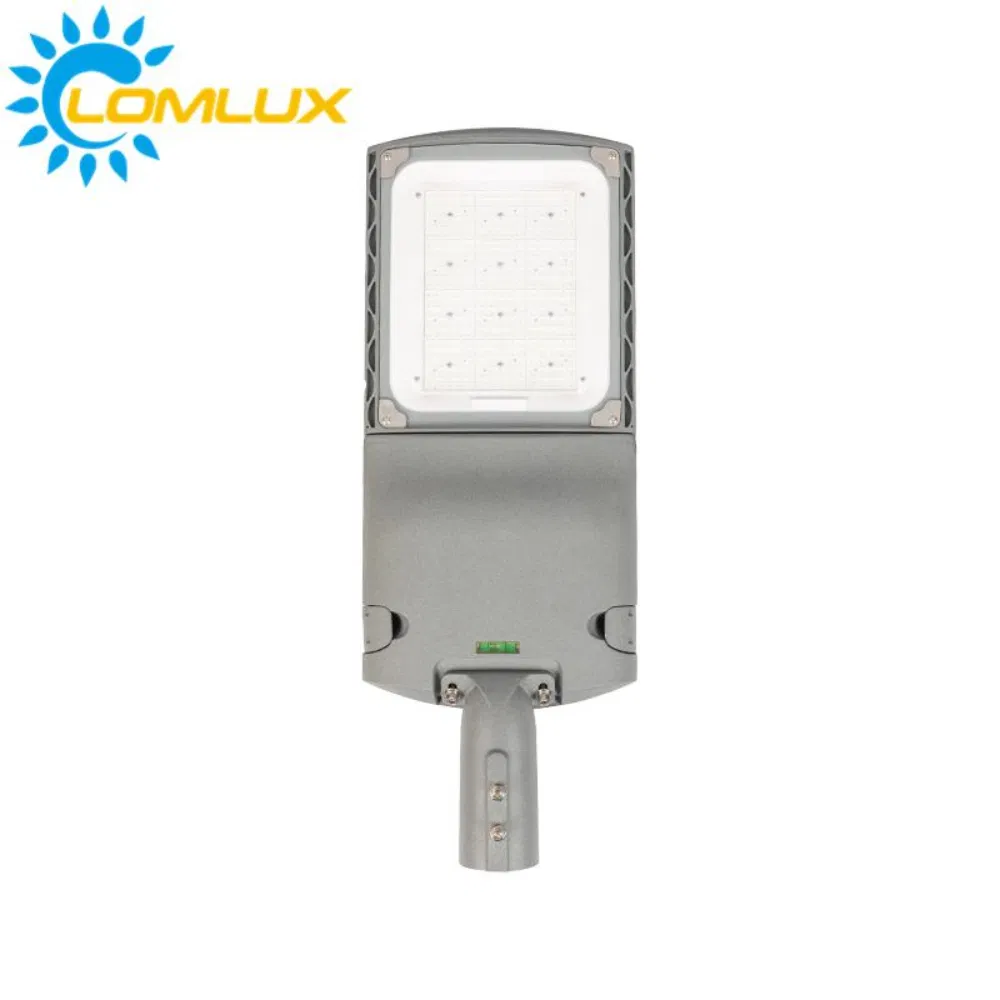

LM-SL68 Project LED Street Light 20-250W
LED street lights offer a long useful life and low running costs. Valued for above-average durability, high resistance to mechanical damage, and environmental friendliness, they provide excellent visibility and aesthetic value.
| Model | LM-SL68-S | LM-SL68-M | LM-SL68-L |
|---|---|---|---|
| Size | 644*220*108mm | 719*270*109mm | 773*320*109mm |
| Power | 20-80W | 80-150W | 150-250W |
| Luminous Flux | 135-155lm/W | 135-155lm/W | 135-155lm/W |
| Holder | 48mm, 60mm, 76mm | ||
| LED Chip | 3030SMD, 5050SMD, CREE | ||
| Optic Lens | 20, 30, 60, 90, 120, Type I, II, III, IV, V options | ||
| Driver | Meanwell, Philips, Sosen, Inventronics or specified brand | ||
| IP Level | IP66 / IK09 | ||

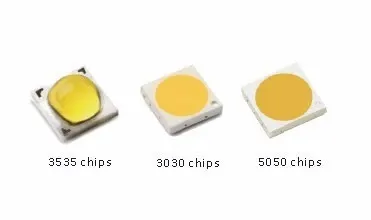

Luminous source providing excellent lumen output, long-lasting stability, and splendid sight. The efficiency of 5050 chips is more than 175 lm/w.

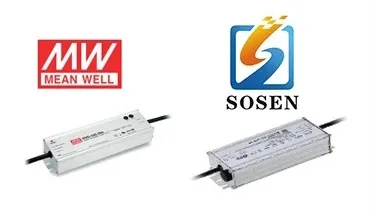

Equipped with high-end programmable LED drivers, featuring 4KV/6KV surge protection, optimal stability, and excellent performance lifespan.

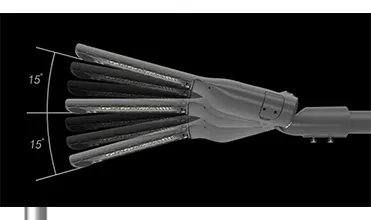

Supports both vertical post top mount and horizontal side entry mount. The installation angle can be adjusted from 0 to 15 degrees for maximum flexibility.

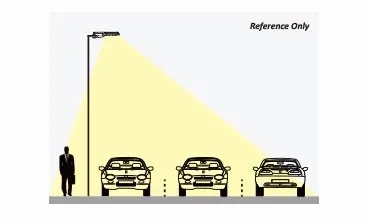

Different light distribution lenses are available to achieve the best lighting effect for various applications, following North American IESNA standards (Type I, II, III).

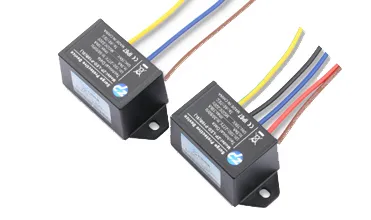

TUV approved 10KV/20KV surge protection device is the standard configuration in all LED street light models for enhanced safety.

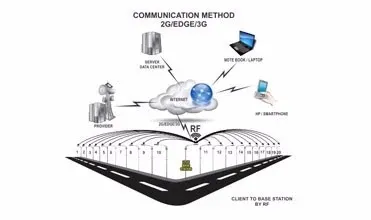

Total solution for intelligent street lighting systems. Supports communication via GPRS/CDMA/WCDMA wireless networks and ZIGBEE/PLC/ROLA protocols.
