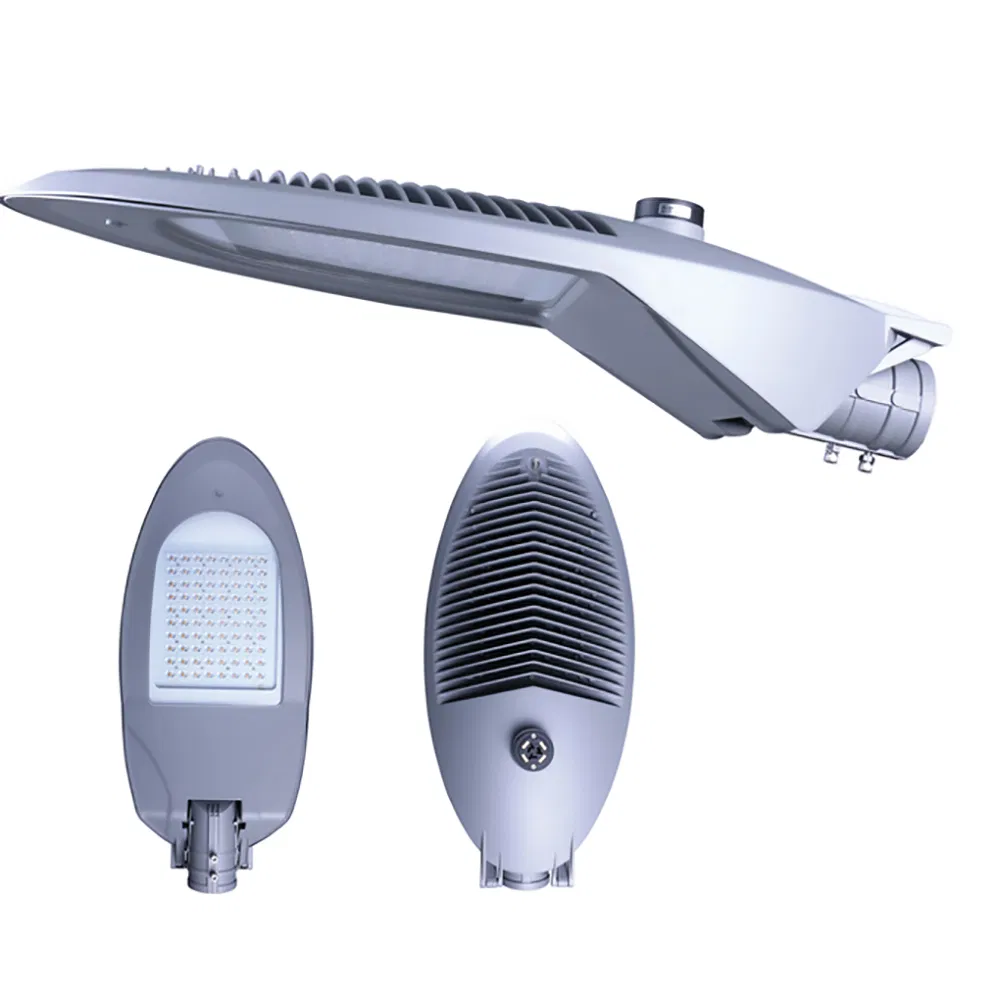

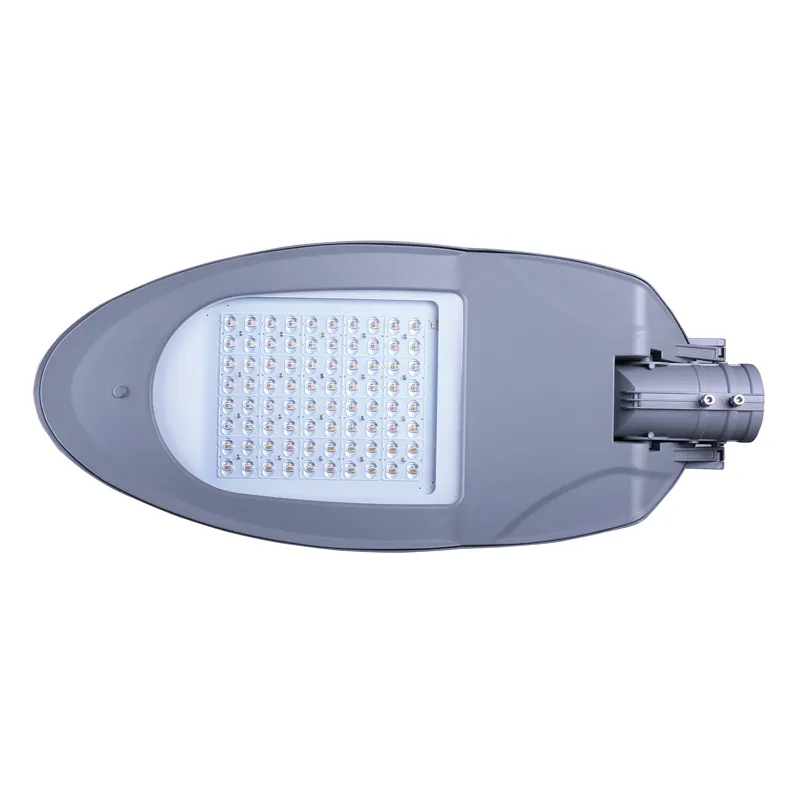

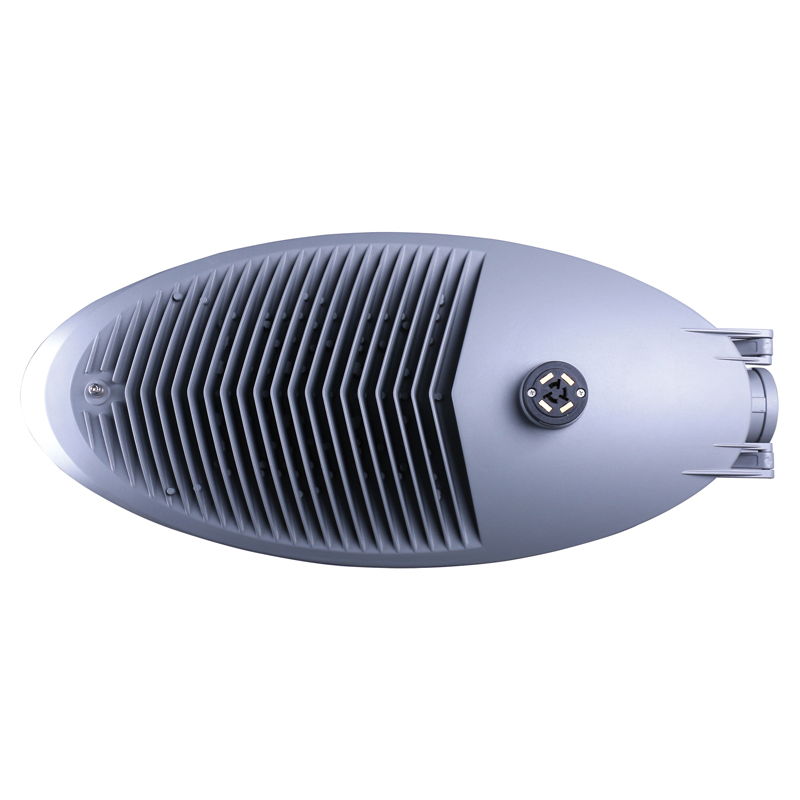

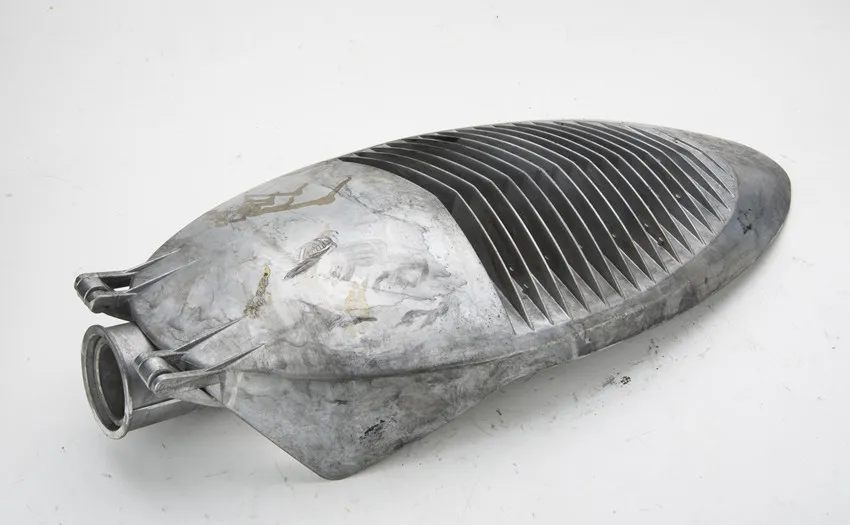

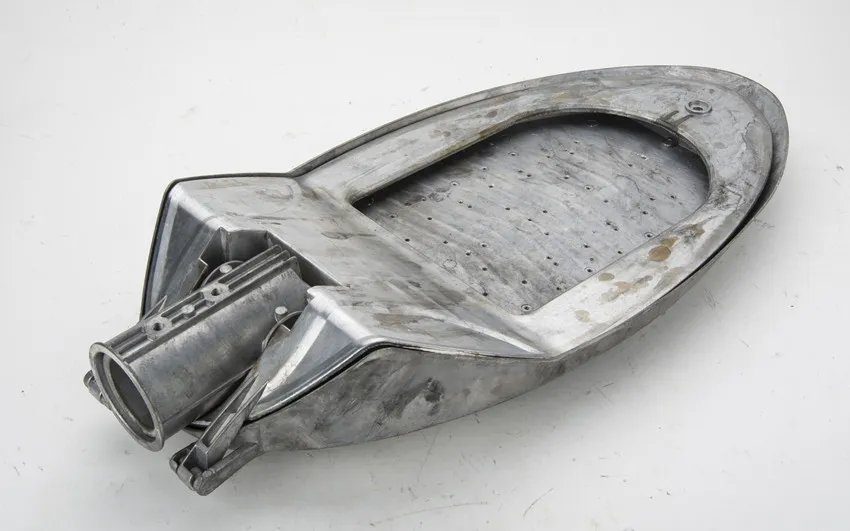

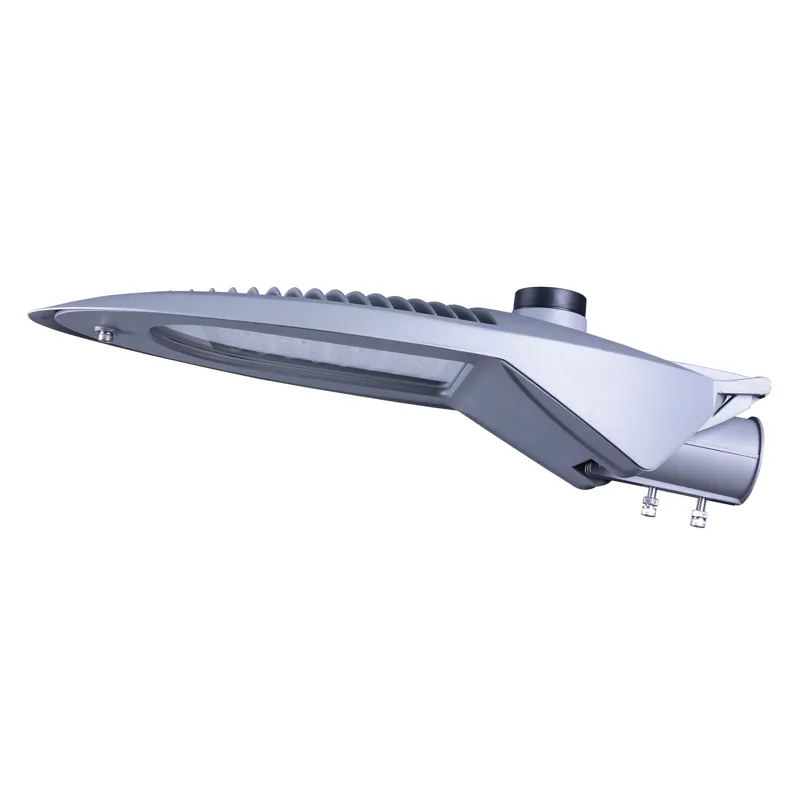

LED Street Light YASL-05 Series is a high-performance roadway lighting solution available in three sizes. It is manufactured from premium high-pressure die-casting aluminum for superior durability and thermal management.
LED efficiency up to 130 lm/w, producing up to 26000 lumens.

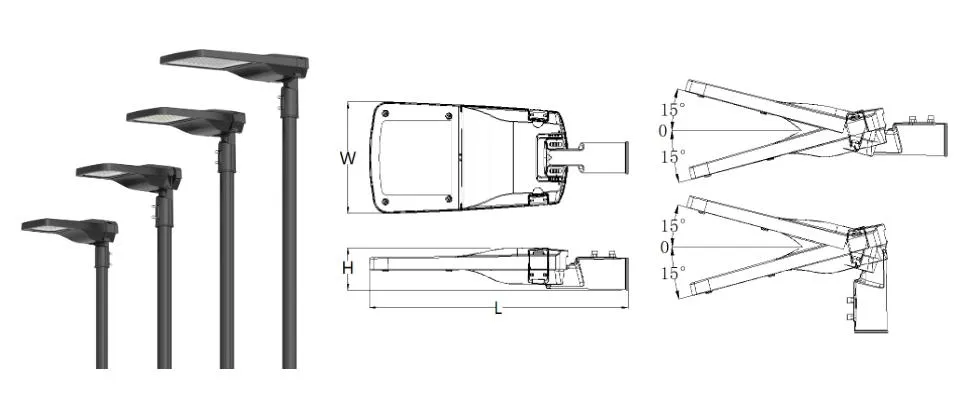

Adjustable angle -10° to +10°, horizontal and vertical installation.
Fully waterproof and dustproof for harsh outdoor environments.
| Product Code | YASL-05-40 | YASL-05-60 | YASL-05-120 |
|---|---|---|---|
| Input Wattage | 60W | 120W | 200W |
| Luminous Flux | 7800-8400lm | 15600-18000lm | 26000-30000lm |
| Color Temp | 2700~6500K | 2700~6500K | 2700~6500K |
| Net Weight | 3.7kgs | 6.5kgs | 11.3kgs |
| Packing Size (mm) | 560*265*145 | 700*350*160 | 910*415*195 |
| Pole Diameter | φ45/60mm | φ45/60mm | φ60/76mm |
| Category | Standard / Requirement | Test Standard |
|---|---|---|

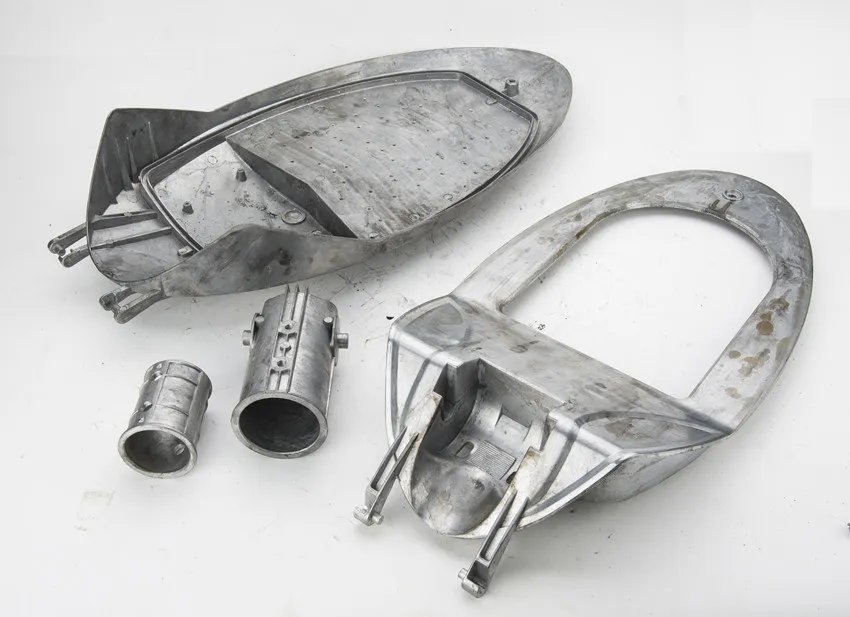

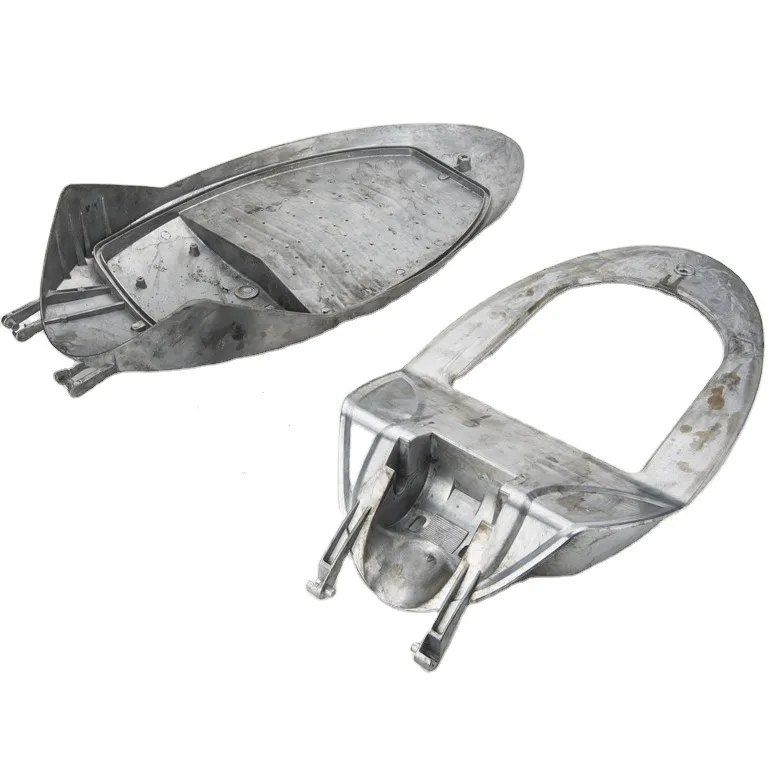

| Housing | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| Cover | Ultra Clear Tempered Glass | - |
| Salt Spray | Corrosion resistance for 1000 hours | EN/ISO 9227 |
| LED Type | High power LED with ceramic base (Osram/CREE) | LM80 / TM21 |
| Surge Protection | 10KV Protection Standard | - |
| Efficiency | ≥ 160lm/W (at module level) | LM-79 |

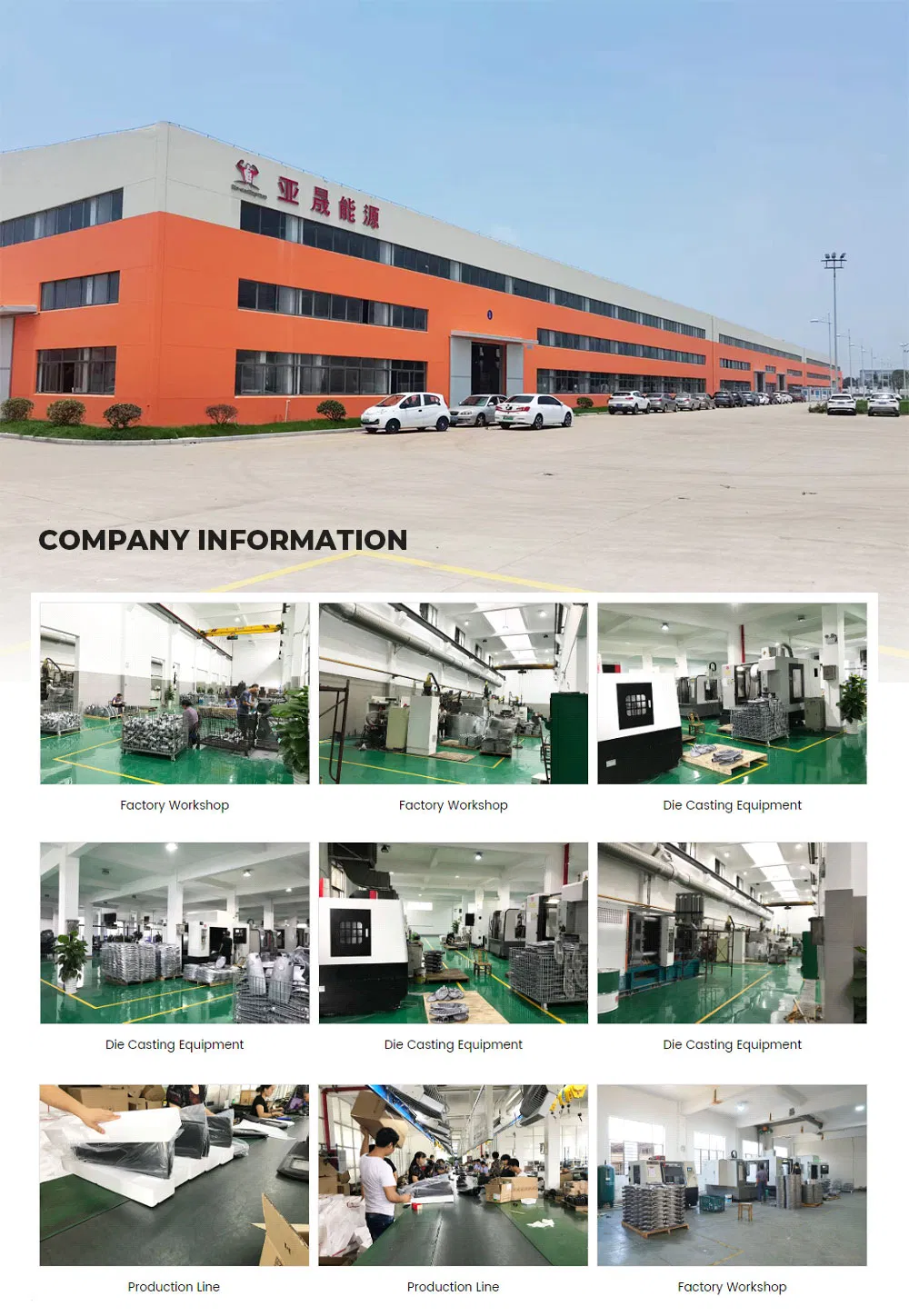

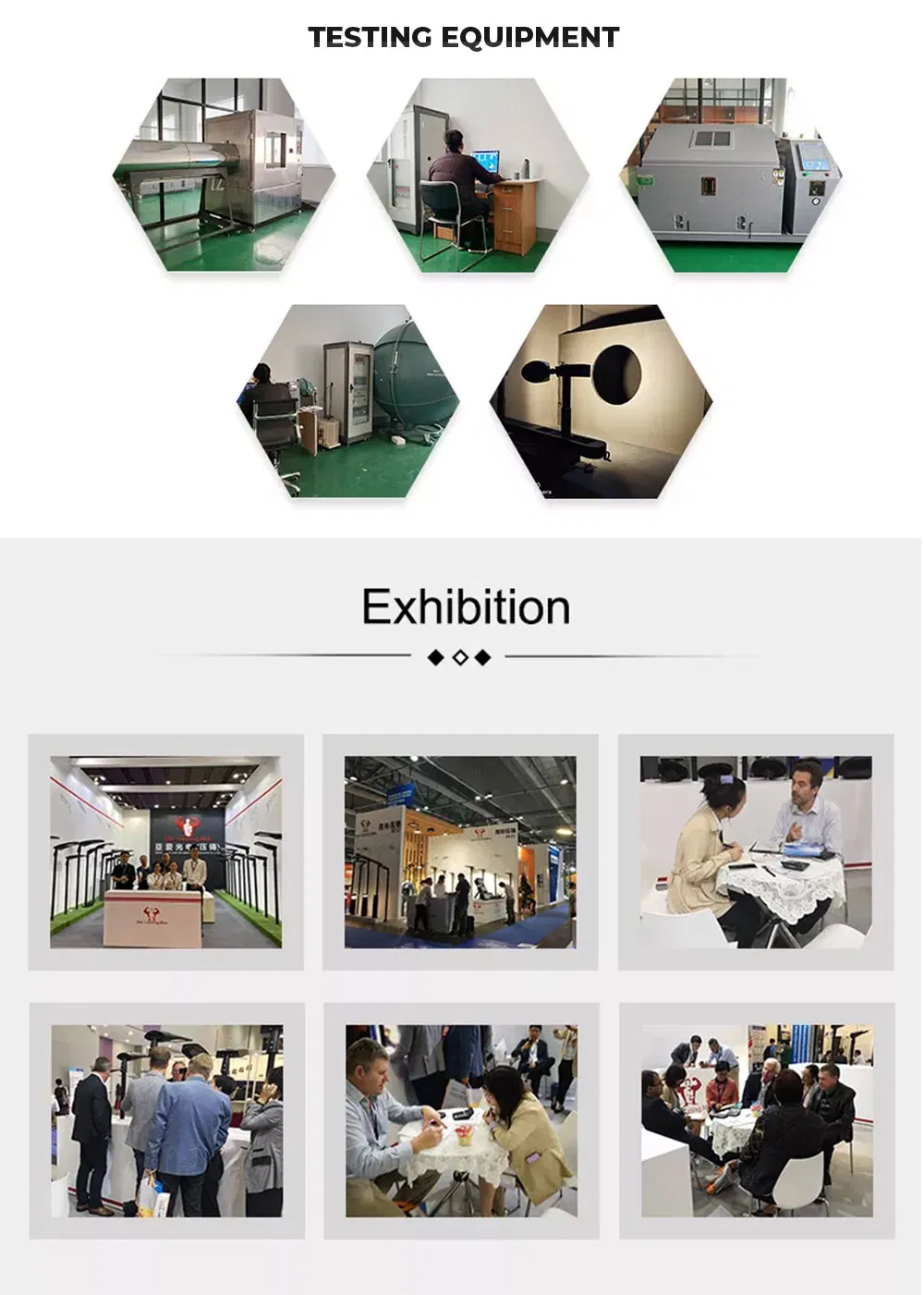

We possess rich experience in street lighting and die-casting manufacturing, providing an integrated service from design and production to sales. Our facilities include advanced die-casting injection machines, CNC machining, powder coating workshops, and comprehensive testing laboratories.
Service Scope: Street Light Design, OEM & ODM Customization, Die-casting Injection, Machining, and Global Testing Standards Compliance.
