Technical Specifications
Model NO.GL-SL-100WS
MaterialDie Casting Aluminum
Power300W / 200W / 150W / 100W / 70W
IP RatingIP65 / IP66
CertificationCE, EMC, LVD, RoHS
Voltage100-277VAC 50/60Hz (347V/480V Optional)
LED BrandSMD3030
Warranty5 Years Warranty
DriverMeanwell / Inventronics / DONE

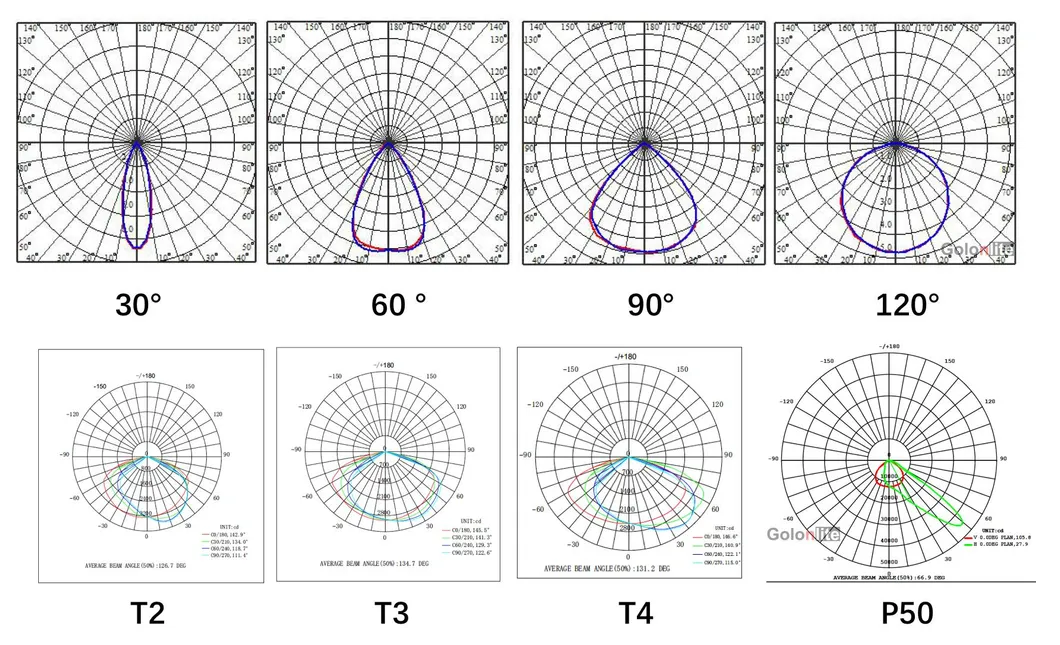

Beam Angle60°/90°/120°/T2M/T3M/T4M

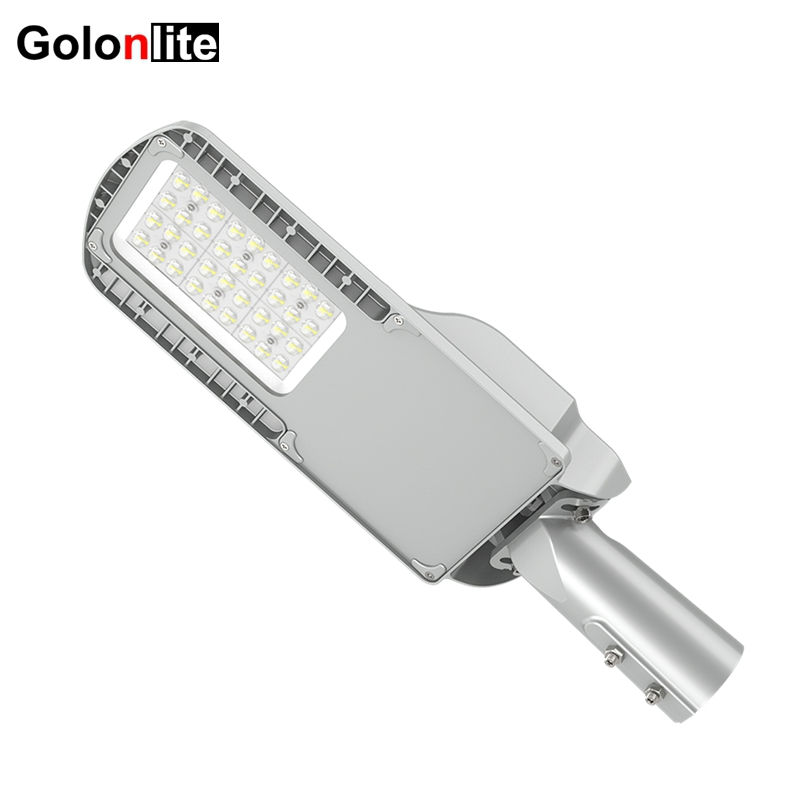

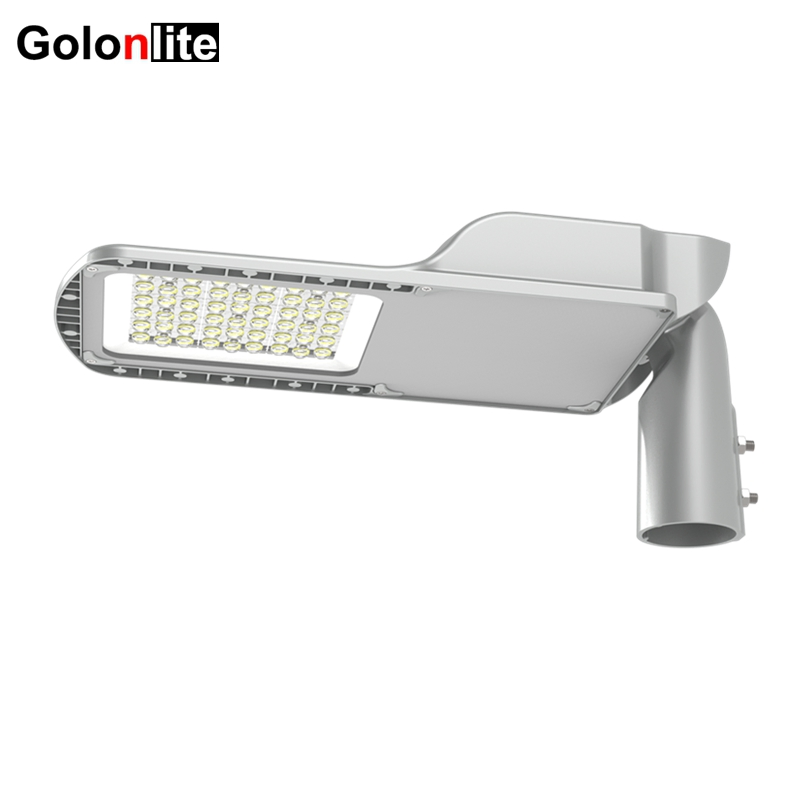

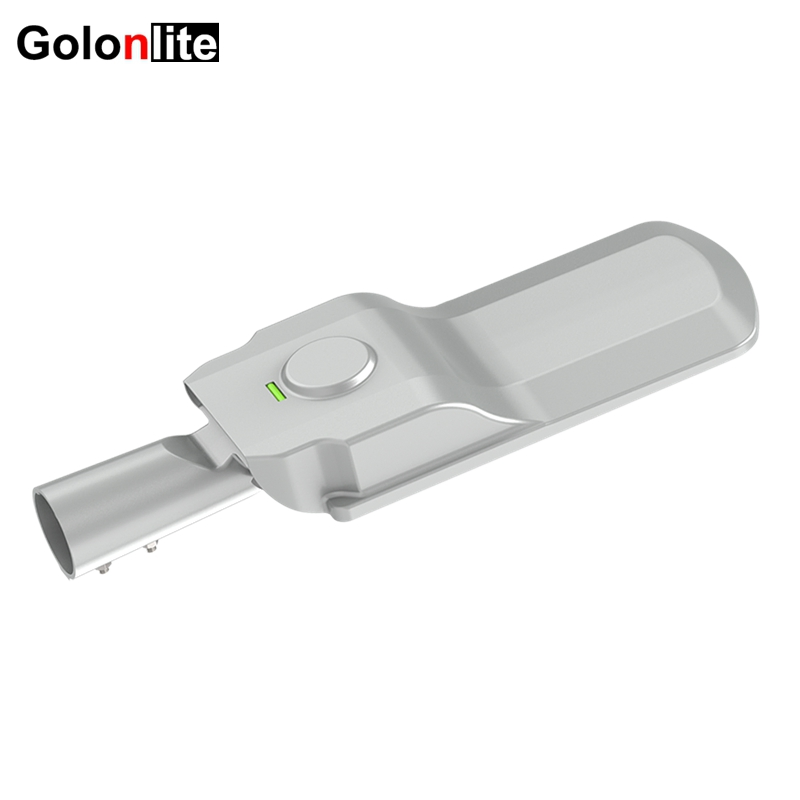

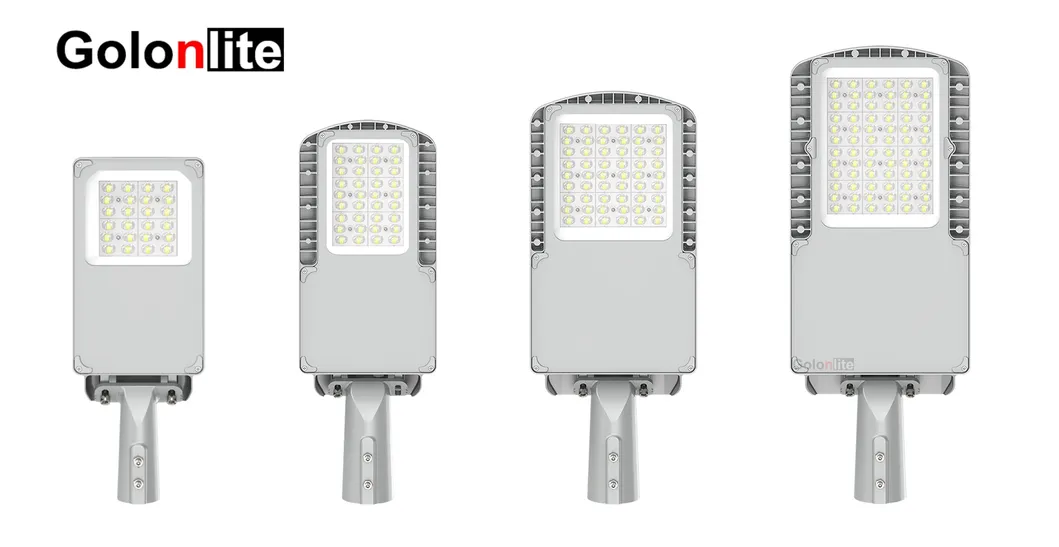

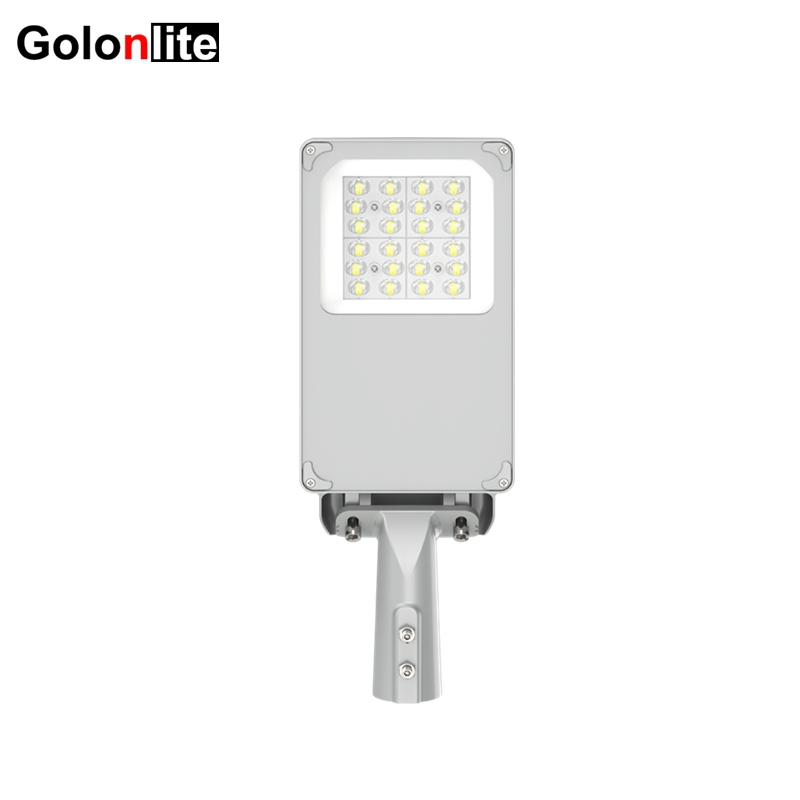

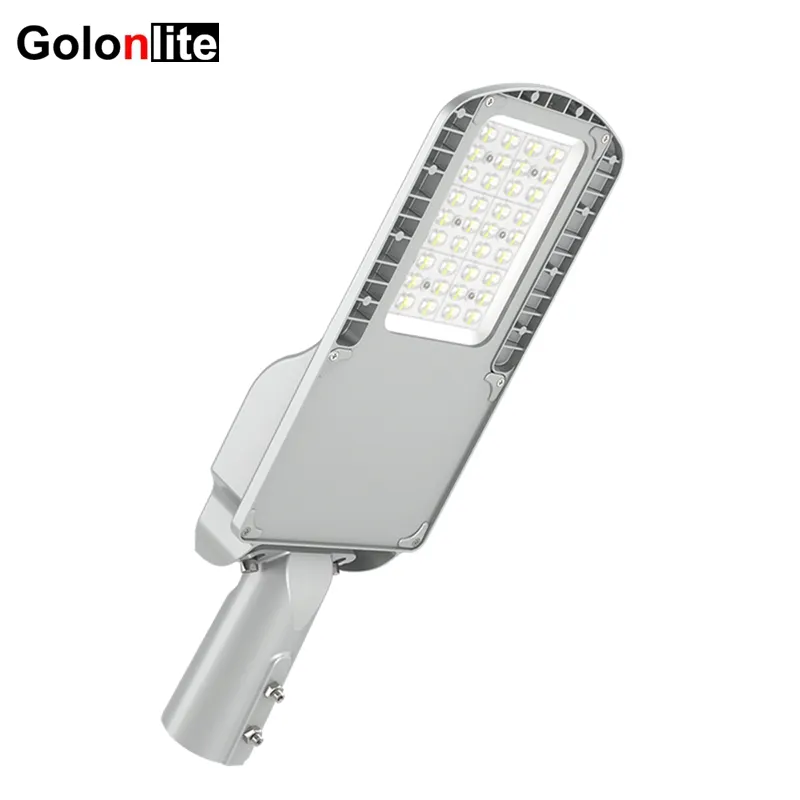

Photocell Dimmable LED Street Light
Key Features: 150Lm/W Luminous Efficiency, IP66 Waterproof Rating, and SPD 10KV/20KV Protection.
| Performance Parameter Details |
| Luminous Efficiency | 130Lm/W - 170Lm/W options |
| Color Temperature (CCT) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | > Ra80/70 |
| Lifespan | > 50,000 Hours |

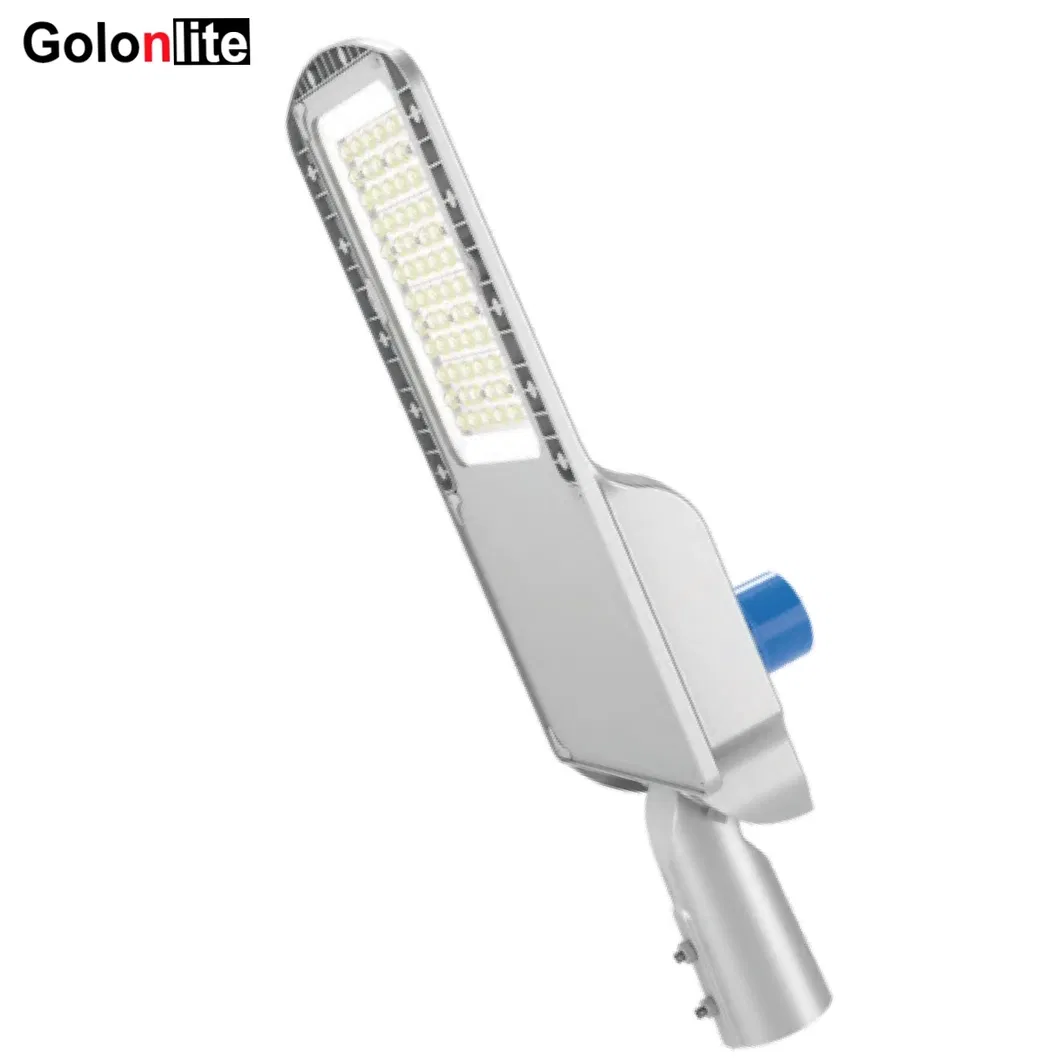

| Photocell Sensor | 3/5/7 pins Photocell sensor / Timer control options |
| Installation | Wall/Bracket mounting; Square/Round pole (60mm) mounting |
Our Professional Services
✓ 24-Hour Inquiry Response
✓ OEM & ODM Customization
✓ 5-Year Comprehensive Warranty
✓ Free IES & Dialux Lighting Solutions
Frequently Asked Questions
What is the luminous efficiency of these LED street lights?
Our LED street lights offer high efficiency options ranging from 130Lm/W up to 170Lm/W, ensuring maximum energy savings.
Is the photocell sensor included?
Yes, we provide 3/5/7 pins photocell sensor and timer controller options to automate the lighting based on ambient light levels.
What kind of surge protection is provided?
The fixtures come with standard 6KV protection, with higher options of 10KV and 20KV SPD (Surge Protection Device) available for areas with unstable power or high lightning risk.
Can I get a lighting simulation for my specific project?

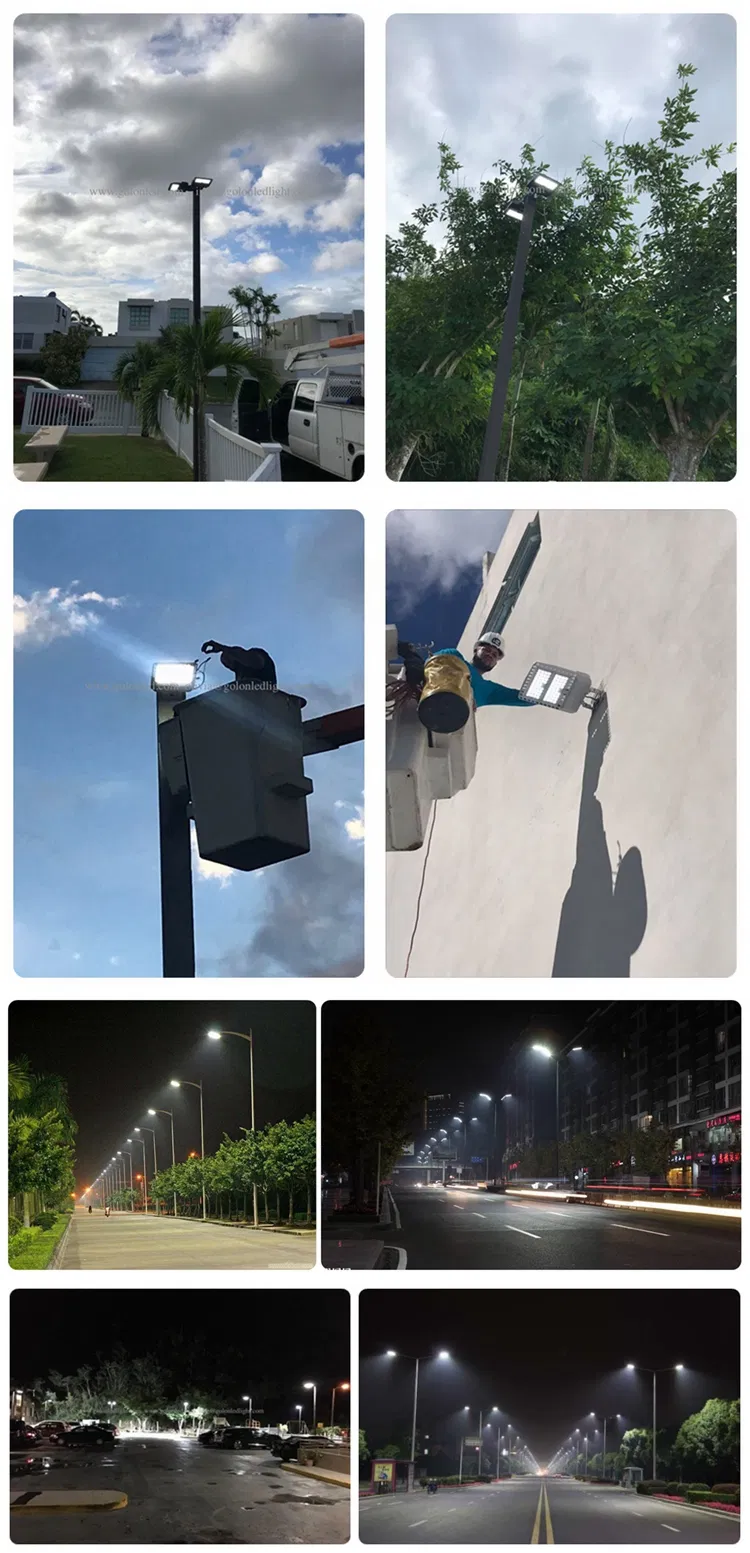

Absolutely. We provide free Dialux lighting simulations and IES files to help you design the perfect lighting layout for roads, parking lots, or industrial areas.

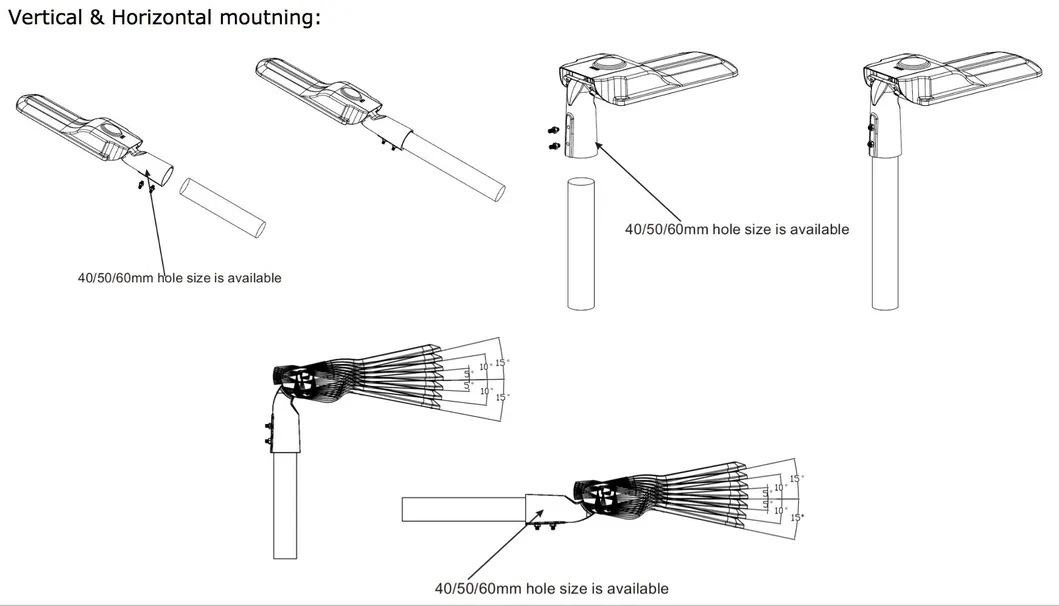

What are the installation requirements?
These lights are designed for versatility and can be mounted on 60mm poles, square poles, walls, or via brackets.
What certifications do these lights have?
Our products are fully certified with CE, RoHS, EMC, and LVD, ensuring they meet international quality and safety standards.
