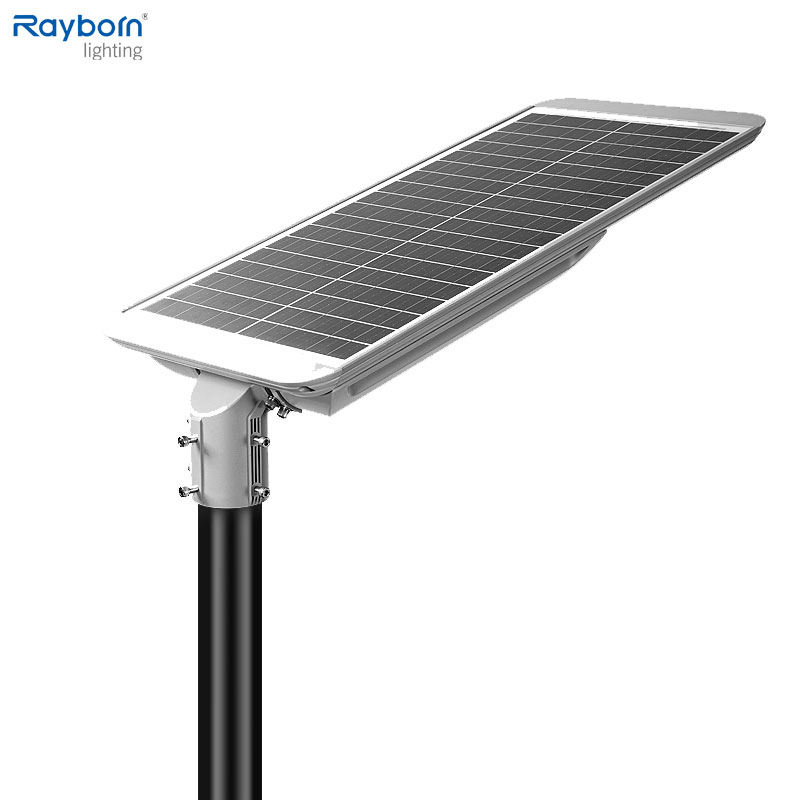

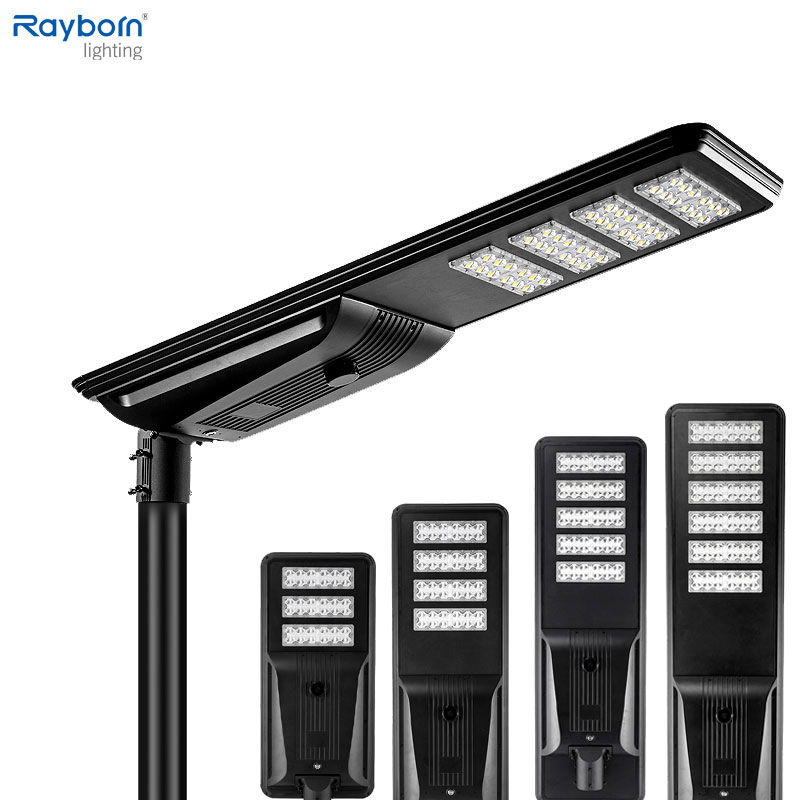

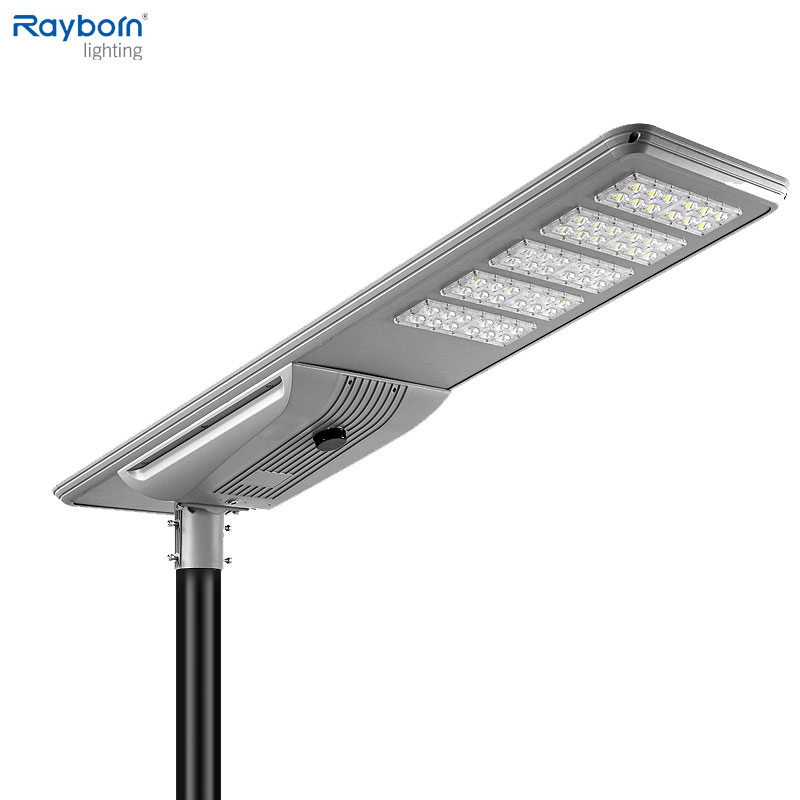

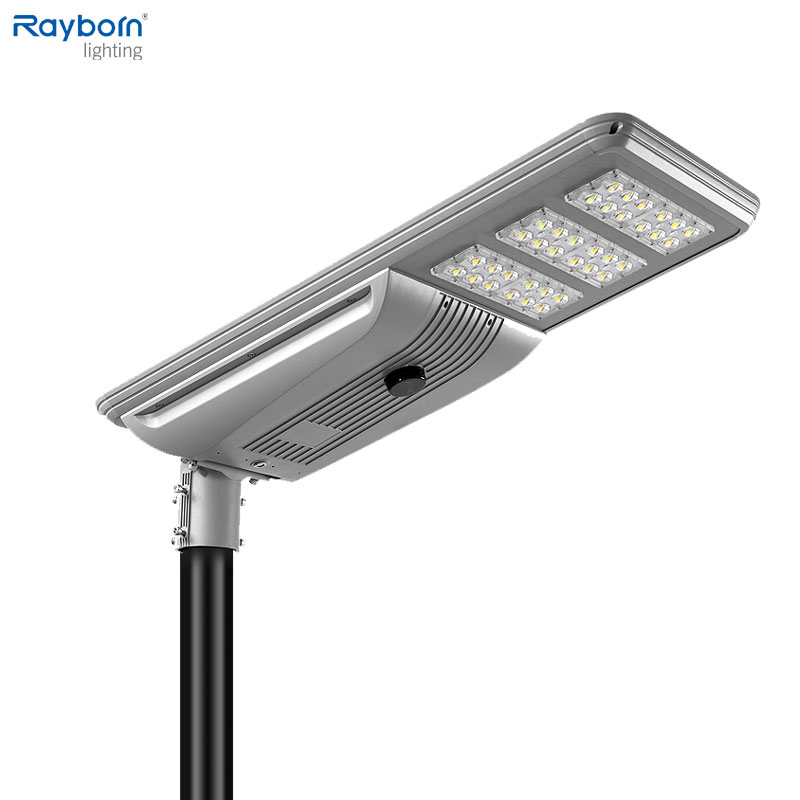

High Bright 200lm/W Solar Powered MPPT Motion Sensor Outdoor Roadway Highway 40W/60W/80W/100W/120W/150W/200W Integrated All in One LED Solar Street Light

1 / 5

High Bright 200lm/W Solar Powered MPPT Motion Sensor Outdoor Roadway Highway 40W/60W/80W/100W/120W/150W/200W Integrated All in One LED Solar Street Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.	RB-SOL-KH100W	Light Source	LED Lamp
Material	Aluminum Alloy	Light Type	Solar
Color Temp	Cool White (3000K-6000K)	Power Range	30W-400W
IP Rating	IP65 / IP66	Charging Time	8 Hours
Illumination Time	10h per night	Cell Type	Ni-MH / LiFePO4 Battery
LED Efficiency	210lm/W	Warranty	3-5 Years

💡 Product Description

Integrated LED Solar Street & Security Lights

New design All in one Led Street Solar Security Lights with Motion Sensors. Energy saving integrated system for Garden, Outdoor, Street, and Yard lighting. Features waterproof IP65 design with intelligent time and light control.

Power	30W	40W	60W	80W	100W	120W
Solar Panel	18V/50W	18V/60W	18V/80W	18V/105W	18V/130W	18V/150W
Luminous Flux	6050LM	8030LM	12000LM	16000LM	20000LM	24000LM
Battery (LiFePO4)	231WH	320Wh	384Wh	576Wh	768Wh	960Wh

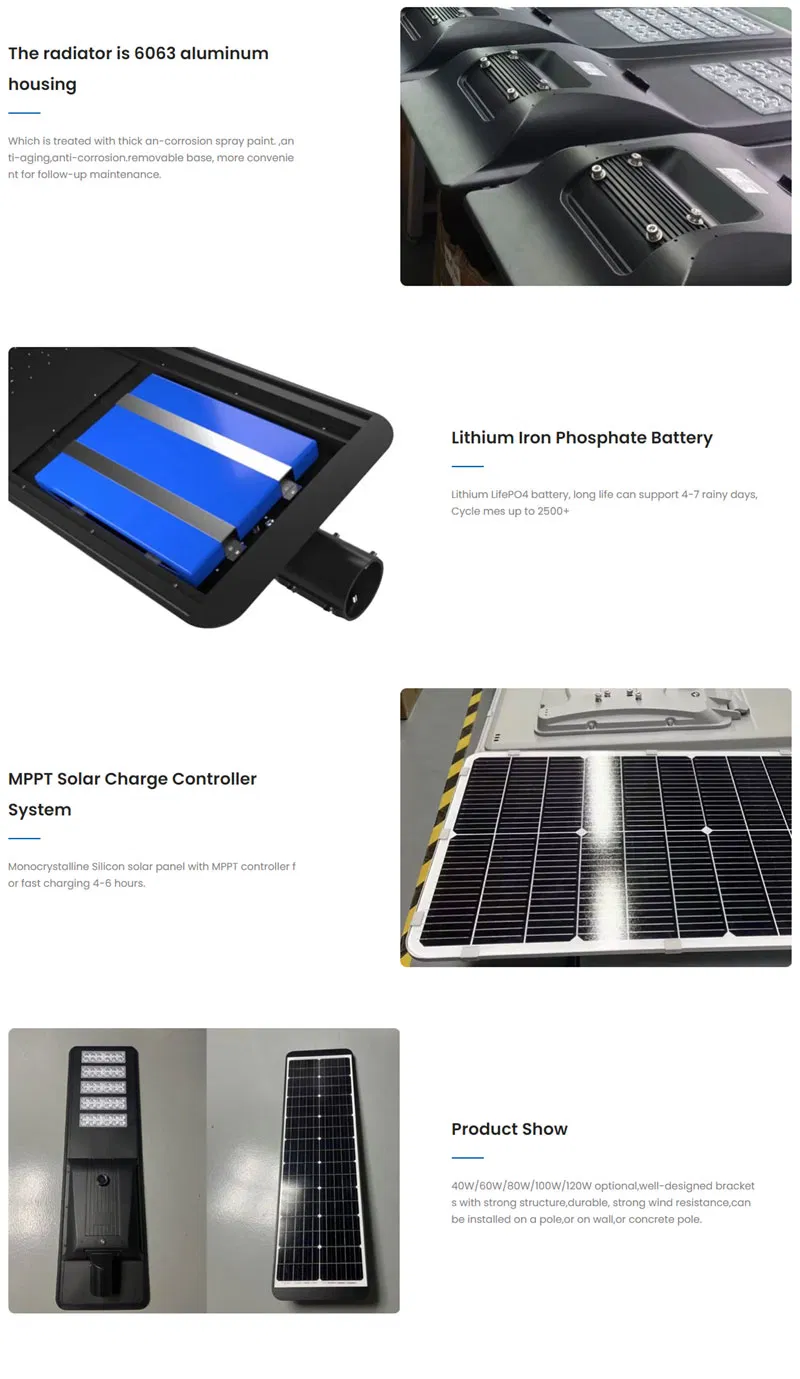

⚙️ Main Features

High-Quality Material: 6063 aluminum radiator with anti-corrosion spray paint.
Easy Maintenance: Removable battery design for convenient follow-up maintenance.
Energy Efficiency: Integrated MPPT controller with conversion efficiency up to 23.8%.
Advanced Optics: Direct light design with high transmittance PC lens (>90%).
Intelligent Control: Microwave induction + segmented time control + light control.
Superior Chips: Genuine high-efficiency SMD 3030 LED chips with low light decay.

⚠️ Installation Precautions

Install on sunny days to ensure full initial charge.
Adjust the solar panel angle (15° recommended) to maximize sunlight absorption.
Avoid shadows from houses, trees, or obstacles to maintain generation efficiency.
Select light source direction to meet maximum road irradiation area.

🔬 Quality Testing & Aging

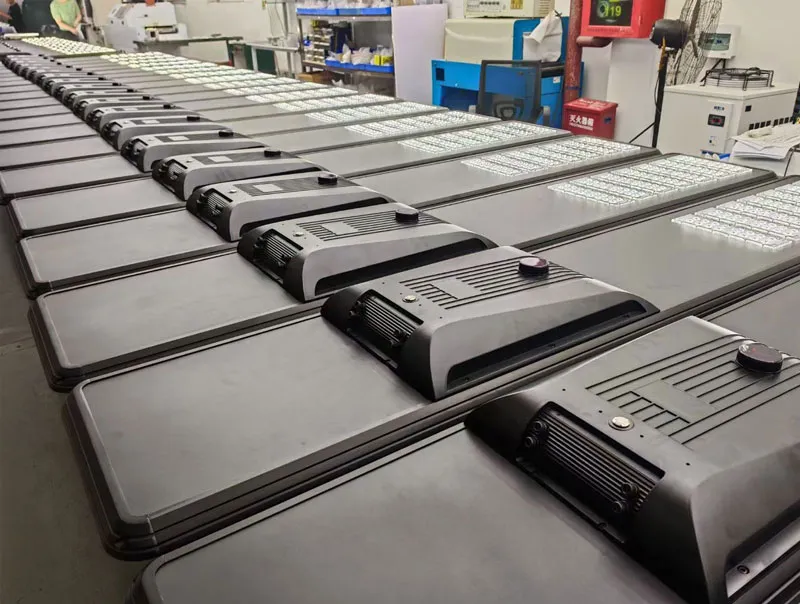

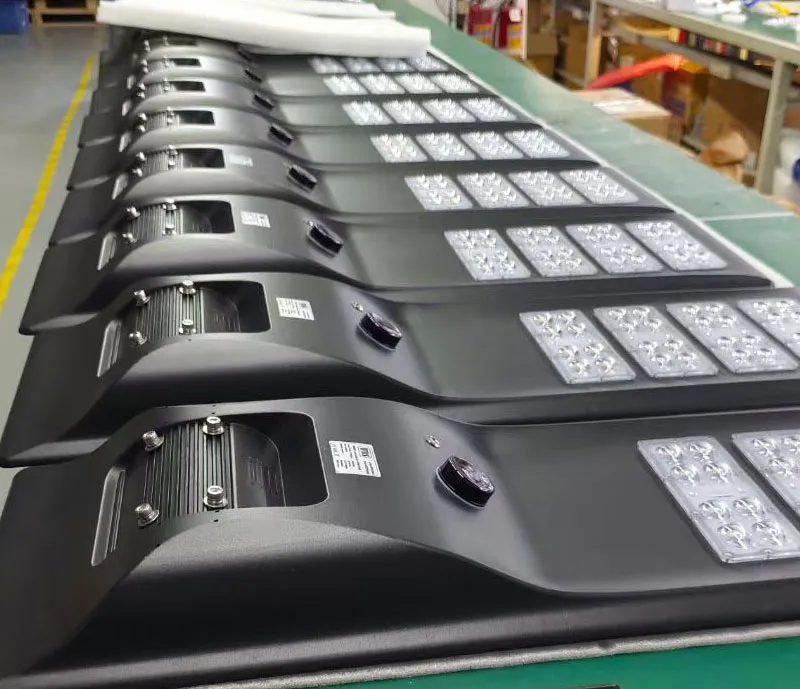

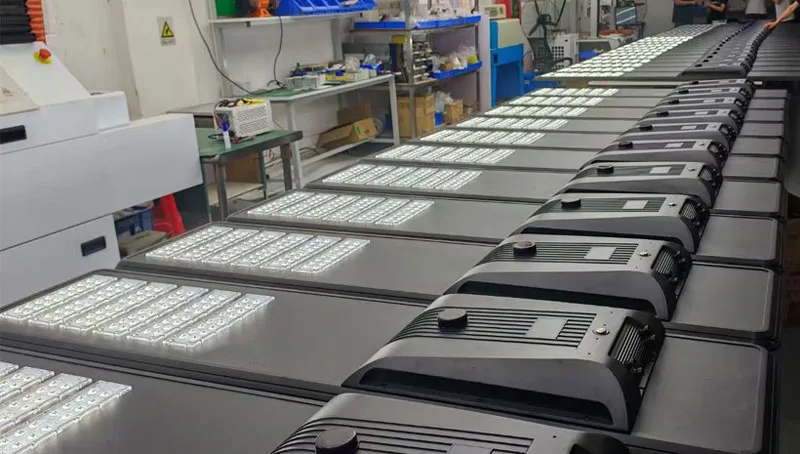

All LED streetlights undergo rigorous 24-hour aging tests before shipping. Our inspection department conducts 100% testing including light-up, wattage, high-voltage, waterproof, and ground connection tests. Defective rate is strictly controlled below 0.1%.

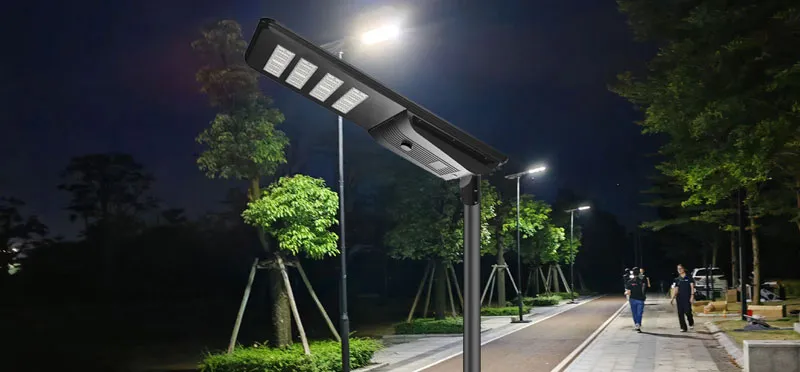

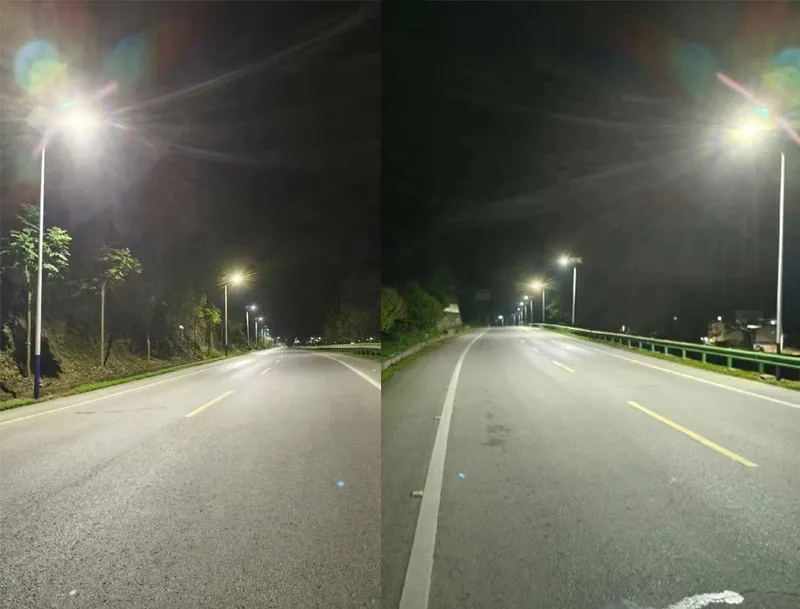

🛣️ Lighting Applications

Playgrounds Stadiums Parking Lots Airports Highways Square & Gardens

📐 Product Structure

❓ Frequently Asked Questions

What is the warranty for these solar street lights?

We offer a 3 to 5-year warranty depending on the specific model. If any quality issues occur during this period, we provide replacement parts or new units.

How long does the battery last on rainy days?

The system is designed to provide continuous illumination for 3-5 consecutive rainy or cloudy days after a full charge.

What is the typical lifespan of the LED chips?

The high-efficiency LED chips are rated for a lifespan of approximately 50,000 hours with very low light decay.

Can I install these lights on different types of poles?

Yes, the integrated design supports multiple mounting options, including pipe-mounted and arm-mounted brackets for poles with a standard diameter (approx. 81mm).

Do the lights operate automatically?

Yes, they feature intelligent light control (auto turn on at dusk, off at dawn), microwave motion induction, and segmented time control for maximum energy efficiency.

What is the waterproof rating of the light?

These solar street lights are rated IP65 or IP66, making them completely waterproof and suitable for harsh outdoor weather conditions.
