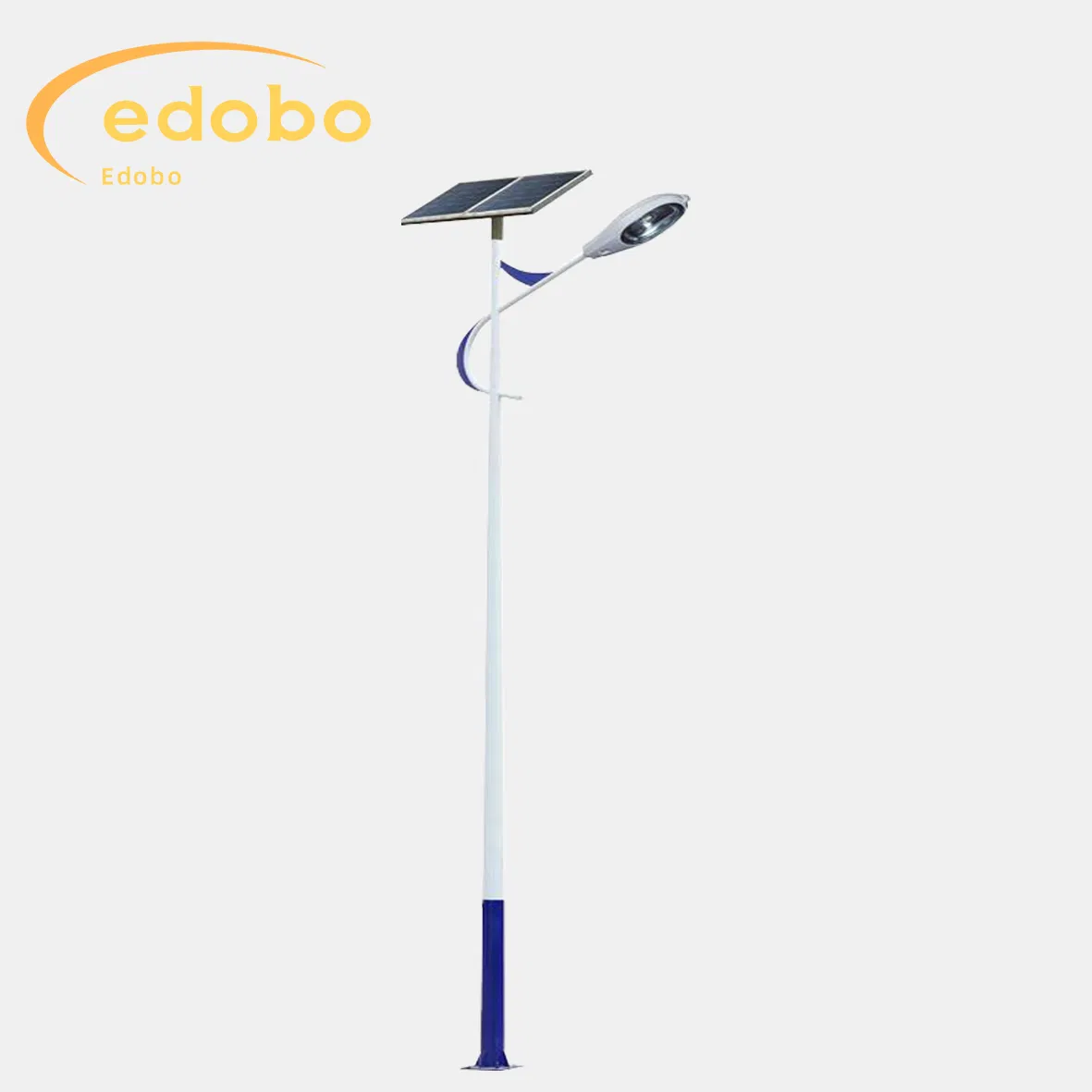

High Efficiency Solar LED Street Light 120W Split Type with Lithium Battery

Customization: Available
Power Supply: Solar
Color Temperature: 3000K-5000K

Product Description

📋 Overview & Basic Info
Model NO.
ED-strteet light
Body Material
Aluminum
Power
60-100W
Application
Square, Highway, Garden, Parking Lot, Road
IP Rating
IP66
Certification
CB, CE, EMC, LVD, ENEC/ENEC+
Lumen
190lm/W
Voltage
DC 12V
Solar Panel
Mono Solar Panel
Color Temp
2700-6500K
💡 Product Description
Solar LED Street Light Banner

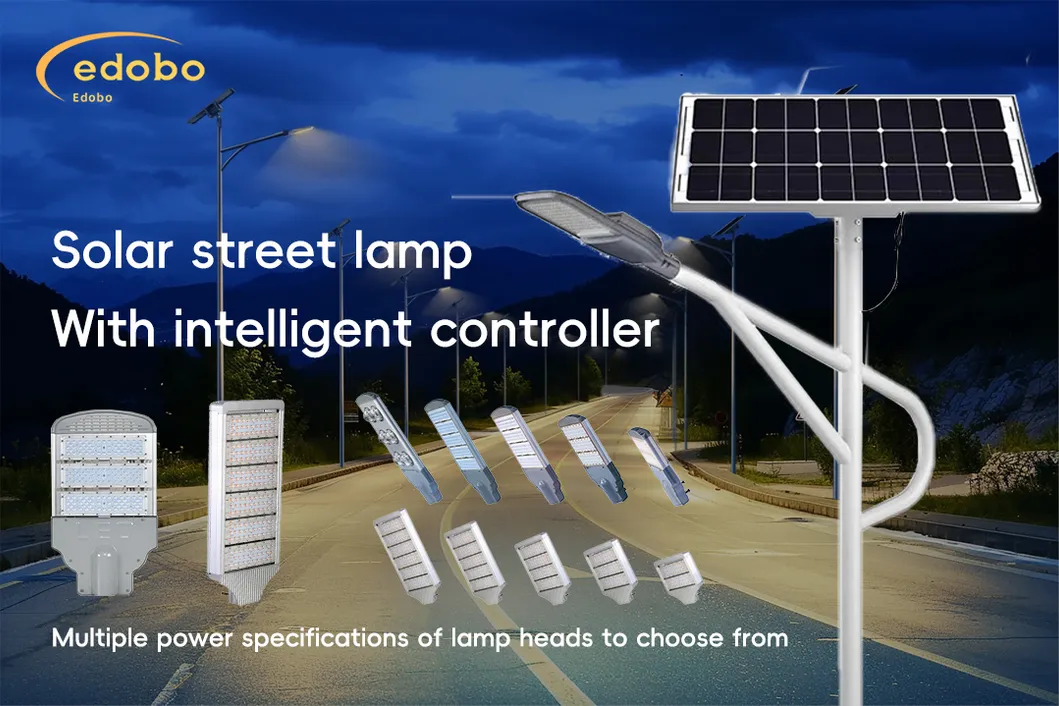

Solar LED Street Light Features

Featuring advanced solar panel technology, our street lights harness the power of the sun to generate clean and renewable energy. During the day, the solar panels absorb sunlight and convert it into electricity, which is stored in the integrated battery system. As the sun sets, the street lights automatically turn on, providing continuous illumination throughout the night.

With their high-power LED lights, our solar street lights offer superior brightness and visibility. The energy-efficient design helps reduce energy consumption and lower operating costs. Constructed with high-quality materials, they can withstand harsh weather conditions, including rain, snow, and extreme temperatures.

🔍 Detailed Photos & Integration

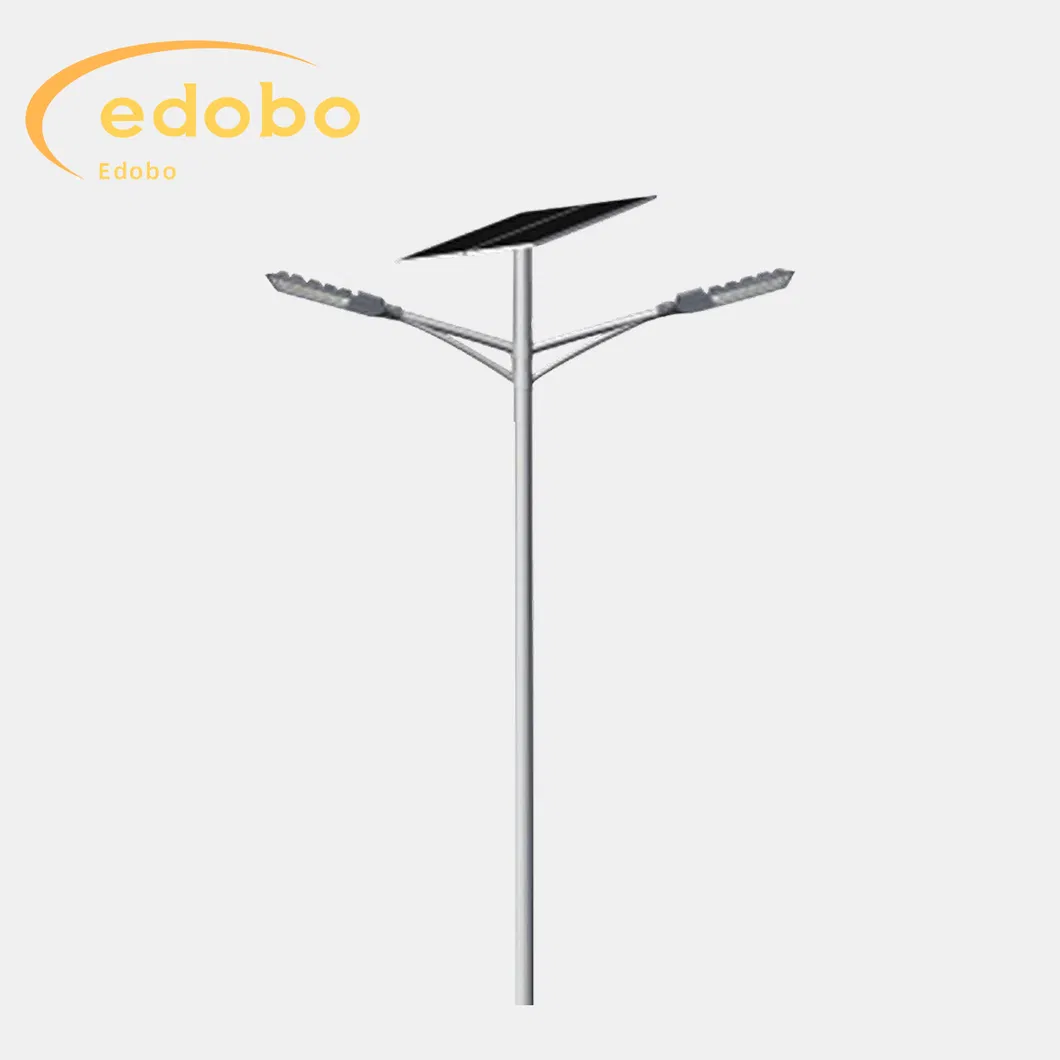

Unique Integration Design
🔹 Unique Integration Design: Easy to transport, install and maintain.

🔹 Rotating Lamp Bracket: Adjusted in vertical and horizontal direction.

🔹 Charge & Discharge Management: Software and hardware protection, supporting 0V charge.

🔹 Light Efficiency: High efficiency led chip, up to 200lm/w.

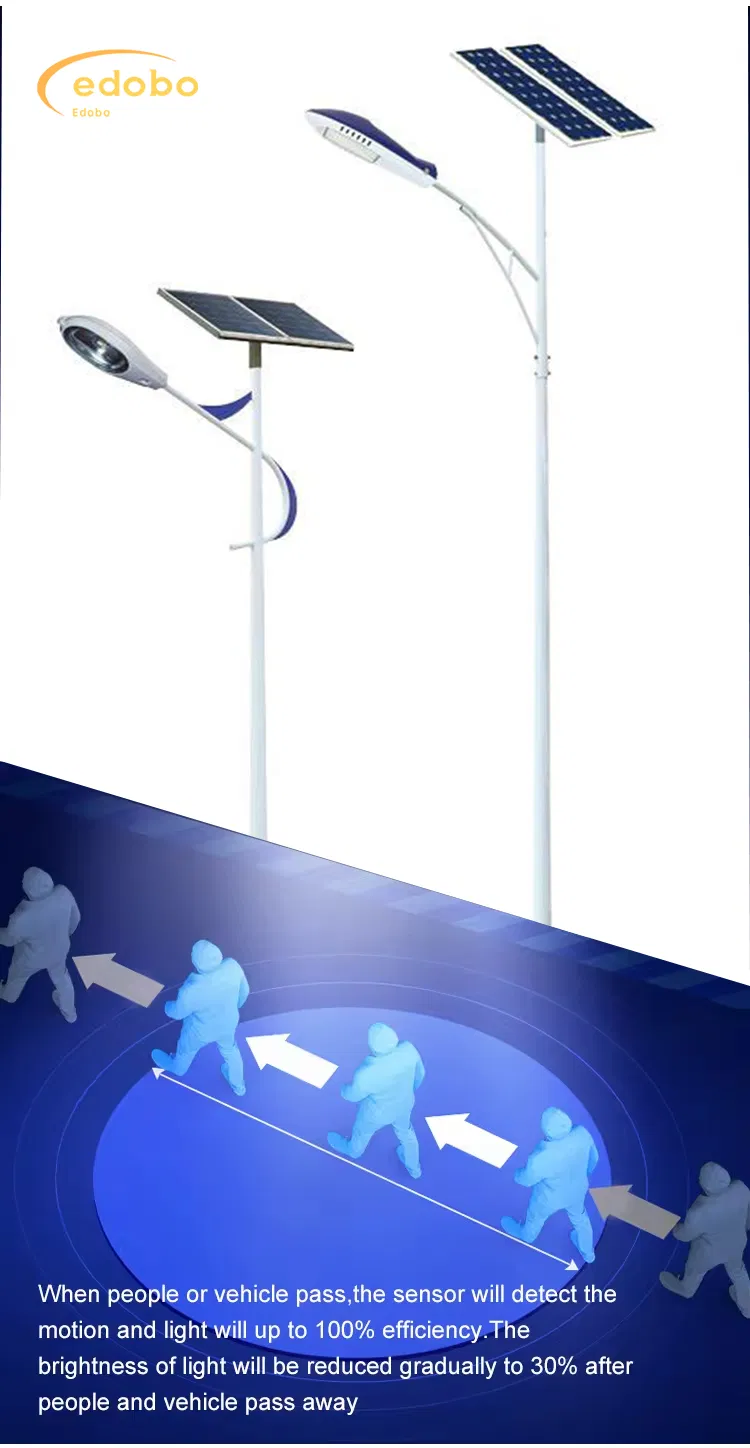

🔹 Infrared Sensor: Intelligent energy-saving technology.

🔹 Battery Technology: Single string control technology for longer lifespan.
📊 Product Parameters
Component 6M 30W 8M 60W 10M 80W 12M 100W
LED Street Light 30W*2, 130Lm/w, DC12V, IP65 60W*2, 130Lm/w, DC24V, IP65 80W*2, 130Lm/w, DC24V, IP65 100W*2, 130Lm/w, DC24V, IP65
Solar Panel 120W*2 Mono (18V) 120W*2 Mono (18V) 150W*2 Mono (18V) 200W*4 Mono (18V)

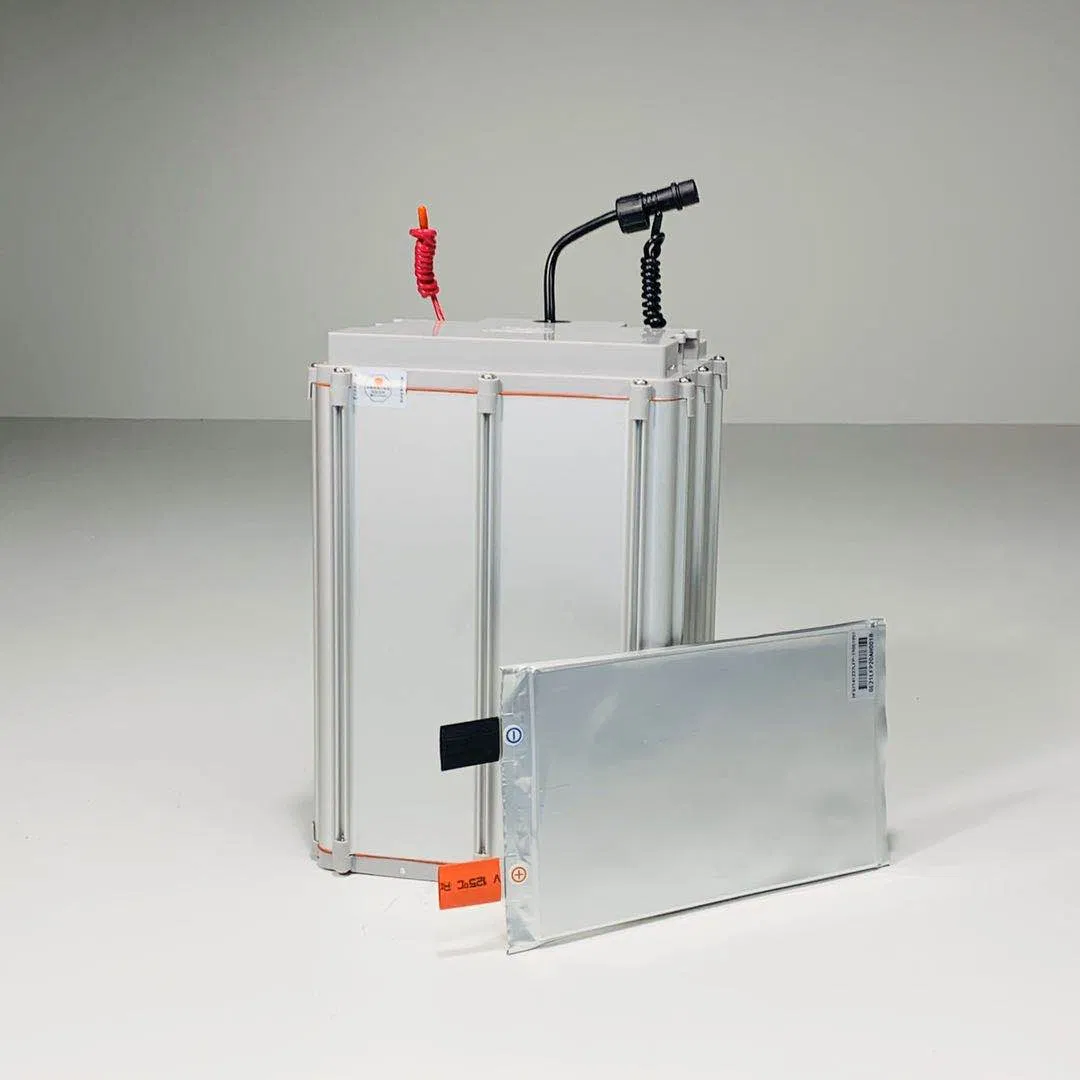

Lithium Battery 72AH, 25.6V, LiFePO4 144AH, 25.6V, LiFePO4 168AH, 25.6V, LiFePO4 204AH, 25.6V, LiFePO4

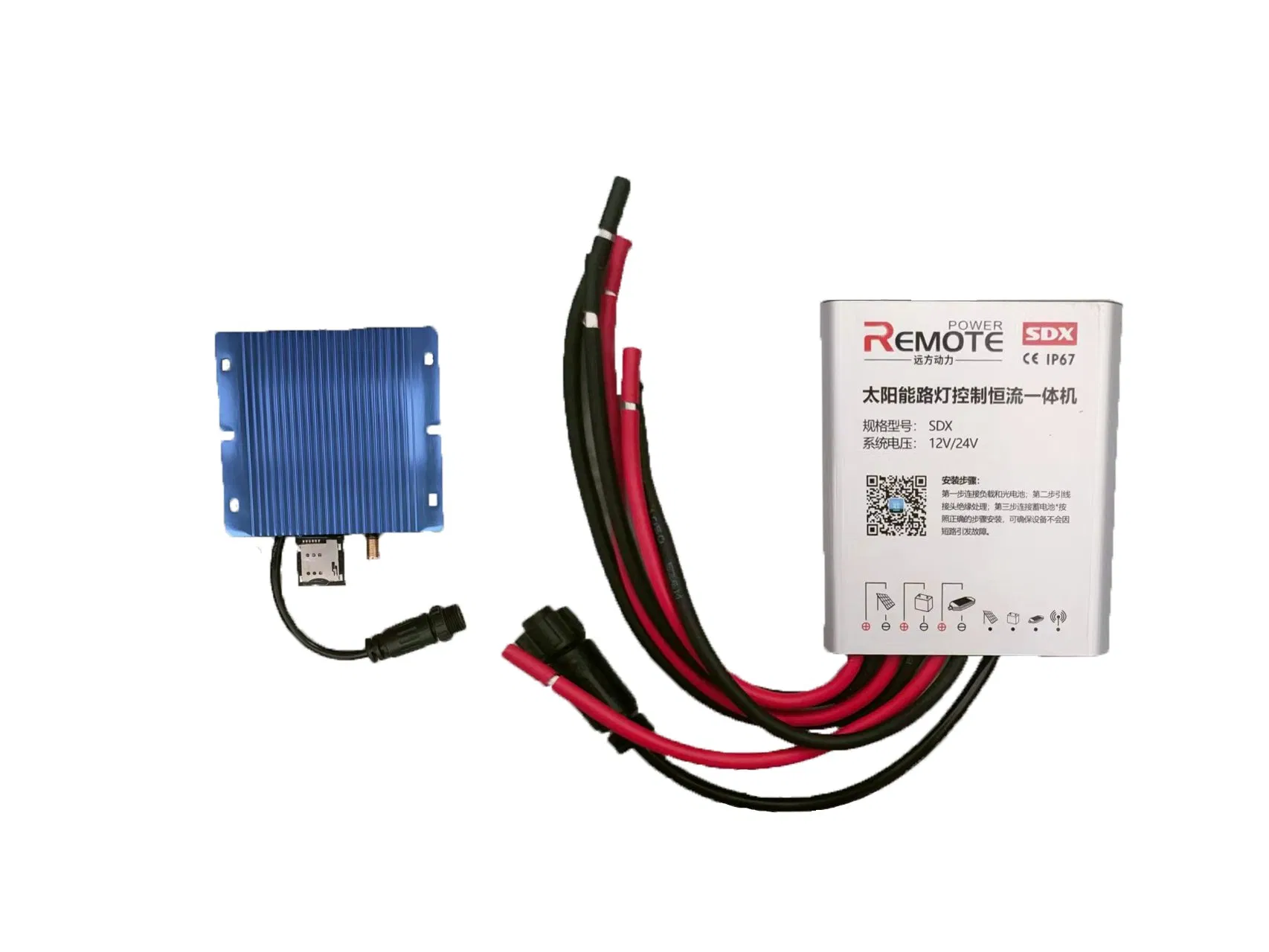

Controller 20A, 12V/24V Auto, Light/Time Control, Over-charge Protection

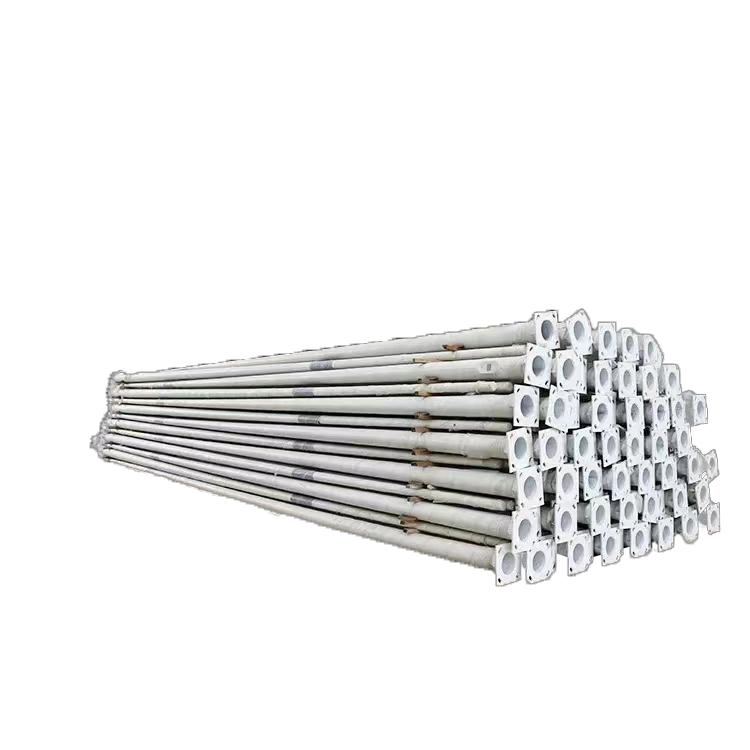

Pole Specs 6m, 3.5mm thickness 8m, 4.0mm thickness 10m, 4.5mm thickness 12m, 5.0mm thickness

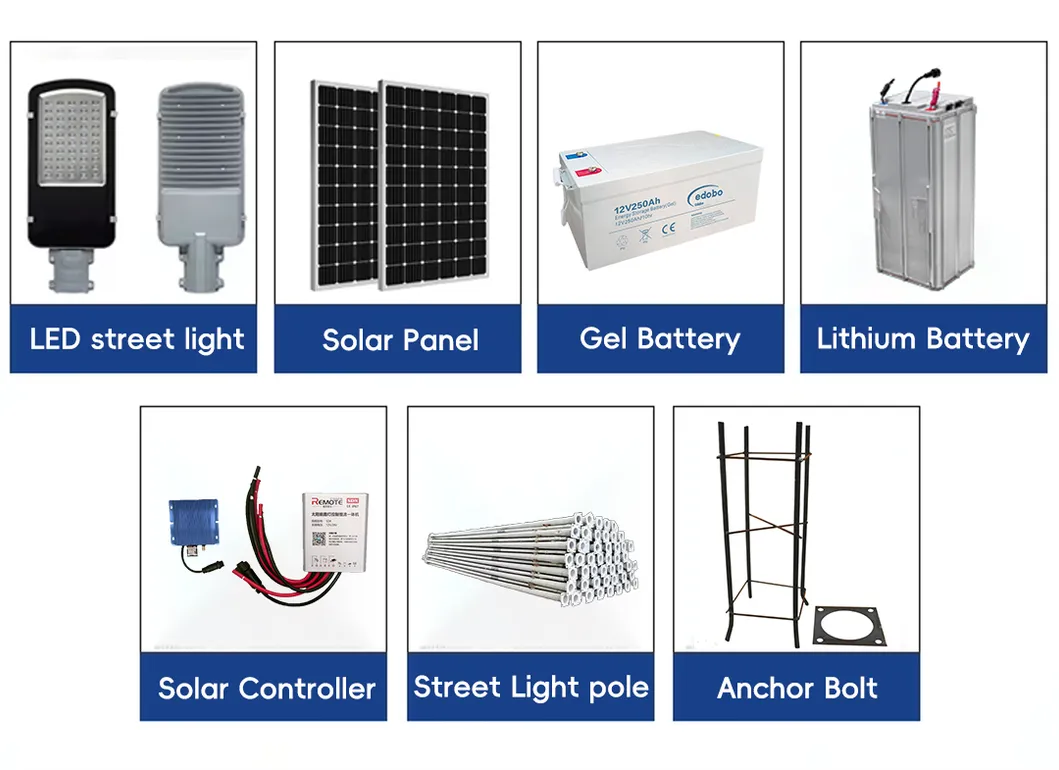

Parameter Diagram
🏗️ Completed Projects & Policy

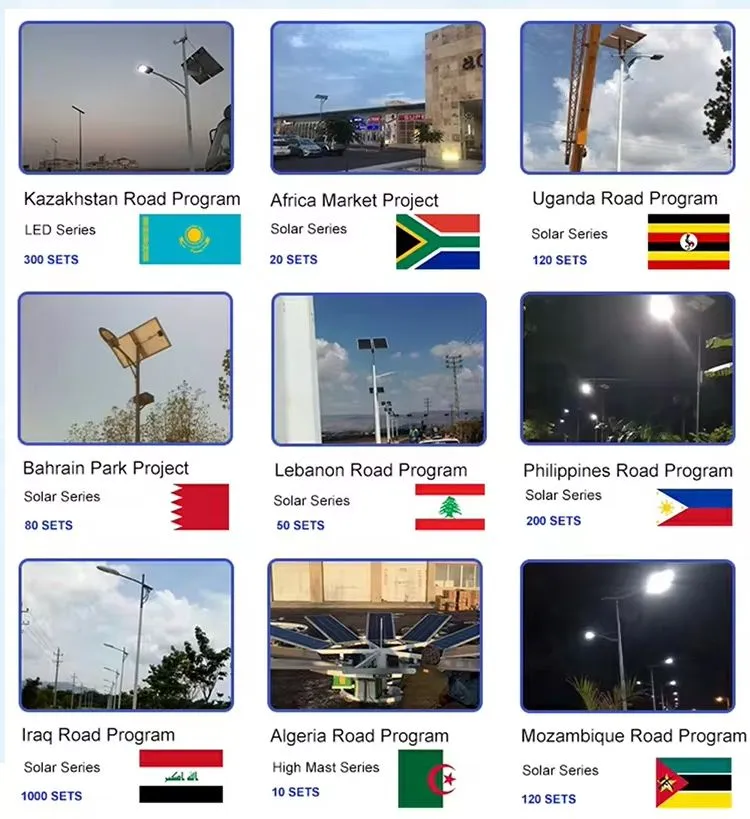

Project Case
🚀 Shipping Information: We ship worldwide by DHL, UPS, FEDEX, EMS, Air, or Sea. Reliable delivery within 2-7 business days after payment.

🛡️ Warranty & Returns: 3-5 years manufacturer's limited warranty for defective items. All items are strictly tested before shipping.
🔗 Related Solutions
Solar Power System

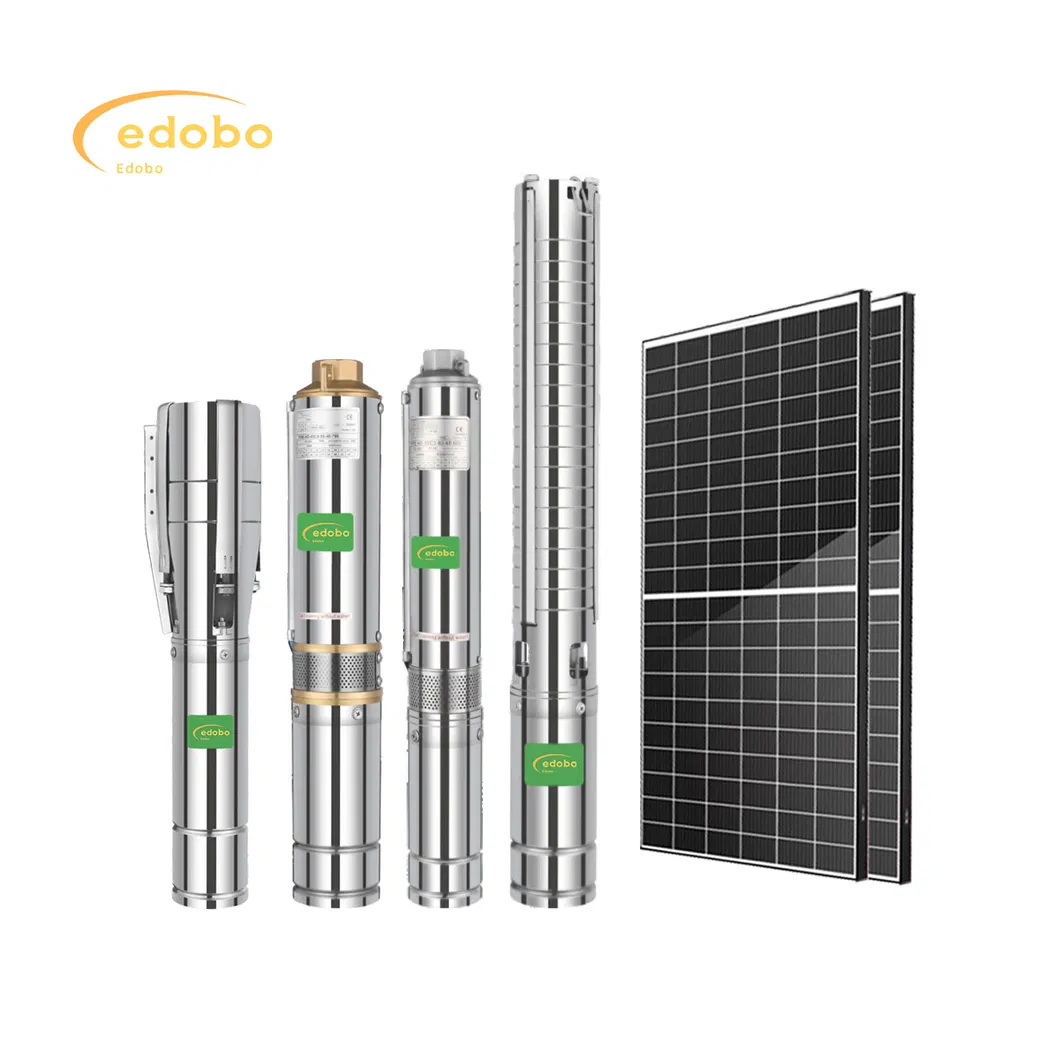

Solar Water Pump

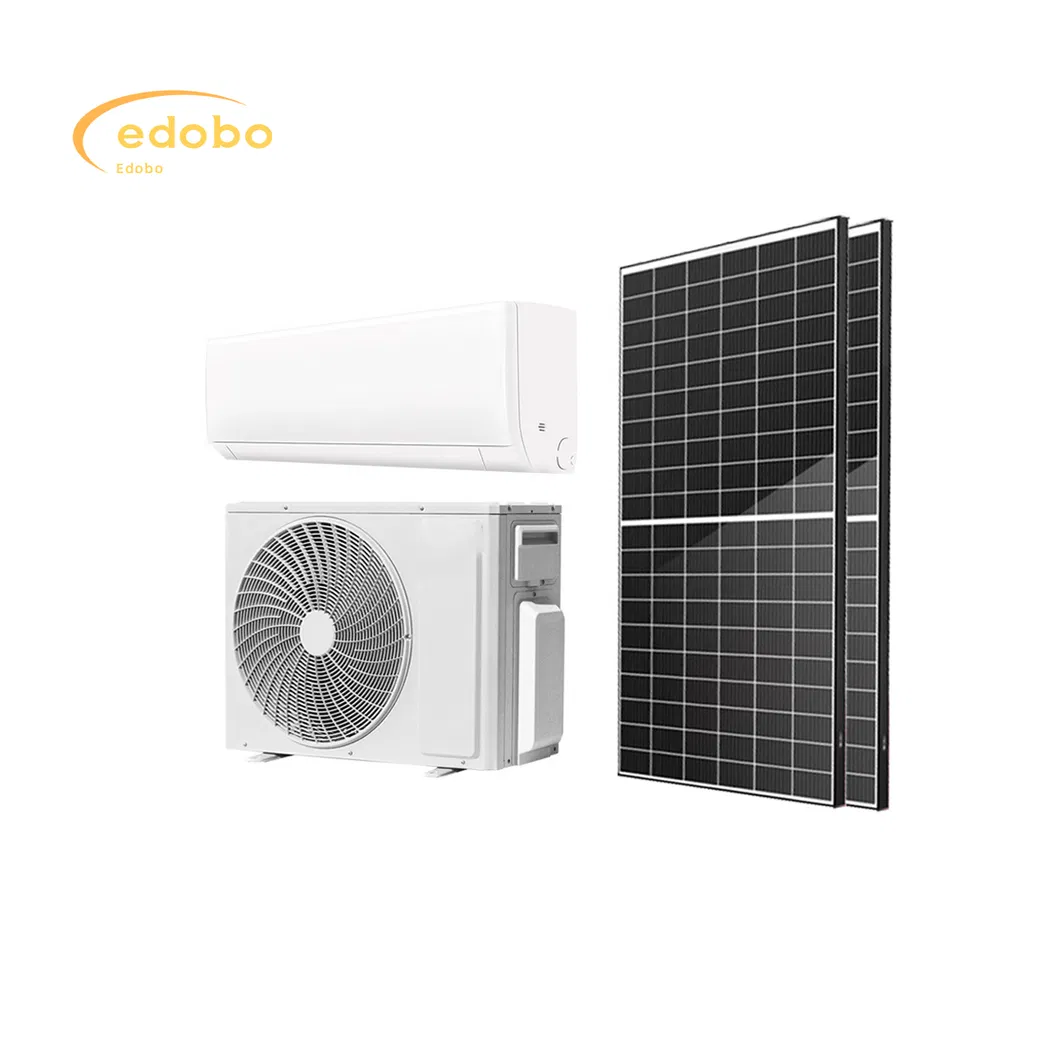

Solar Air Conditioner
Frequently Asked Questions
What is the luminous efficiency of your solar street lights?
Our lights use high-efficiency LED chips (Ph lumiled/CREE/NICHIA) that provide light efficiency up to 200lm/W, ensuring maximum brightness with minimum power consumption.
How does the intelligent sensor work?
The lights are equipped with infrared sensors that detect motion. This allows the system to adjust brightness automatically, saving energy when no activity is detected while providing full illumination when needed.
Can the light withstand extreme weather conditions?
Yes, the lamp body is made of high-quality aluminum with an IP66 waterproof rating. It is designed to withstand heavy rain, snow, and extreme temperatures.
What are the battery options available?
We offer two main options: high-performance Gel Batteries and long-life LiFePO4 Lithium Batteries. Our lithium batteries support over 2,500 deep cycles.
Is the lamp bracket adjustable?
Yes, our unique rotating lamp bracket can be adjusted in both vertical and horizontal directions to optimize the lighting area and solar exposure.
What is the standard warranty period?
We provide a 3 to 5-year manufacturer's limited warranty on our solar street lighting systems, covering any manufacturing defects.
