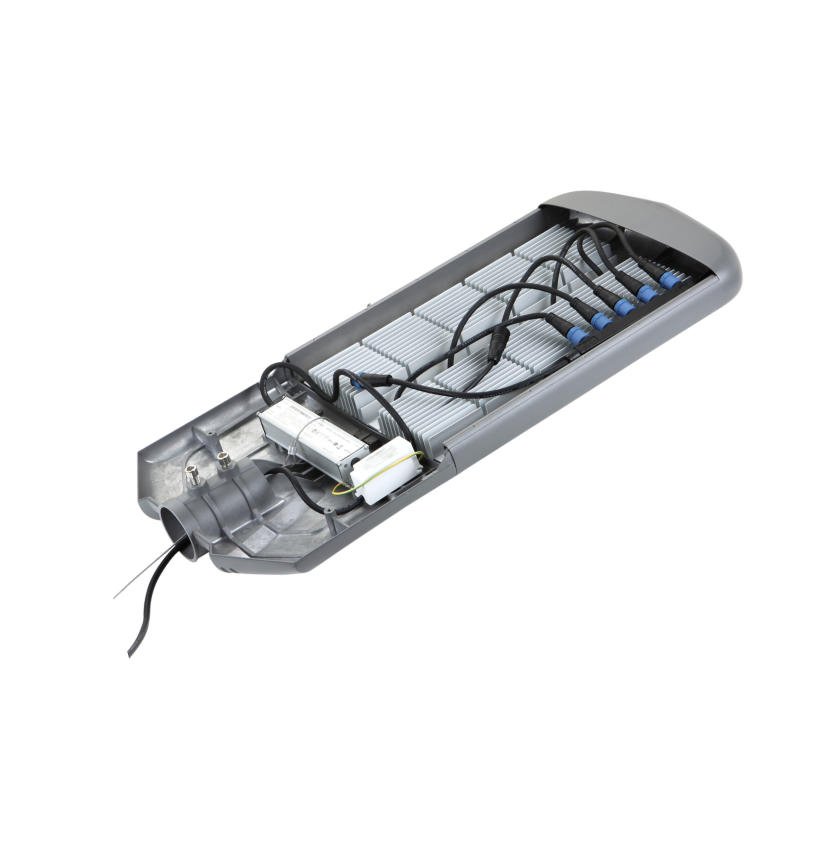

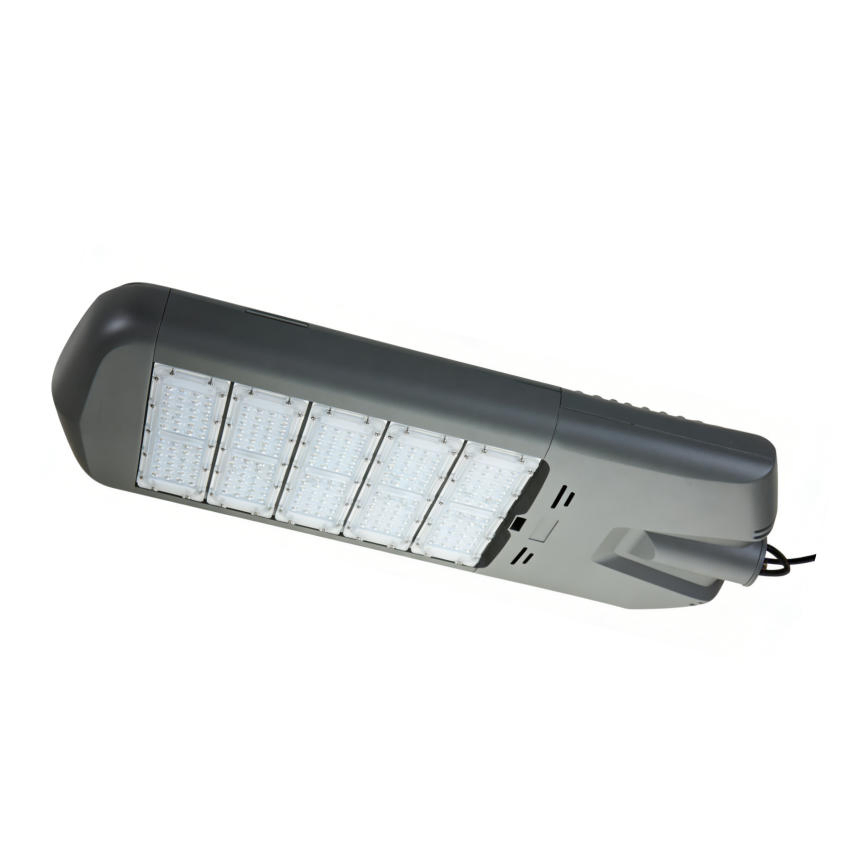

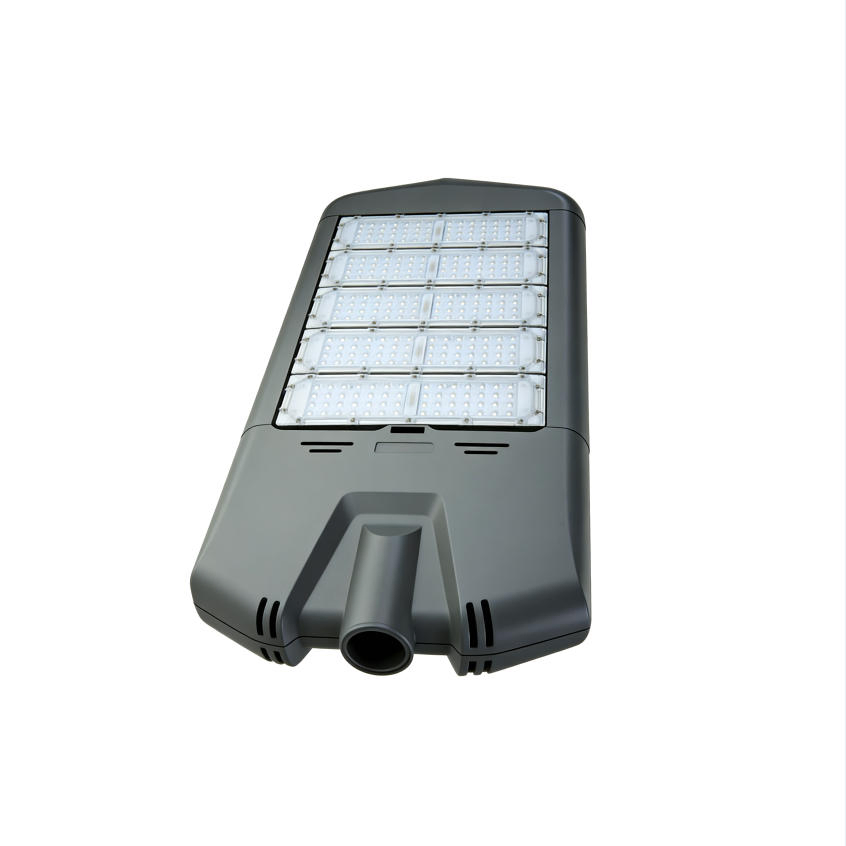

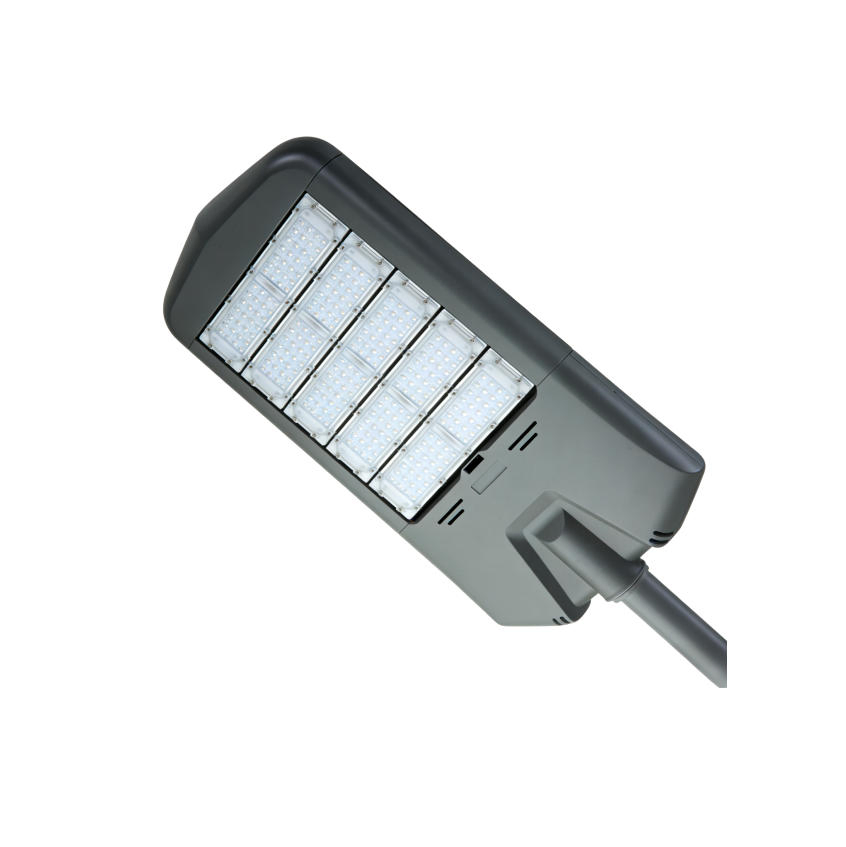

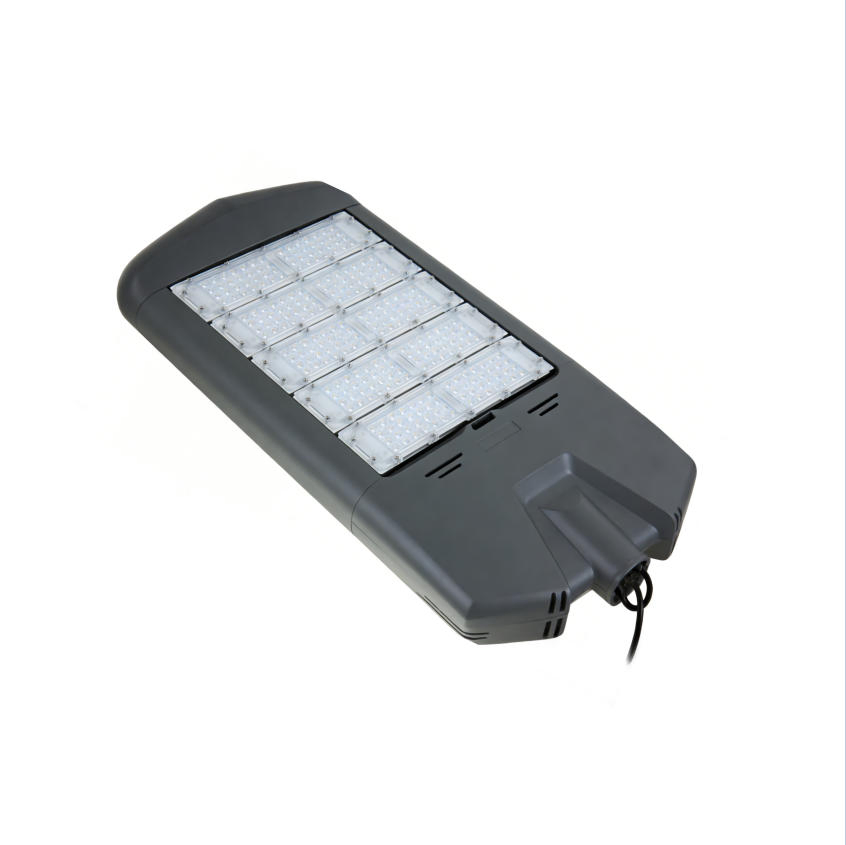

250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
1 / 5
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting
250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting

250W 280W 300W Large Area High Output Energy Efficient LED Street Light for Highway Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊Basic Information
Model NO.
STRL-020-M5
Material
Aluminum Alloy
Power
250W, 280W, 300W
Application
Highway, Parking Lot, Street
Certification
CE, RoHS, CCC, EMC, LVD
Input Voltage
100-240V
LED Brand
Bridgelux
Luminous Efficiency
150lm/W
Ingress Grade
IP66
Lifespan
50,000 Hrs
💡Product Description
LED Street Light Overview
Modular LED Street Light 020 Series

The 020 series LED street light combines contemporary styling with robust, heavy-duty engineering. Its aerodynamic, flat-panel profile enhances urban aesthetics while minimizing dust buildup. Constructed from high-pressure die-cast aluminum with a corrosion-resistant coating, it endures extreme outdoor conditions.

Featuring high-efficacy LED chips and IP66-rated waterproofing, this light delivers excellent lumens-per-watt. The advanced thermal design ensures over 50,000 hours of performance. It is ideal for city thoroughfares, gated communities, and retail boulevards.

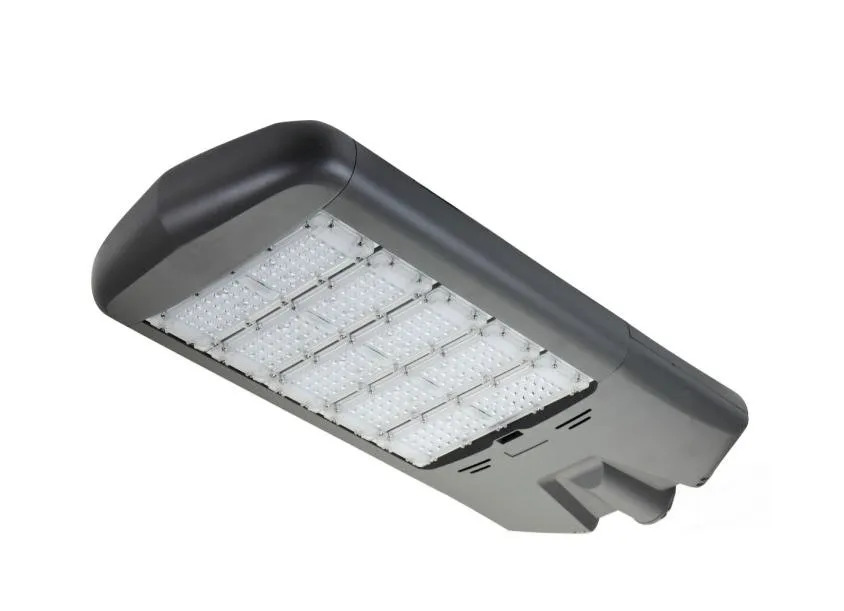

Product Detail 1

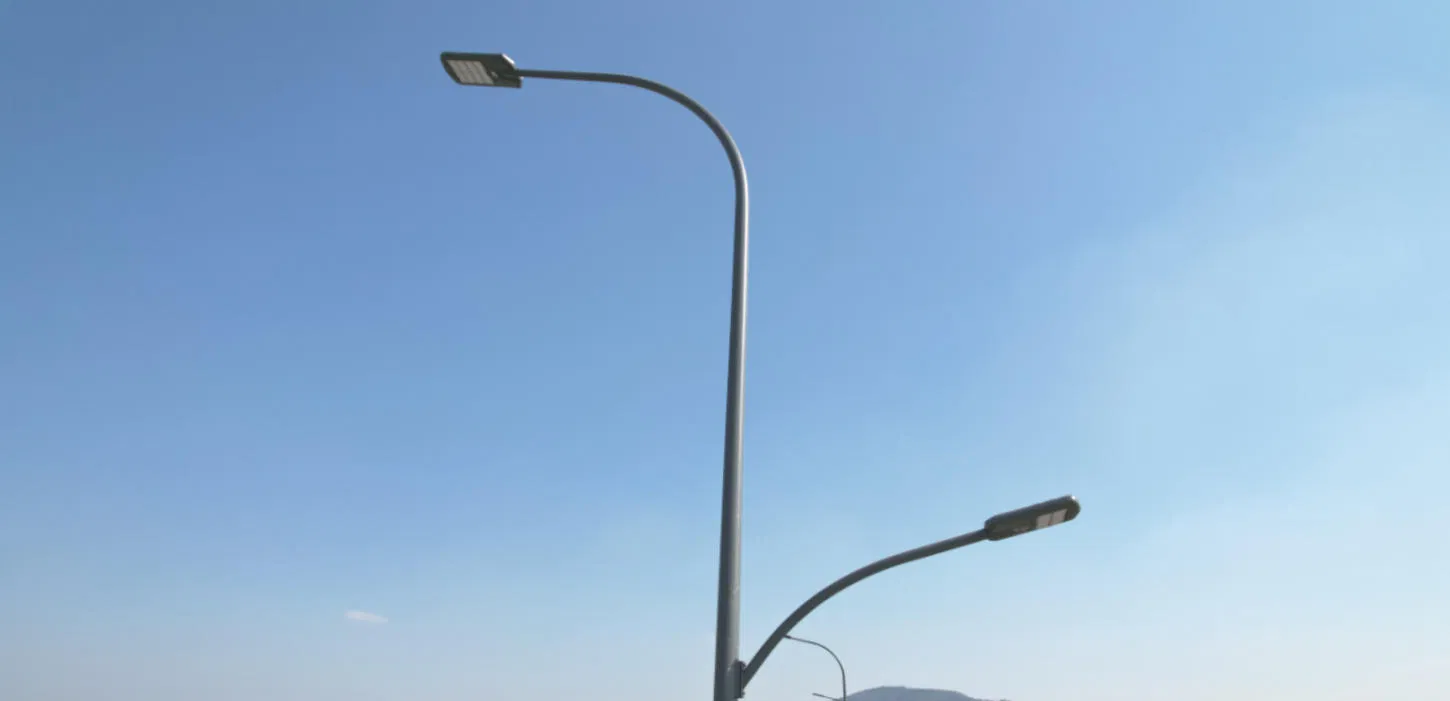

Product Detail 2
Key Features & Advantages
  • 🔹 Sleek & Lightweight: Aerodynamic profile limits dust adhesion.
  • 🔹 Rugged Build: Cast from AD12 aluminum, shot-blasted and powder-coated.
  • 🔹 IP66 Sealing: Dependable output in harsh outdoor settings.
  • 🔹 Optical Excellence: High-impact PC lens with multiple beam patterns.
  • 🔹 Superior Cooling: Standalone heat-sink with optimized airflow.
  • 🔹 Intelligent Control: Integrated photocell for auto-dimming options.
⚙️Technical Specifications

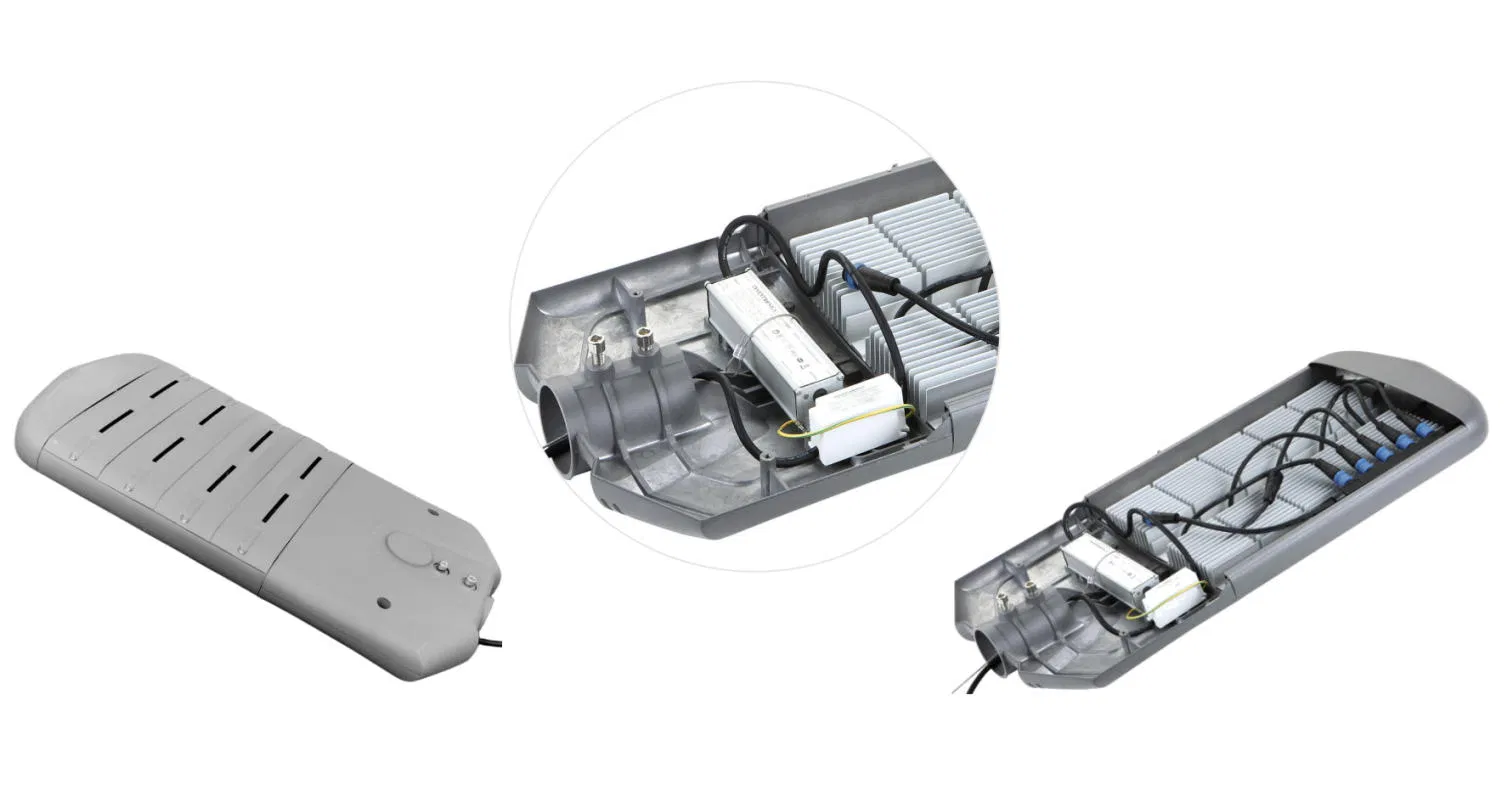

Structure

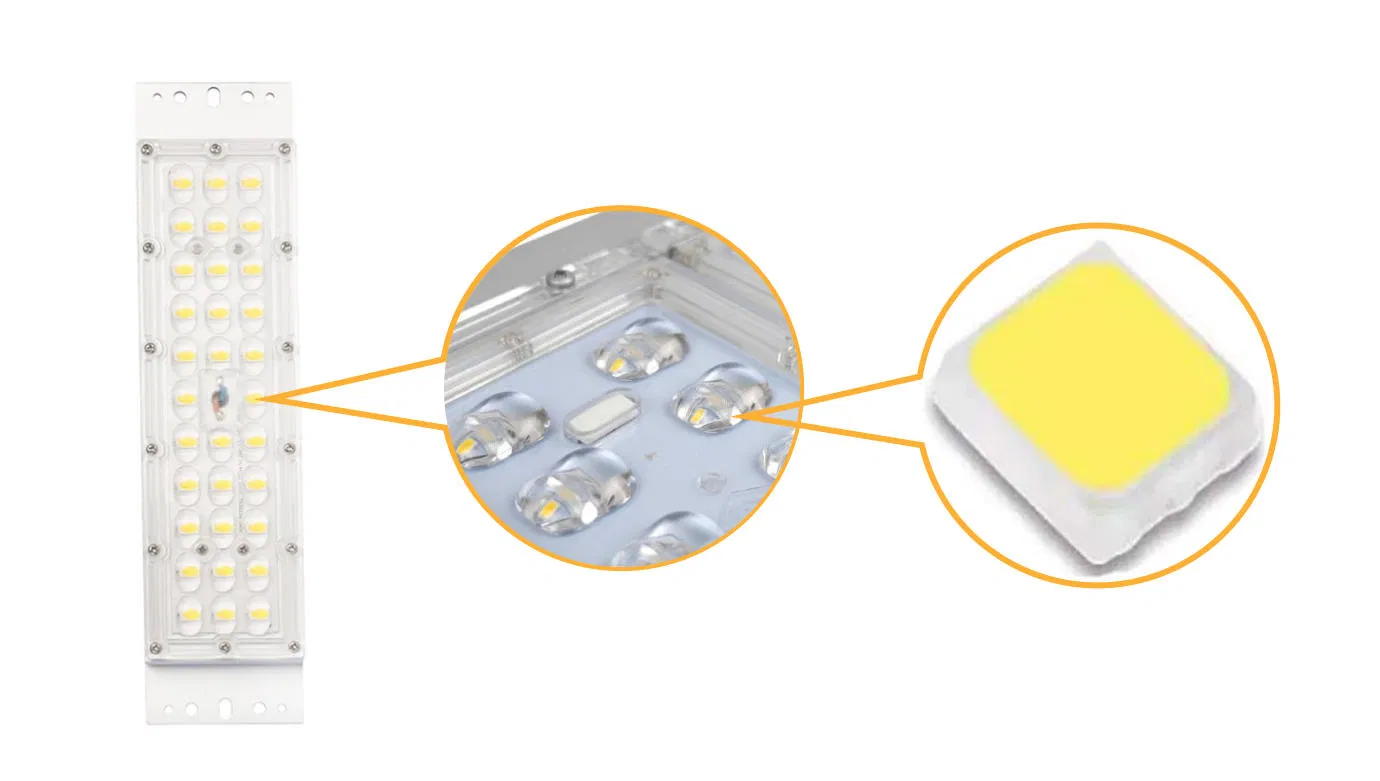

LED Chips

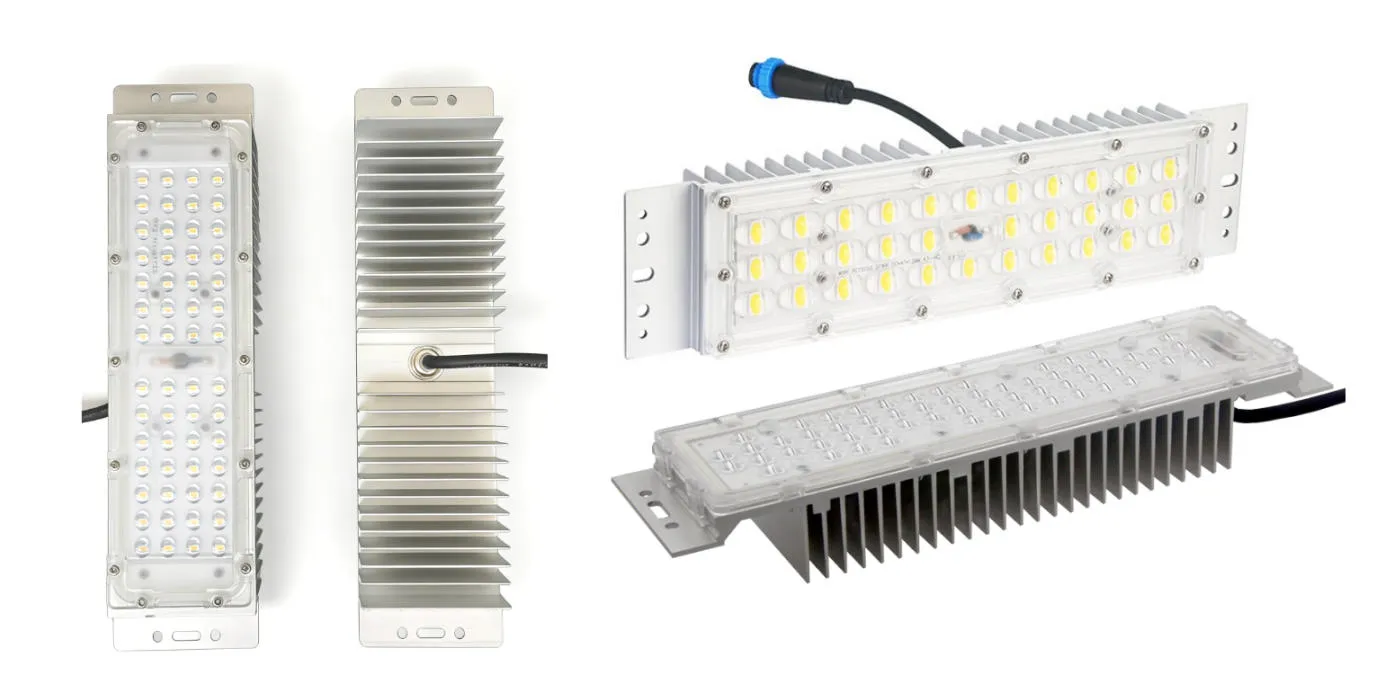

Heat Sink
Model Parameter H-020M2-120 H-020M3-180 H-020M4-240 H-020M5-280
Rated Power120W180W240W280W
LED Quantity112168224280
Color Temp3500-6500K3500-6500K3500-6500K3500-6500K
Efficiency130 lm/W130 lm/W130 lm/W130 lm/W
Input VoltageAC200-240VAC200-240VAC200-240VAC200-240V
Power Factor>0.9>0.9>0.9>0.9
ProtectionIP66IP66IP66IP66
Weight6.2kg7kg7.8kg8.6kg
Installation Height8-10m10-12m12-14m12-14m

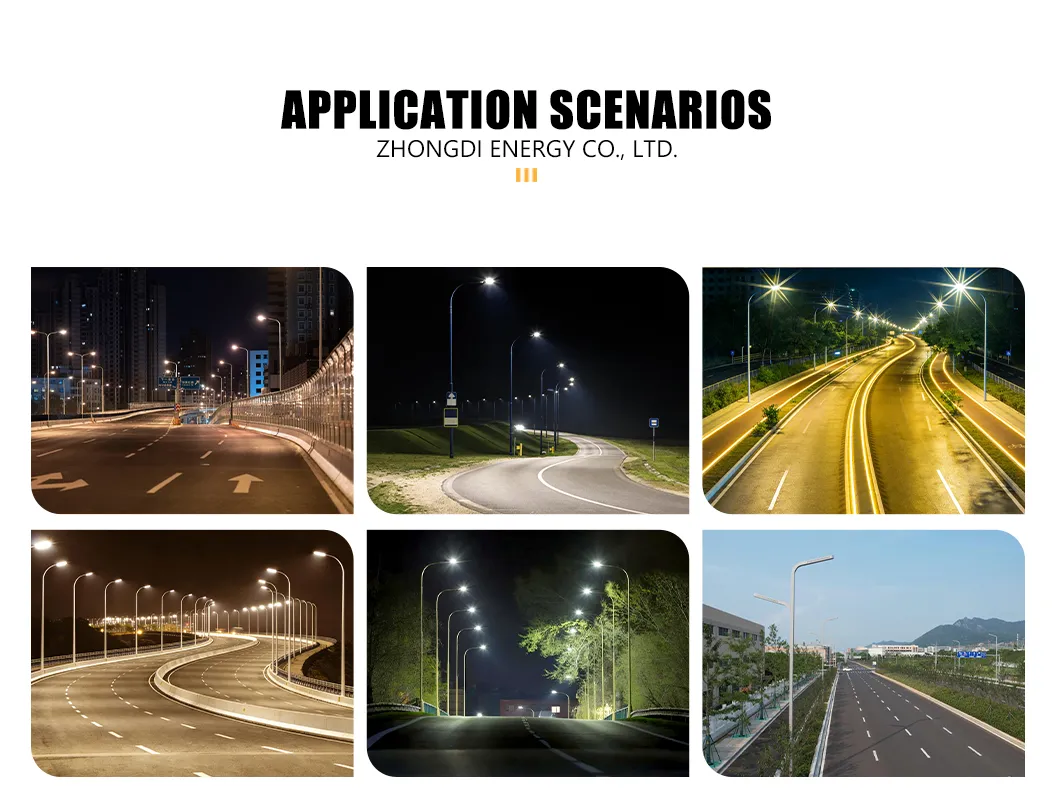

🖼️Applications & Manufacturing
Application 1
Application 2
❓Frequently Asked Questions
What is the lifespan of these LED street lights?
Our high-quality LED street lights typically have a lifespan of 50,000–100,000 hours, depending on LED chips and thermal design.
What wattages are available for this series?
Common wattages range from 120W to 300W, suitable for urban roads, highways, industrial parks, and commercial areas.
What is the lumen efficiency of your lights?
Our LED street lights deliver 130–150 lm/W (up to 190 lm/W customized), ensuring high brightness with low power consumption.
Are different beam angles available?
Yes. Multiple light distribution options are available, such as Type II, Type III, and Type V, to meet different road lighting standards.
Can these replace traditional HPS or metal halide lamps?
Yes. LED street lights can directly replace HPS and metal halide lamps, reducing energy consumption by up to 60% while providing better light quality.
What is the protection level for outdoor use?
Standard models feature IP66 protection and high impact resistance, making them perfectly suitable for harsh outdoor environments.
