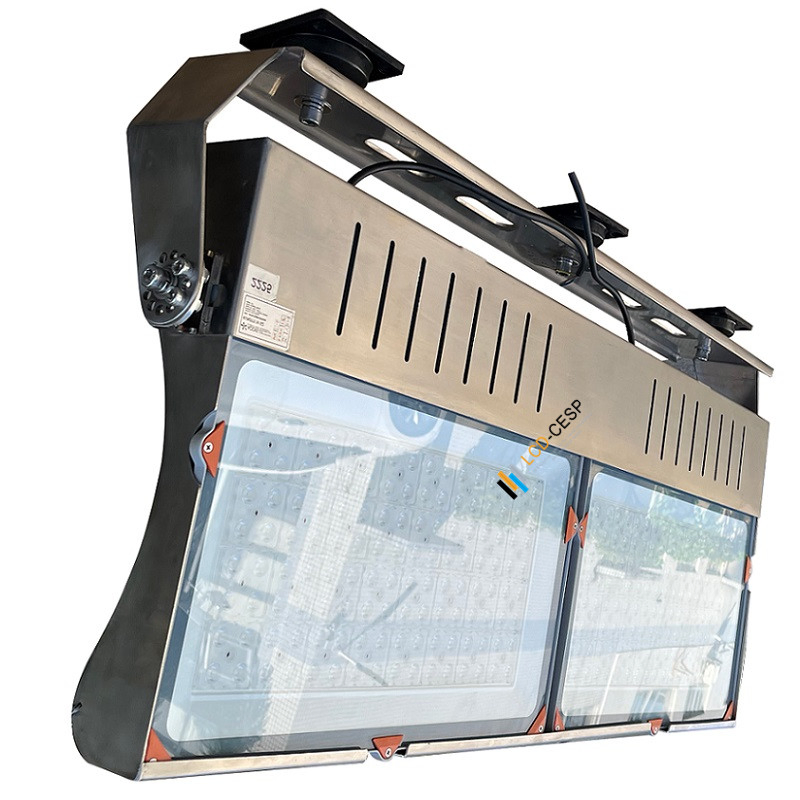

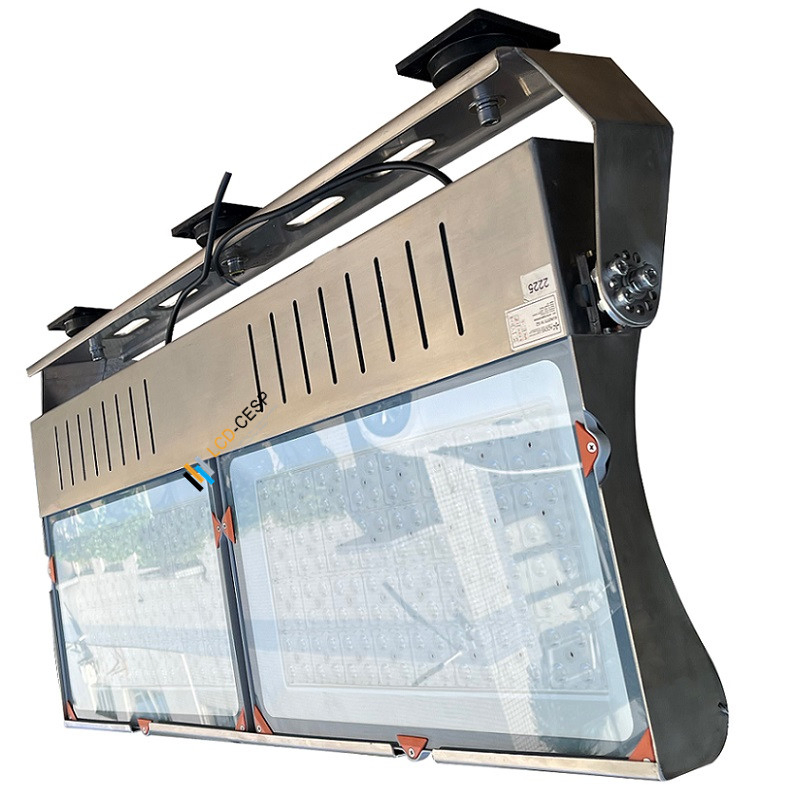

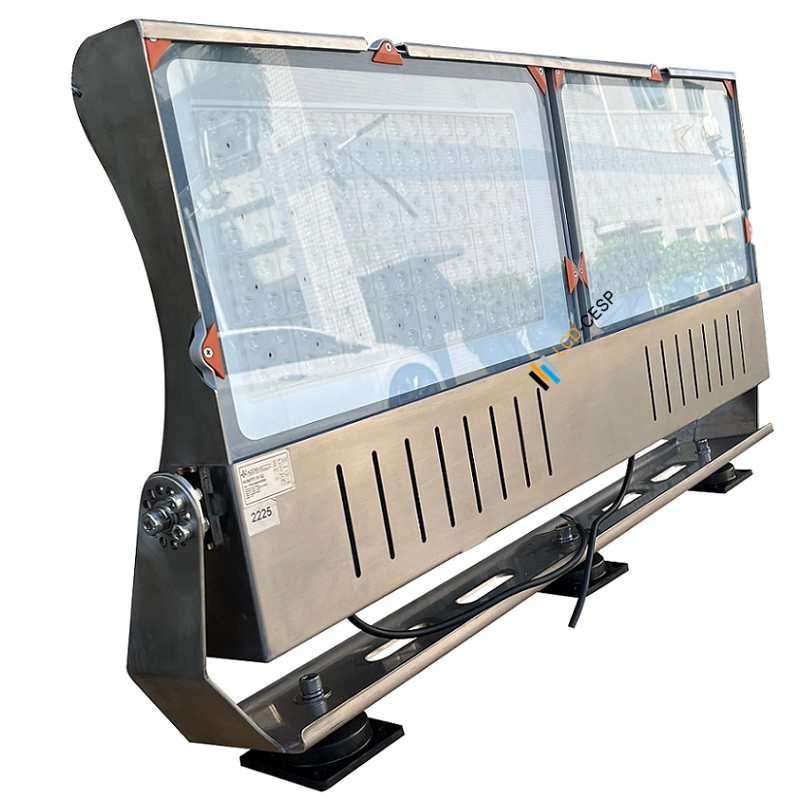

High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
1 / 5
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66
High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66

High Power LED 800W High Lumen 112000 Lumen LED Flood Light 300 Watt 400 Watt LED Floodlight Outdoor High Mast Light for Stadium Street Billboard Lighting IP66

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications - Basic Info
Model NO.
LCDFK-SST-803-2P-LN60-3K
Pole Height
30-35m
Power
600W
Projection Distance
100-500m
IP Rating
IP66
LED Chips
Osram
Input Voltage
220V
Certification
CE, RoHS, FCC, ETL, TUV, VDE, SAA, CB
💡
High-Performance Lighting Solution

600W-1500W outdoor & indoor king led flood light and high bay light featuring cutting-edge thermal management with Heat-pipe-SSL system to ensure a long-life span.

Product Features
  • Excellent orientation lighting distribution with comfortable visual experience.
  • Increases lighting lux & lumen by 5-10% in target areas.
  • Anti-glaring reflector diffuser for UGR < 19.
  • Zero lighting pollution and neighbor-friendly design.
  • Superior thermal management maximizes 100% reliability.
  • Versatile mounting: adjustable steel yoke for floodlighting or steel hook for high bay use.

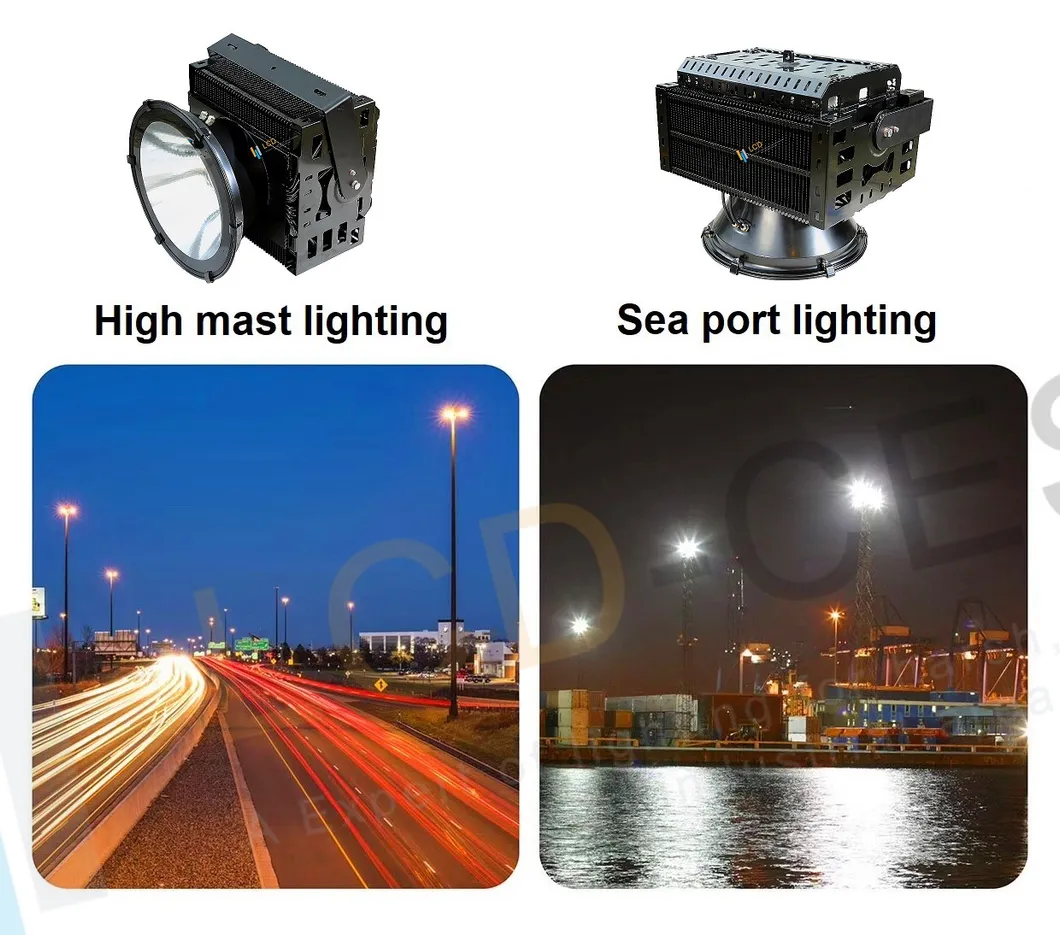

LED Flood Light 800W
Stadium Lighting Application
Detailed Description
The newest LED luminaire is our most versatile high wattage unit yet. Equipped with a state-of-the-art LED light engine, it offers optional 0-10V dimming with excellent uniform lighting output. With efficacies as high as 115-120lm/w and a CRI of ≥75, it meets stringent performance requirements for large-scale outdoor projects.
Outdoor High Mast Light

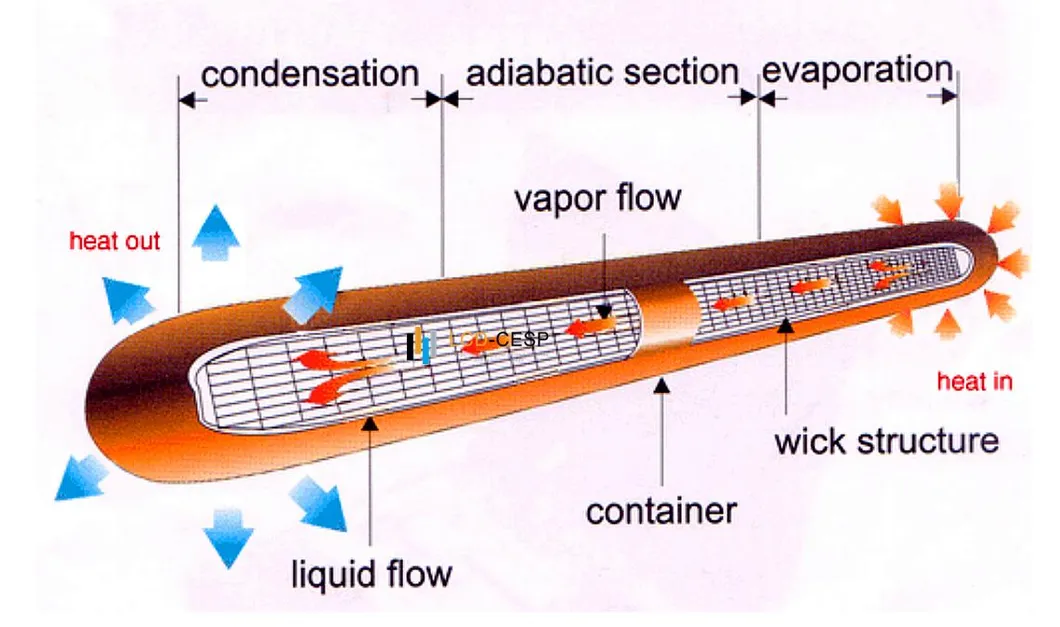

Heat Sink Design

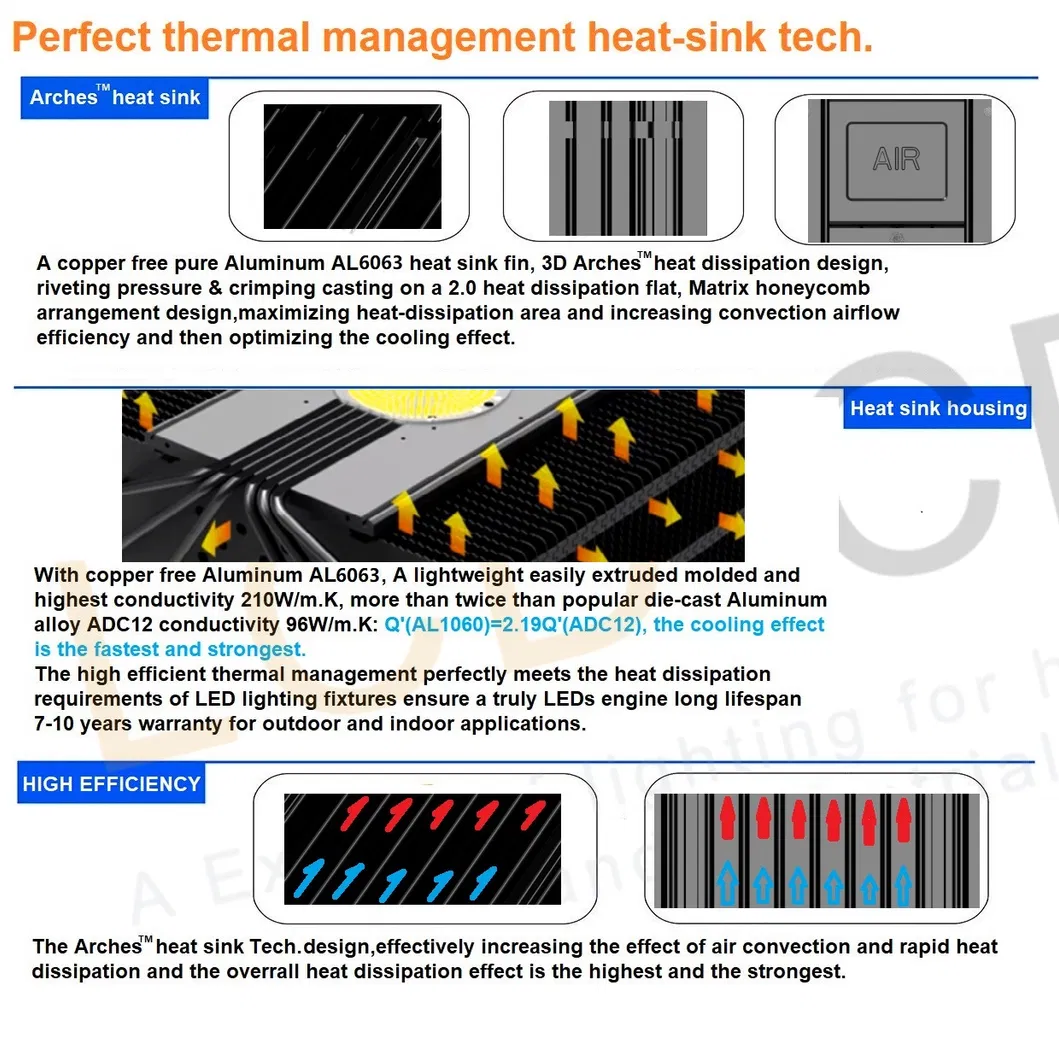

Thermal Management
Optical & Modular Flexibility

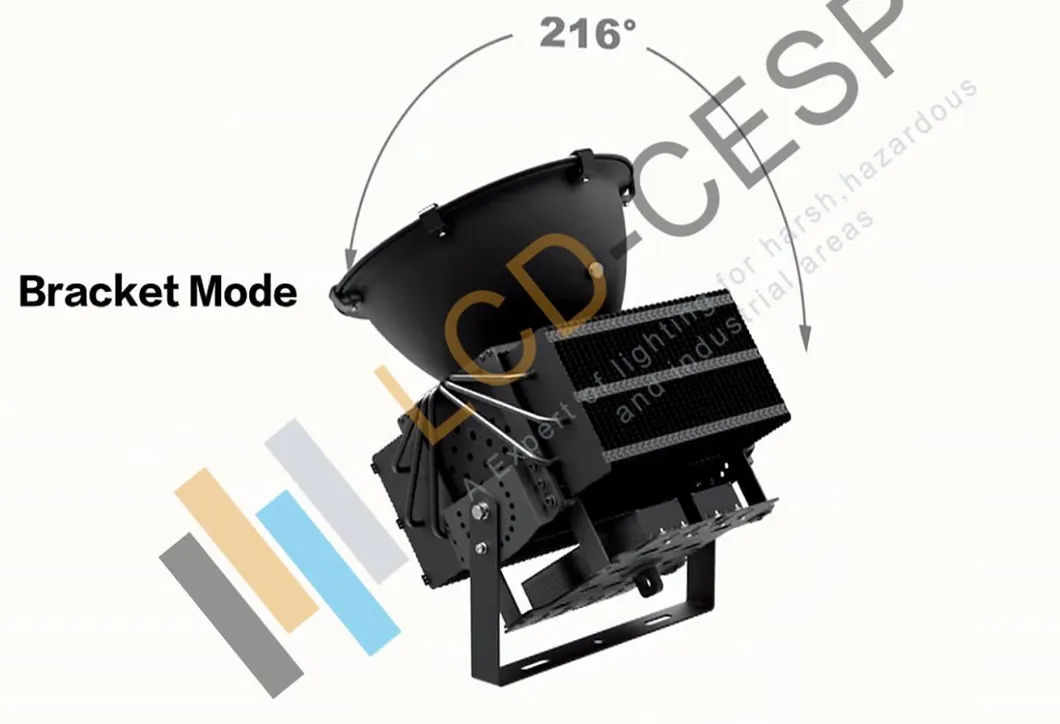

Flexible optical systems enable various configurations, minimizing the number of luminaires needed. The modular construction allows tilting each single LED module (± 216°) to optimize the lighting design process for stadiums, airports, and industrial halls.

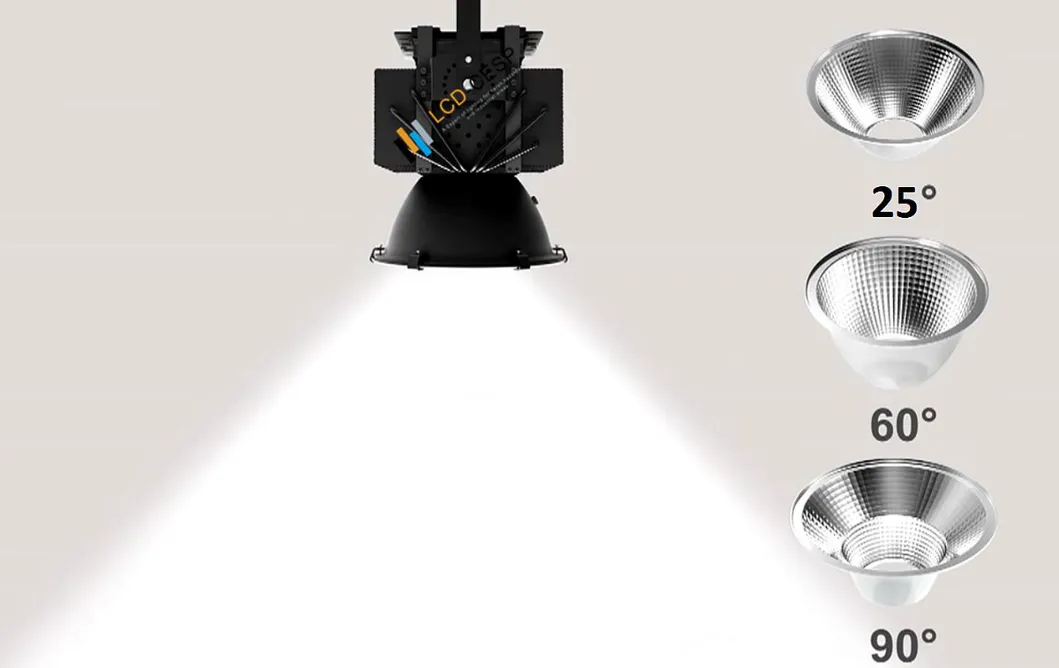

Optical Flexibility
Modular Construction

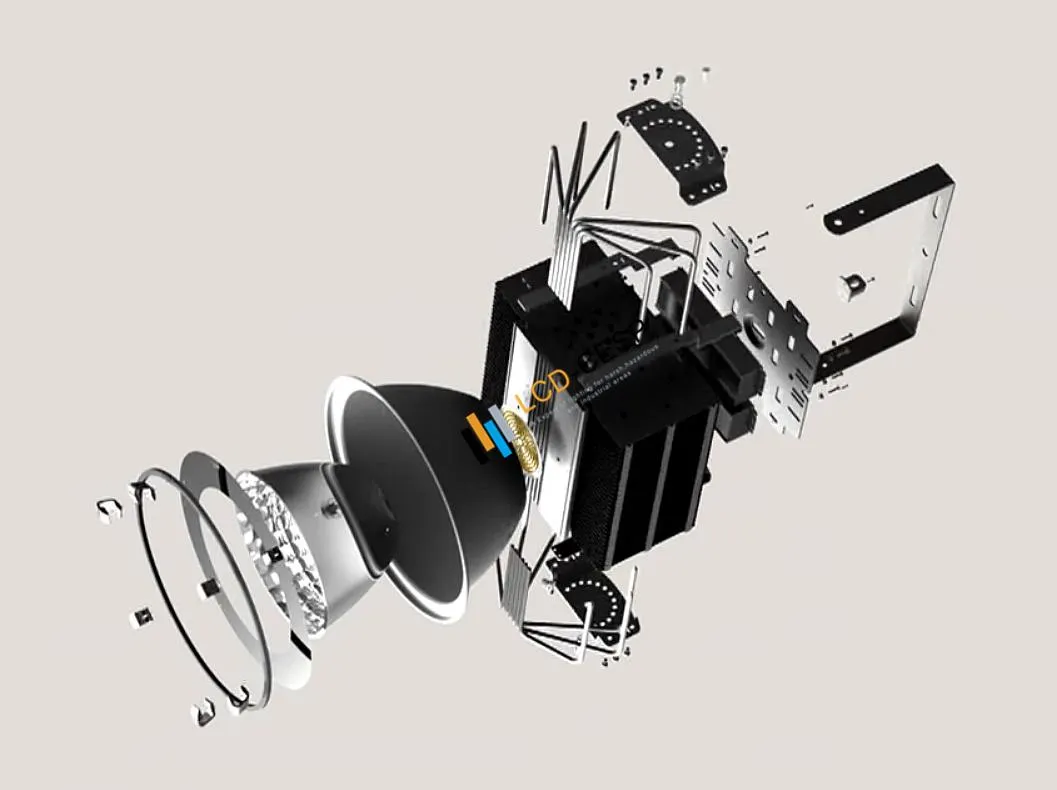

High Performance Driver
Performance Parameters
Lumen Output CCT CRI Surge Protection IP Grade Beam Angle
Up to 130LM/W 3000K / 4000K / 6500K >75 / 80 Up to 10KV on request IP65 / IP66 45°, 60°, 90°
Mechanical Impact Operation Temp Flicker Power Range Maintenance Housing
IK08 / IK10 -40° to +55°C 0% 100W to 1500W 50,000 hrs L70 AL6063 Aluminum
Model List & Dimensions
Product Dimensions
Packing and Models
Model No. Power Lumens Voltage Weight Dimensions (mm)
LYEGM-125120W18,00085~265VAC3.20kg310*116*191
LYEGM-245240W36,00085~265VAC3.33kg365*310*60
LYEGM-485480W72,00085~265VAC4.65kg365*420*60
LYEGM-725720W108,00085~265VAC8.20kg590*387*63
LYEGM-12051200W180,00085~265VAC3.33kg365*310*60
LYEGM-15051500W225,00085~265VAC3.80kg365*365*60
Frequently Asked Questions
What is the warranty period for these LED flood lights?
These fixtures come with a 5-year warranty, supported by a cutting-edge Heat-pipe-SSL thermal management system that ensures a long lifespan.
Are these lights suitable for coastal or marine environments?
Yes, the main body is made of copper-free pure Aluminum (1070/6063) with high resistance to corrosion and an optional marine coating for harsh environments.
What beam angles are available for this series?
The series offers specular reflectors with 45°, 60°, and 90° beam angles to suit different mounting heights and area requirements.
Can the lighting be dimmed for energy savings?
Yes, the units are equipped with high-quality drivers that support 0-10V dimming, and are compatible with PLC, DALI, and motion sensors.
What is the IP and IK rating for outdoor safety?
The lighting fixtures are IP66 rated for waterproof protection and IK08/IK10 rated for mechanical impact resistance, making them ideal for stadiums and airports.
How does the Heat-pipe-SSL system work?

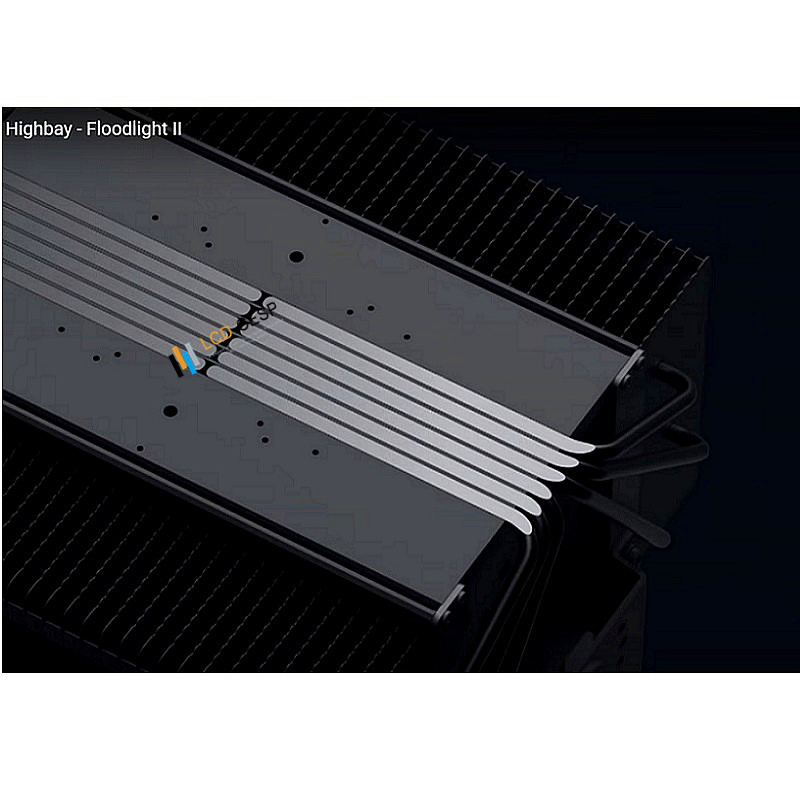

The LED board is mounted directly to hollow copper tubes that terminate throughout the aluminum heat sink, providing maximum heat dissipation compared to traditional methods.
