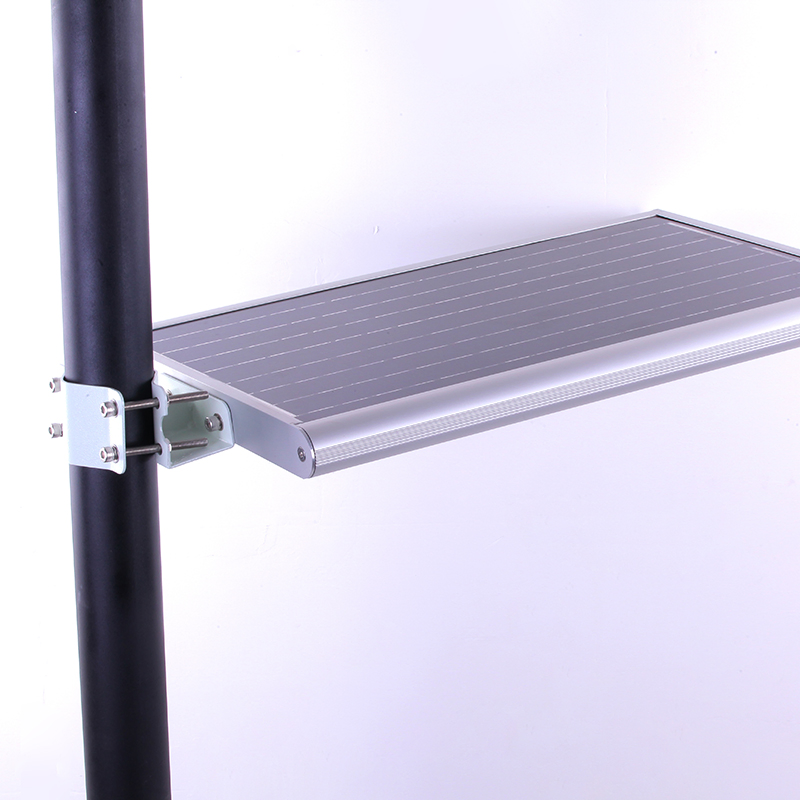

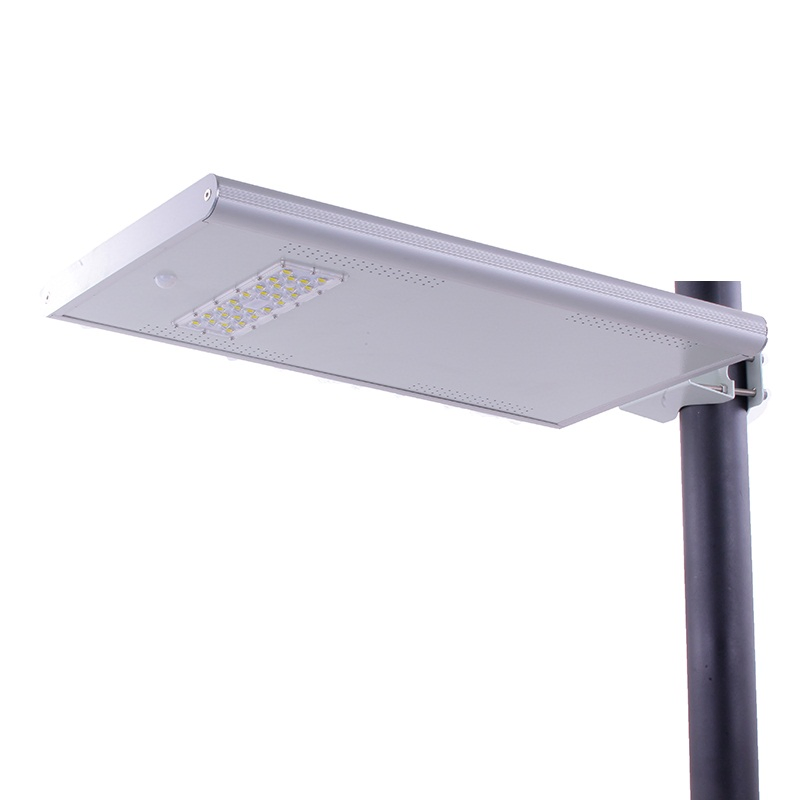

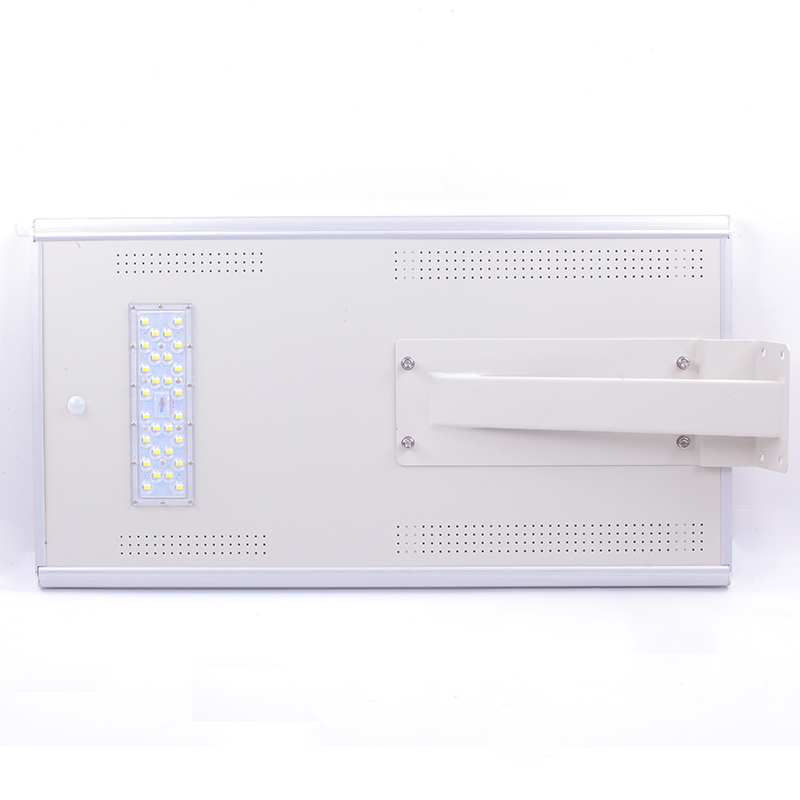

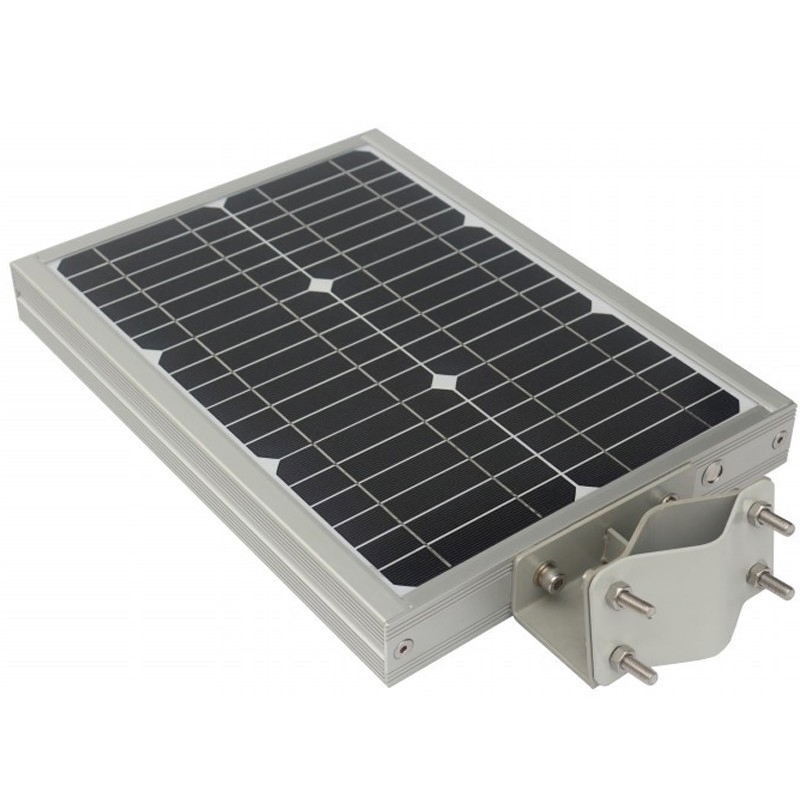

All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
1 / 5
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W
All in One IP66 Integrated Dimmable Solar LED Street Light 20W

All in One IP66 Integrated Dimmable Solar LED Street Light 20W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.SMLN-20W
Light TypeSolar
Color TemperatureWarm White
Power20W
TechnicsDie Cast
Illumination Time12h
Cell TypeLiFePO4 Lithium
Charging Time (H)12
UsageGarden
IP RatingIP65
CertificationCE, RoHS, IEC Soncap
Voltage12/24V
With Light SourceWith Light Source
Back up Day7days
Working ModeFull Power and Motion Sensor
HS Code9405409000

Core Features

1
2000 cycle Li-ion battery with a 10-year lifespan.
2
Supports more than 10 rainy days with advanced power management technology.
3
210lm/W super bright LED chips for maximum efficiency.
4
3 Lighting Modes for selection, including motion sensor for energy saving.
5
Detachable design for battery pack and LED chip, ensuring easy maintenance.
6
All-in-one patented design with high-quality Aluminum alloy case, Waterproof IP65.
7
Intelligent control: Turns on at dusk and off at dawn automatically.
Integrated Solar LED Street Light 20W

Product Parameters

Model NO. SMLN-20W Battery Type LiFePO4 18Ah/12.8V
Power 20W Charging Time 6-10 hours
Color Temp 6000-6500K Discharging Time 10-12 hours
Viewing Angle 120° Dimension 710*405*75mm
Led chip brand USA Bridgelux Install Height 5-6 m

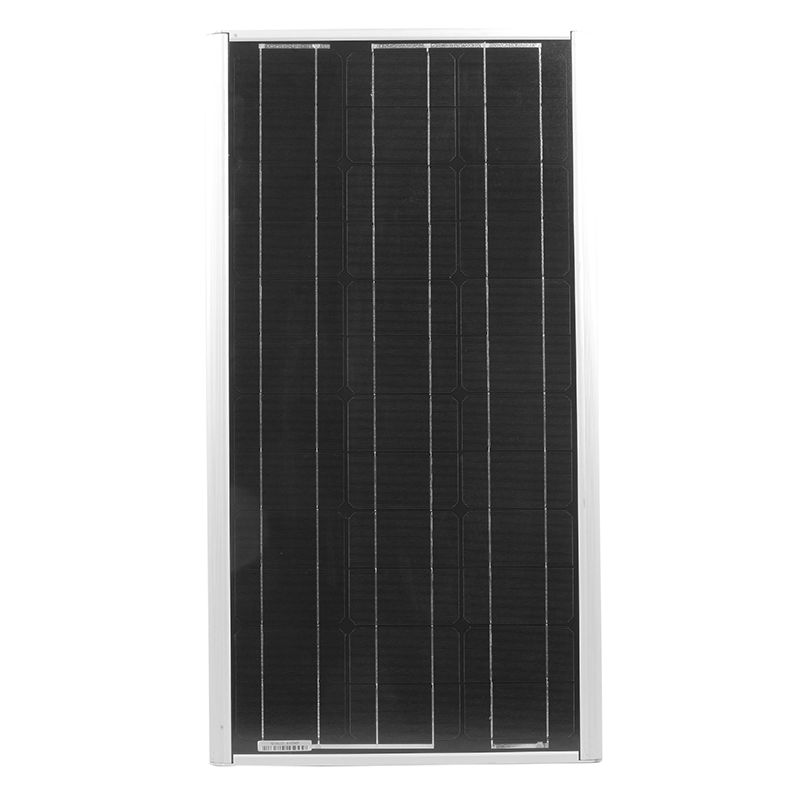

Solar Panel 18V 50W Mono Material Aluminum Alloy

Product Showcase

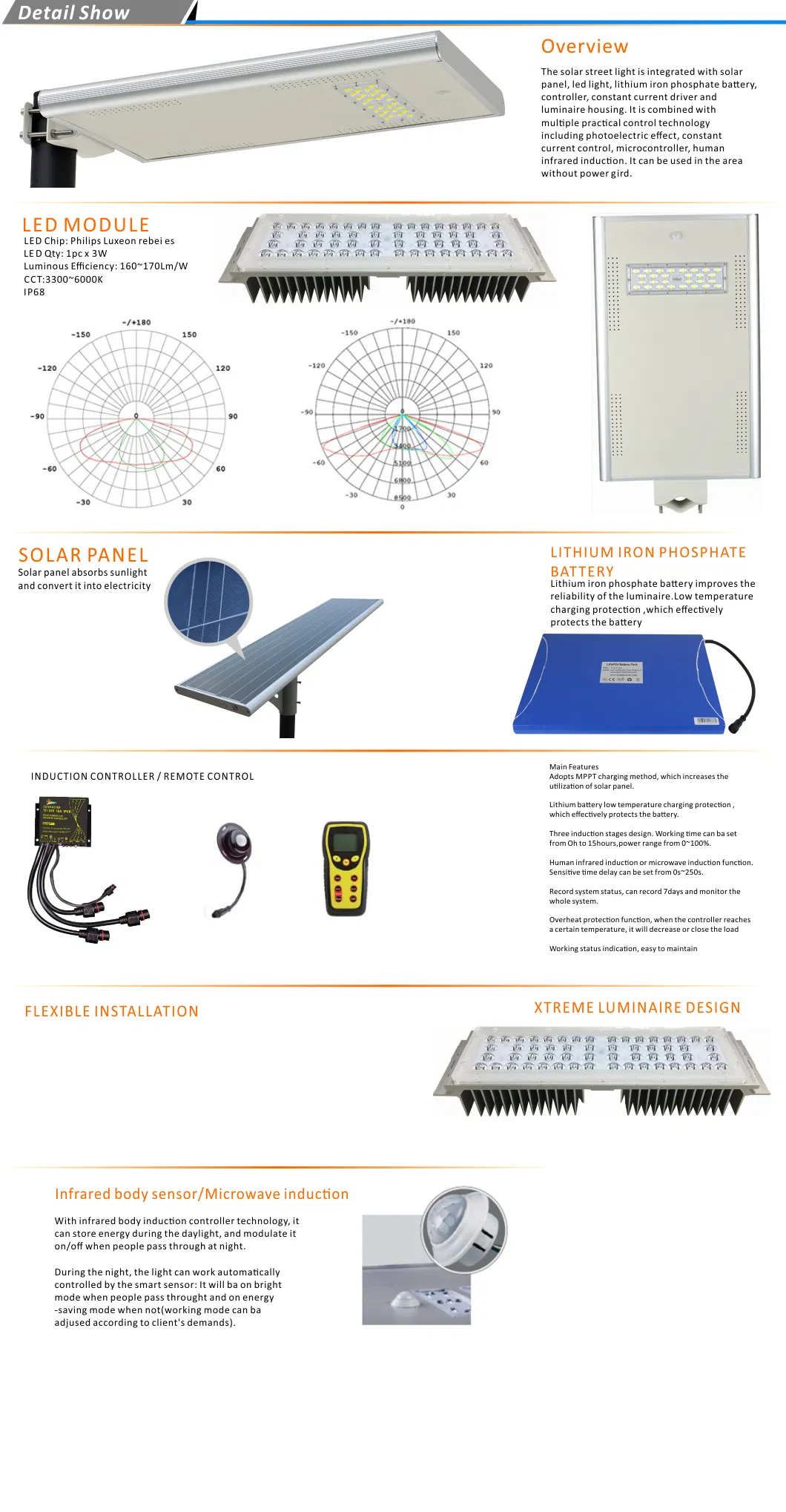

Solar Light Detail 1

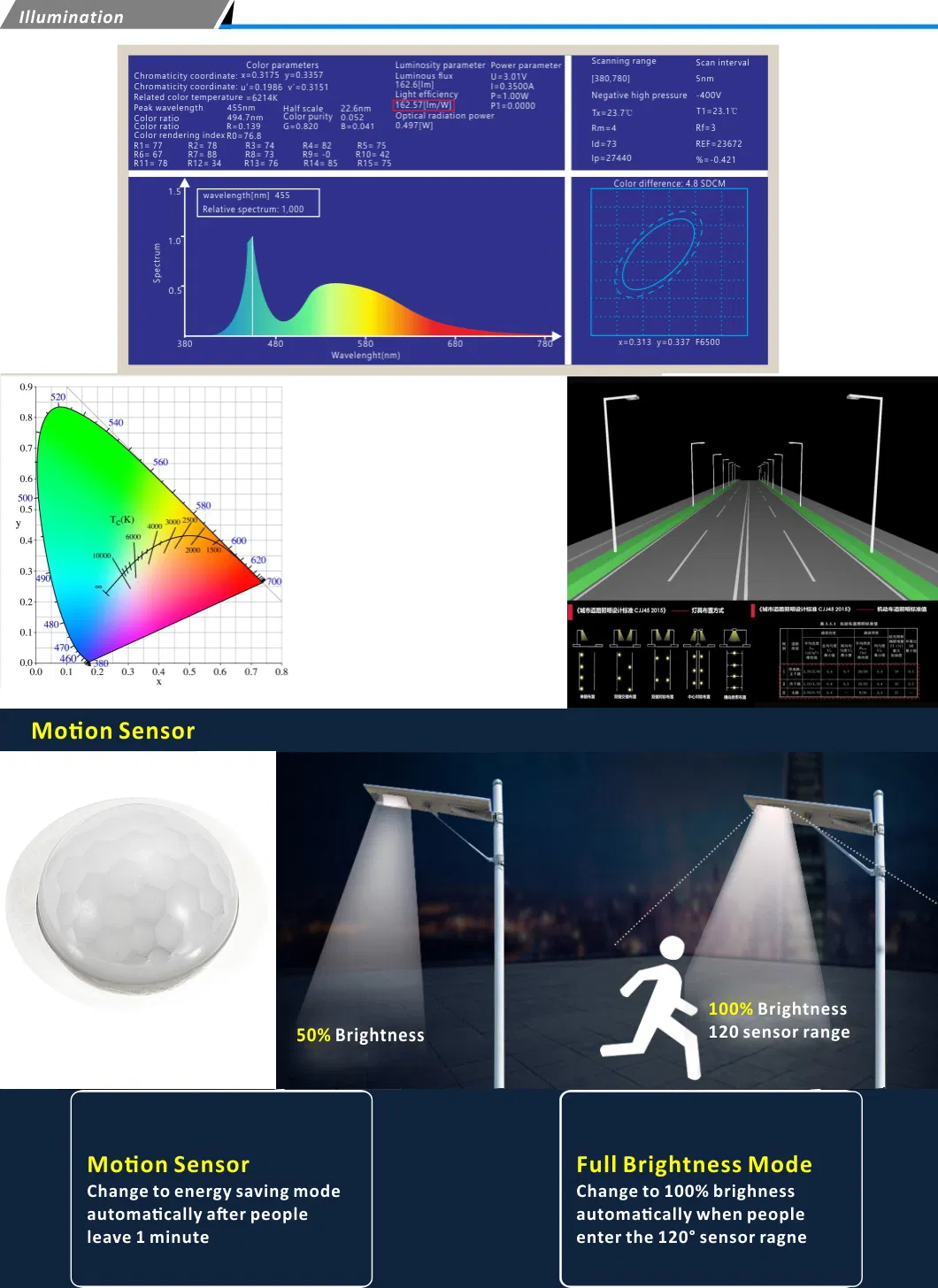

Solar Light Detail 2

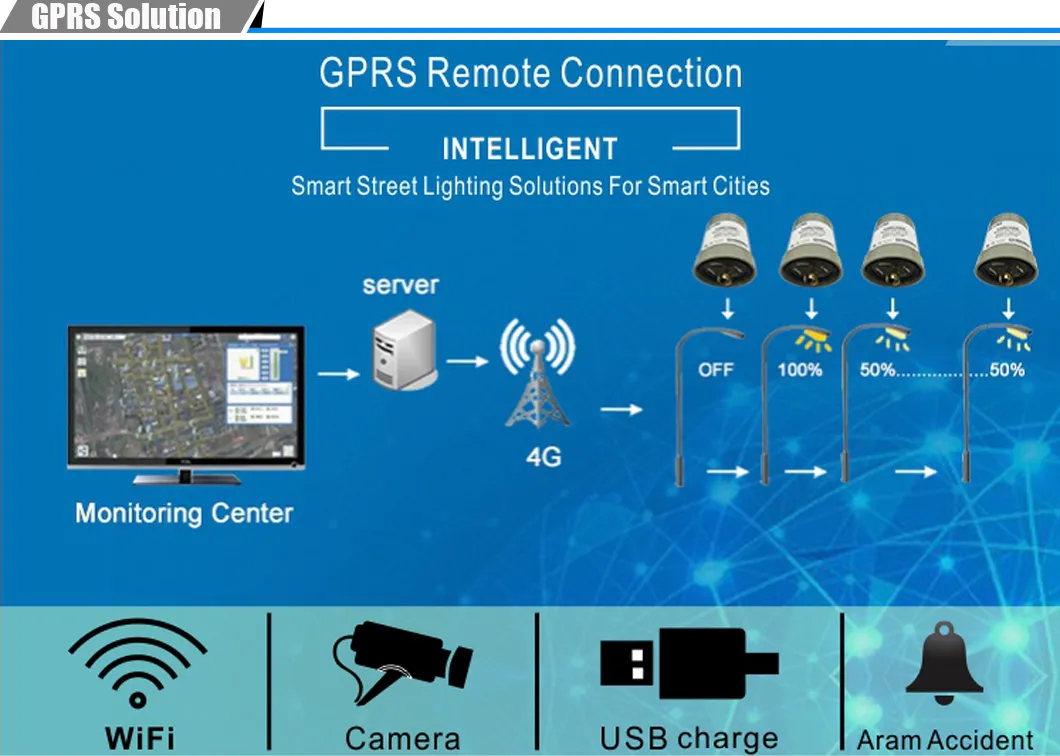

Solar Light Detail 3

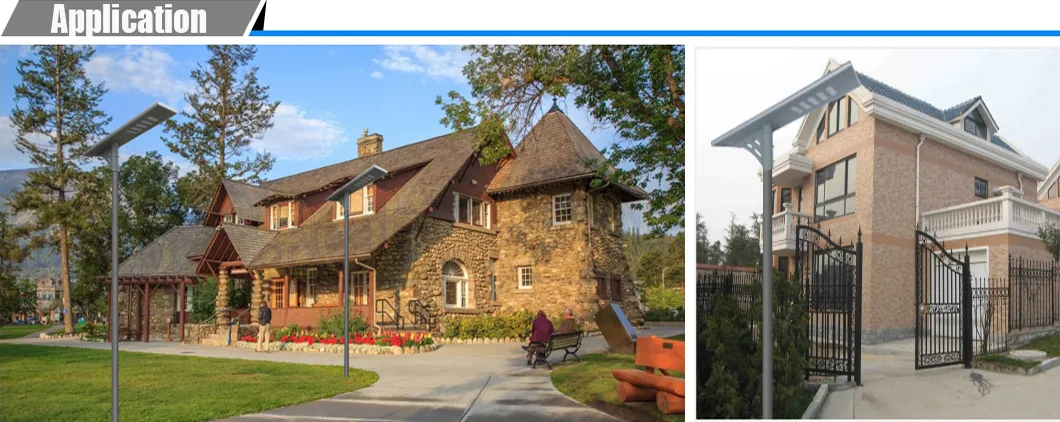

Solar Light Detail 4
Solar Light Detailed View

Frequently Asked Questions

How long does the battery of the SMLN-20W last?
The system utilizes a high-quality LiFePO4 battery with 2000 cycles, providing a long service life of approximately 10 years.
Will the light work during continuous rainy days?
Yes, the advanced energy management technology allows the light to function for more than 10 consecutive rainy days on a full charge.
Does the light require manual operation?
No, the light features an intelligent sensor that automatically turns the light on at dusk and off at dawn.
What is the recommended installation height?
The optimal installation height for the SMLN-20W solar street light is between 5 to 6 meters.
Is the product waterproof?
Yes, it has an IP65 rating, which means it is fully protected against dust and can withstand low-pressure water jets from any direction.
Is maintenance difficult for the all-in-one design?
Not at all. The SMLN-20W features a detachable battery pack and LED chip design, making maintenance and component replacement very easy.
