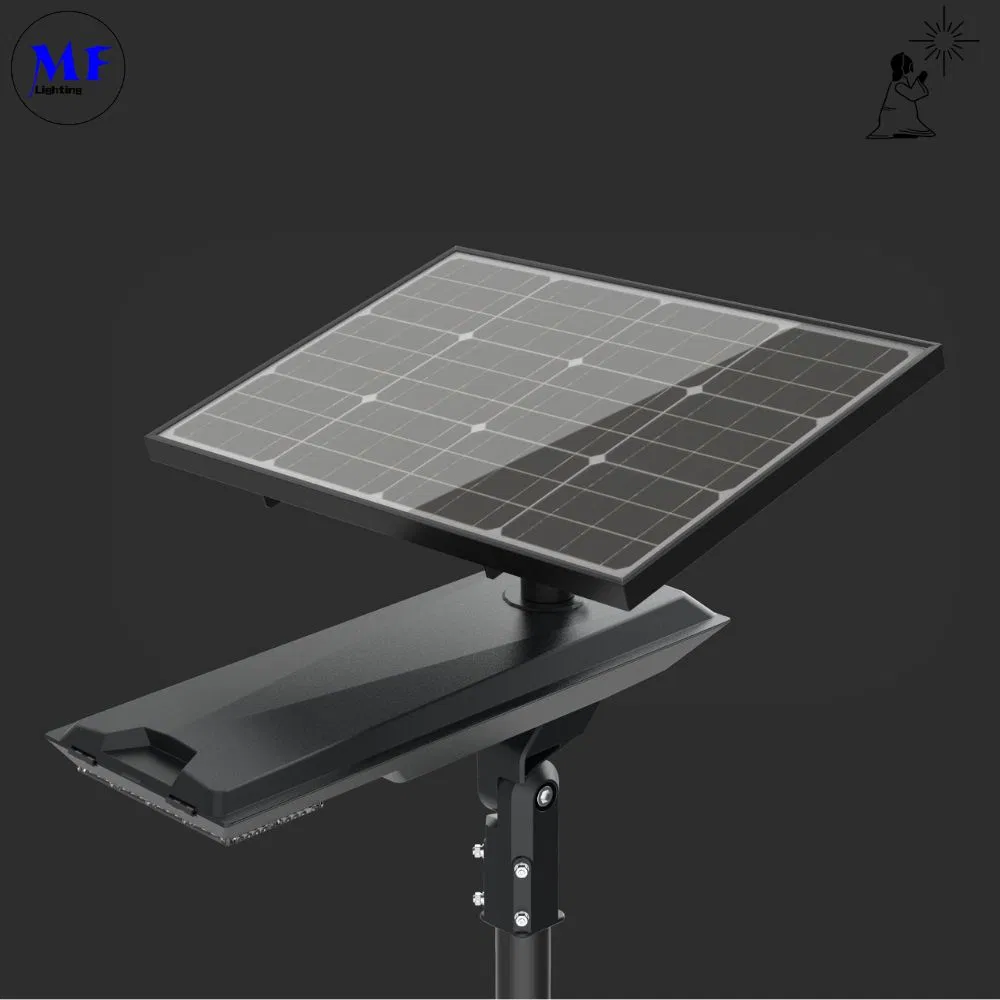

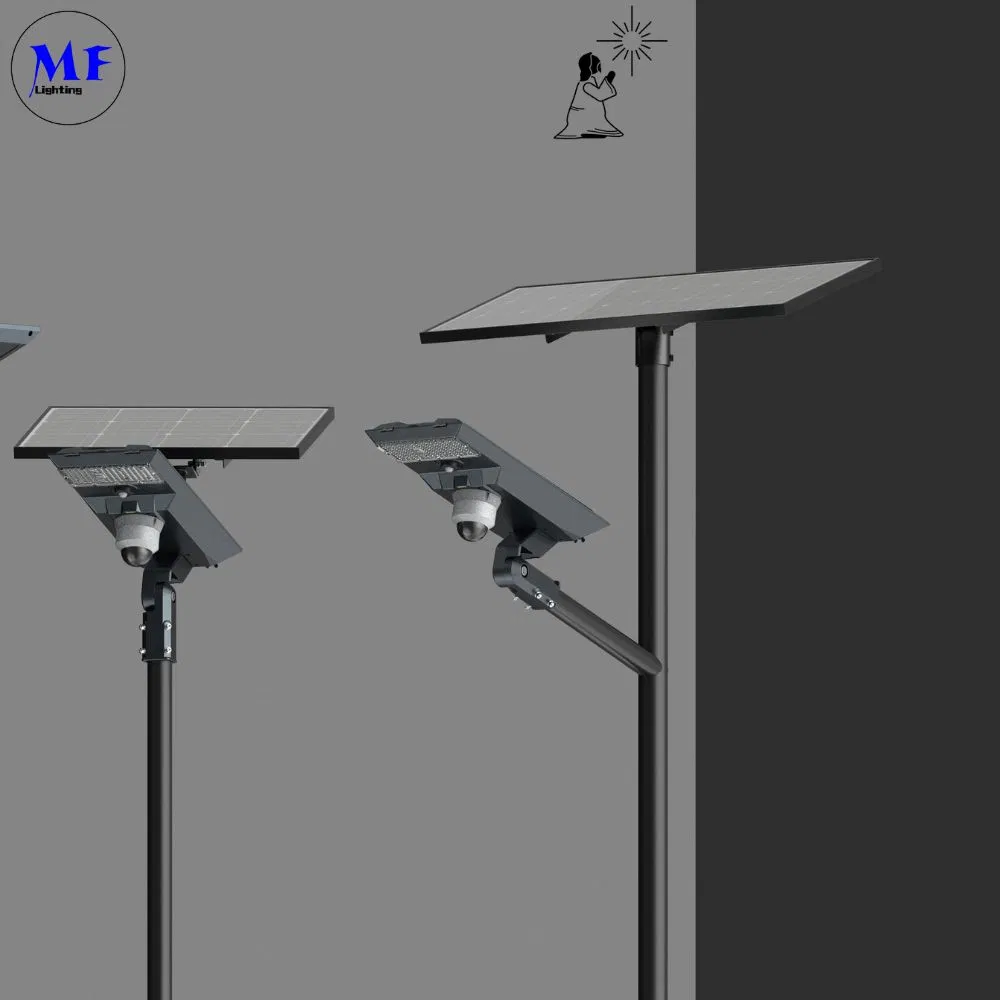

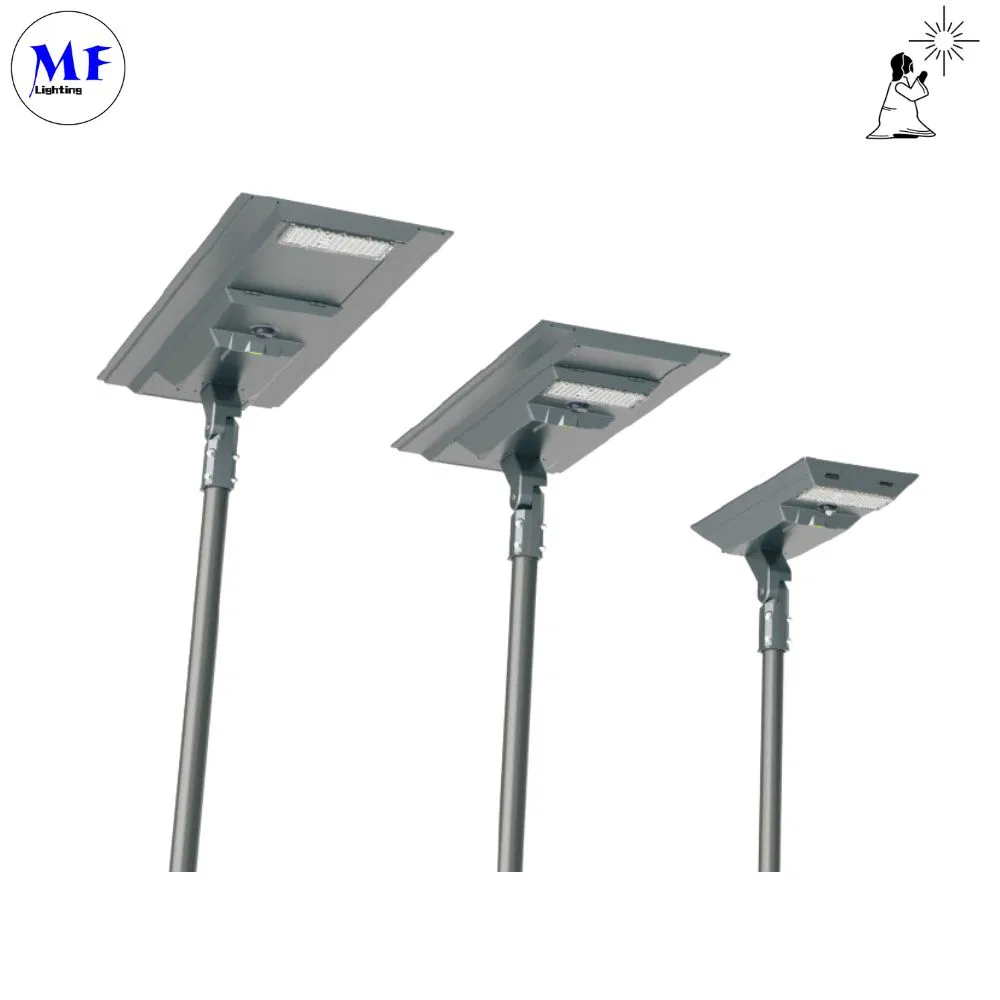

IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
1 / 5
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road
IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road

IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel for Remote Rural Village Countryside Road

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

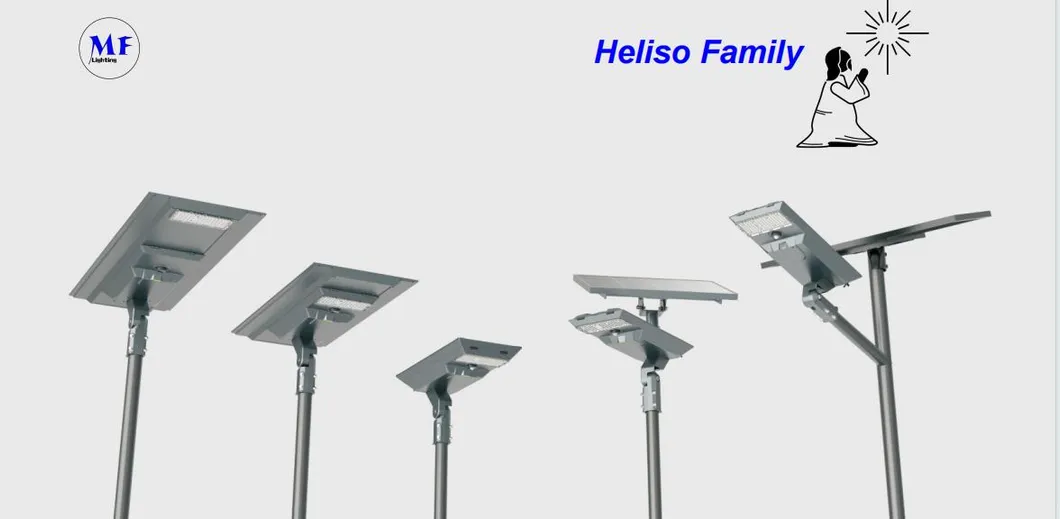

Solar Street Light Overview

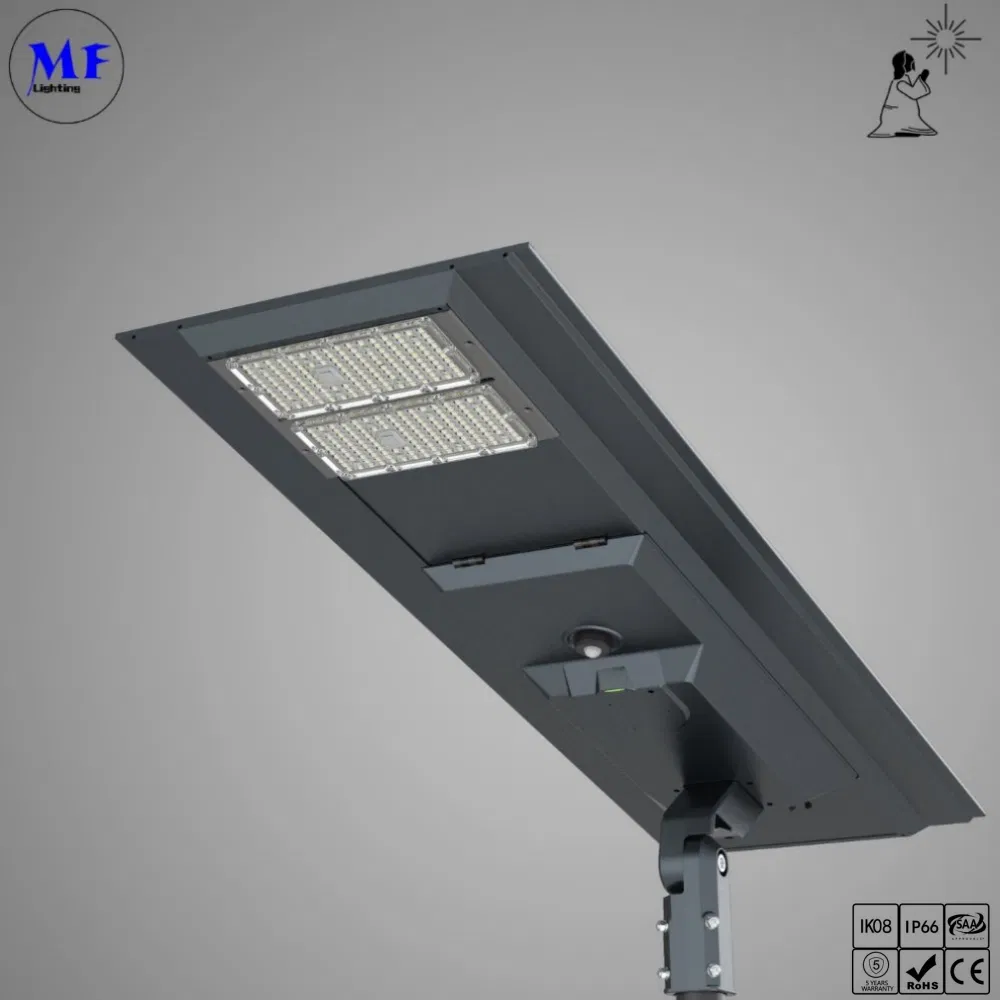

IP66 20-120W Waterproof Dustproof LED Solar Street Light with Smart Control Camera High Energy Battery Solar Panel

Basic Specifications

Model NO.
MF Solar Street light S5F
Light Source
LED Lamp
Material
ADC12 Aluminum+Al6063+PC
Color Temperature
4000K-5700K
Power Range
20W - 120W
Illumination Time
12h per day
Battery Type
LiFePO4 Battery
Charging Time
6 Hours
IP Rating
IP66
CRI
≥70
Beam Angle
155°/70° or 155°/75°
Install Height
4~8m

Key Features

🛠️ Integrated Die-casting

Tool-free access molding structure for easy installation and maintenance. Adjustable vertical or horizontal installation.

💡 New Generation LEDs

High bright SMD with integrated lens increases lumen flux by 10% and reduces light attenuation.

🔍 Secondary Optical Design

Maximally balances uniformity and illumination while reducing dispersion for solar street lighting.

⚡ MPPT Technology

Improves energy utilization by 15% - 20% compared to ordinary controllers (optional).

🔋 A-Level Battery

High energy density LiFePO4 batteries with temperature protection for longer cycling life.

🛡️ IP66 Waterproof

Overall waterproof design ensures reliable performance in bad weather conditions.

Model Specifications

Model No. Power Lumen Output PV Panel Battery (Wh) LED Qty
MFSL-S5F-XXX02020W2000 lm35W154 Wh60 pcs
MFSL-S5F-XXX04040W4000 lm43W230 Wh60 pcs
MFSL-S5F-XXX06060W6000 lm62W384 Wh144 pcs
MFSL-S5F-XXX08080W8000 lm94W538 Wh144 pcs
MFSL-S5F-XXX100100W10000 lm115W614 Wh144 pcs
MFSL-S5F-XXX120120W12000 lm154W768 Wh144 pcs

Dimensions & Photometry

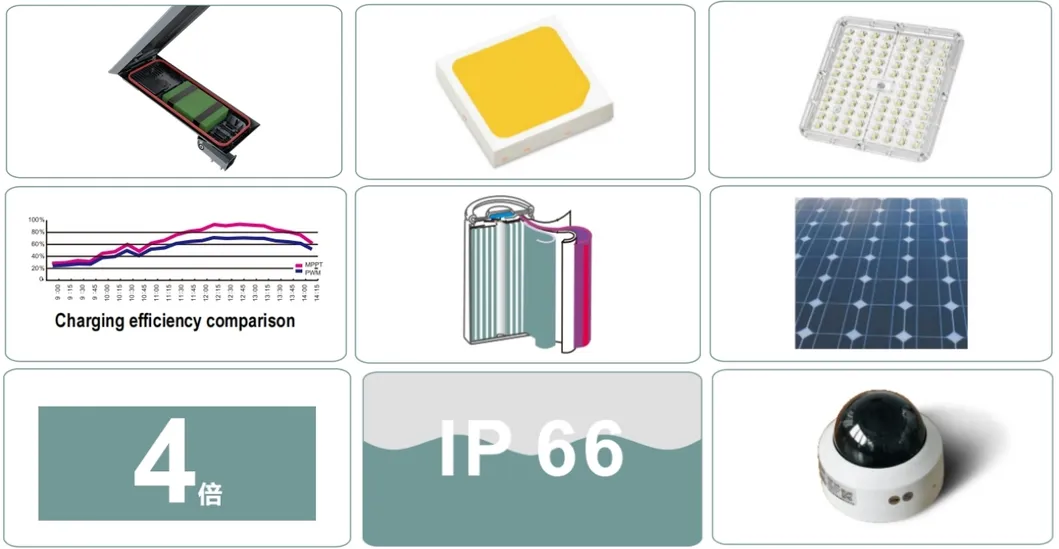

Features Detail

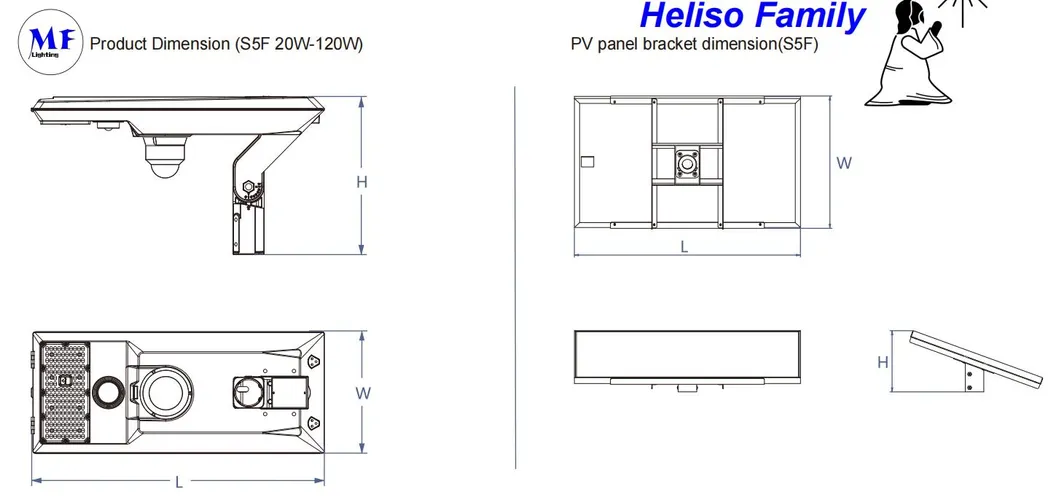

Dimension Diagram

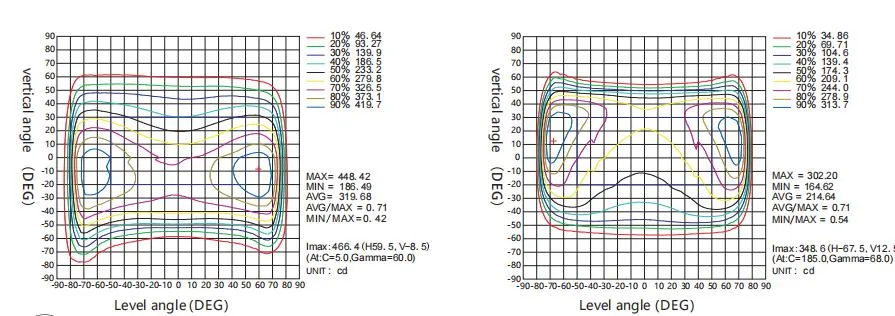

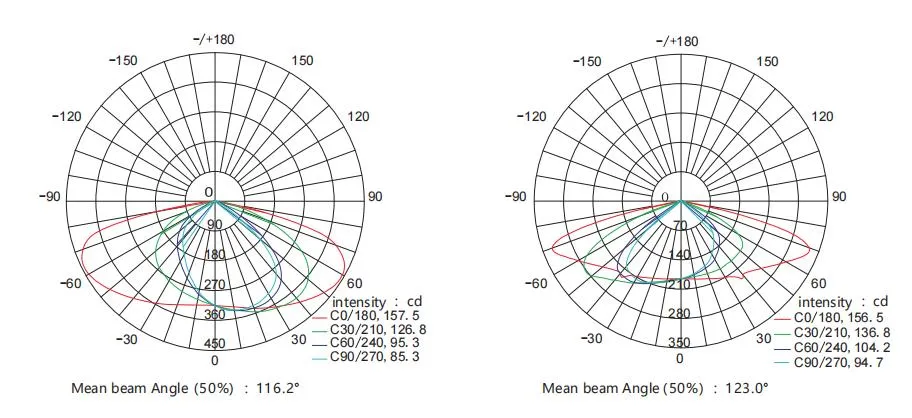

Photometry 1 Lux Chart

Installation Guide

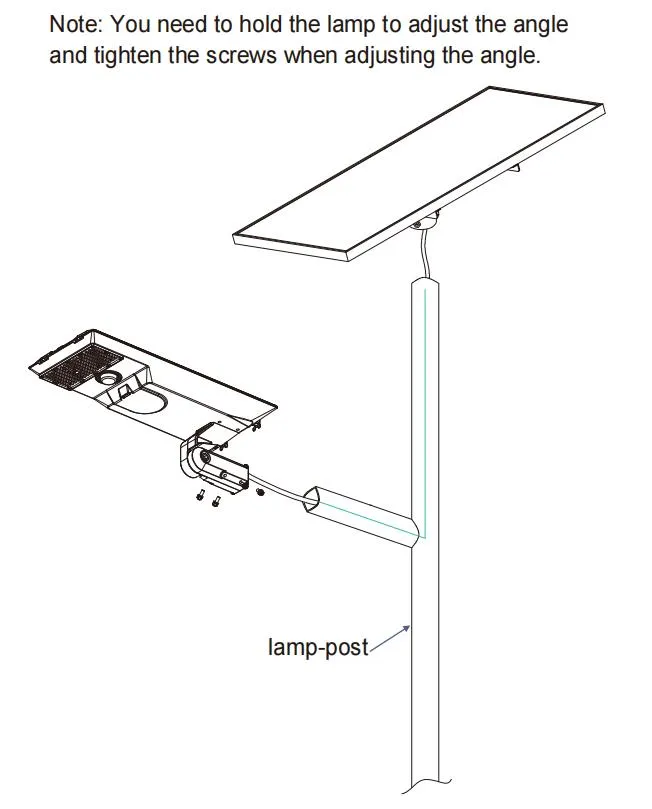

Installation Instructions

Applications

  • Urban and Village Streets
  • Highways and Country Roads
  • Parking Lots and Avenues
  • Parks and Recreational Areas
  • Industrial Zones and Warehouses
  • Schools, Squares, and Hospitals
  • Smart City Initiatives
  • Residential Areas

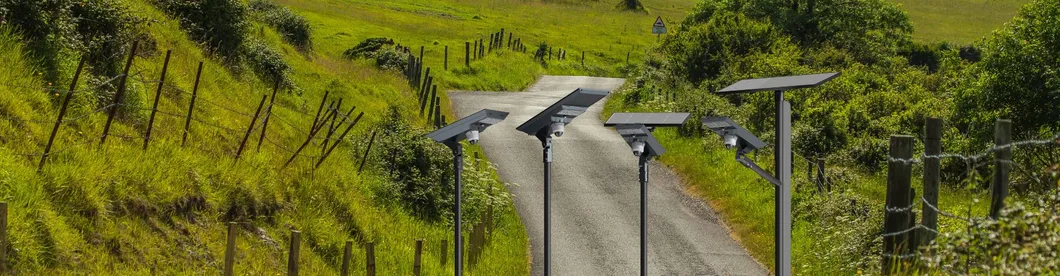

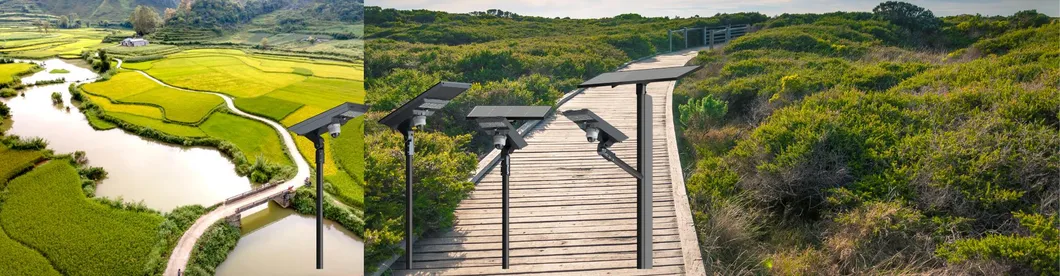

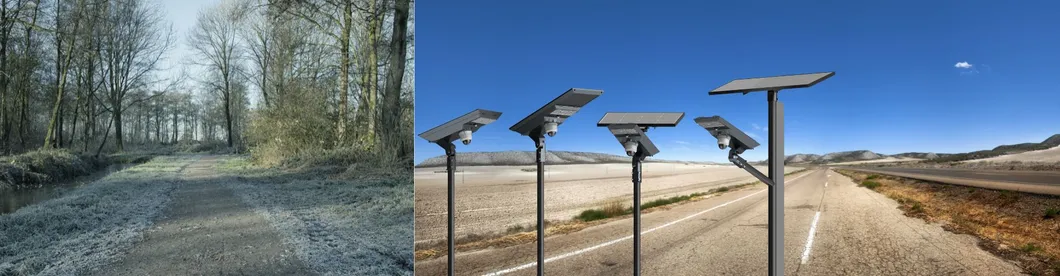

Application 1 Application 2 Application 3

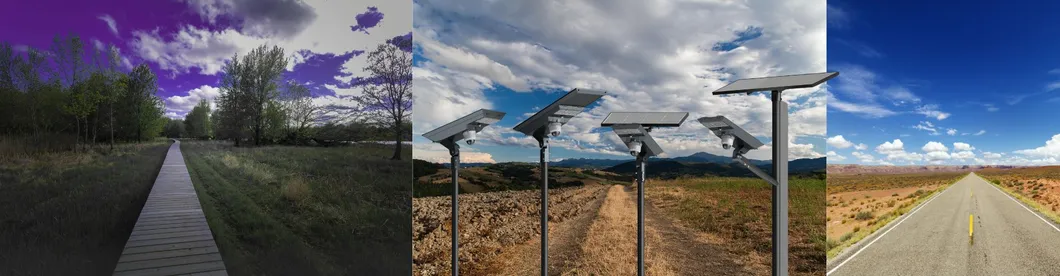

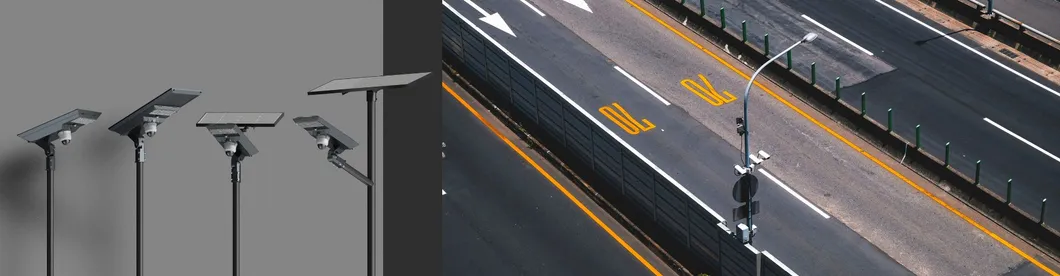

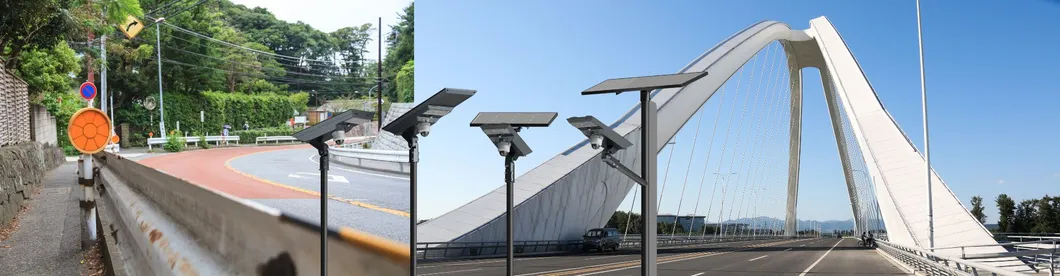

Application 4 Application 5 Application 6

Packaging & Logistics

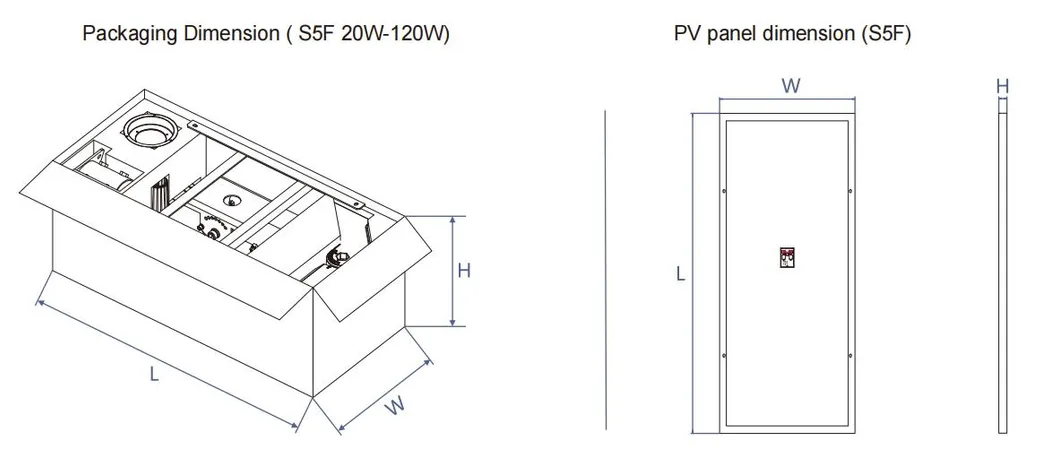

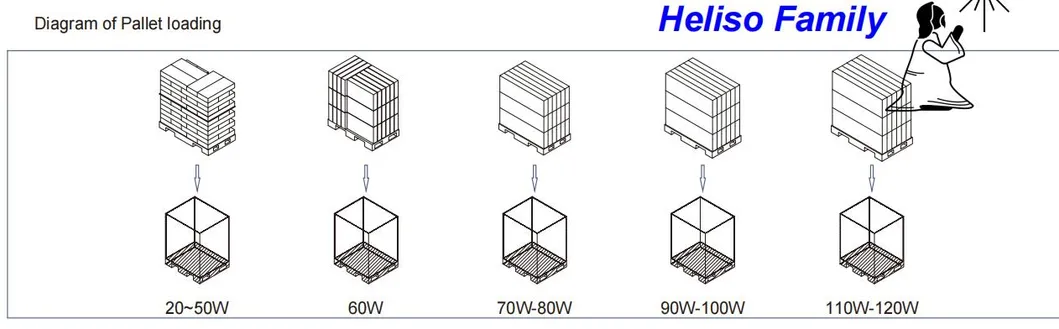

Packaging 1 Packaging 2

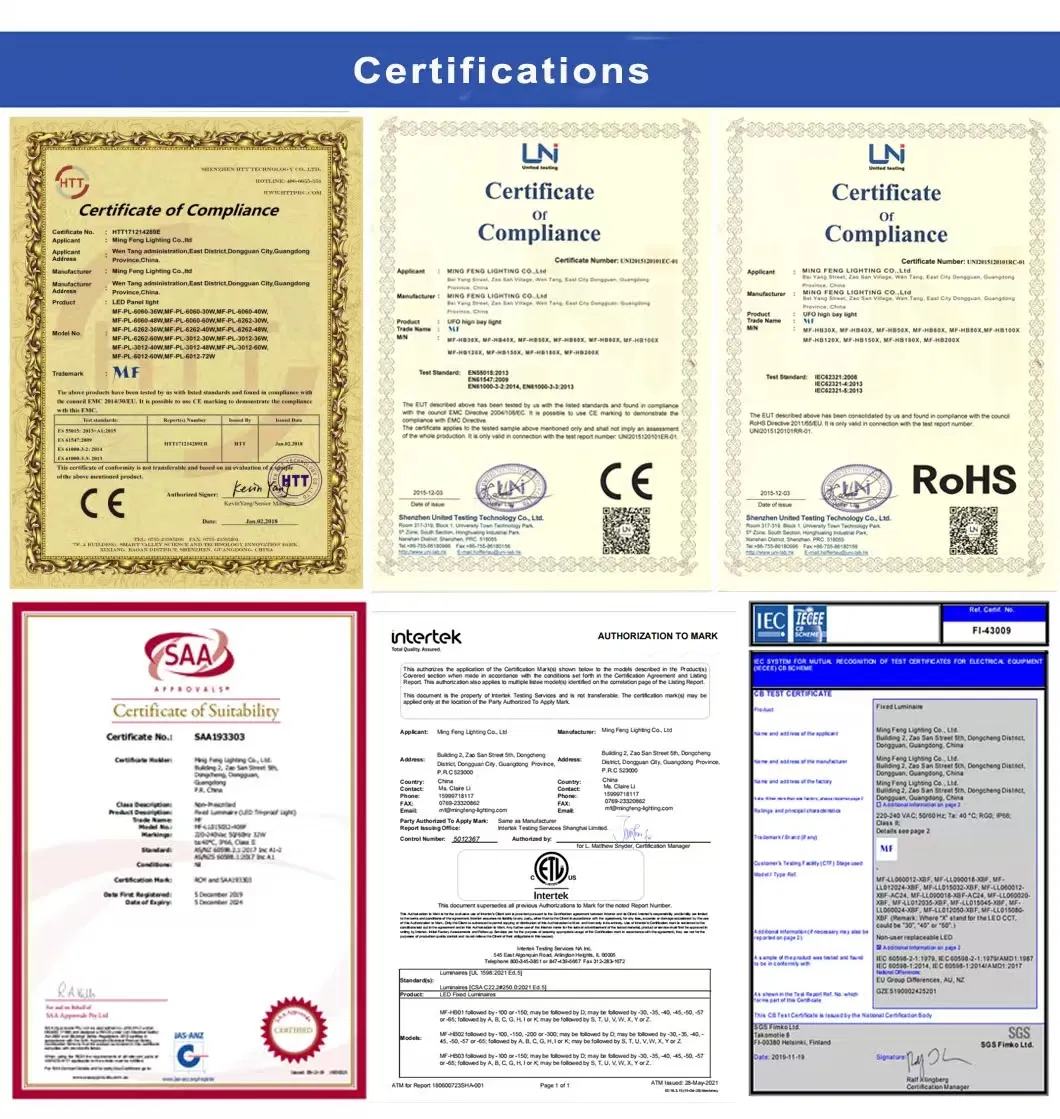

Shipping Logistics

Frequently Asked Questions

What is the IP rating for this solar light?
This solar street light is rated IP66, making it completely waterproof and dustproof, suitable for harsh outdoor environments.
What battery technology is used?
It utilizes high-performance LiFePO4 (Lithium Iron Phosphate) batteries, which offer a longer life cycle and better safety compared to traditional batteries.
What is the charging and discharge time?
The light requires approximately 6 hours of sunlight to fully charge and can provide up to 12 hours of illumination per day for 3-7 days even in low brightness modes.
Is the installation adjustable?

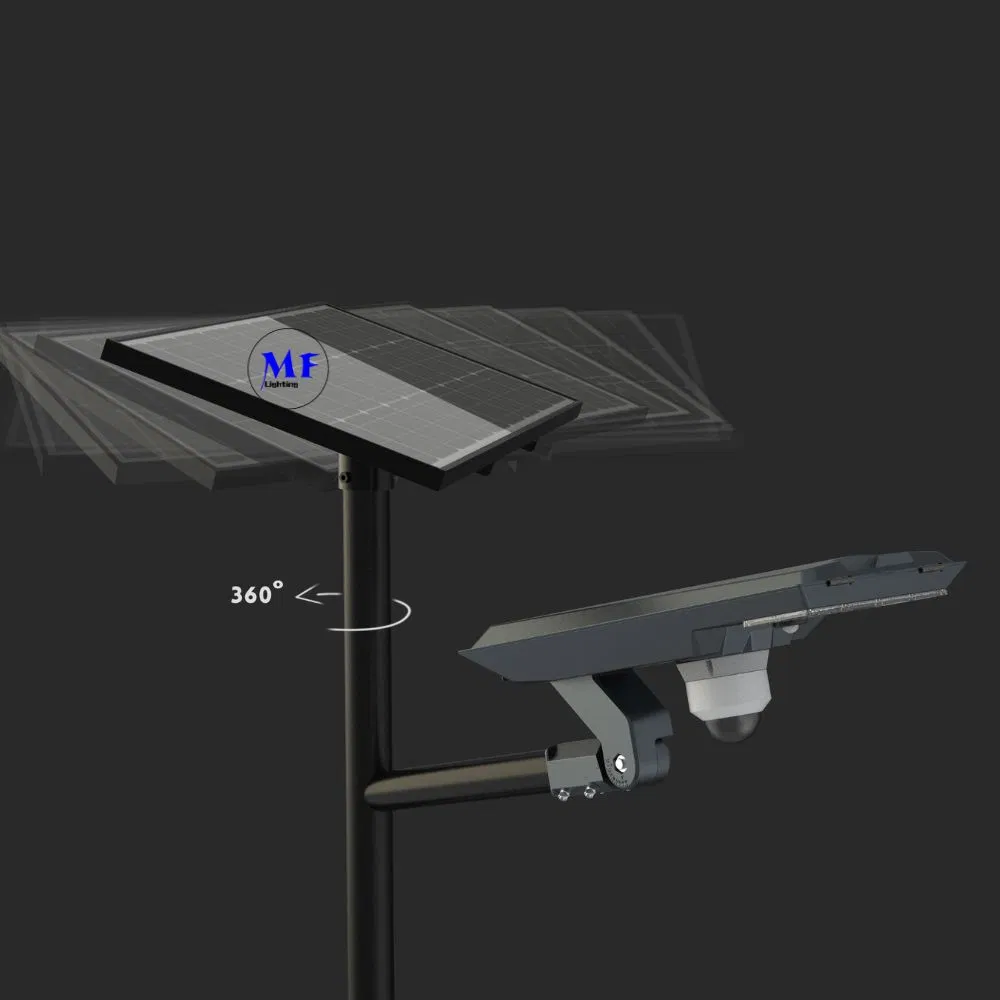

Yes, the integrated die-casting body allows for both vertical and horizontal installation with adjustable angles to maximize sun exposure.
Does it support smart control?
Yes, it supports various control methods including PIR motion sensors, microwave induction, time control, and remote control options.
What are the recommended installation heights?
Depending on the power model (20W-120W), the recommended installation height is between 4 to 8 meters.
