Basic Info
Model NO.
BR-T2 solar street light
Cell Type
Gelled or Lead-Acid Battery
Product Description

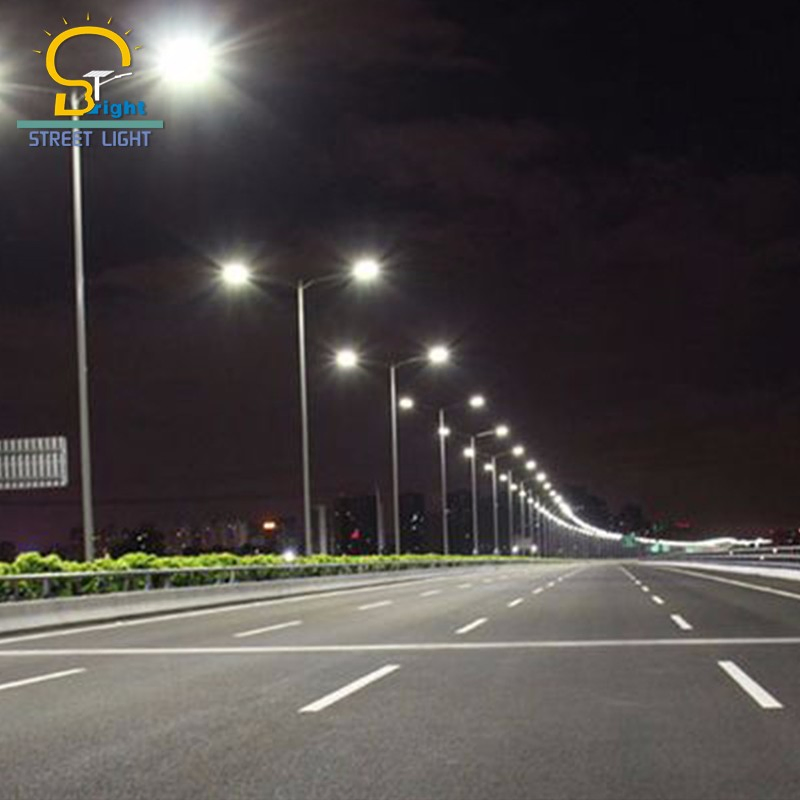

🌟 IP66 Waterproof 40W Highway Solar Street Light
Applied In More Than 126 Countries and used in global projects. This lighting system provides clean, endless, and environment-friendly energy solutions for various outdoor applications.

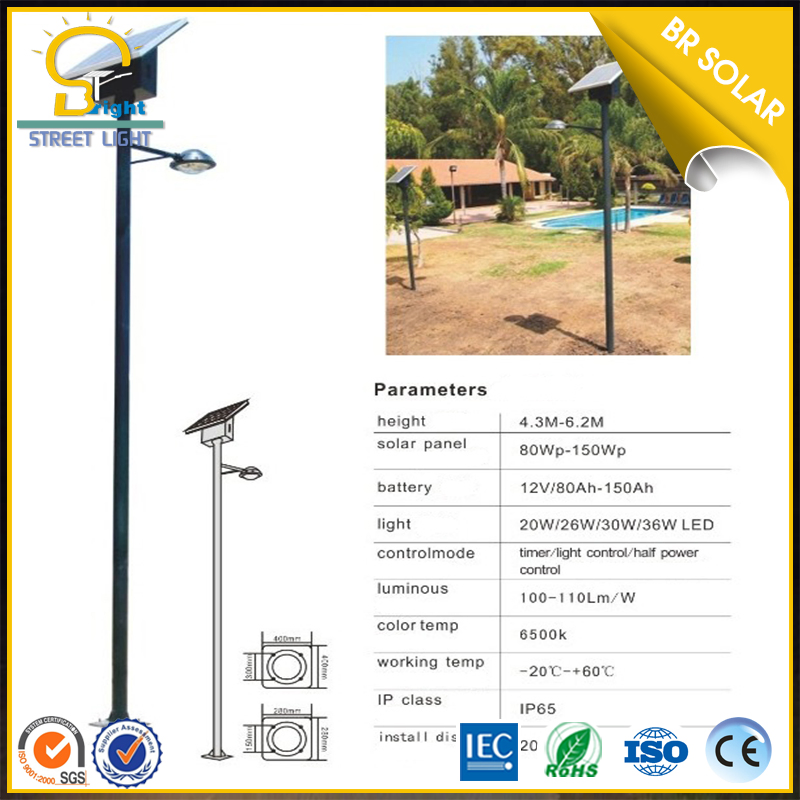

Detailed Specification (6M Pole 40W)
Solar Panel
Lifespan: 20-25 years |
150W*1PC Polycrystalline. High Efficiency. A-class, Aluminum Frame, Tempered Glass. |
Gelled Battery
Lifespan: 5-8 years |
150Ah/12V*1PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free. |
Intelligent Controller
Lifespan: 5-10 years |
20A/24V, IP68. Automatic Light and Time Control. Over-charging/discharging & Reverse Protection. |
Light Source (LED)
Lifespan: >50,000-100,000Hrs |
40W LED, White Color, 4800LM, 6500K, IP65. High Power, High Brightness. |
GI Pole System
Lifespan: >20 years |
6M Height, Tapered Steel Pole, Hot-Dip Galvanized. Wind resistance ≥150KM/H. |

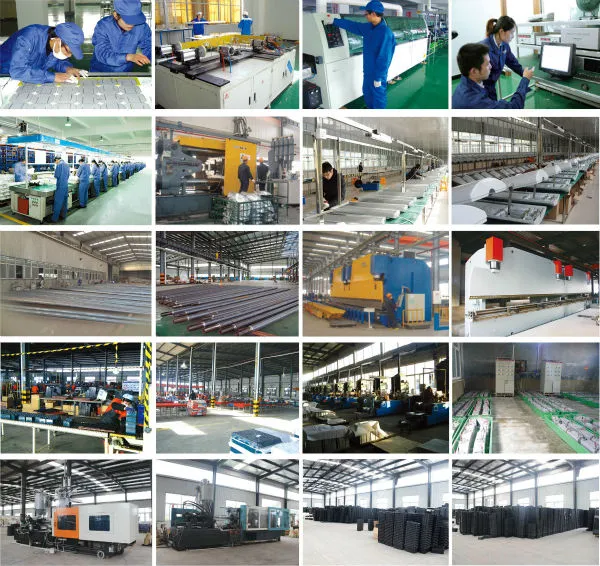

Production Showcase
Working Principle
- Solar energy is converted to electric energy by the solar panel during daytime and stored in the battery.
- At night, or in rainy/cloudy conditions, the battery supplies power to the LED light source.
- The intelligent controller judges daylight brightness to automatically switch the light on/off.
- The entire process operates in a completely automatic mode without human intervention.
Product Range
✅ Solar LED Street Lights (15W to 120W)
✅ Solar Panels & Modules (5W to 300W)
✅ Solar Garden & Landscape Lights
✅ Solar Home Systems (with TV/Fan/Fridge support)
✅ Solar Controllers (5A to 60A IP68)
✅ Gelled & Lead-Acid Solar Batteries
Certifications
Applications

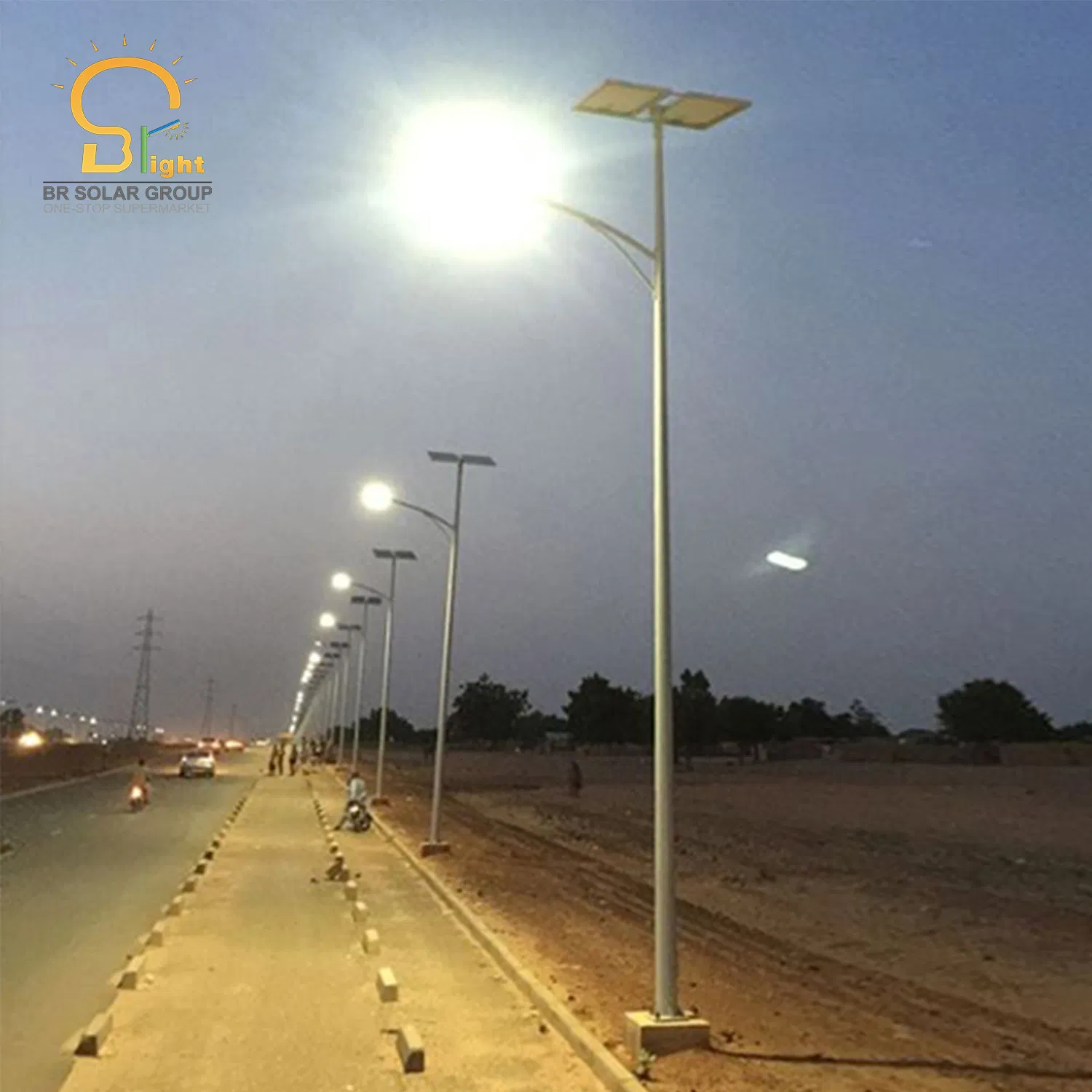

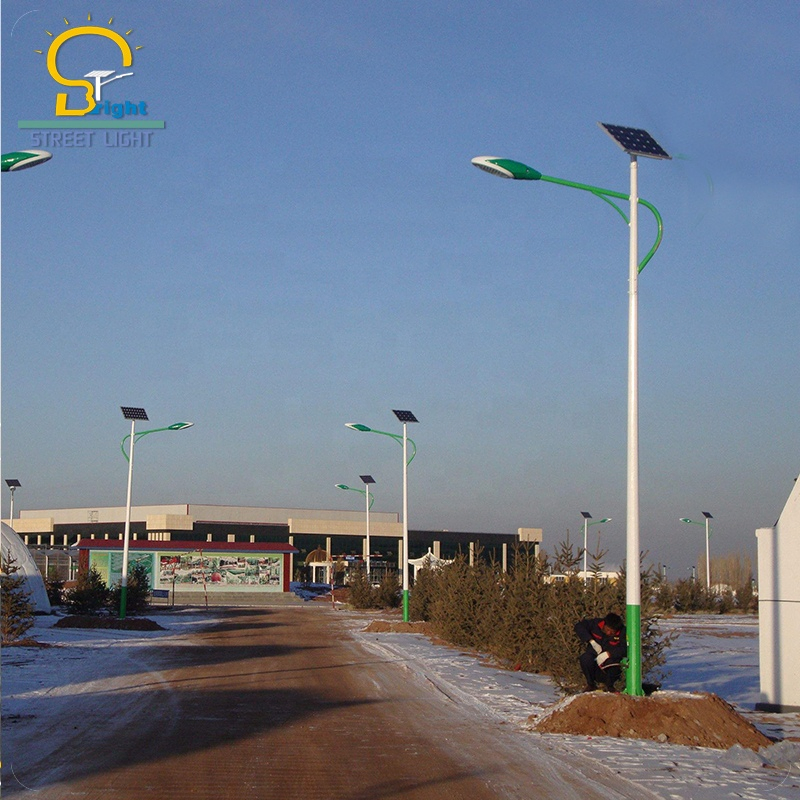

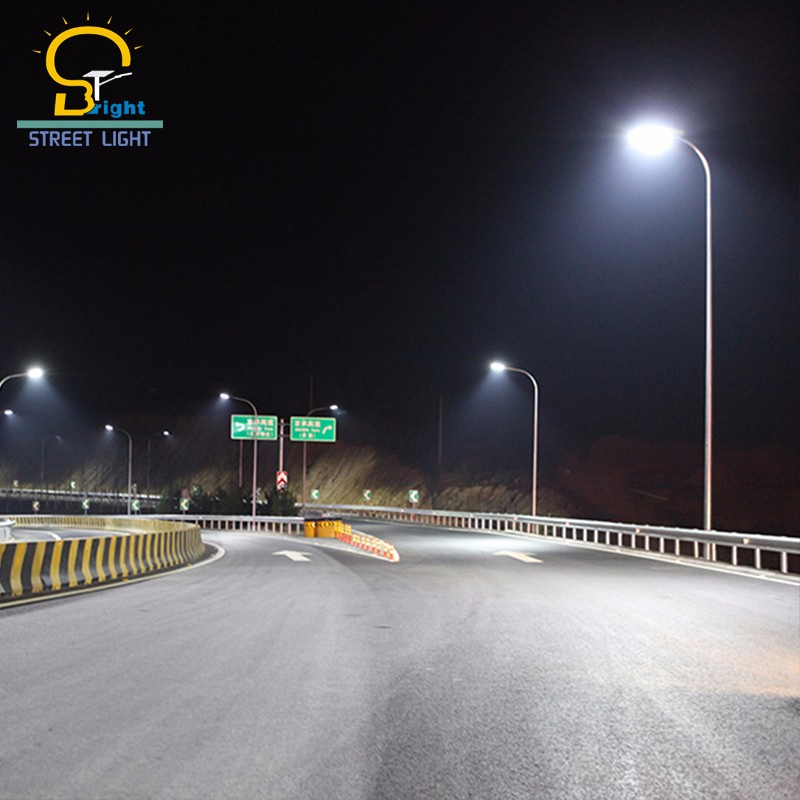

Highway & Main Roads
Freeways & Avenues
Garden & Parks
Campus & School Grounds
Military Bases
Parking Lots
Airports & Boat Docks
Residential Streets
After-Sales Service
- Warranty is valid under normal conditions and correct installation/maintenance.
- Damage from improper installation or human violation is not covered.
- Quality issues during the warranty period are handled via repair or parts exchange.
- Material and labor costs may apply for extended service beyond standard terms.
Frequently Asked Questions
1. What is the expected lifespan of the solar panel?
The high-efficiency polycrystalline solar panels are designed to last between 20 to 25 years.
2. Is the solar street light waterproof?
Yes, the system features IP65 and IP66 ratings for the lamp and IP68 for the controller, making it fully suitable for heavy rain and outdoor environments.
3. How long does the light operate at night?
The system is configured to provide lighting for 11-12 hours per night, with a charging time of approximately 6 hours during the day.
4. What type of battery is used in the system?
The system uses specialized Gelled or Lead-Acid batteries that are sealed, deep-cycle, and maintenance-free, with a lifespan of 5-8 years.
5. Does the light require manual operation?
No, the intelligent controller manages the system automatically using light and time sensors to switch the light on at dusk and off at dawn.
6. Can the pole withstand high winds?
Yes, the hot-dip galvanized steel pole is designed to be wind-resistant up to ≥150KM/H.
