Star Lighting
1 / 5
| Model NO. | MXSW | Lamp Body Material | Aluminum Alloy |
|---|---|---|---|
| Power | 40-300W | Application | Square, Highway, Garden, Parking Lot |
| IP Rating | IP66 | Certification | CE, RoHS, ISO9001 |
| Input Voltage | 220V | With Light Source | Yes |
| PF | >0.95 | LED Lamp Beads | 200-500 |
| Frequency | 50/60Hz | CRI | >70 (Default) / Ra>80 |
| Efficacy | 125lm/W | Surge Protection | 10kv (Default) |
| Translucent Part | PC | Lighting Angle | 85° |
| Operating Temp | -10℃ to +45℃ | Mounting Type | Wall-Mounted; Pole Type |

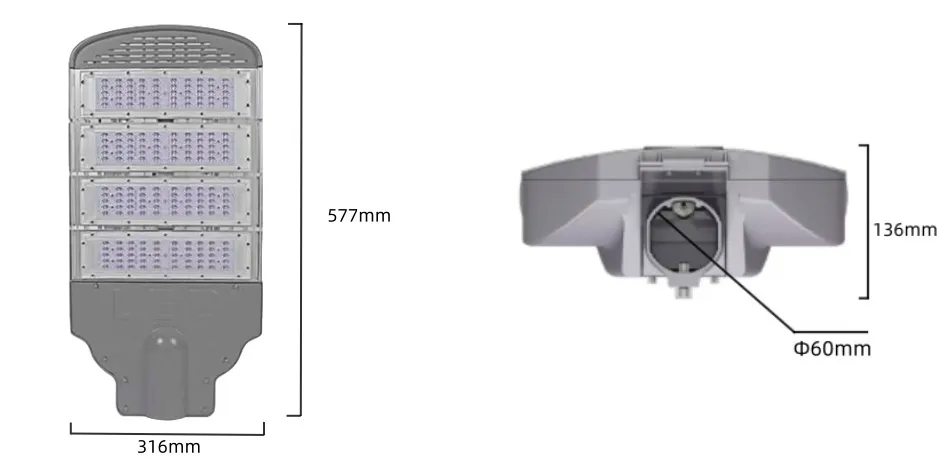

| Specification | 577x316x136 mm | Origin | China |

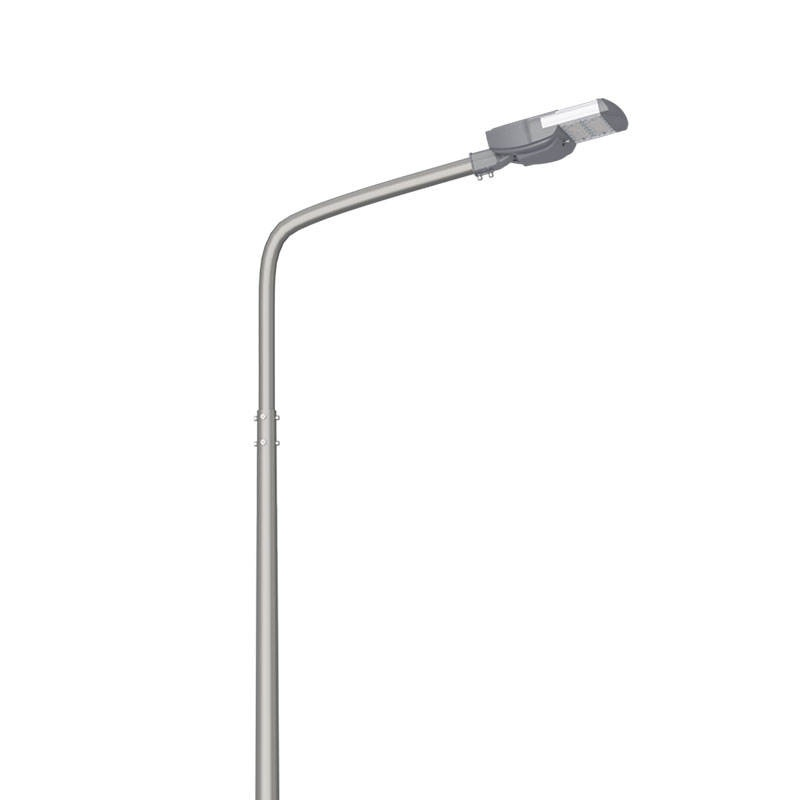

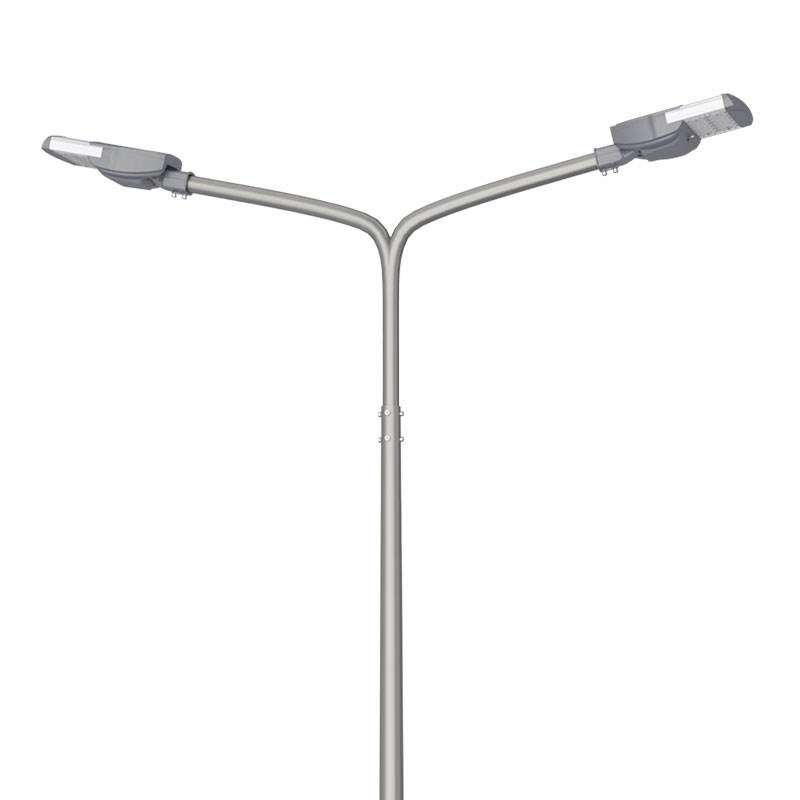

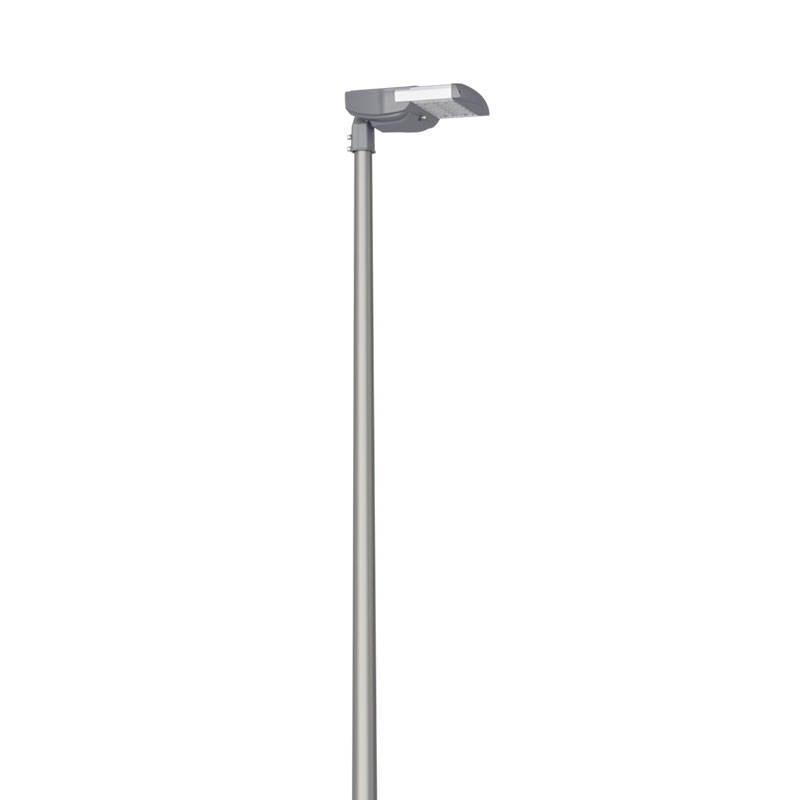

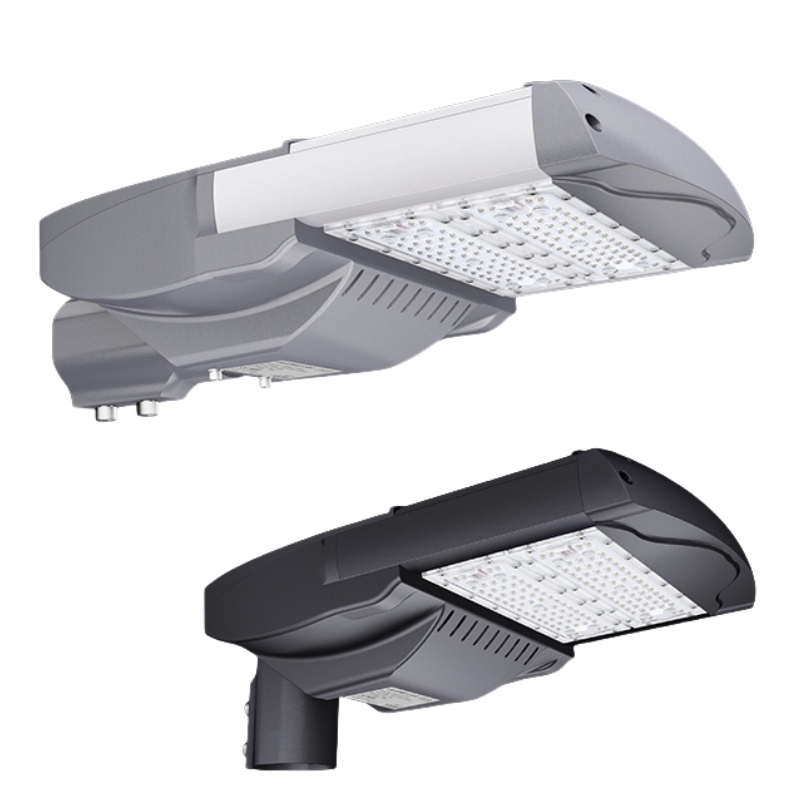

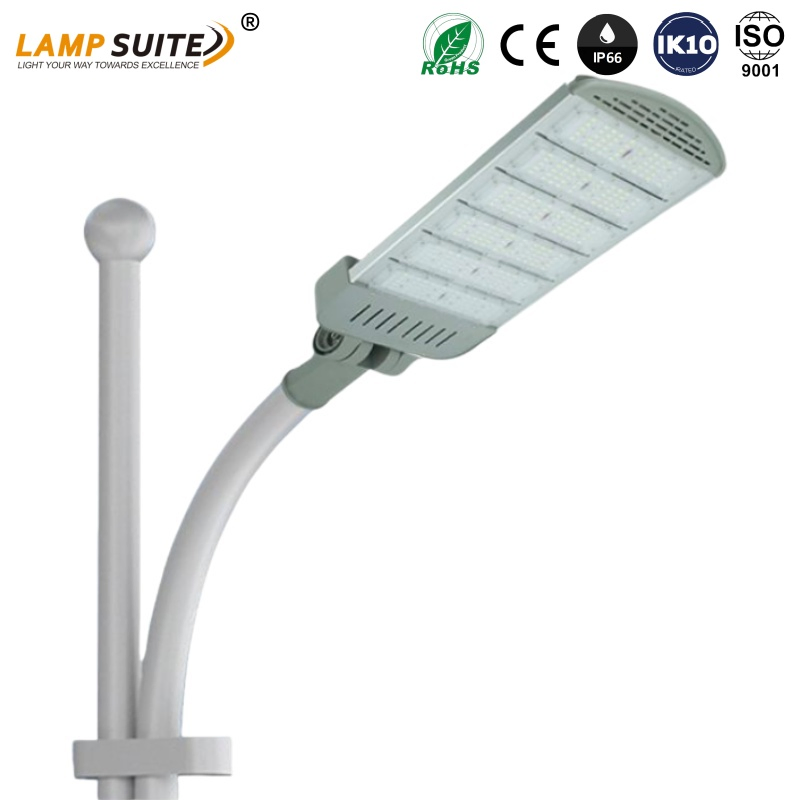

Warehouse 100W 120W 150W 180W LED High Mast Light Dimmable Modular Streetlight

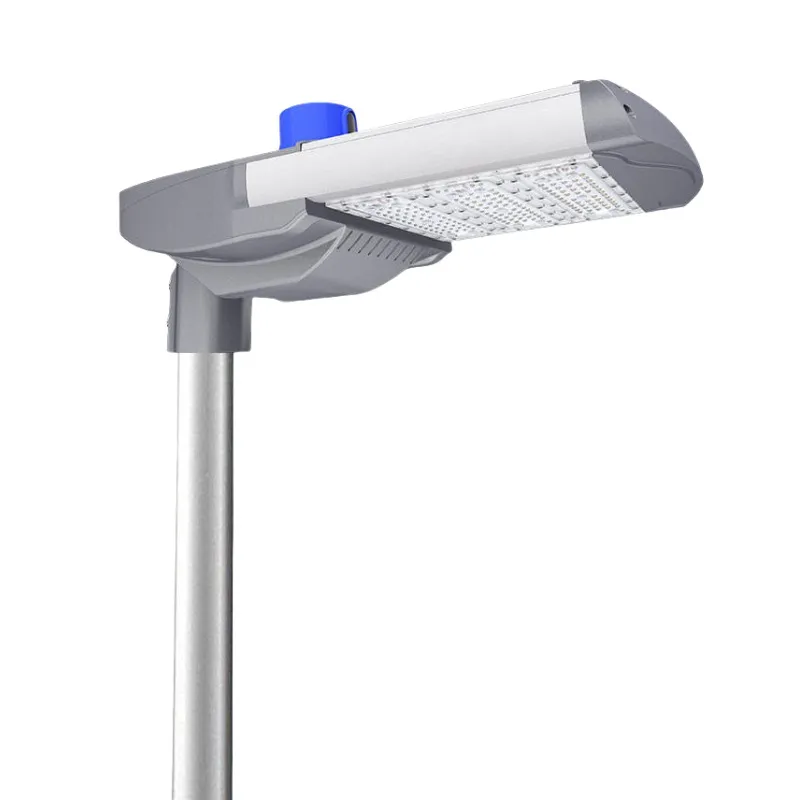

The LED modular street light is designed with multiple replaceable LED modules for easy maintenance and flexible power configuration. It delivers high brightness, uniform illumination, and excellent heat dissipation, ensuring stable performance and long lifespan. With IP66 waterproof protection and durable die-cast aluminum housing, it is ideal for outdoor applications such as highways, city roads, parking lots, and industrial areas. Optional smart control systems like photocell or motion sensor are available for energy saving.
| ITEM | WATT | LUMEN | VOLTAGE | CCT |
|---|---|---|---|---|
| MXSW Series | 40W - 60W | 5000lm - 7500lm | 100-240/277 VAC | Customizable 2800-3200K (Warm White) 4000-4500K (Natural White) 6000-6500K (Cool White) |
| 80W - 100W | 10000lm - 12500lm | |||
| 120W - 150W | 15000lm - 18750lm | |||
| 160W - 180W | 20000lm - 22500lm | |||
| 200W - 240W | 25000lm - 30000lm | |||
| 250W - 300W | 31250lm - 37500lm | |||
| OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color(black, white and gray) etc. Digital Smart System(DALI,DMX,0-10V). | |||

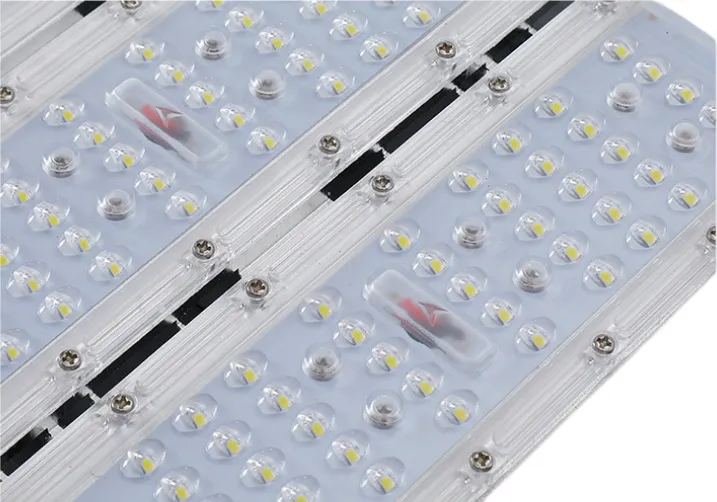

Equipped with advanced PMMA optical lens technology, the light offers high transmittance, uniform illumination, and excellent lighting consistency, ensuring bright and clear visibility in every environment.

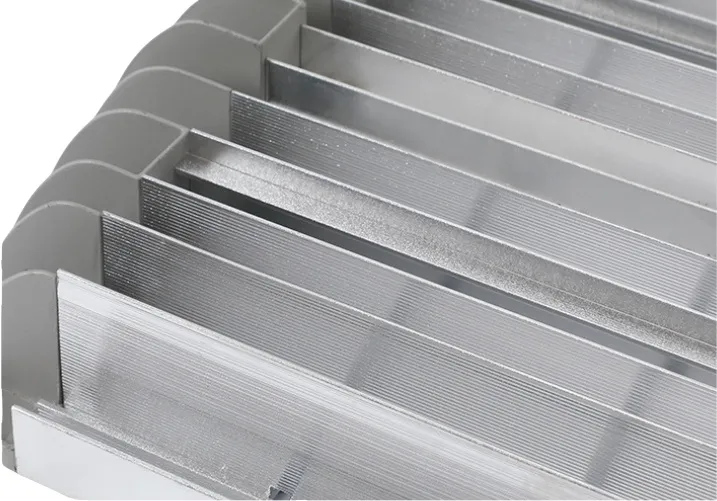

The integrated die-cast aluminum heat sink features an optimized convection design that provides superior heat dissipation, effectively maintaining stable lamp temperature and extending service life.

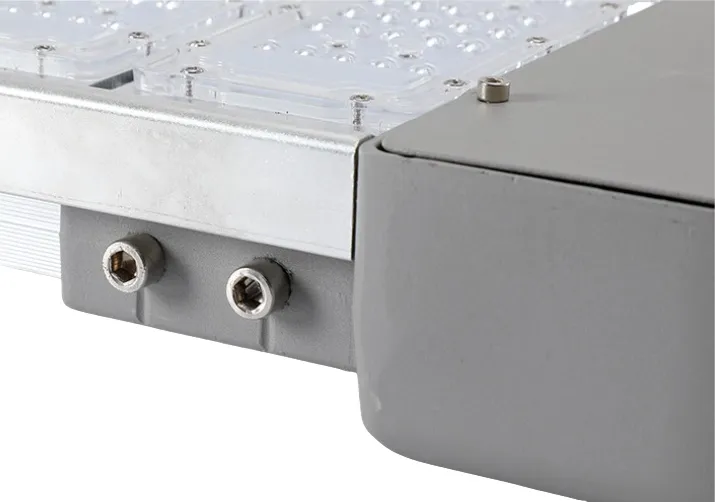

High-quality stainless-steel screws ensure secure installation, long-term durability, and outstanding resistance to corrosion and rust.

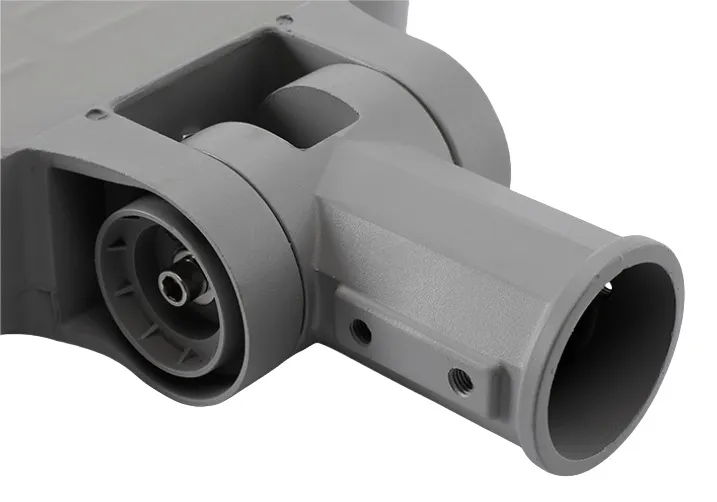

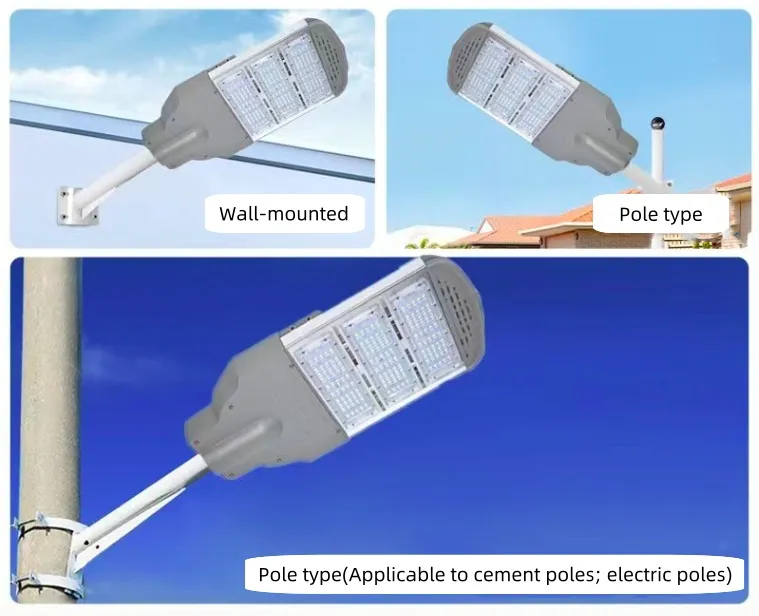

Standard Ø60mm mounting bracket allows up to 180° adjustment, making it suitable for various installation angles and easy maintenance or replacement in different outdoor conditions.
Established in 2016, our company is a national high-tech enterprise integrating R&D, production, sales, and service. We serve as a leader in the explosion-proof and industrial lighting industry.

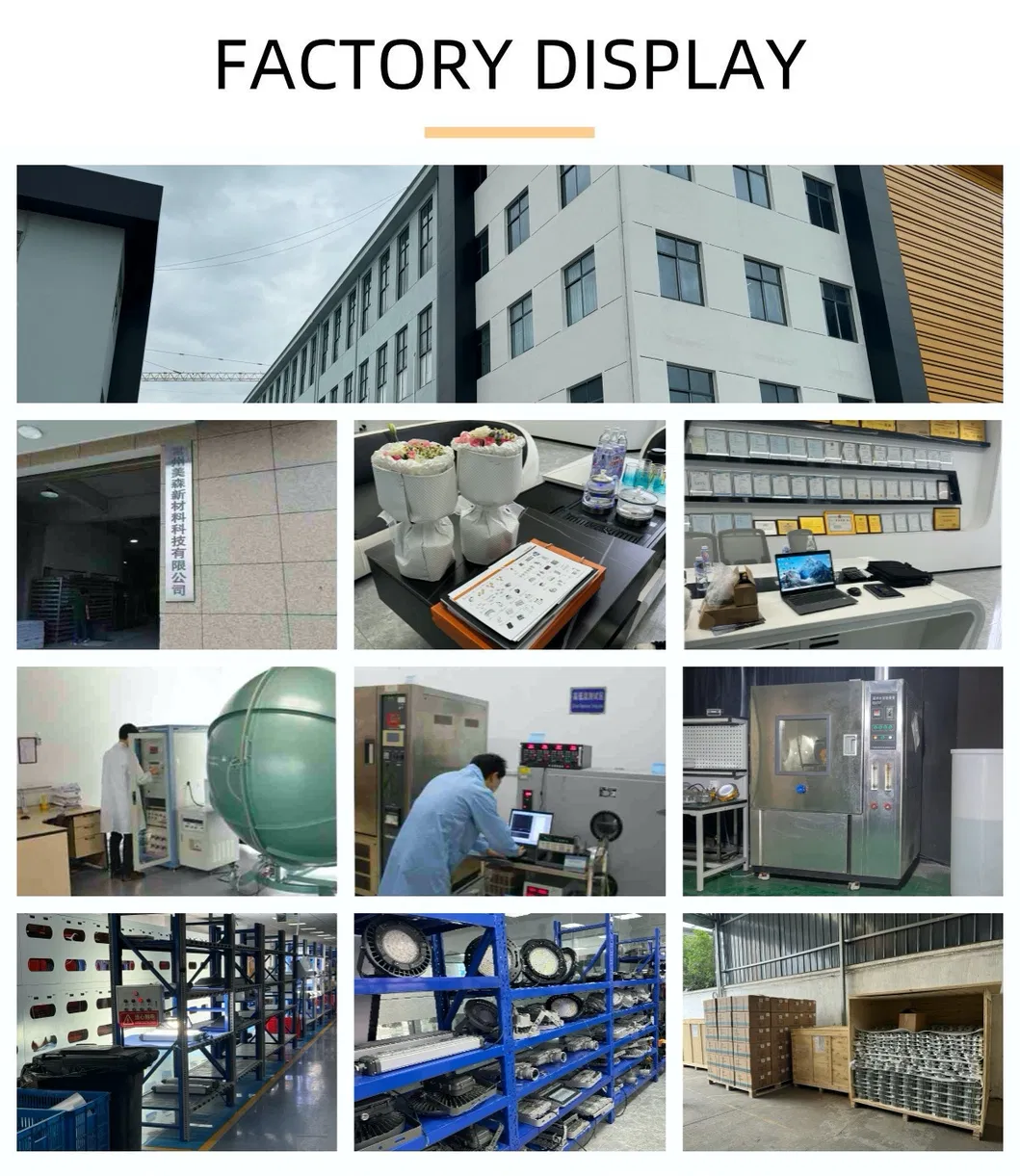

Our facility houses over 200 employees, including a dedicated R&D team and technical engineers. With more than 28 production lines, our monthly output can reach 10,000 units. We cooperate fully with international brand enterprises, utilizing advanced technology and automated precision production testing equipment.
We uphold strict quality management and are committed to producing various industrial lighting fixtures, providing professional customization for oil, chemical, natural gas, marine platforms, coal mines, railways, highways, ports, and other major industries.
