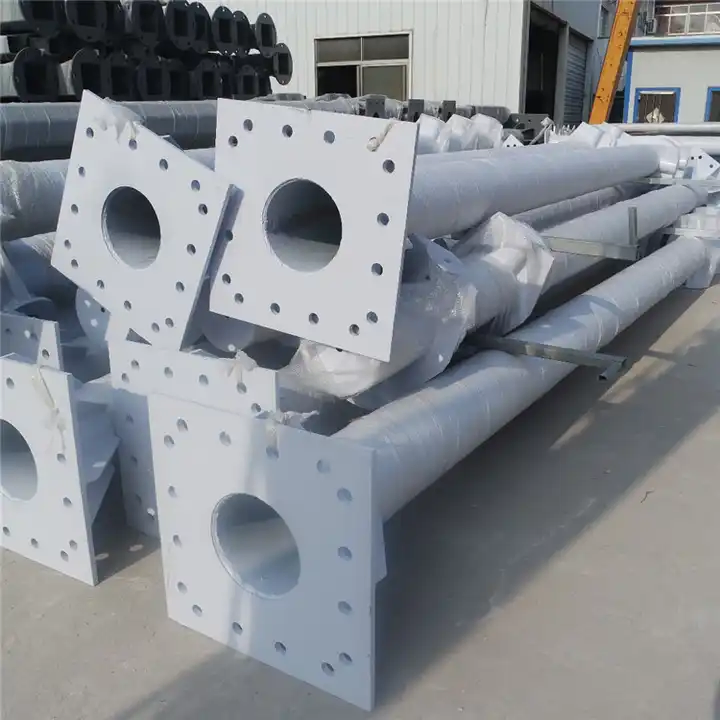

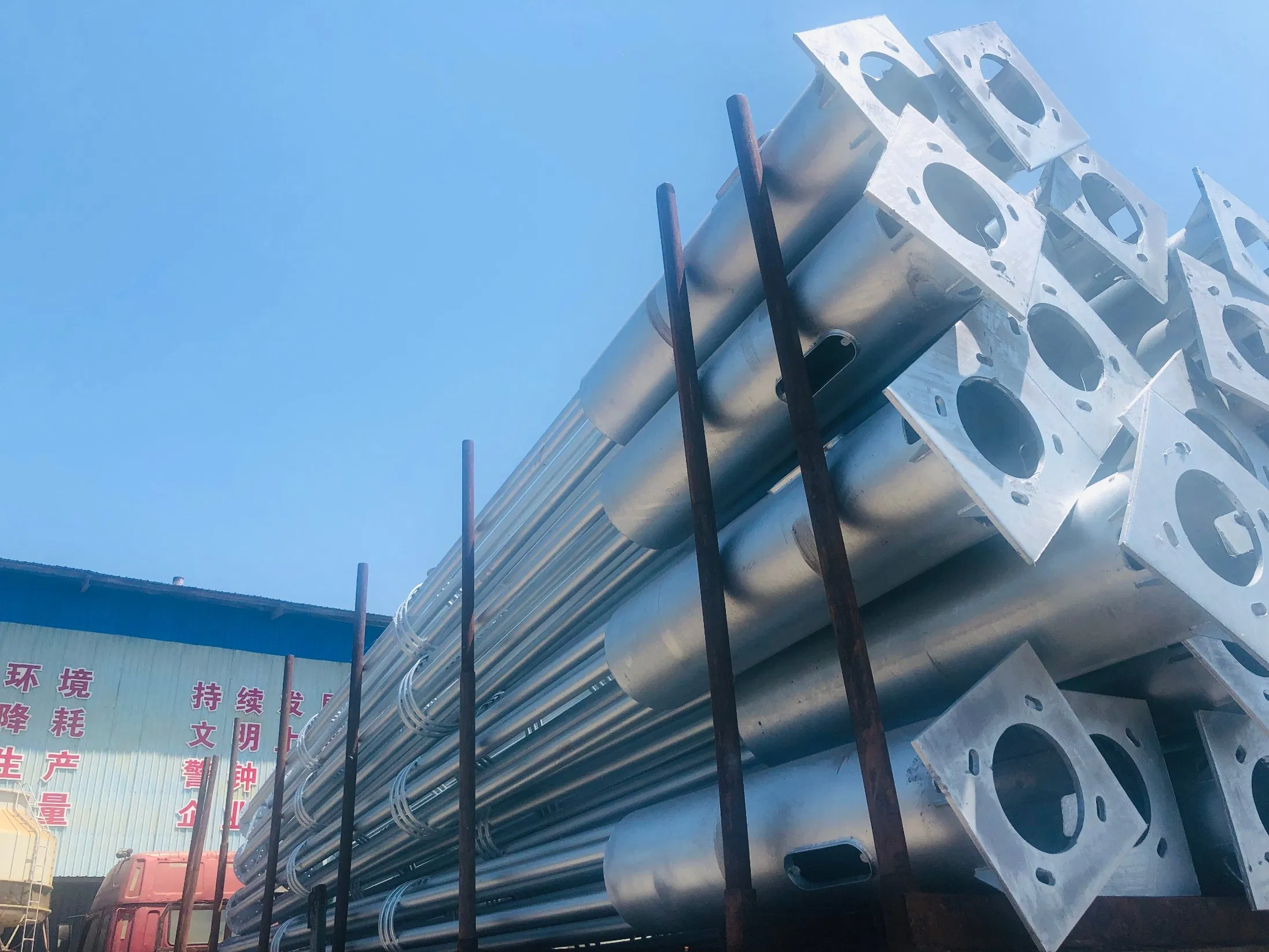

1. Robust Pole Design: The high mast lights feature either a dodecagon or octagonal conical pole design, crafted from high-strength steel plates. These poles are available in heights of 25m, 30m, and 35m, designed to withstand wind speeds up to 60 meters per second.
2. Structural Integrity: The framework is primarily composed of steel. Key components, including the steel pipe, lamp post, and lamp plate, are hot-dip galvanized to ensure maximum durability against corrosion.
3. Advanced Lifting System: Incorporates an electric lifting assembly with a motor, winch, and three sets of hot-dip galvanized steel wire ropes. It achieves a smooth lifting speed of 3 to 5 meters per minute.
4. Stabilization System: Features a guide wheel and guide arm to prevent transverse movement during lifting. The lamp plate automatically locks into place via a hook mechanism once it reaches the designated height.
5. Electrical System: Supports between 6 to 24 lamps (400W to 1000W). Options include metal halide, spotlights, or floodlights, managed by a computer time controller for partial or full illumination.
6. Lightning Protection: Equipped with a 1.5-meter lightning rod at the top and a 1-meter grounding wire securely welded to the underground foundation bolts for superior safety.
| Height Range | 3m - 30m |
| Material | Hot rolled steel, Q235, Q345 |
| Forming | Within 16m once forming without slip joint |
| Thickness | 2.5mm - 20mm |

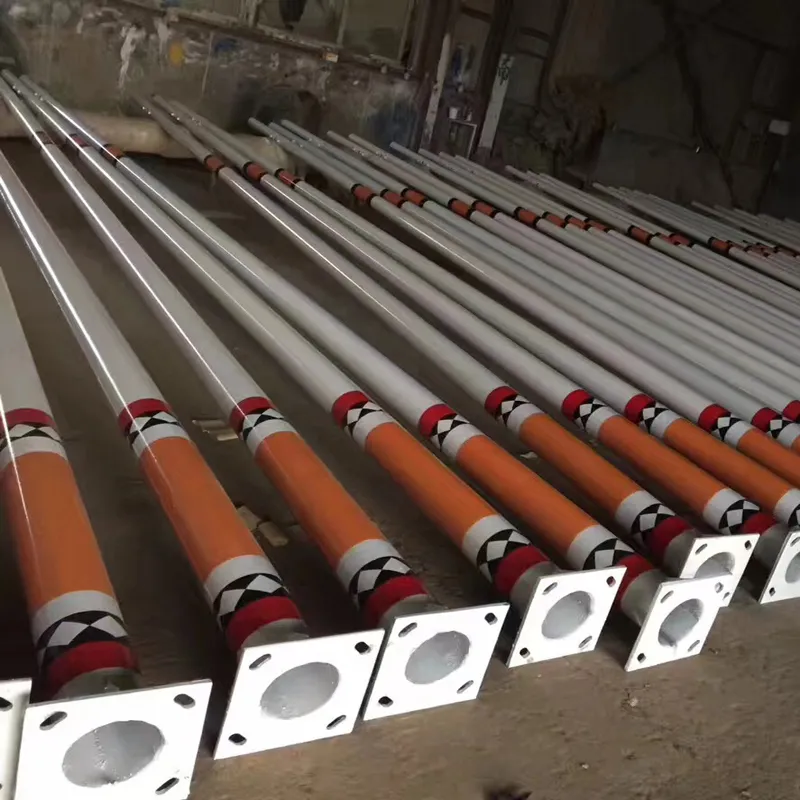

| Pole Shape | Round, Octagonal, Conical (Single/Double Arm) |
| Power Range | 150W-400W for HPS / 30W-180W for LED |
| Surface Treatment | Hot-dip Galvanized with Powder Coating |
| Quality Standards | ISO9001-2008 and CE requirements |
Lifting main poles typically exceed 18m. When raised to the working position, the lamp tray automatically detaches and hangs securely. The system offers dual control modes—manual and electric—facilitating safe maintenance at 2.5 meters above ground. With a 10m manual remote lead, operators can safely manage the process from a distance.
