Newest Street Lighting Pole LED High Mast Light

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum

Basic Information

Model NO.:SX-GGD-LD-02

Pole Height:15m-45m

Power:150W-400W

Projection Distance:15cm-45cm

Usage:Airport

IP Rating:IP65

Certification:CCC, CE, CQC, EMC, ETL, LVD

Input Voltage:220V

LED Chips Brand:CREE

High:15m-35m

Craft:HDG (Hot Dip Galvanized)

Production Capacity:1,000,000/Month

Packaging & Delivery

Package Size:1000.00cm * 40.00cm * 40.00cm

Gross Weight:150.000kg

Product Description

Feature	Specifications
Height	6m to 30m or other height customer requirement
Suit for	Electric Power Distribution Transmission Steel Tower
Shape	Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material	Q345B/A572 (Yield strength >=345n/mm2), Q235B/A36 (Yield strength >=235n/mm2), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Strength	2.5KN, 5KN, 8KN, 10KN, 12KN
Tolerance	+/- 2%
Optical Assembly	IP 65
Working Temp	-35 ºC ~ +45 ºC
Surface Treatment	Hot dip galvanized following ASTM A 123, color polyester power

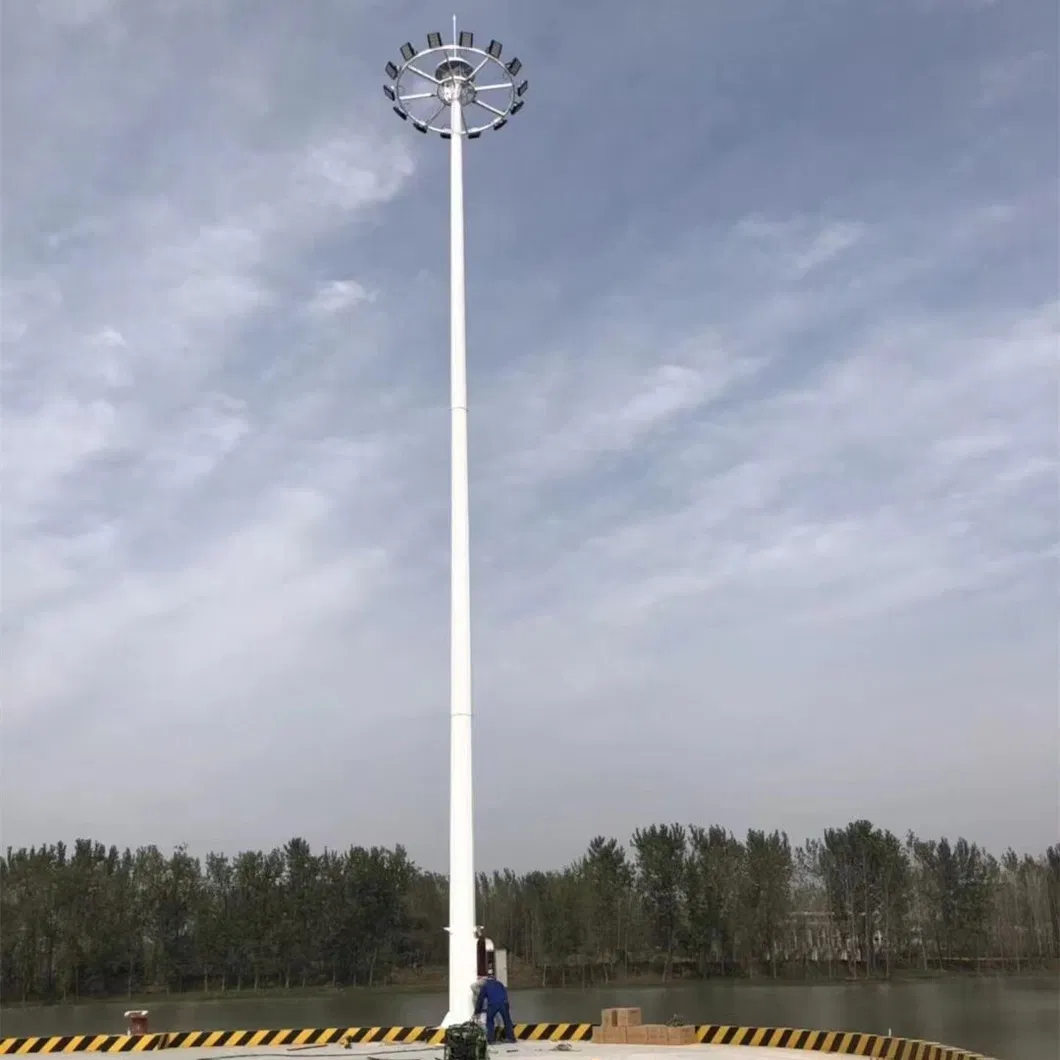

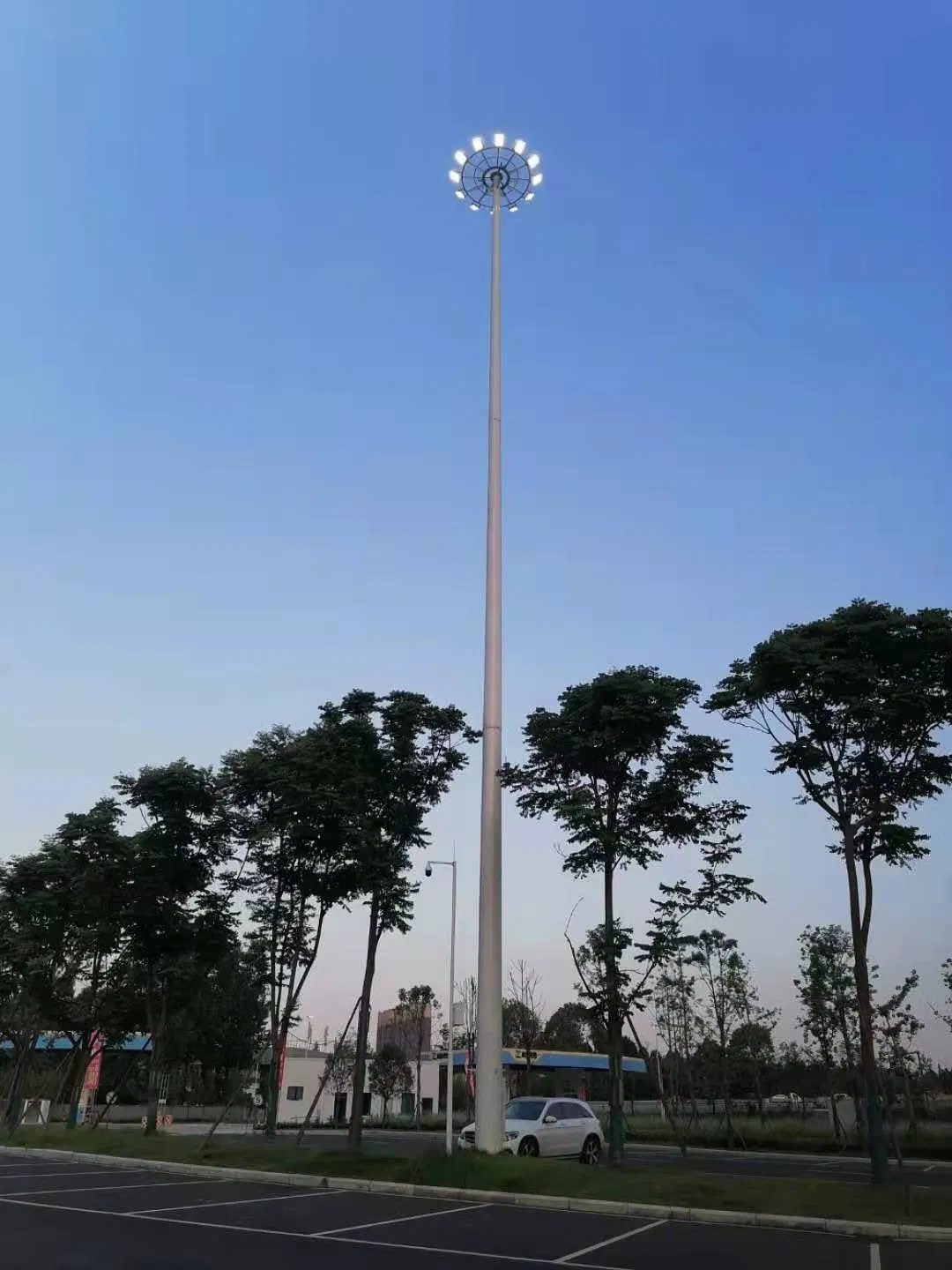

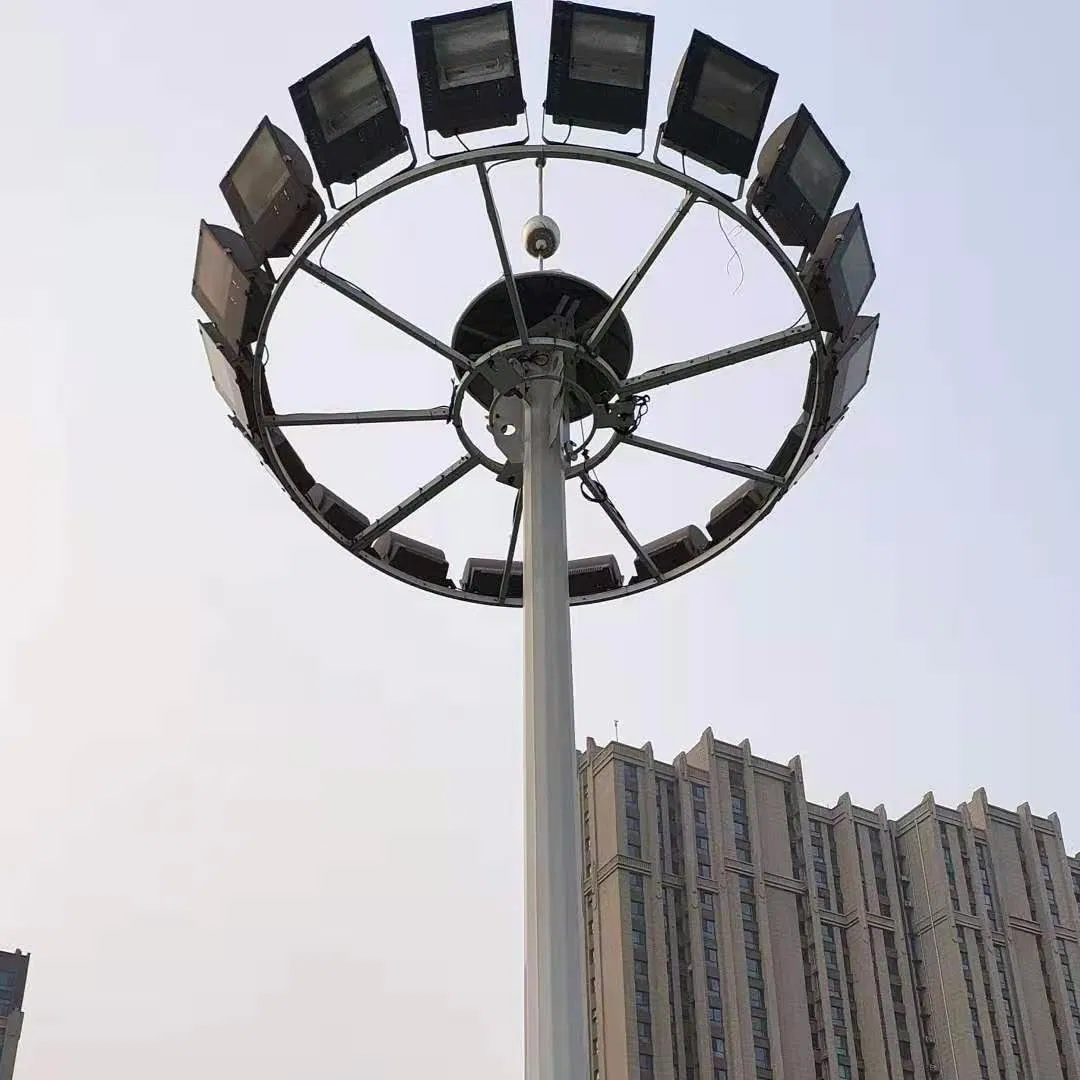

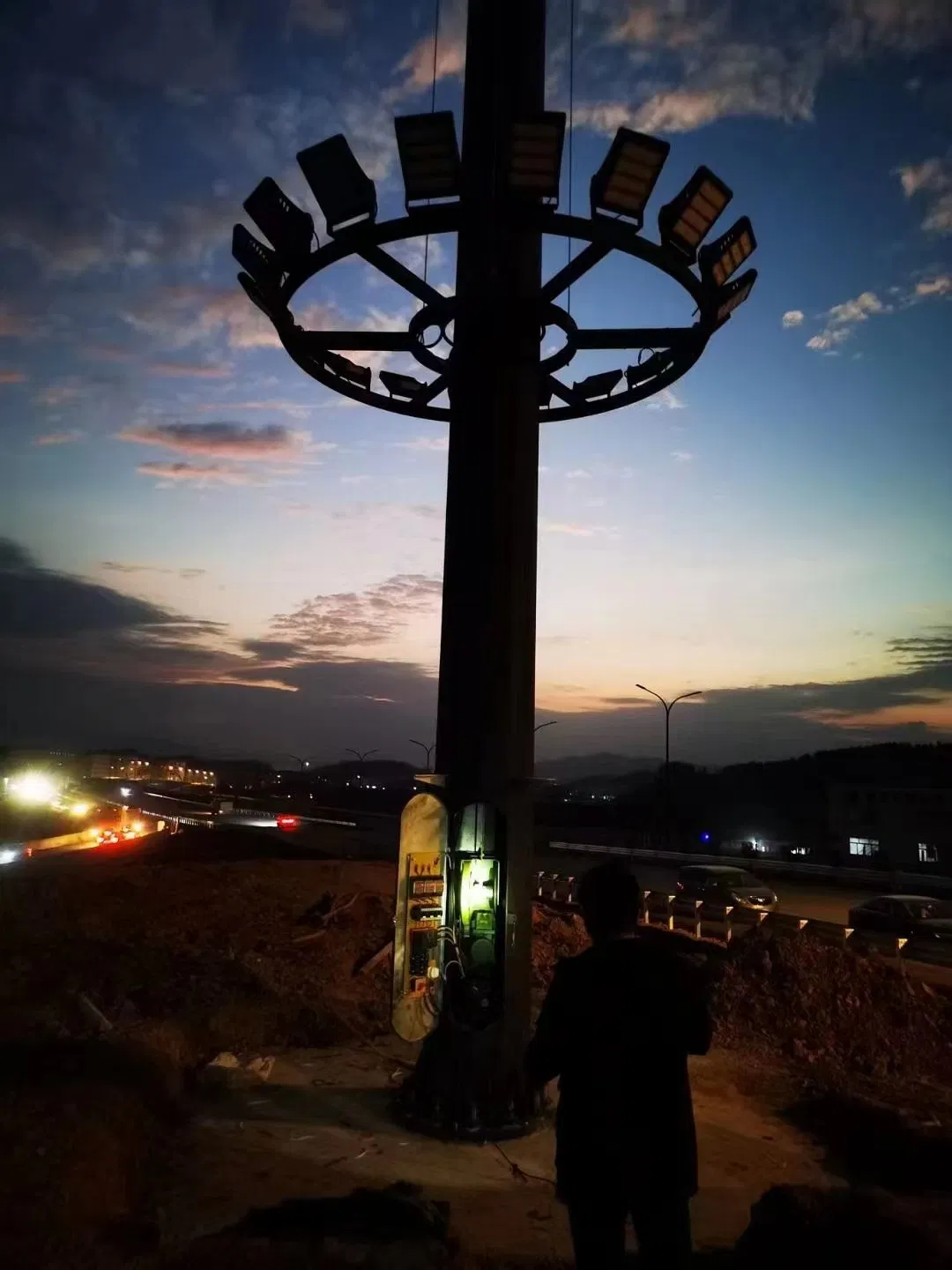

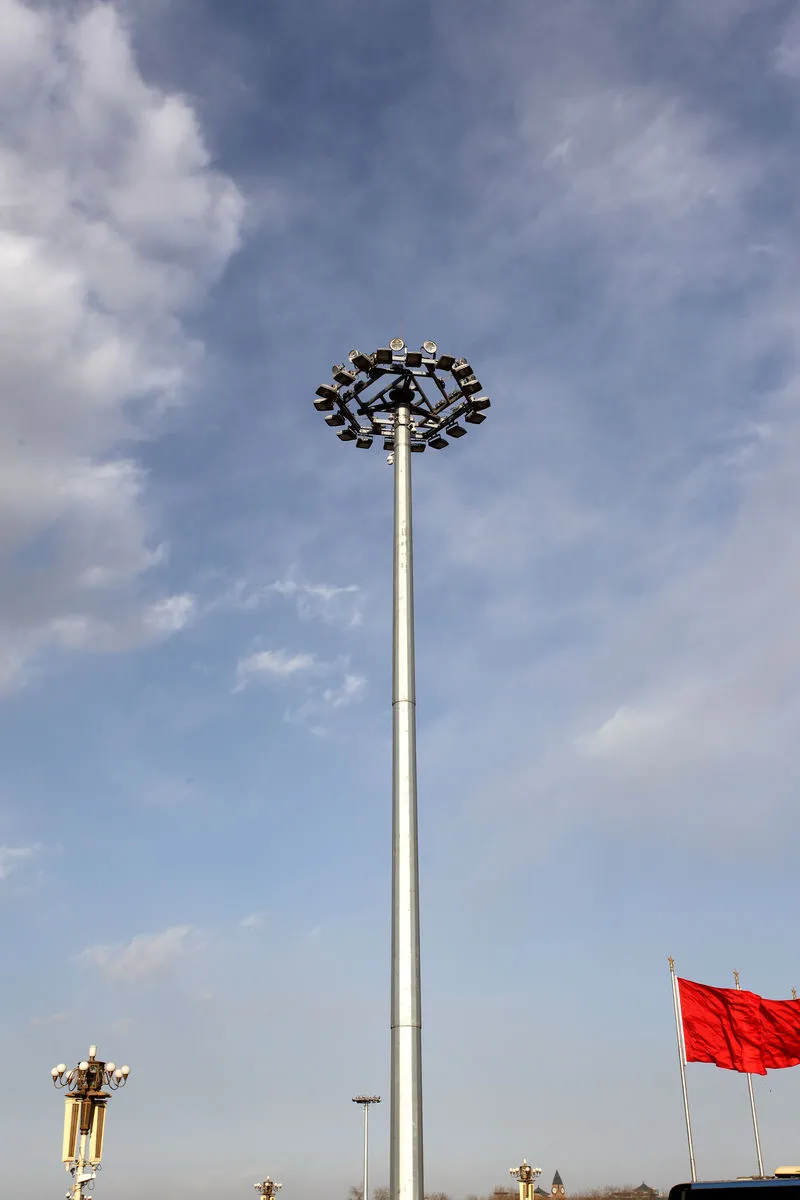

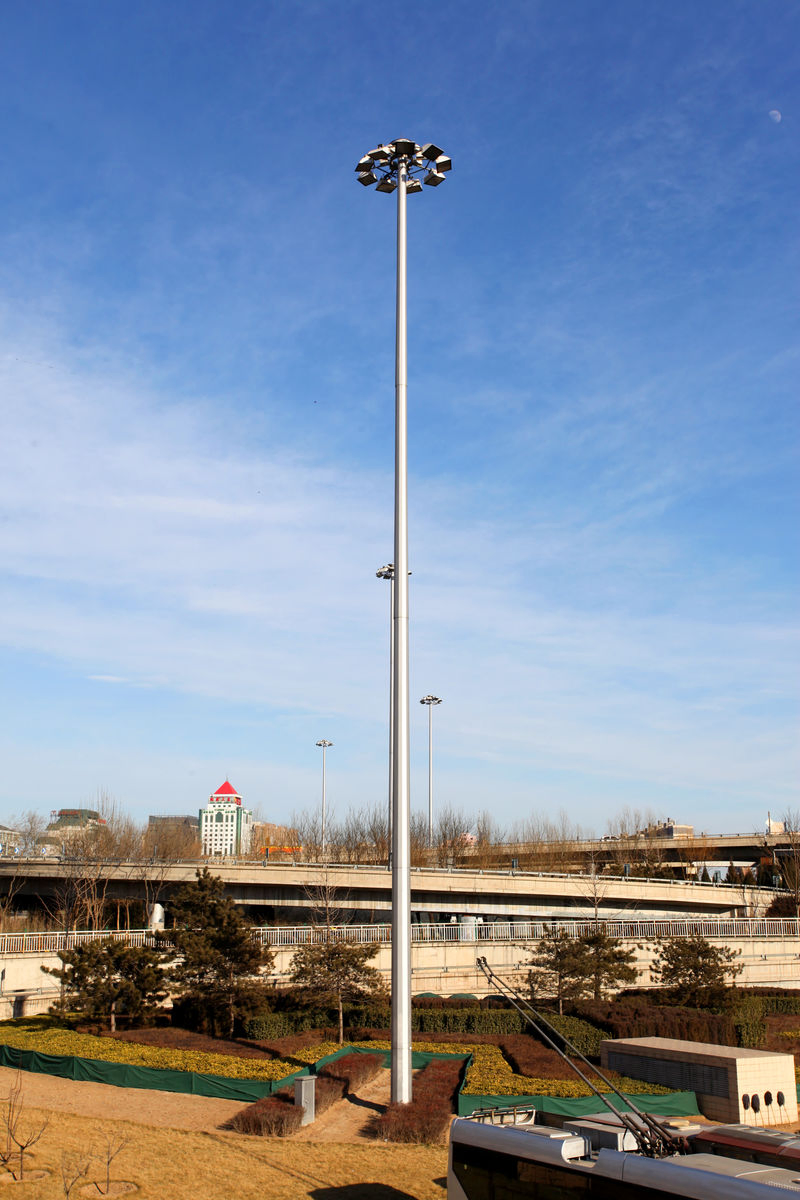

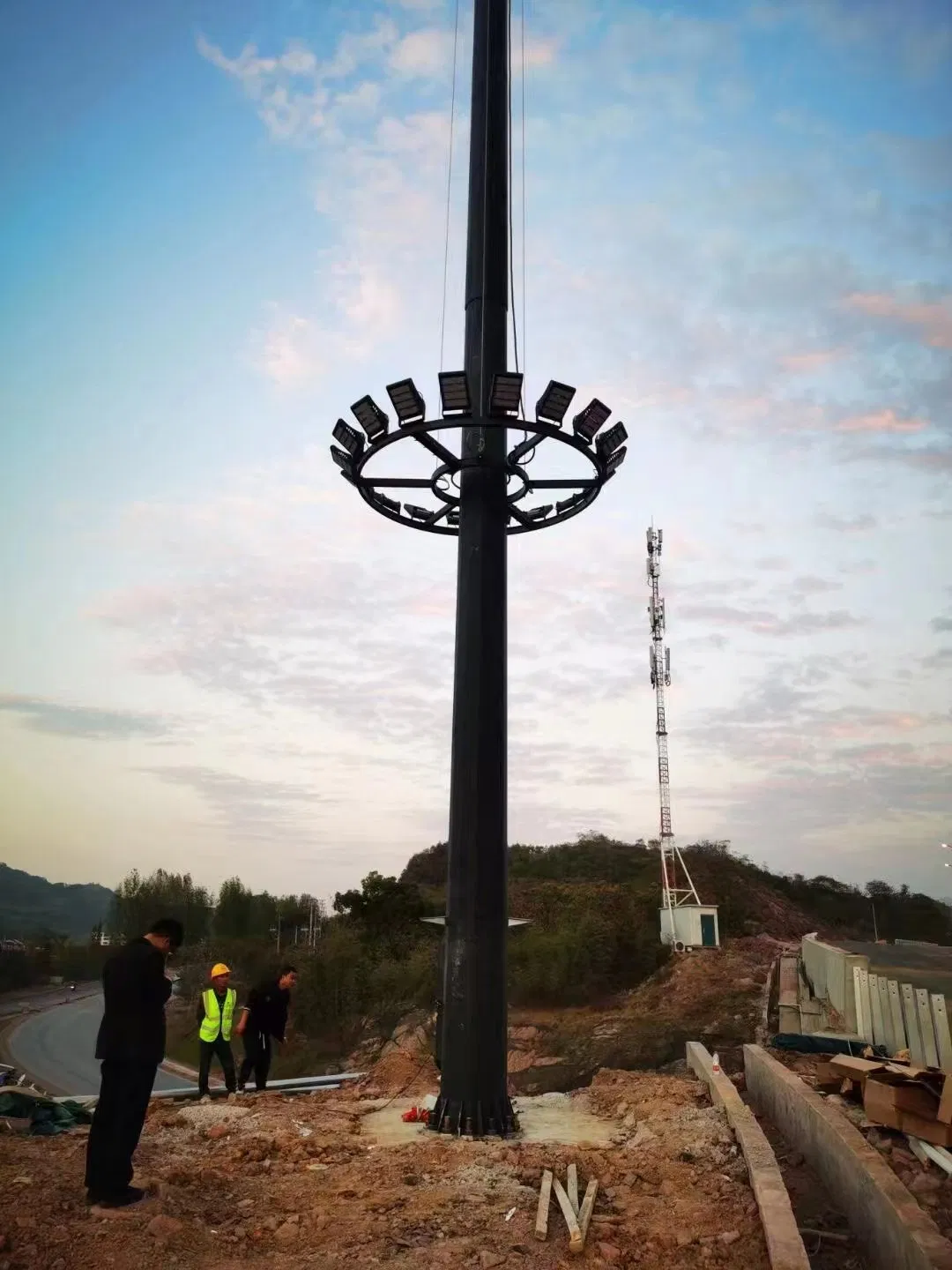

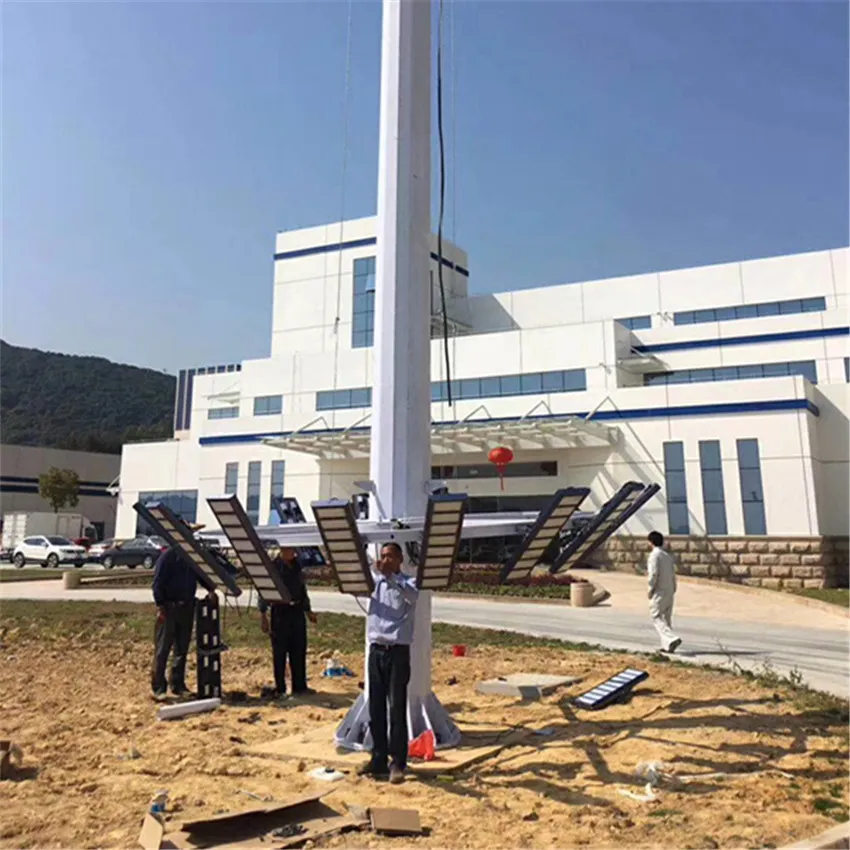

Detailed Photos

Product Parameters

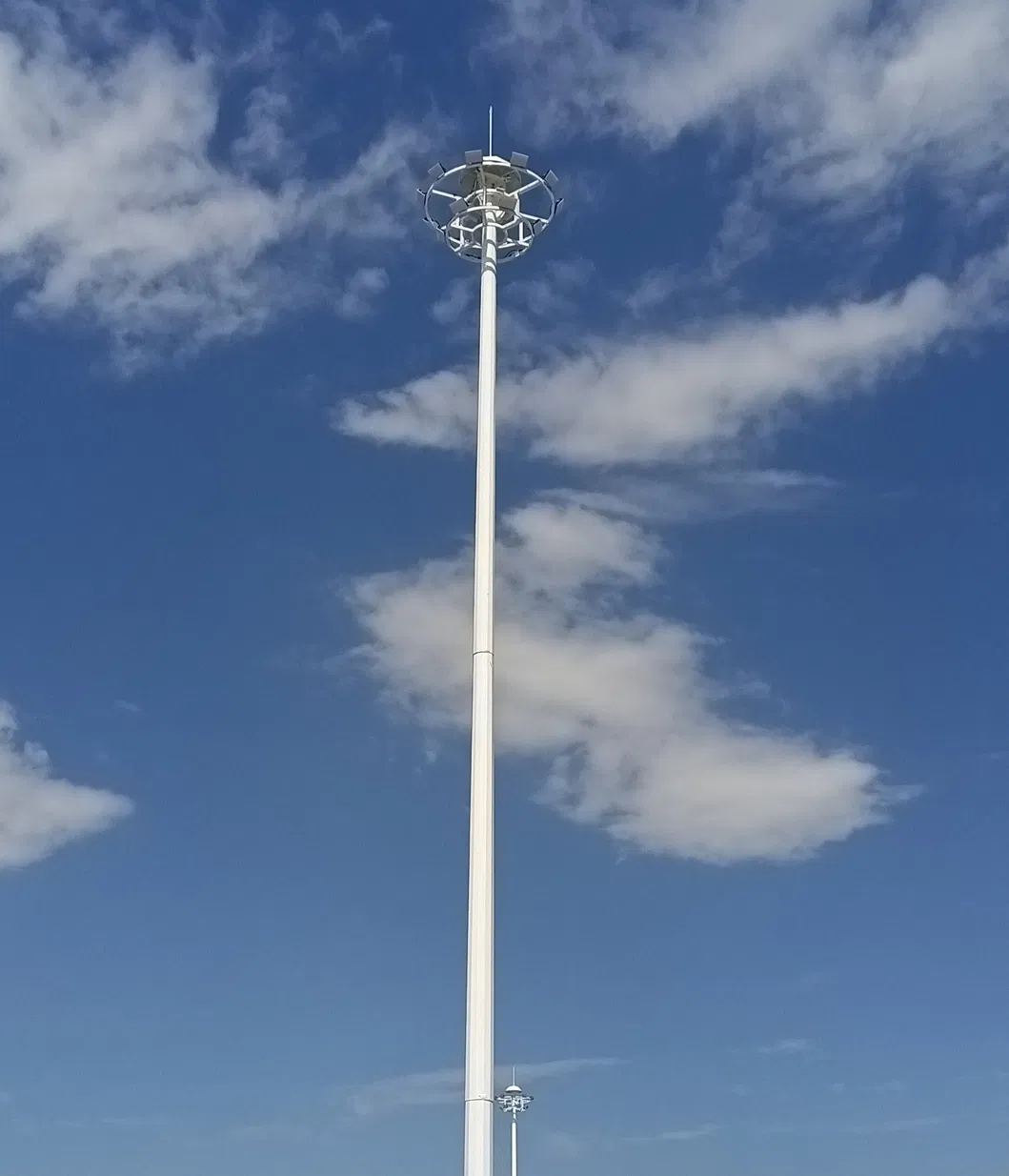

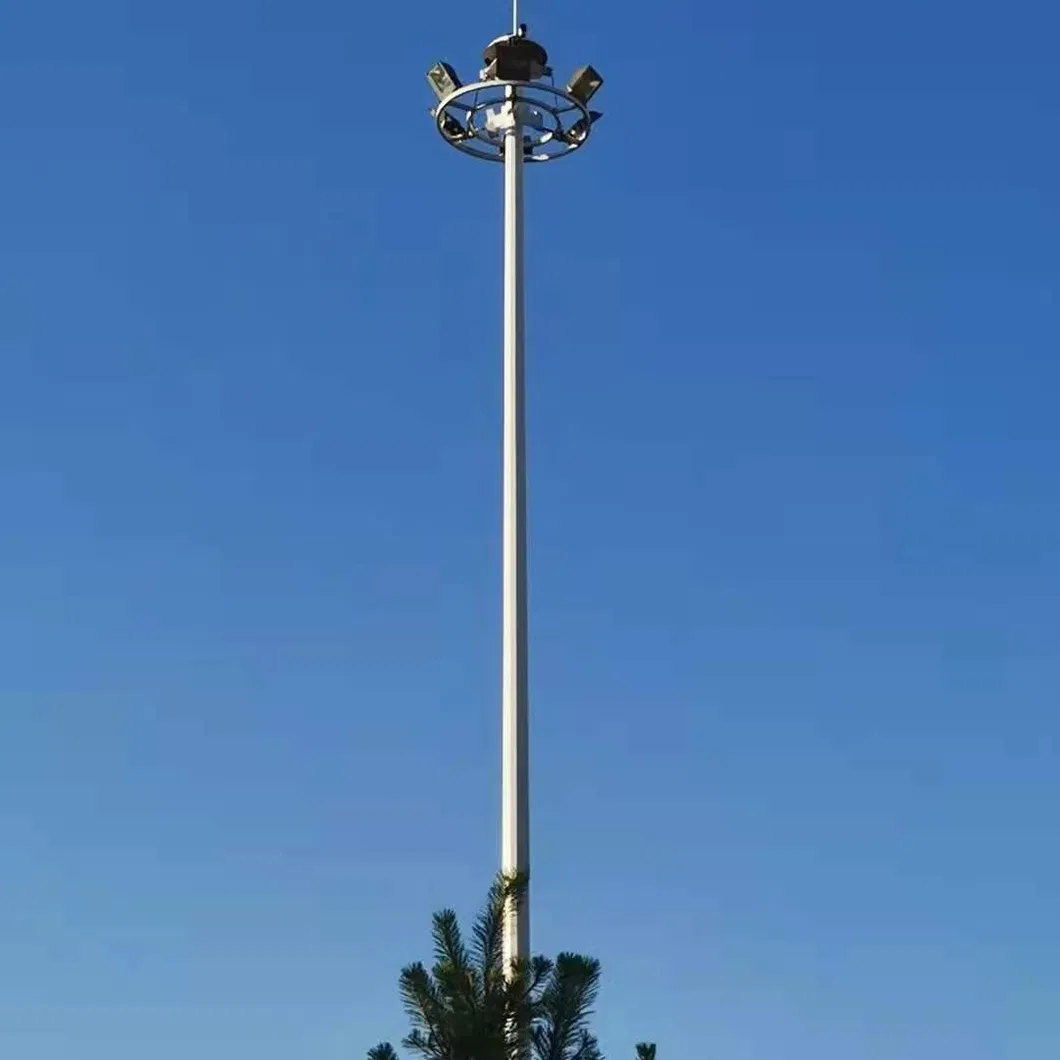

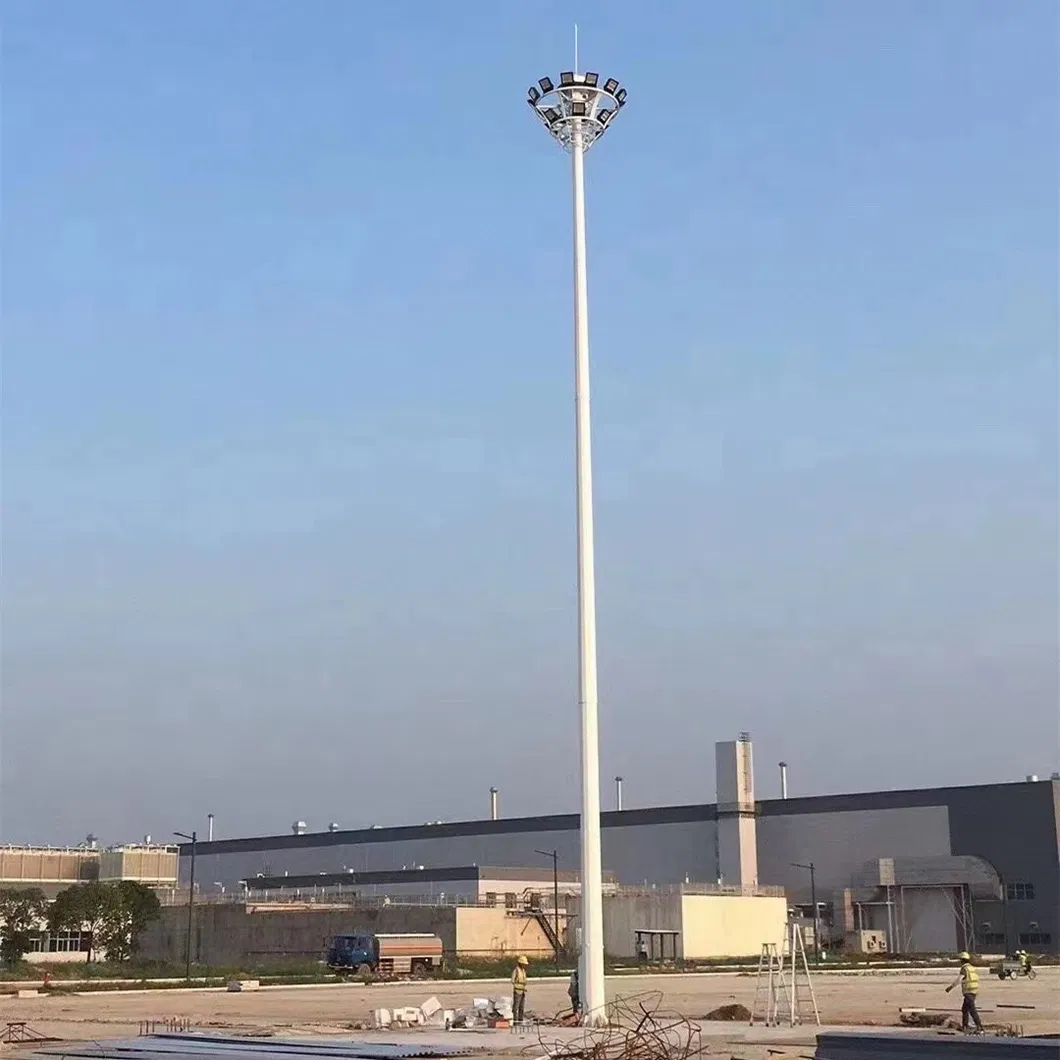

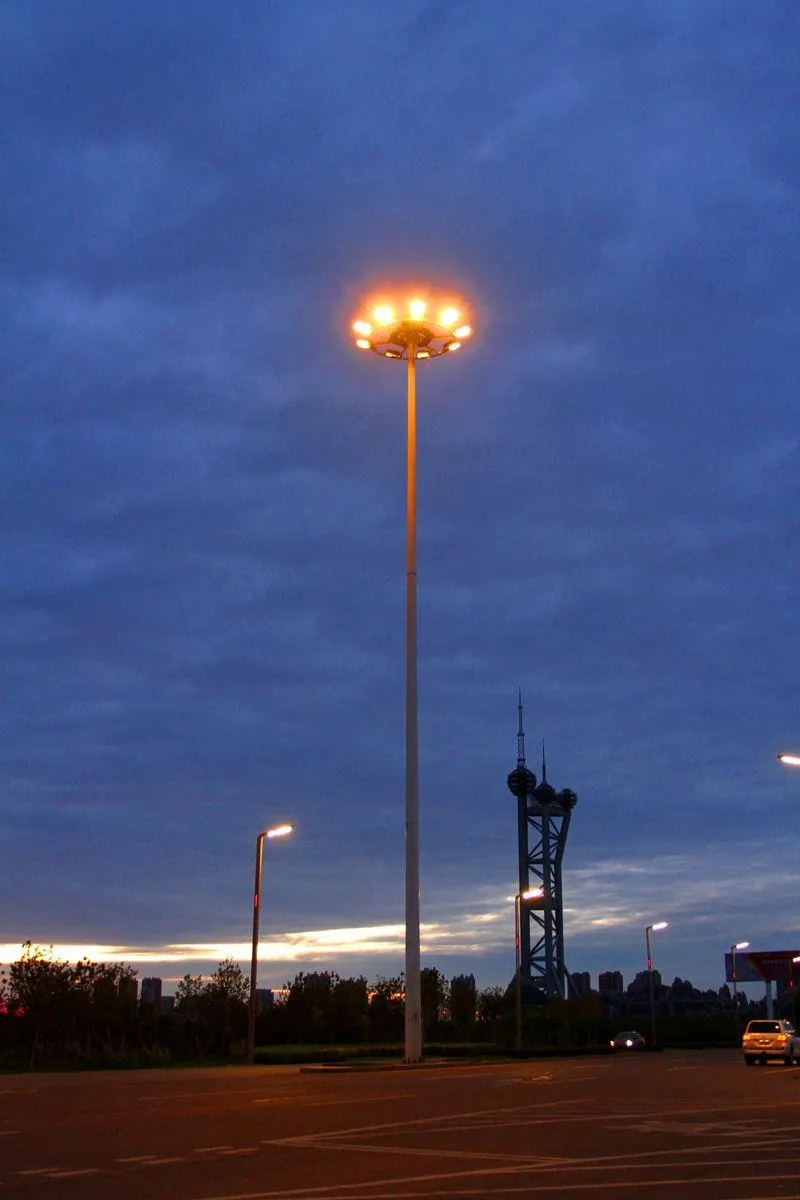

HIGH MAST LIGHT FUNCTION CHARACTERISTICS:

High pole lamps are designed for lighting roads, overpasses, parking lots, stadiums, freight yards, ports, airports, and public squares. Features include a beautiful decorative shape, large area coverage, centralized light source, uniform illumination, and minimal glare for easy maintenance.

Height	Pole Dimensions	Flanges
15m	120*260 6mm	600*20
18m	160*320 6mm	720*20
20m	250*420 6mm 8mm	750*20
25m	240*480 6mm 6mm 8mm	850*20
30m	240*620 6mm 8mm 10mm	110*30
35m	280*680 6mm 8mm 8mm 10mm	1300*35

Our Services

Quick reply within 24 hours.
Detailed and professional specifications and guidances.
Lighting solutions by professional technicians.
Fast & Cheap Delivery.
Free Light study and Various Certificates.
OEM & ODM available.

Company Advantages

Specialized Design: Engineers provide consultation and solutions based on individual requirements and relevant standards.
Independent Production Line: We manufacture poles, solar panels, and LED lamps via our own production lines.
Advanced Laboratory: Round-the-clock testing including high/low temperature, waterproof, dustproof, aging, and salt mist tests.
Certifications: Products have passed ISO 9001 and carry CE certification. LED lamps reach IP65 protection degree.

FAQ

1. What is the height range of your high mast lights? We offer standard heights from 15m to 45m, and we can also customize the height based on specific project requirements.

2. What materials are used for the poles? The poles are primarily made of high-strength steel such as Q345B/A572 or Q235B/A36, and are hot-dip galvanized for superior anti-corrosion performance.

3. Are the LED fixtures waterproof? Yes, our LED lighting fixtures have an IP65 rating, making them suitable for harsh outdoor environments including airports and ports.

4. Can I request a sample before placing a large order? Yes, samples are available for quality testing. Please contact our sales team to arrange the sample details.

5. What brand of LED chips do you use? We use high-performance CREE LED chips to ensure long life, high efficiency, and stable light output.

6. Do you offer technical support for installation? Absolutely. We provide detailed instructions and video guides, and our technical team can offer assistance for large-scale solar street light projects.
