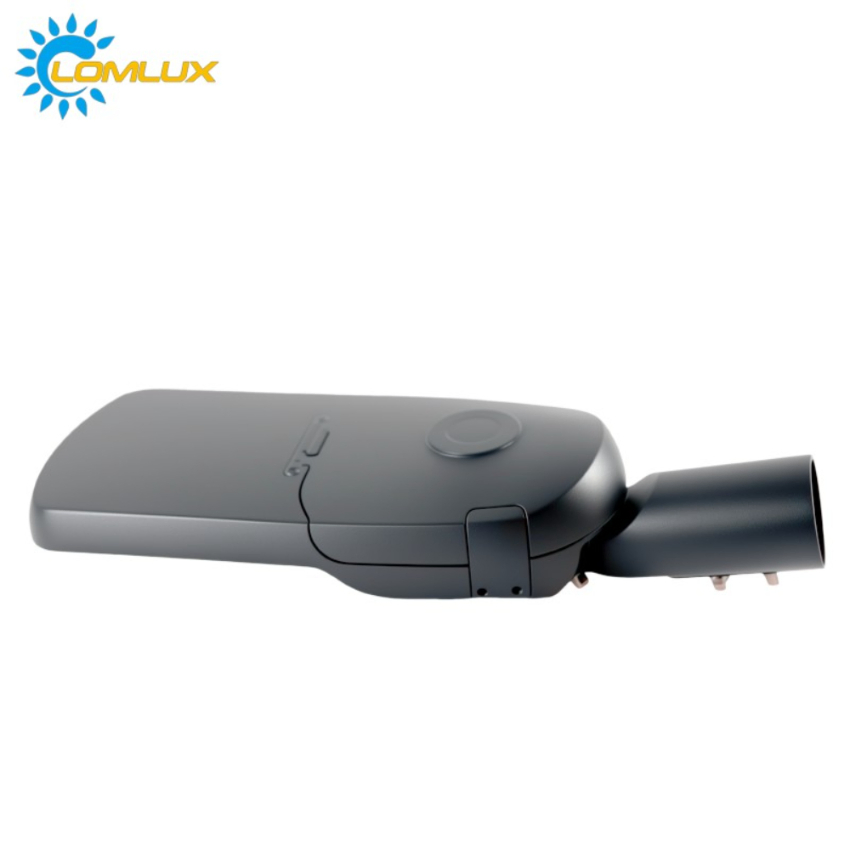

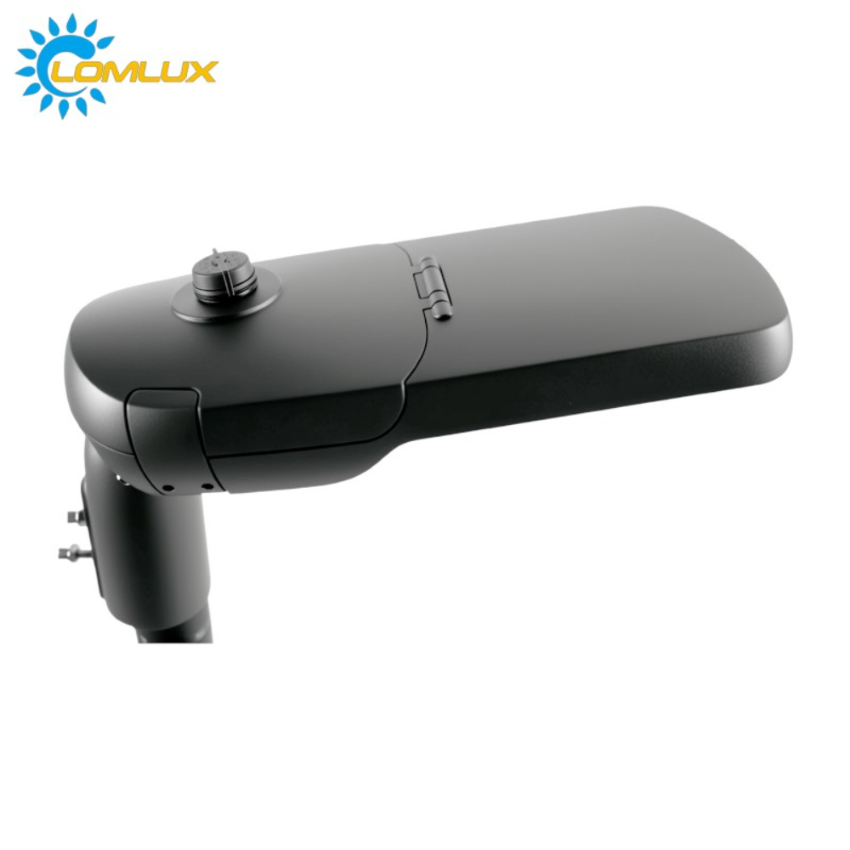

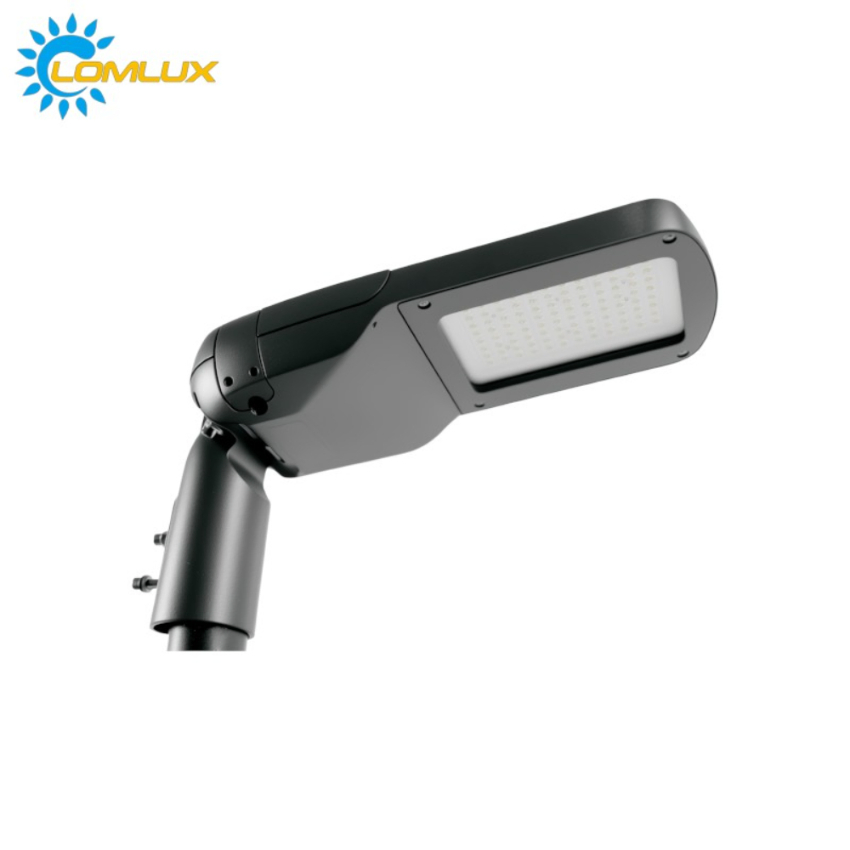

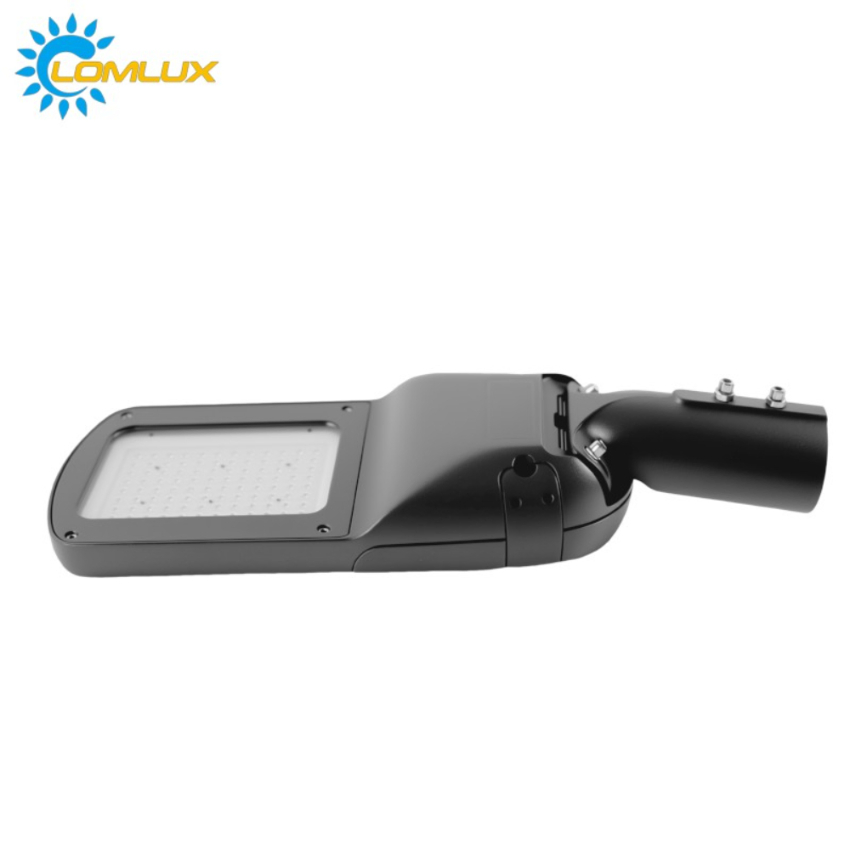

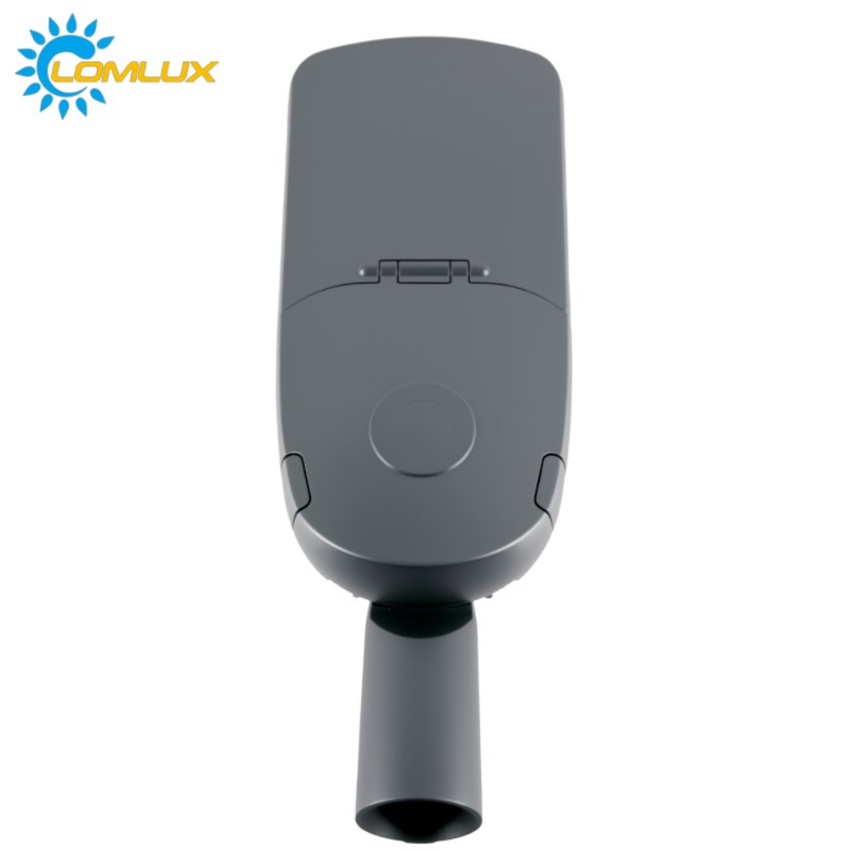

OEM High Quality Efficient Energy-Saving IP66 Waterproof Manufacturer LED Street Light

1 / 5

OEM High Quality Efficient Energy-Saving IP66 Waterproof Manufacturer LED Street Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Product Specifications

Model NO.

LM-SL18

Material

Die-Casting Aluminum

Power Range

20-250W

Application

Square, Highway, Garden, Parking Lot

IP Rating

IP66

Certification

CE, EMC, LVD, RoHS, SAA

Input Voltage

85-265V

LED Brand

CREE

Warranty

5-7 Years

Beam Angle

150*75°

Lifespan

50,000 Hours

Surge Protection

10kv / 20kv SPD

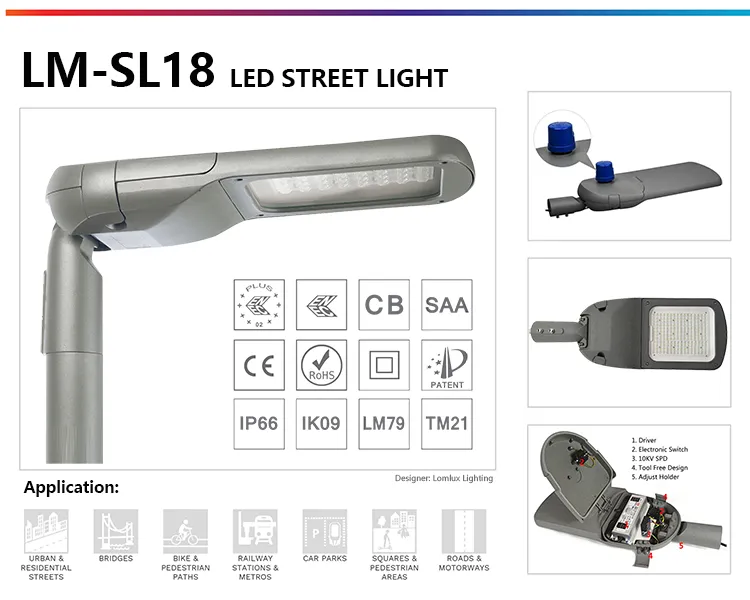

Main Advantages of LED Luminaire

This series of street lights offers exceptional durability, mechanical resistance, and environmental friendliness. They are designed for superior visibility and aesthetic appeal in various urban environments.

Premium Build: Die-cast aluminum body ensures effective heat dissipation and high durability.
Corrosion Resistance: Power-coated body with a self-cleaning coating (Standard RAL9007).
Optical Precision: Available in a wide range of lens options to suit different road classes.
Energy Efficiency: High efficacy (150lm/W) reduces electricity costs by over 50%.
Smart Controls: Supports 3/5/7Pin NEMA, Photocell, 1-10V, PWM, and DALI Dimming.
Safety: Built-in 10KV/20KV surge protection device (SPD) as standard.

Model	LM-SL18-Mini	LM-SL18-S	LM-SL18-M	LM-SL18-L
Size (mm)	535200120	620235125	690260130	810320135
Power	20-60W	60-100W	100-150W	150-200W
Luminous Flux	135-155 lm/W
Holder Size	48mm, 60mm, 76mm
CCT	3000K, 4000K, 5000K, 5700K, 6500K

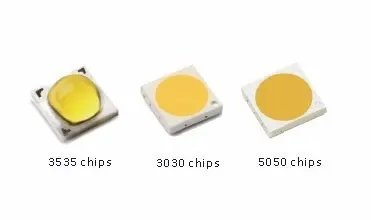

High Efficacy LED Source

Equipped with professional luminous sources providing excellent lumen output and long-lasting stability. The efficiency of high-performance 5050 chips reaches more than 175 lm/W.

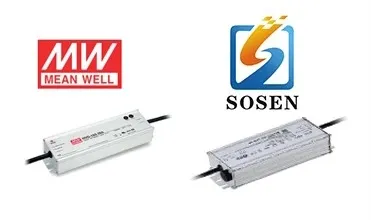

High-End LED Driver

Uses high-end programmable LED drivers with 4KV/6KV surge protection, ensuring optimal stability and a long operational lifespan.

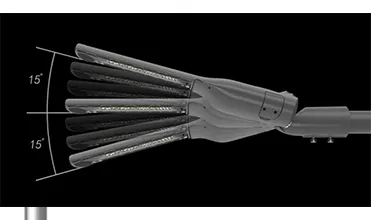

Flexible Installation

Supports both vertical post-top mounting and horizontal side-entry mounting. The installation angle is adjustable from 0 to 15 degrees for precise lighting control.

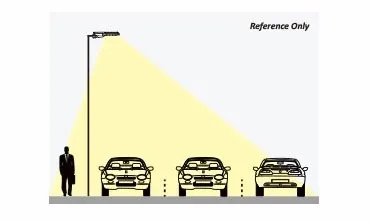

Optimized Light Distribution

Offers various distribution lenses (Type I, II, III, IV) following IESNA standards to achieve the best lighting effect for different road widths and applications.

Related Product Series

LM-SL18 Series

LM-GSL68 Series

LM-GSL01A Series

LM-FL59 Series

LM-GSL09A Series

LM-SL27 Series

Frequently Asked Questions

What is the energy saving potential of these LED street lights?

These high-efficiency luminaires (up to 155lm/W) can reduce electricity consumption by over 50% compared to traditional lighting solutions.

Is the lamp body protected against harsh environments?

Yes, the die-cast aluminum body is IP66 rated for waterproof protection and features a self-cleaning powder coating to prevent corrosion.

Does this model support smart city integration?

Absolutely. It supports 3/5/7Pin NEMA sockets for photocells and is compatible with DALI, 1-10V, and PWM dimming systems for smart lighting control.

What kind of surge protection is included?

All units come standard with a TUV-approved 10KV surge protection device, with an optional 20KV SPD available for areas with high lightning activity.

Can these lights be mounted on different pole sizes?

Yes, the luminaires support multiple holder diameters including 48mm, 60mm, and 76mm to fit most standard lighting poles.

What is the standard warranty period?

We provide a standard 5-year warranty, with options extending up to 7 years depending on the project requirements.
