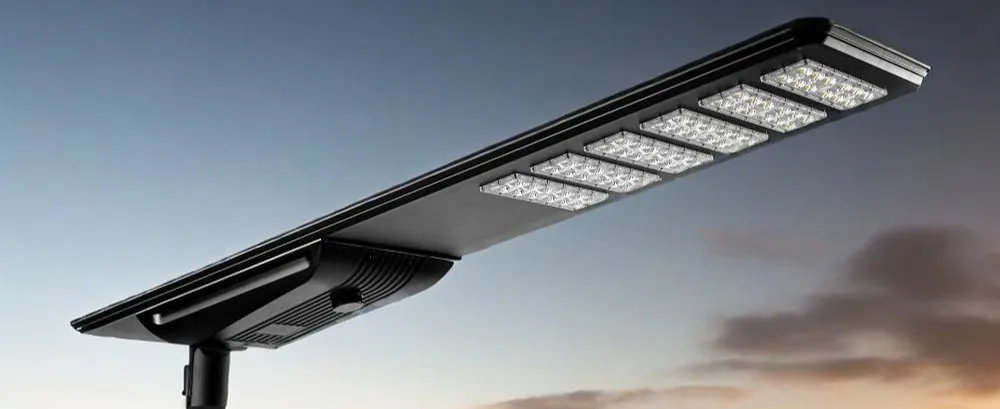

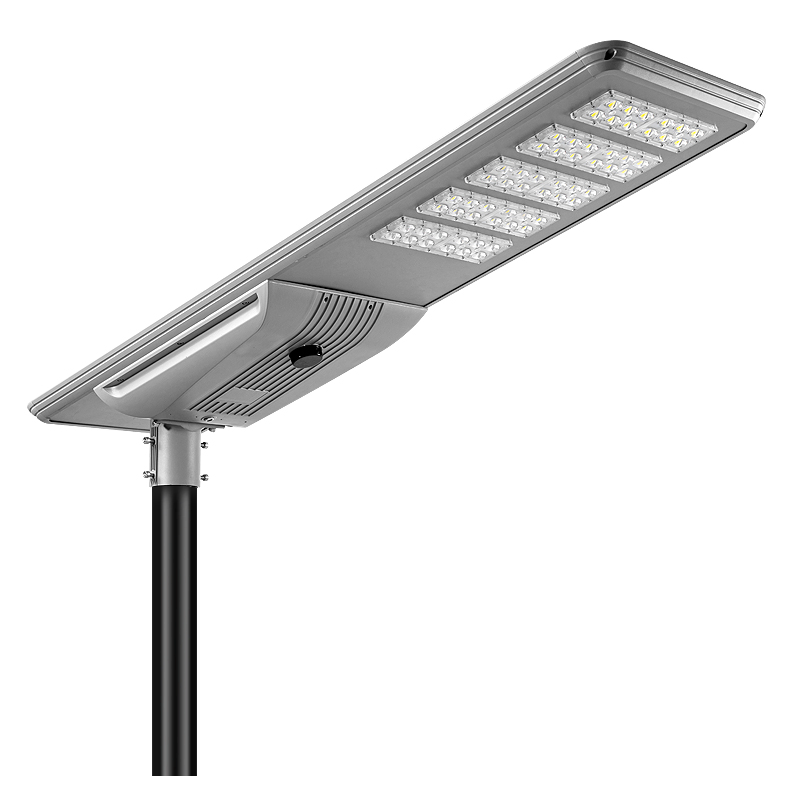

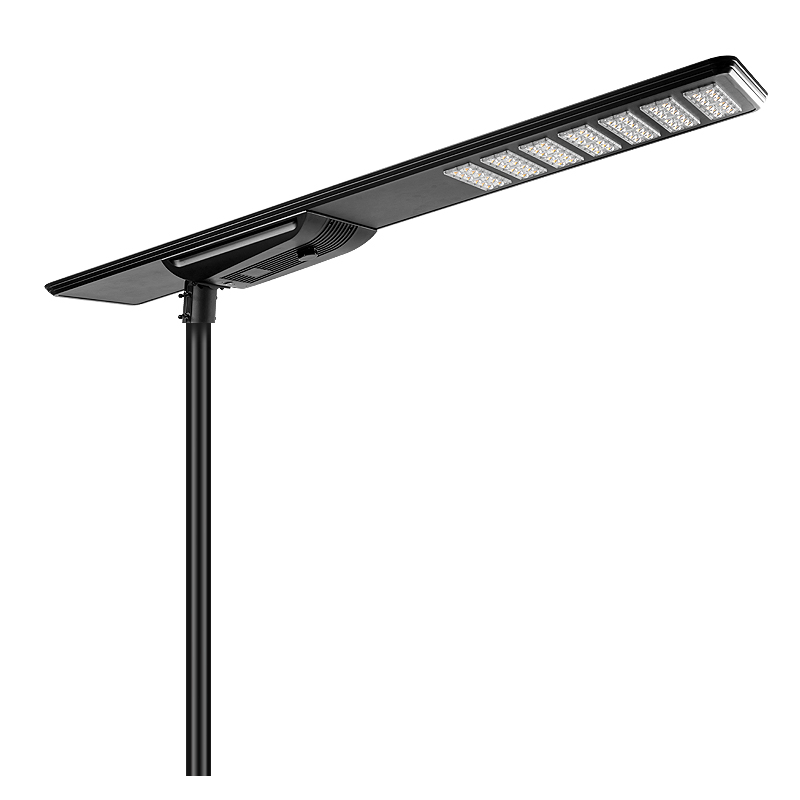

This model solar street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP66 and has passed CE certification. It is suitable for urban and suburban lighting, roads, parks, roadsides, factories, squares, etc. It has a warranty period of 3 to 5 years.

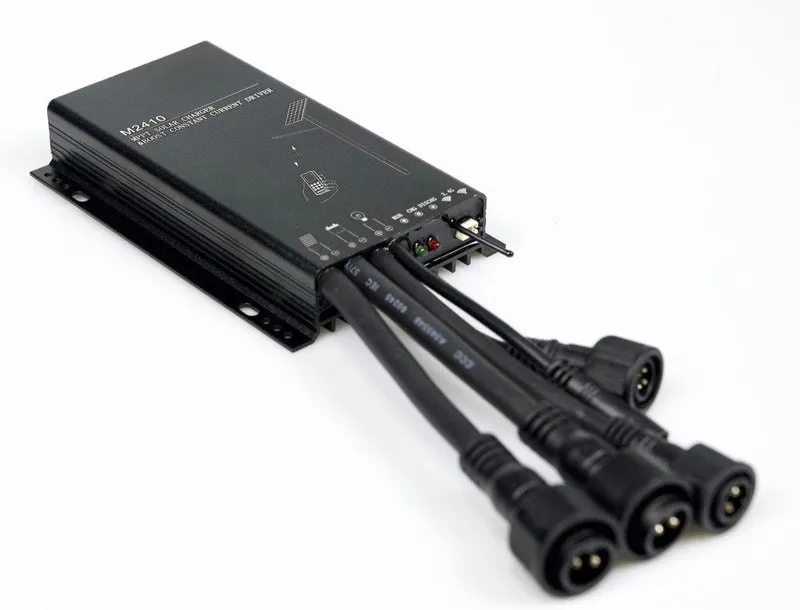

MPPT (Maximum Power Point Tracking) technology. Boasting a tracking efficiency of over 99% and a remarkable 97% charging conversion efficiency, it ensures optimal power utilization from solar panels. With a maximum photovoltaic power of 260W/12V and 520W/24V, it suits various solar setups.
This controller is compatible with 12V and 24V batteries, including lead-acid and lithium-ion types. Features include infrared and microwave sensing, adjustable delay times, and remote control settings.

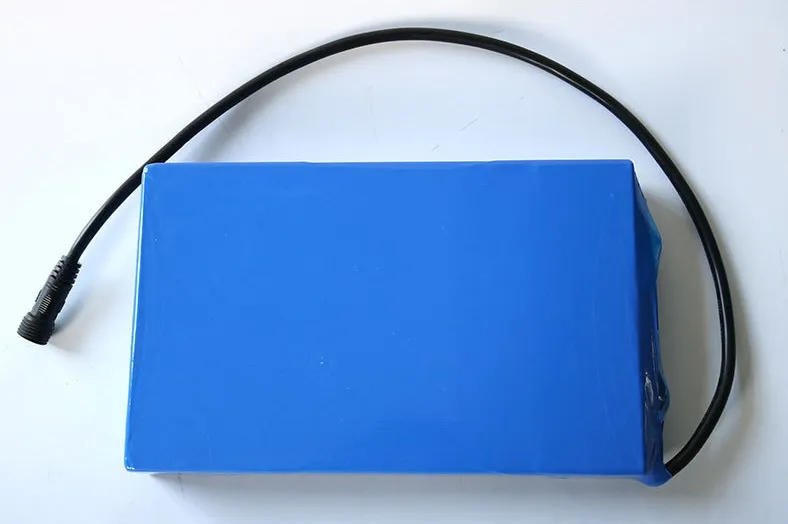

Utilizing advanced LiFePo4 battery technology, widely used in solar street lights, post lights, and flood lights. DOD cycles more than 2500 times with a lifespan of 10 years.

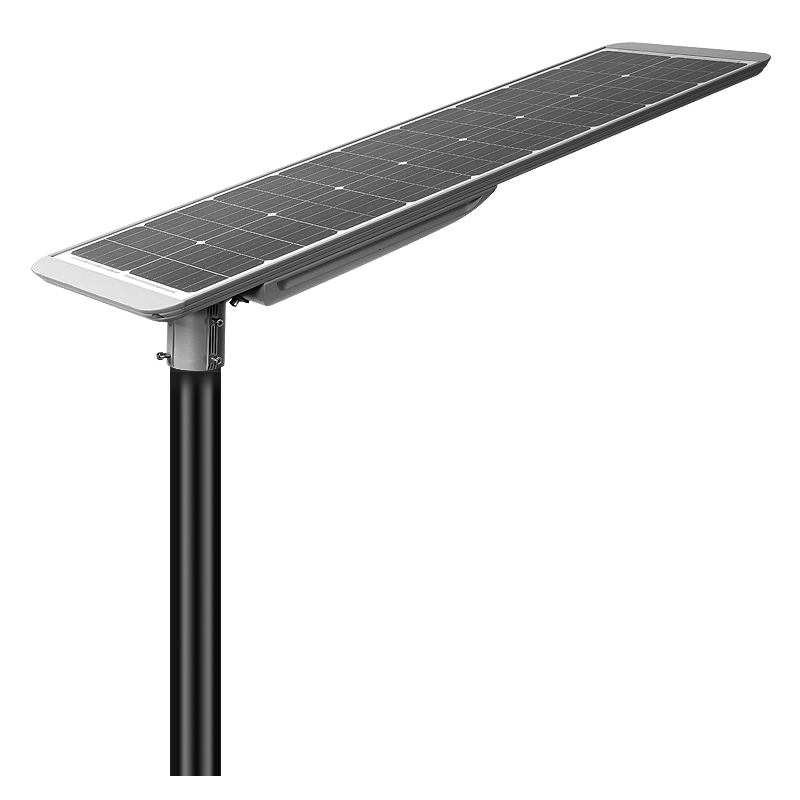

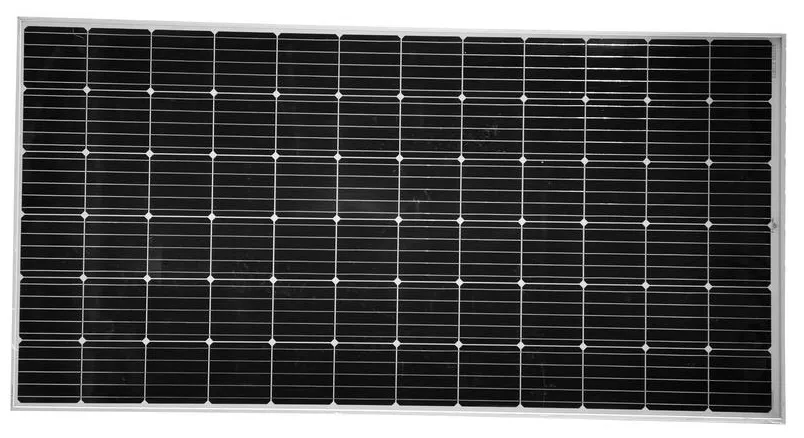

Mono crystalline PV panel reaching 25% conversion efficiency. New 182mm half-cell technology provides higher power in tailored dimensions.
Working life: More than 25 years. Operation temperature: -40℃ to 85℃.

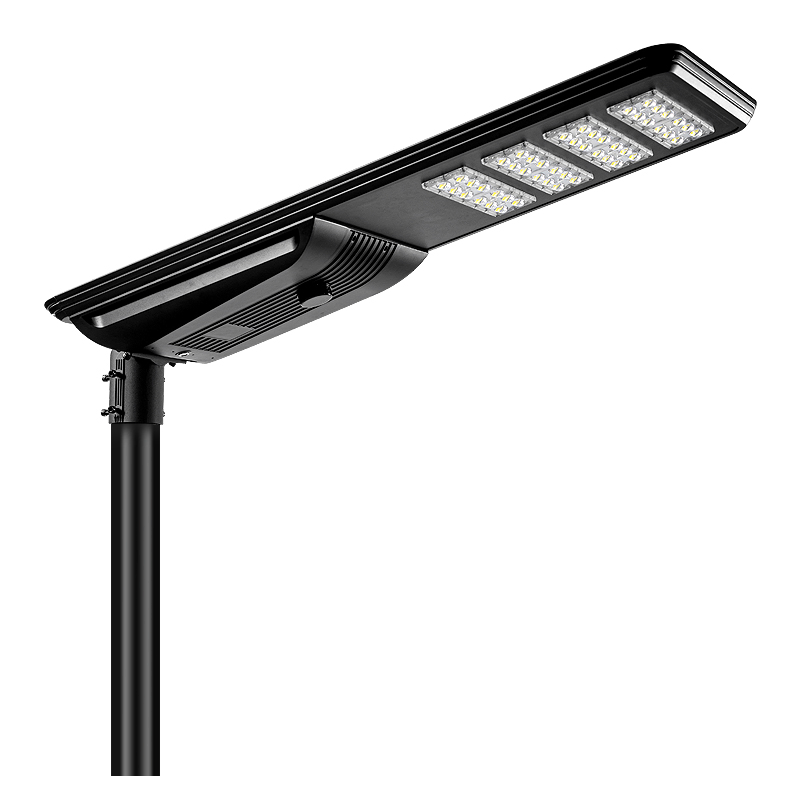

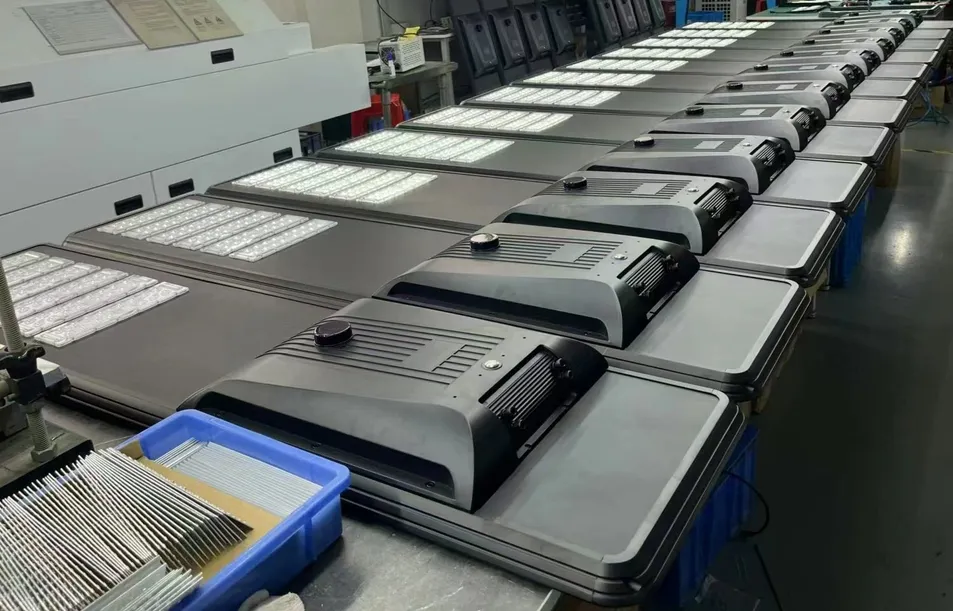

BLACK COLOR RAL 9004: Widely used for different pole colors. Adjustable mounting angle.

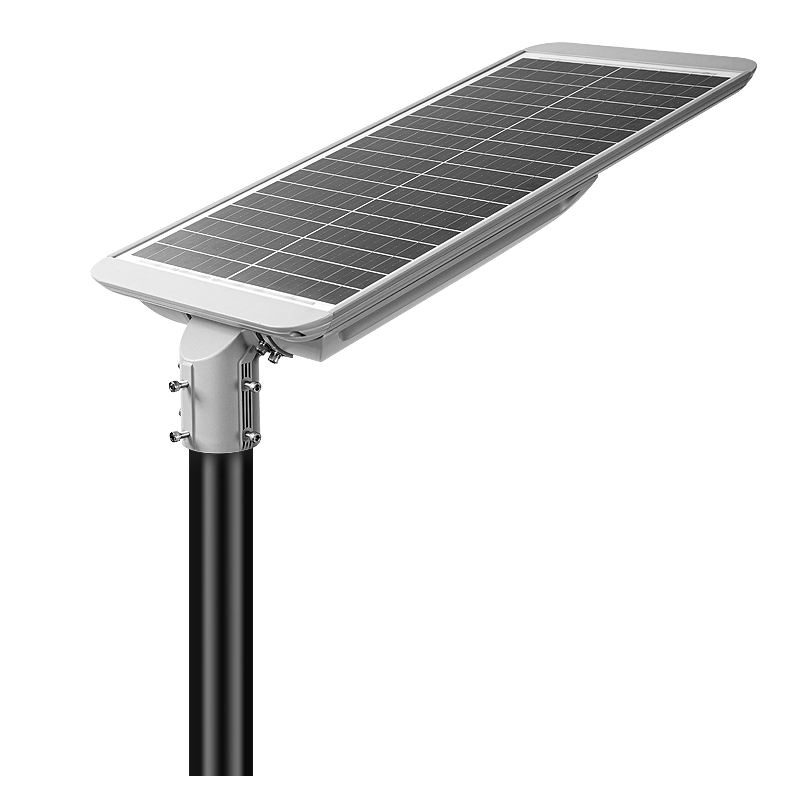

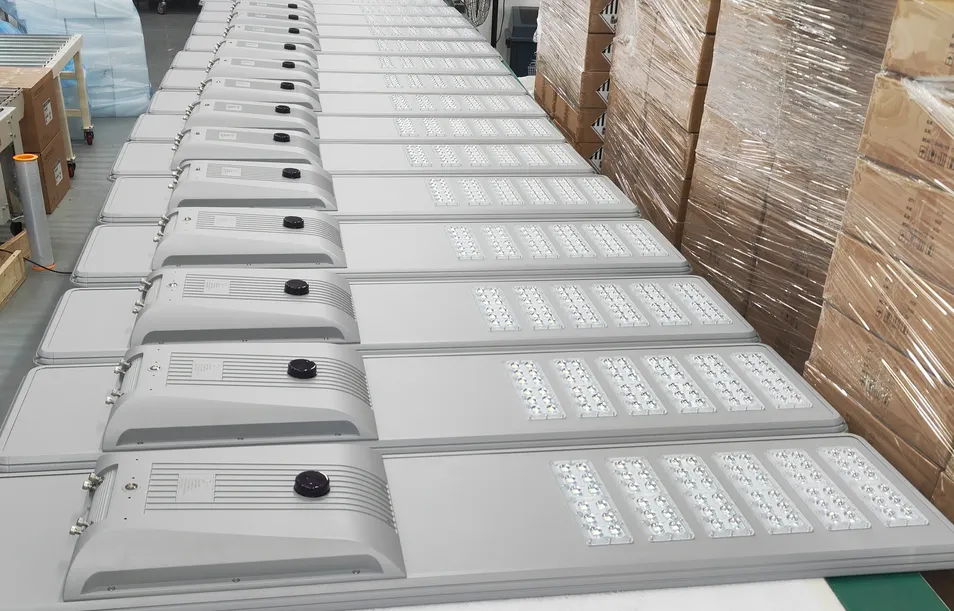

GREY COLOR RAL 9022: Simplification design for area lighting. Suggest 76mm to 80mm pipe mounting.

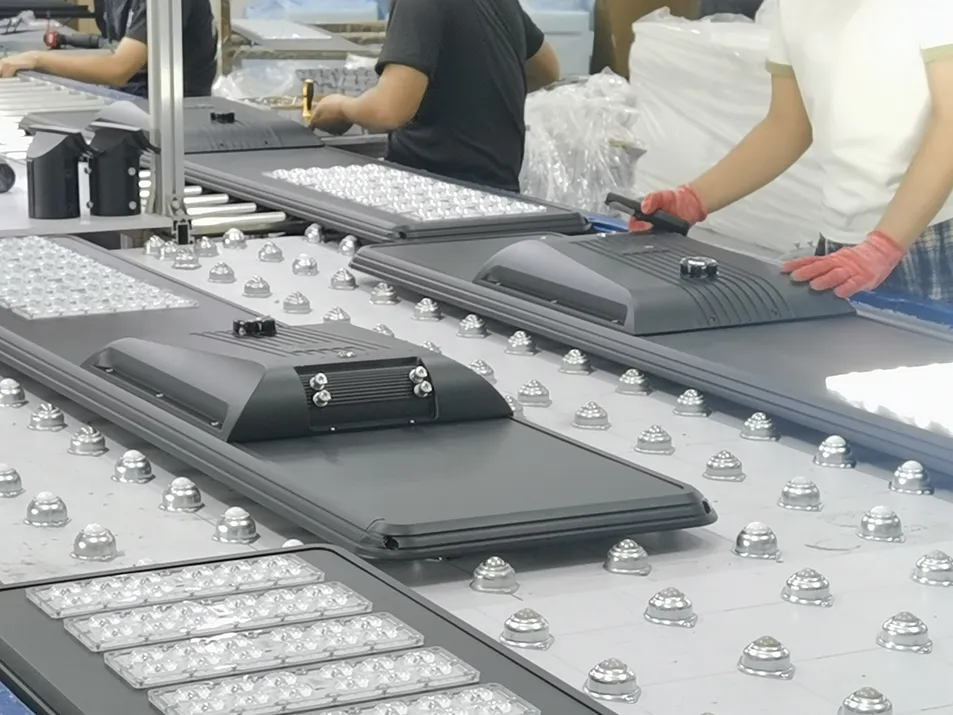

QUALITY PASSING: 100% inspection one by one. Checking functions, performance, CCT, and programming.

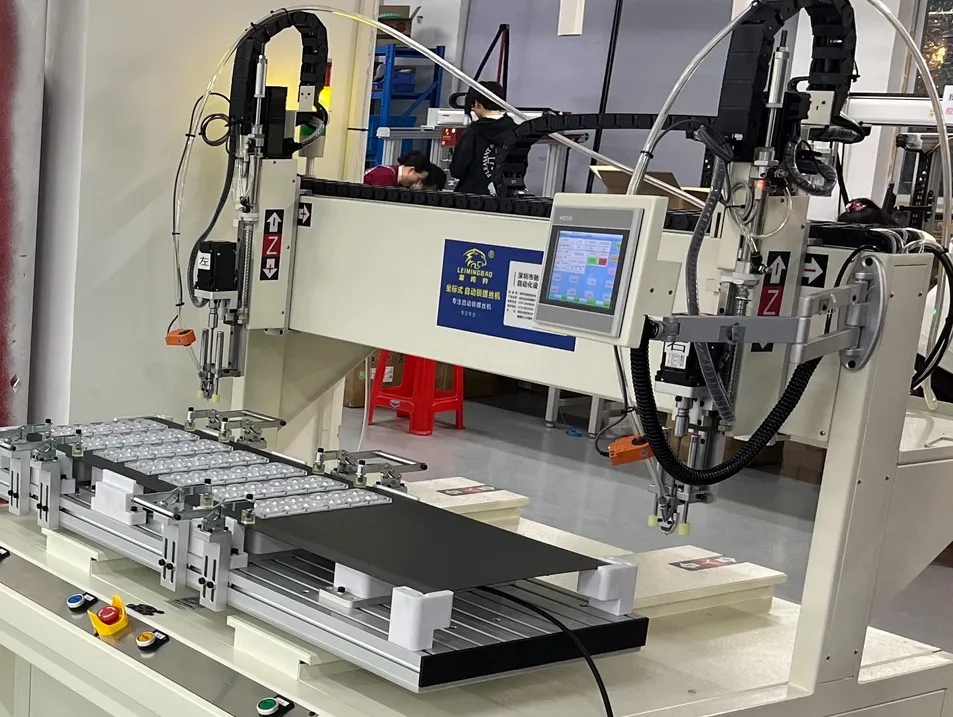

AUTO MACHINE: Improving working efficiency and ensuring accurate delivery times by reducing manual labor.

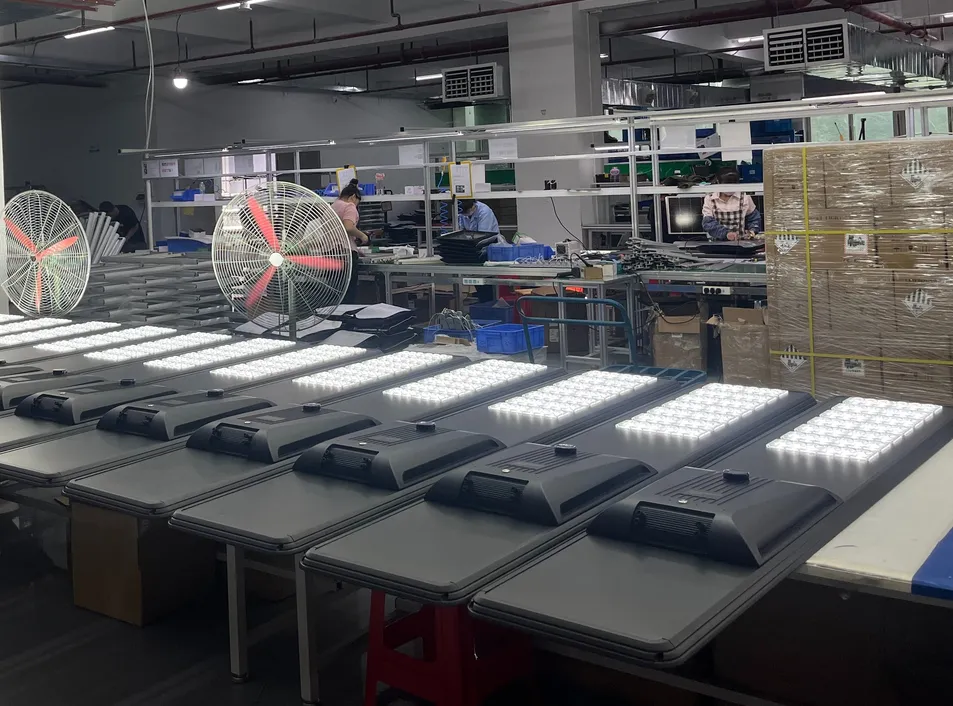

AGEING TEST: Standard procedure involving several charge/discharge cycles to ensure long-term stability.

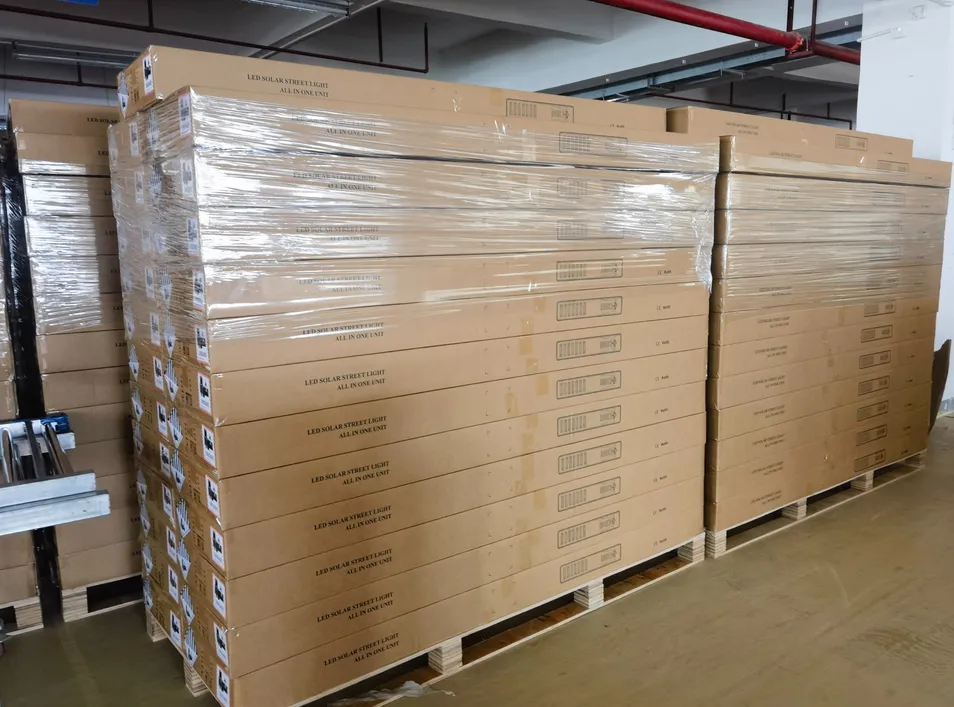

FULL PACKAGE: Protected with EPE tailored frames inside cartons to avoid scratches during transport.

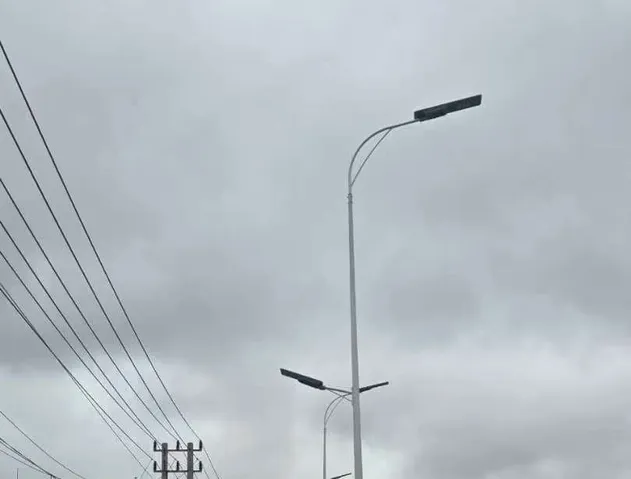

ASIA: Replacing traditional street lights with LED and Solar for civil infrastructure.

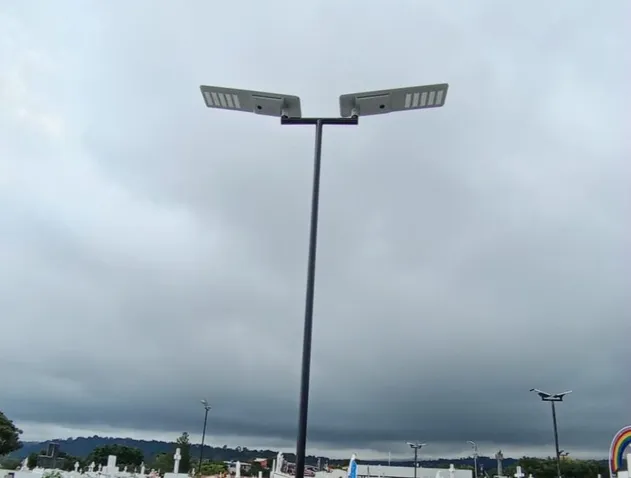

CENTRAL AMERICA: Excellent performance in various weather conditions.

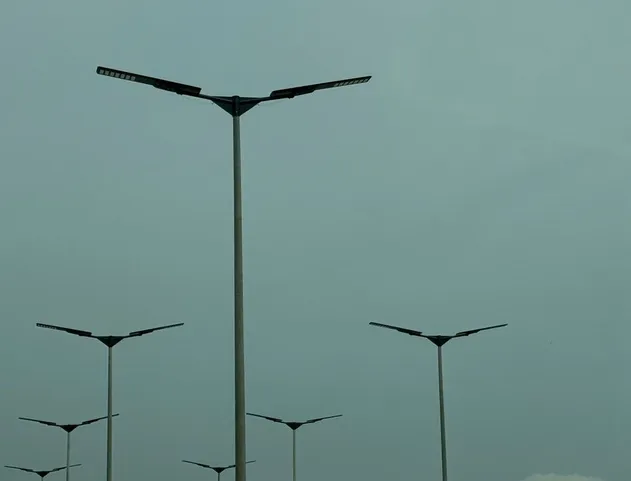

AFRICA: Long endurance working with strong lumens under high solar radiation.
The M25 series offers high brightness and easy installation. Technical specifications can be customized based on local solar radiation levels. Below is the general reference spec:
| MODEL | M25-30-AIO | M25-60-AIO | M25-80-AIO | M25-100-AIO | M25-120-AIO |
| POWER | 30W | 60W | 80W | 100W | 120W |
| LUMINOUS FLUX | 5400LM | 10800LM | 14400LM | 18000LM | 21600LM |
| PV PANEL | 60WP/MONO | 90WP/MONO | 110WP/MONO | 140WP/MONO | 160WP MONO |
| LFP BATTERY | 320WH 3.2V | 384WH 12.8V | 576WH 12.8V | 768WH 12.8V | 960WH 12.8V |
| CONTROLLER | MPPT | MPPT | MPPT | MPPT | MPPT |
| CHARGE TIME | 5 HRS | 5 HRS | 5 HRS | 6 HRS | 6 HRS |
| DISCHARGE TIME | 12 HRS | 12 HRS | 12 HRS | 12 HRS | 12 HRS |
