Product Description

💡 Basic Specifications
Lamp Body Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power Options
200W/180W/150W/120W/100W/80W/60W/50W/30W
Application
Square, Highway, Garden, Street, Parking Lot, Road, Park
IP Rating
IP66 / IK08
Certification
CE, EMC, LVD, RoHS
Input Voltage
100-277VAC 50/60Hz
LED Chips Brand
SMD3030 / SMD5050
Item Name
LED Urban Lighting
Warranty
5/7 Years Warranty
Smart Control
Lorawan / Zigbee / NEMA Socket
Dimmable
0-10V / PWM / Dali
SPD
6kv / 10kv / 20kv
📘 Product Overview

170lm/W Tool-Free Opening Smart Urban LED Street Light

High-efficiency outdoor road lantern designed for public areas, combining tool-free maintenance with intelligent control systems.

Technical Data Details
Light SourceLED TypeSMD3030 / SMD5050
Luminous Efficiency150Lm/W - 180Lm/W
CCT(K)1700K - 6500K
CRI> Ra80/70
ElectricalInput Voltage100-277VAC, 347V, 480VAC
Beam AngleT2 / T3 / T4
Smart Control3/5/7 pins NEMA / Photocell / LoRaWan / Zigbee
ProtectionIP66 Waterproof / IK08 / SPD 6KV-20KV
StructureMaterialsDie casting Aluminum + Optic lens + Tempered glass
🌟 Key Features
  • Super Bright Performance: >170Lm/W efficiency for maximum energy savings.
  • Durable Construction: Die casting aluminum housing with IK08 impact resistance.
  • Advanced Optics: Multiple lens options including T2M, T3M, T4M, and P50.
  • Smart Technology: Supports NEMA 3/5/7 Pins for Photocell, Zigbee, or LoRaWan integration.
  • Maintenance Friendly: Tool-free opening design for easier installation and repairs.
  • Professional Support: Free Dialux lighting simulation available for project planning.
📸 Product Gallery

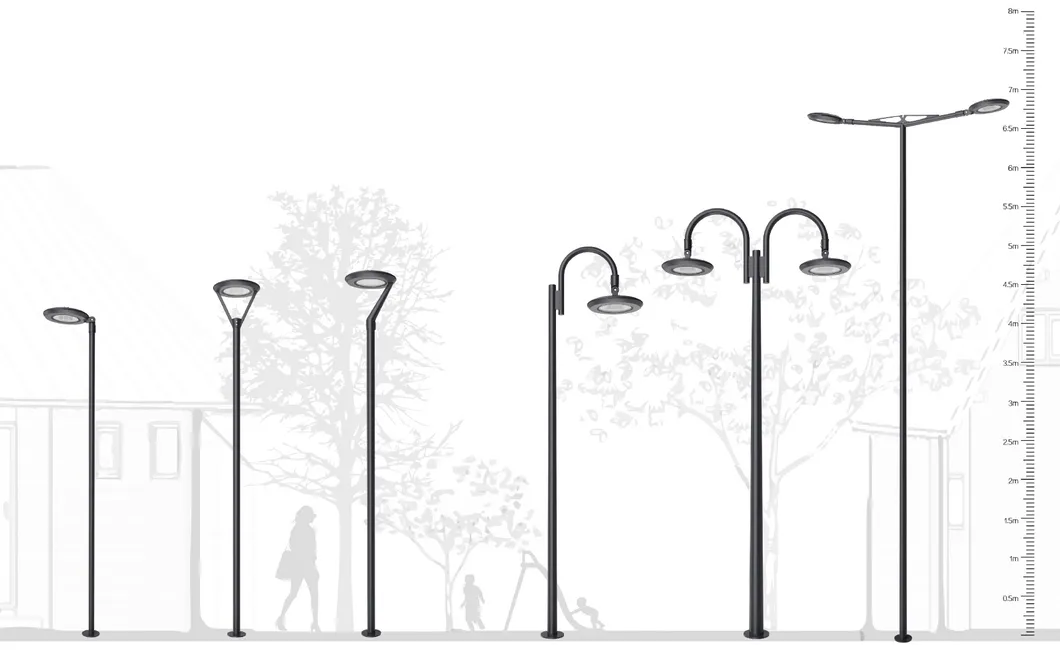

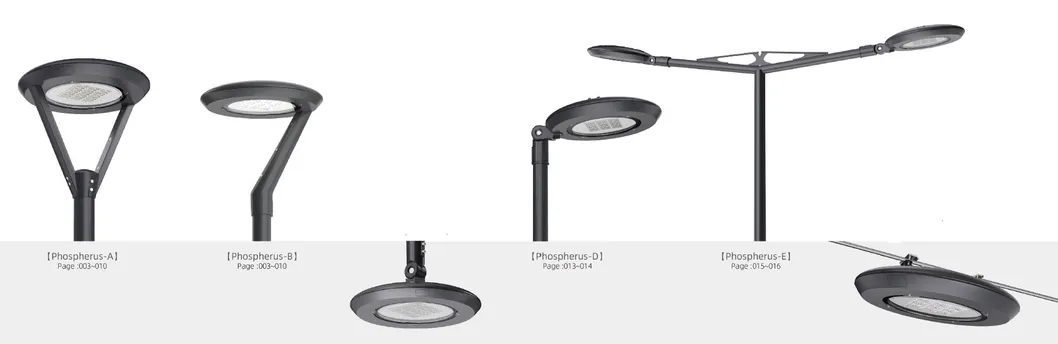

LED Street Light Overview Product Dimensions

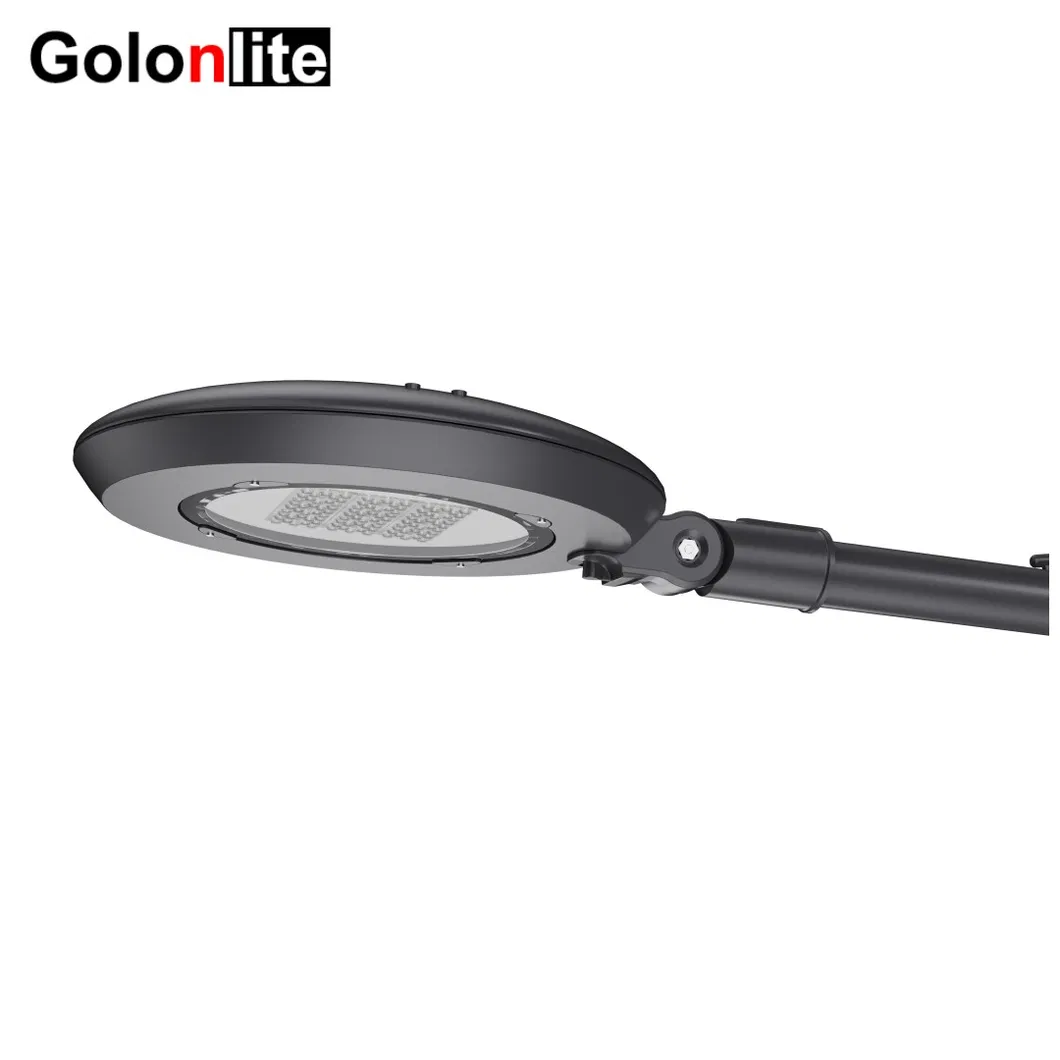

LED Detail 1

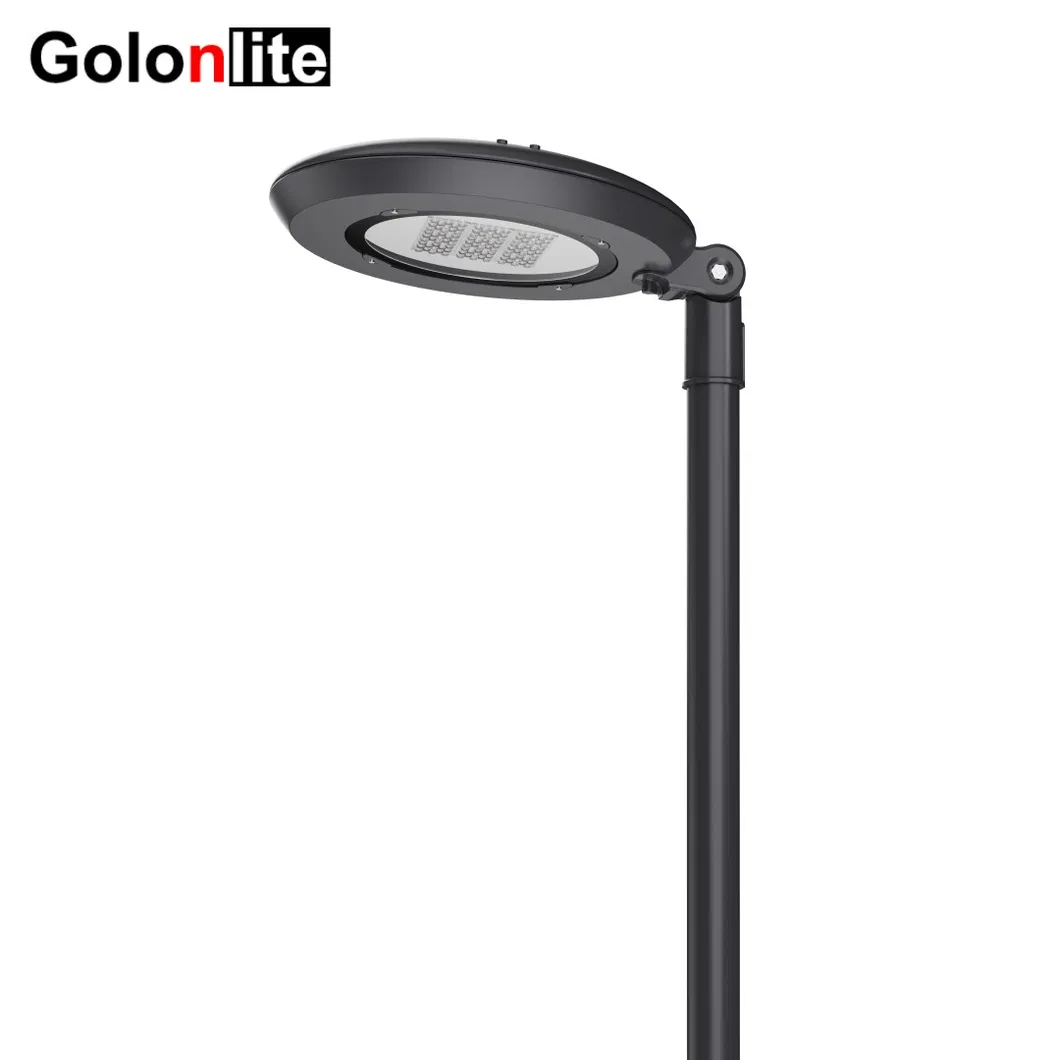

LED Detail 2

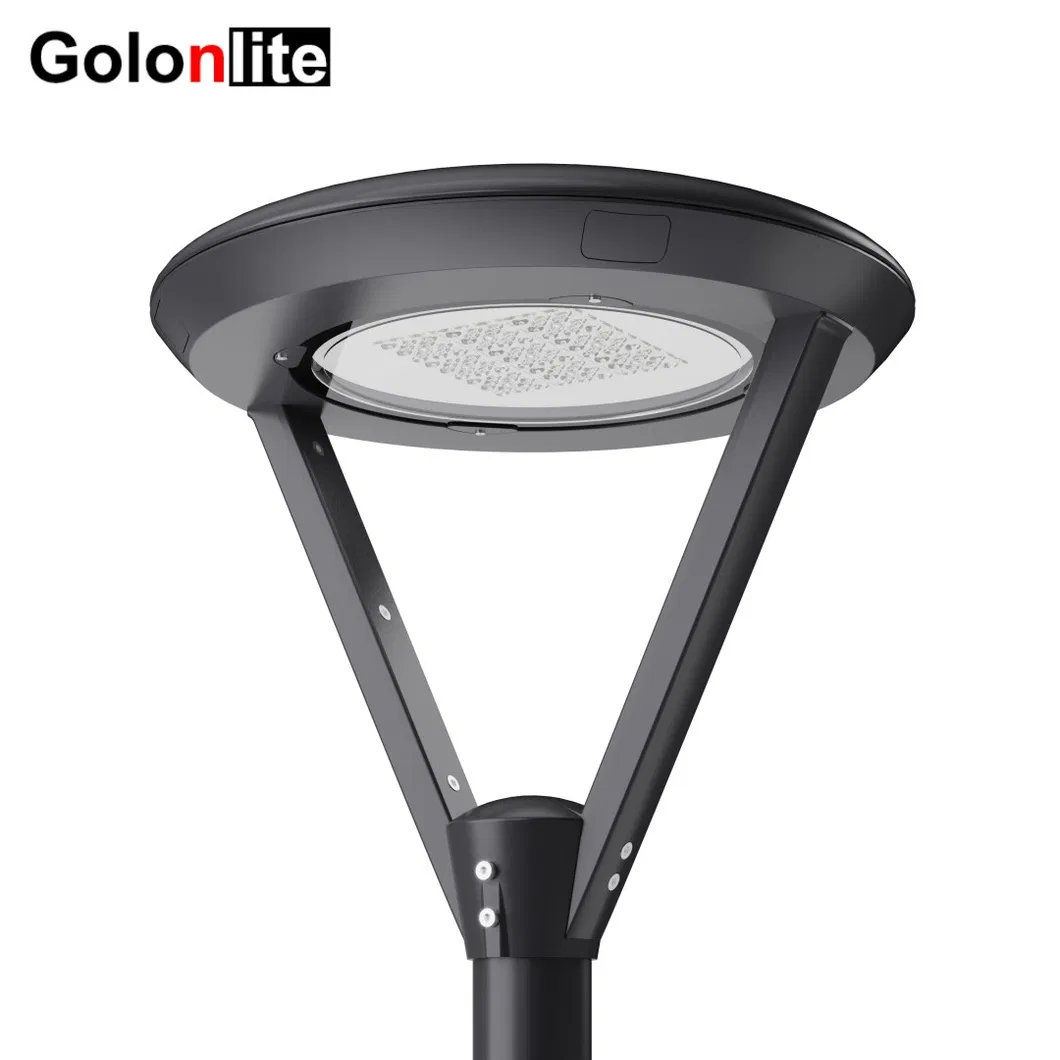

Installation 1

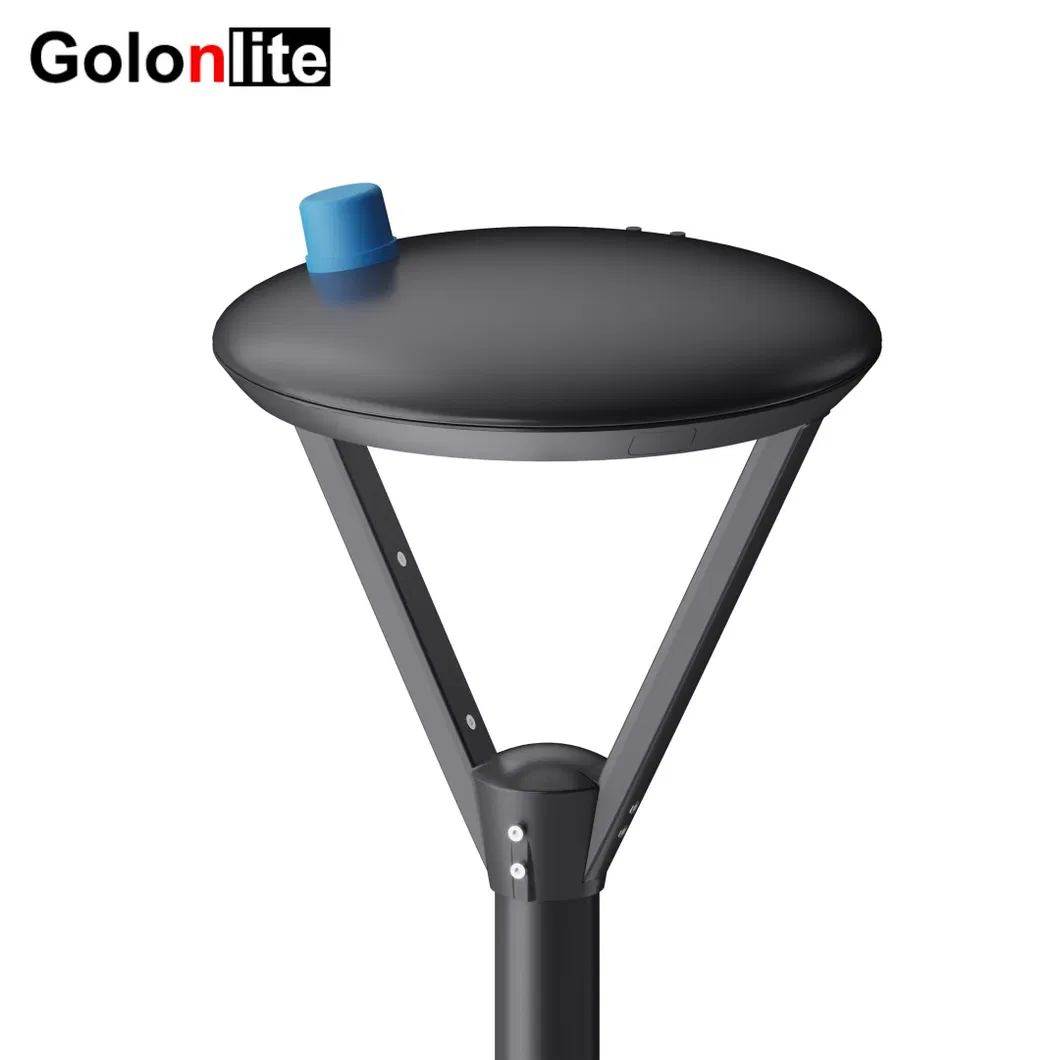

Installation 2

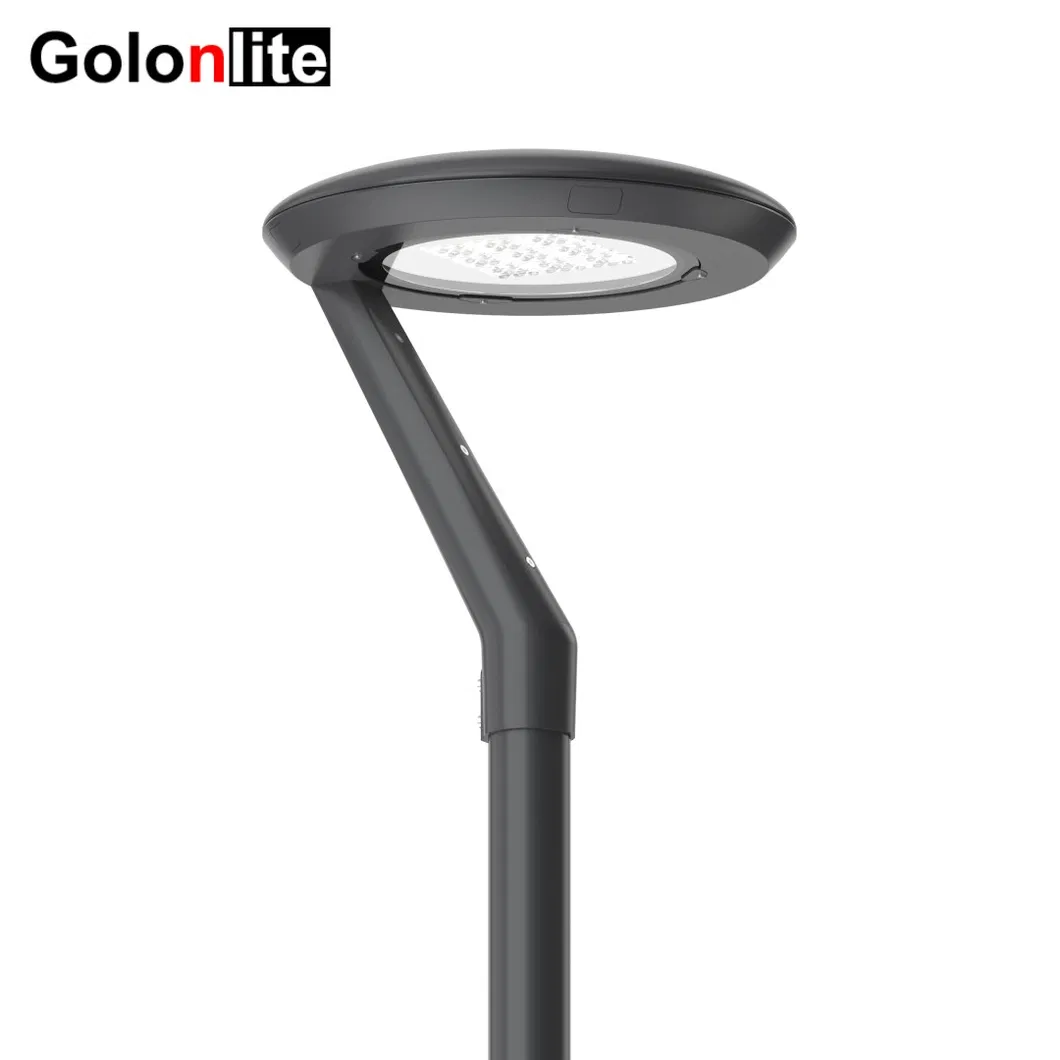

Application 1

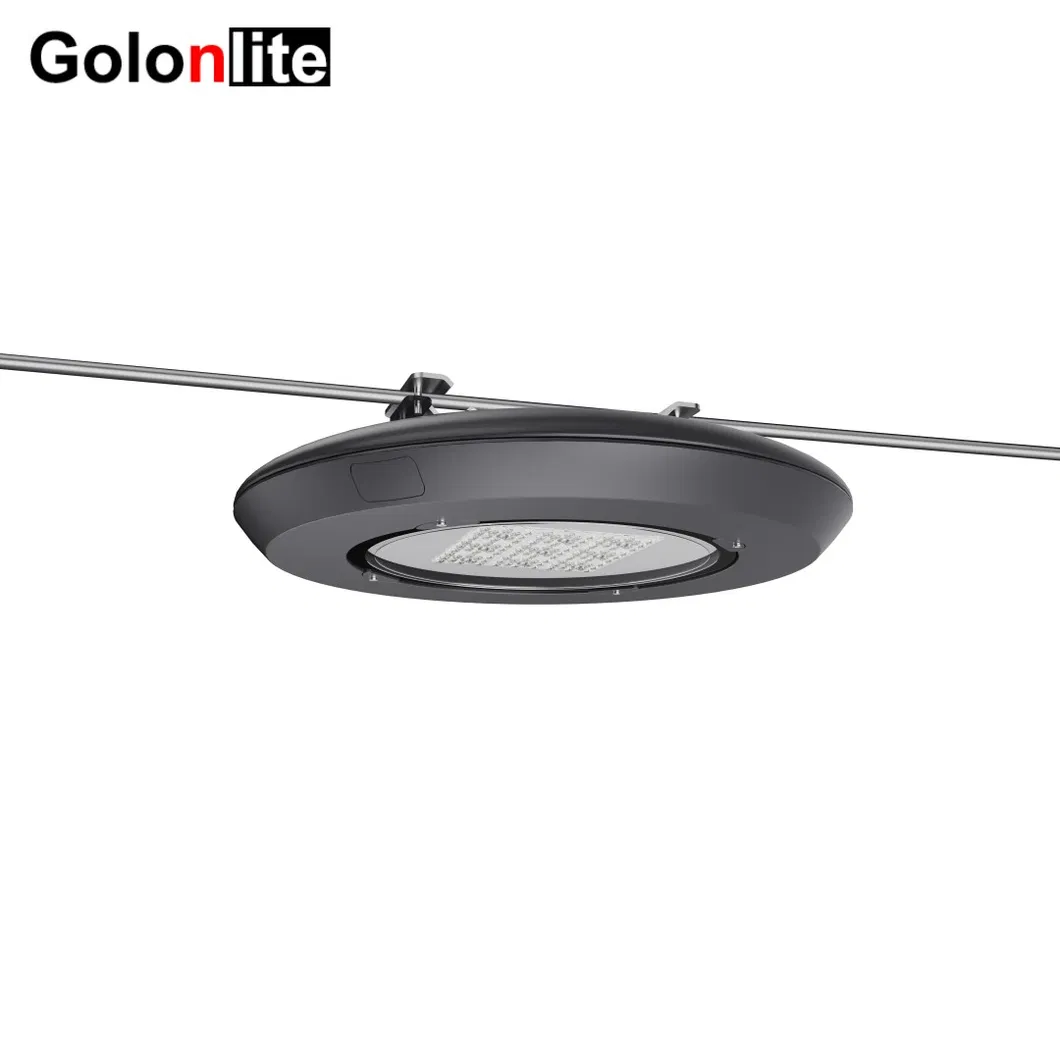

Application 2

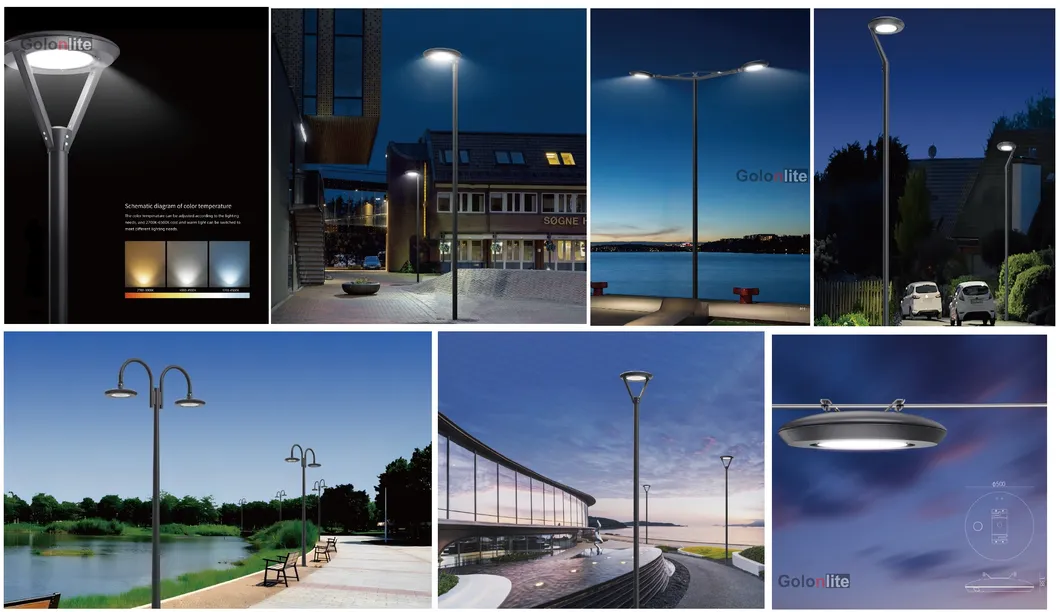

Technical Specs Road Application
📡 Intelligent Control System

What can the system do?

  • Remote switch on/off, dimming, and color temperature adjusting.
  • Group controlling and interval status reports.
  • Real-time electricity consumption and power saving reports.
  • Fault alarm notifications and electricity bill checking.

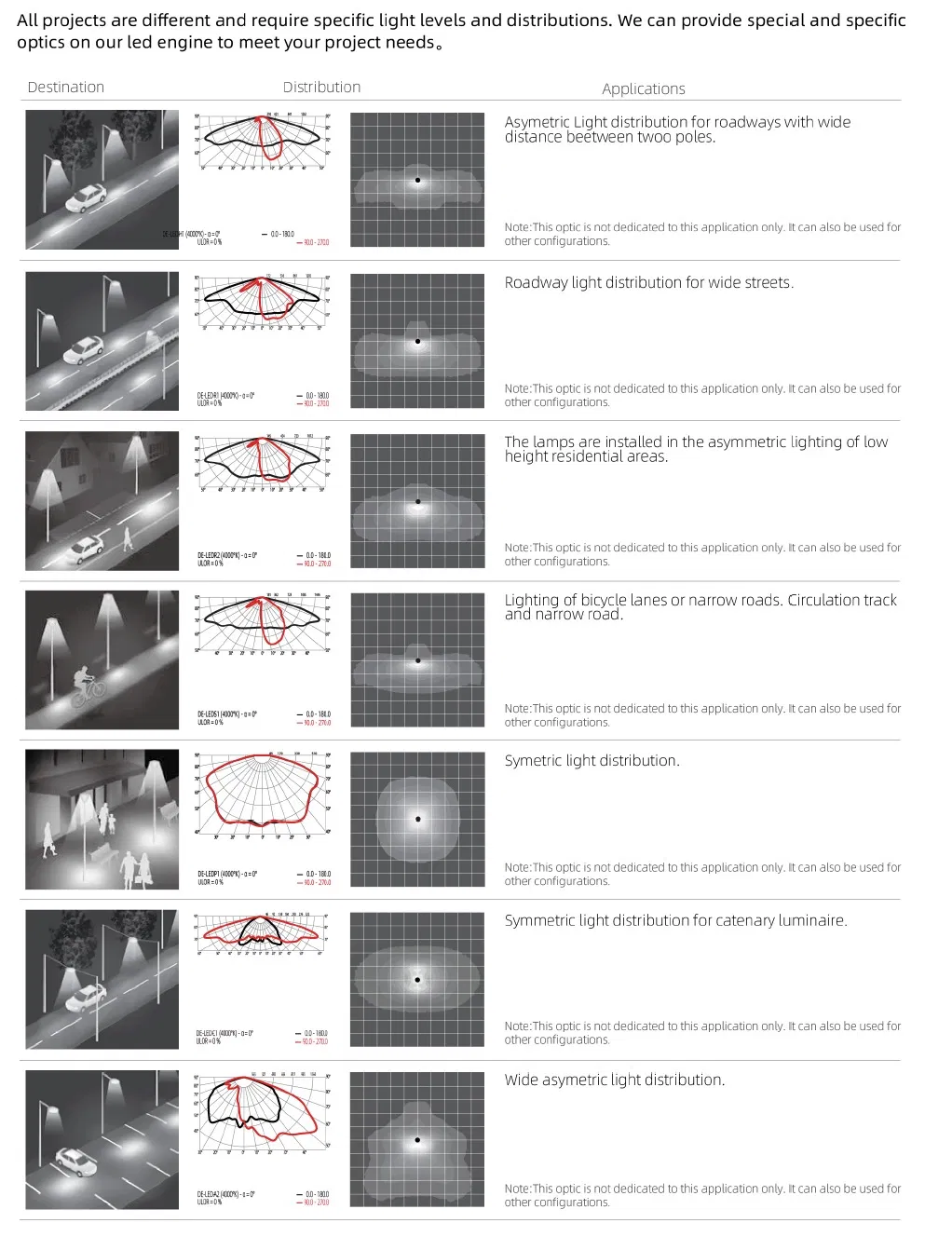

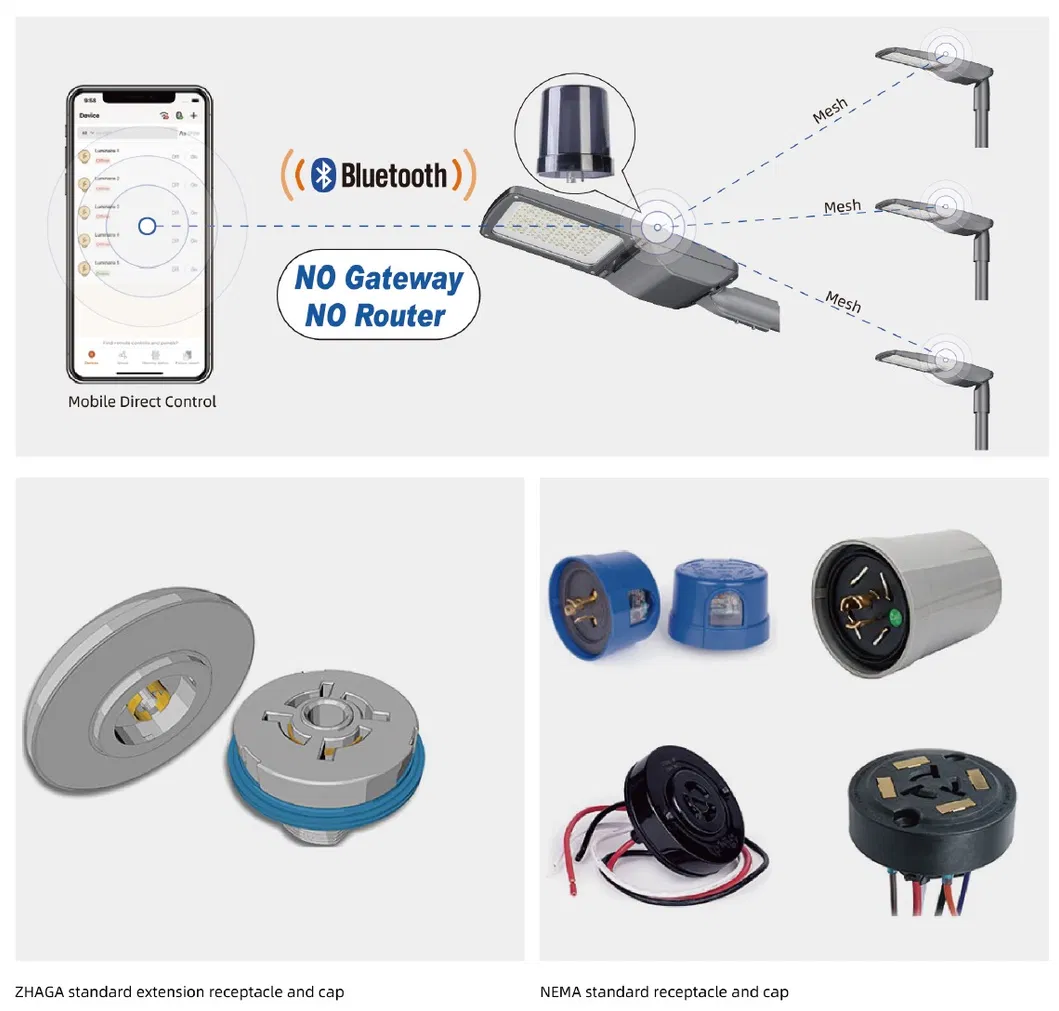

Smart Control Diagram Beam Angle Options
🛠 Professional Services
Quick response within 24 hours for all inquiries.
Expert technical explanations from experienced staff.
  • OEM and ODM projects are fully supported.
    • 5-year to 7-year comprehensive warranty.
    Free Dialux lighting design and IES files provided.
    ❓ Frequently Asked Questions
    1. What is the maximum luminous efficiency of these street lights? +
    Our high-performance LED street lights achieve a luminous efficiency of 170Lm/W to 180Lm/W, providing superior energy savings.
    2. Can these lights be integrated into a Smart City system? +
    Yes, they support 3/5/7 Pins NEMA bases and are compatible with LoRaWAN, Zigbee, and photocell sensors for intelligent remote management.
    3. What are the available beam angle options? +
    We offer multiple optical distributions including T2, T3, and T4 to suit different road widths and lighting requirements.
    4. Are the lights protected against power surges? +
    Yes, each fixture includes Surge Protection Devices (SPD) with options for 6KV, 10KV, or 20KV protection.
    5. Is the housing durable enough for harsh outdoor environments? +
    The housing is made of high-quality die-casting aluminum with an IP66 waterproof rating and IK08 impact resistance, ensuring longevity in all weather conditions.
    6. Do you provide help with lighting project planning? +
    Yes, we provide free Dialux lighting simulations and IES files to help you design the most efficient lighting solution for your project.
