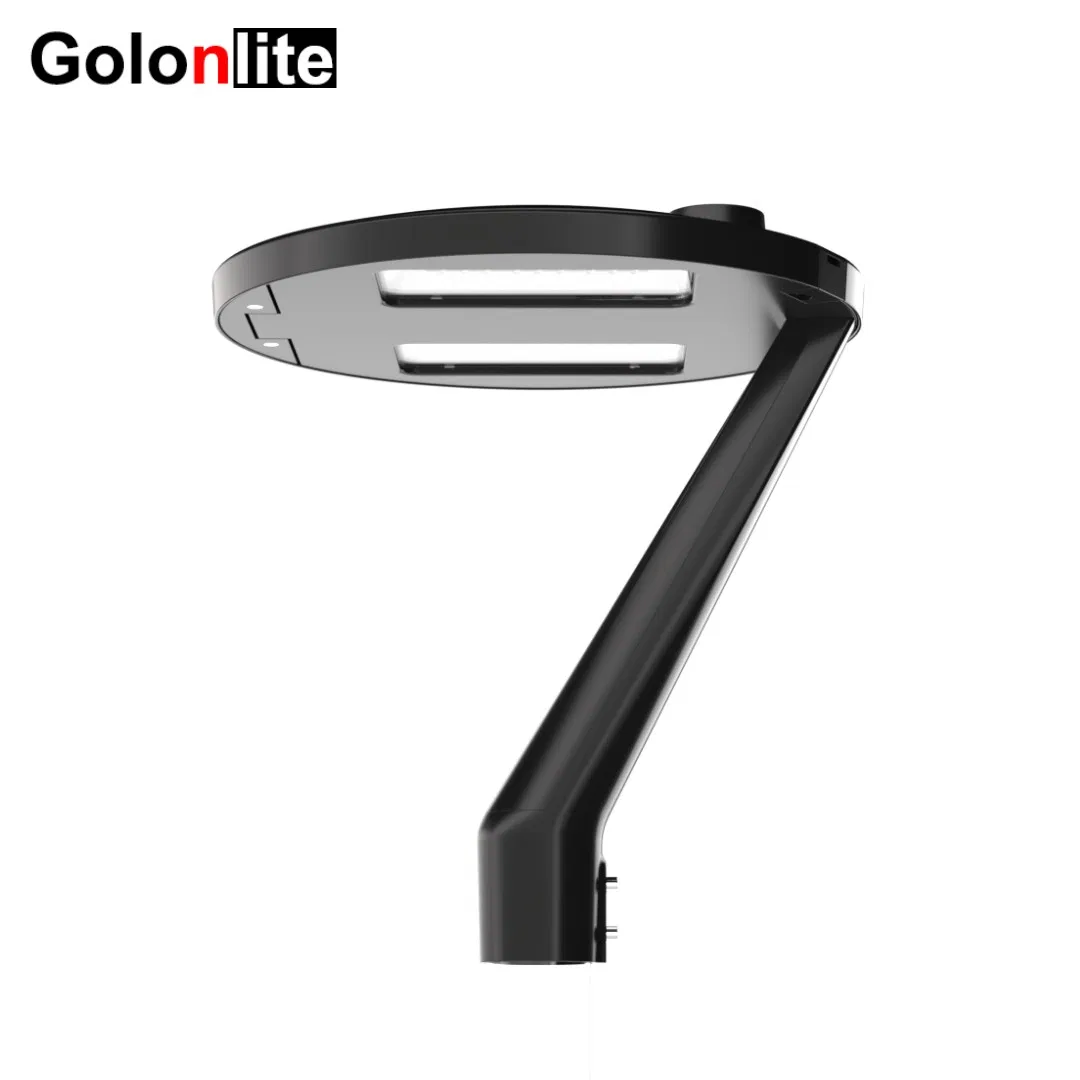

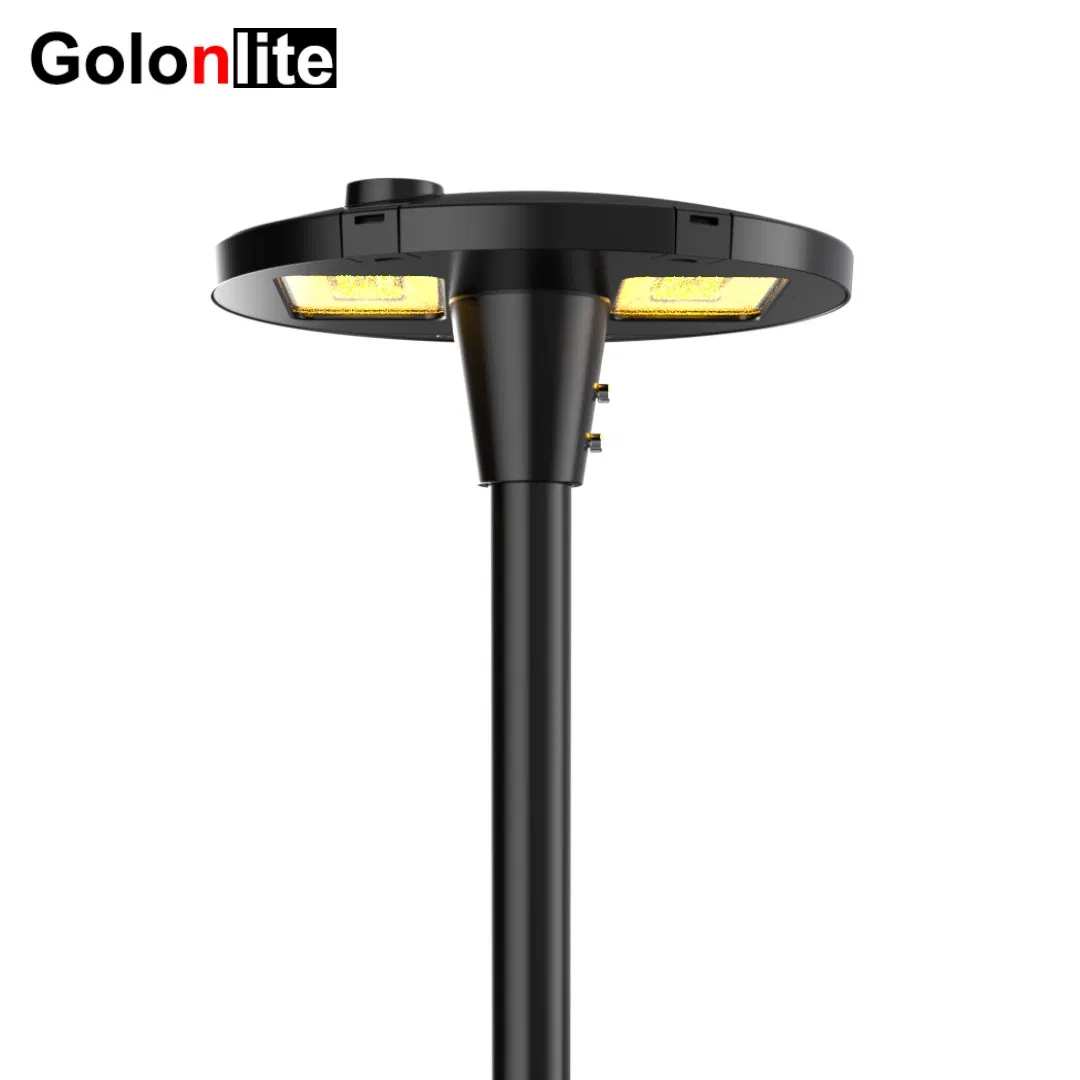

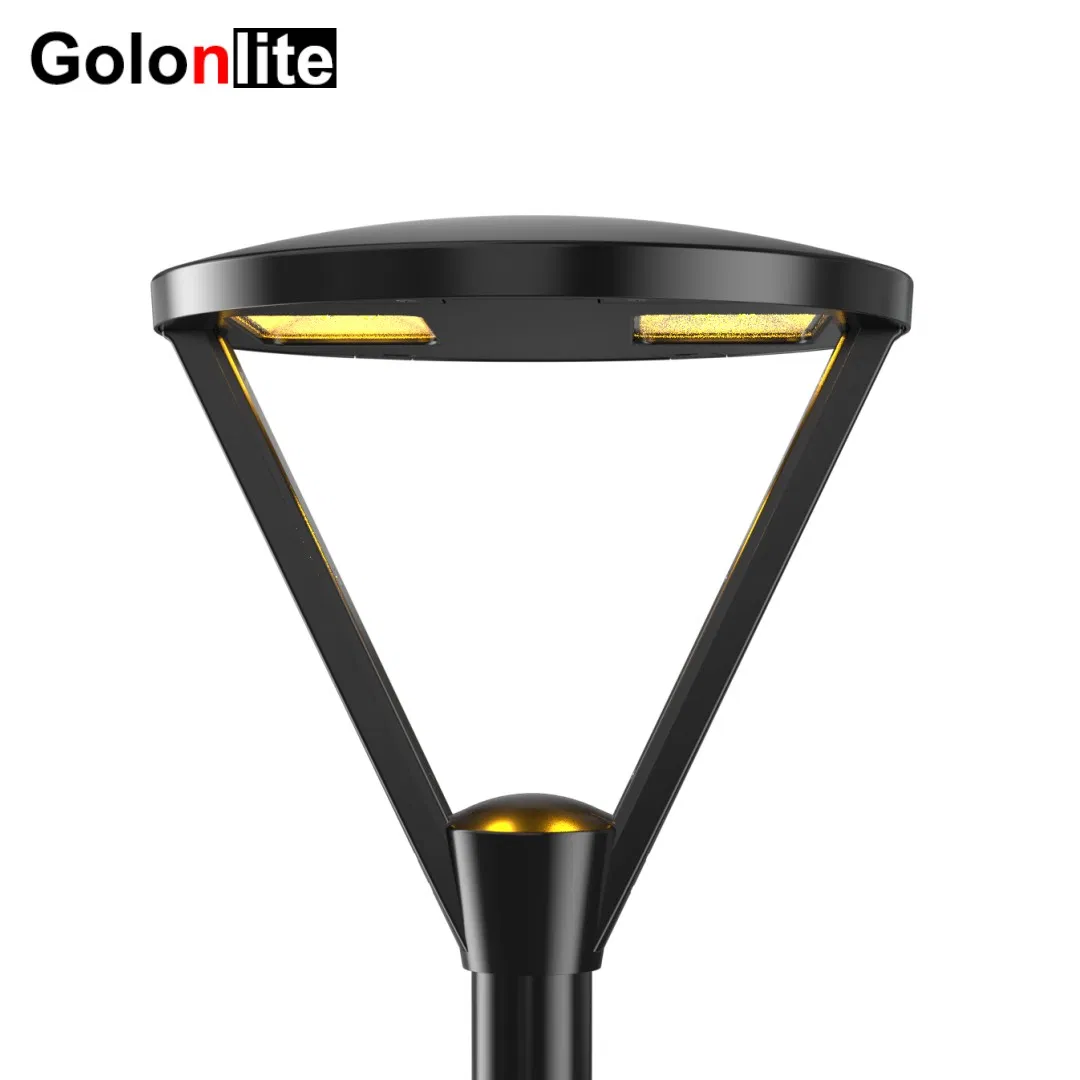

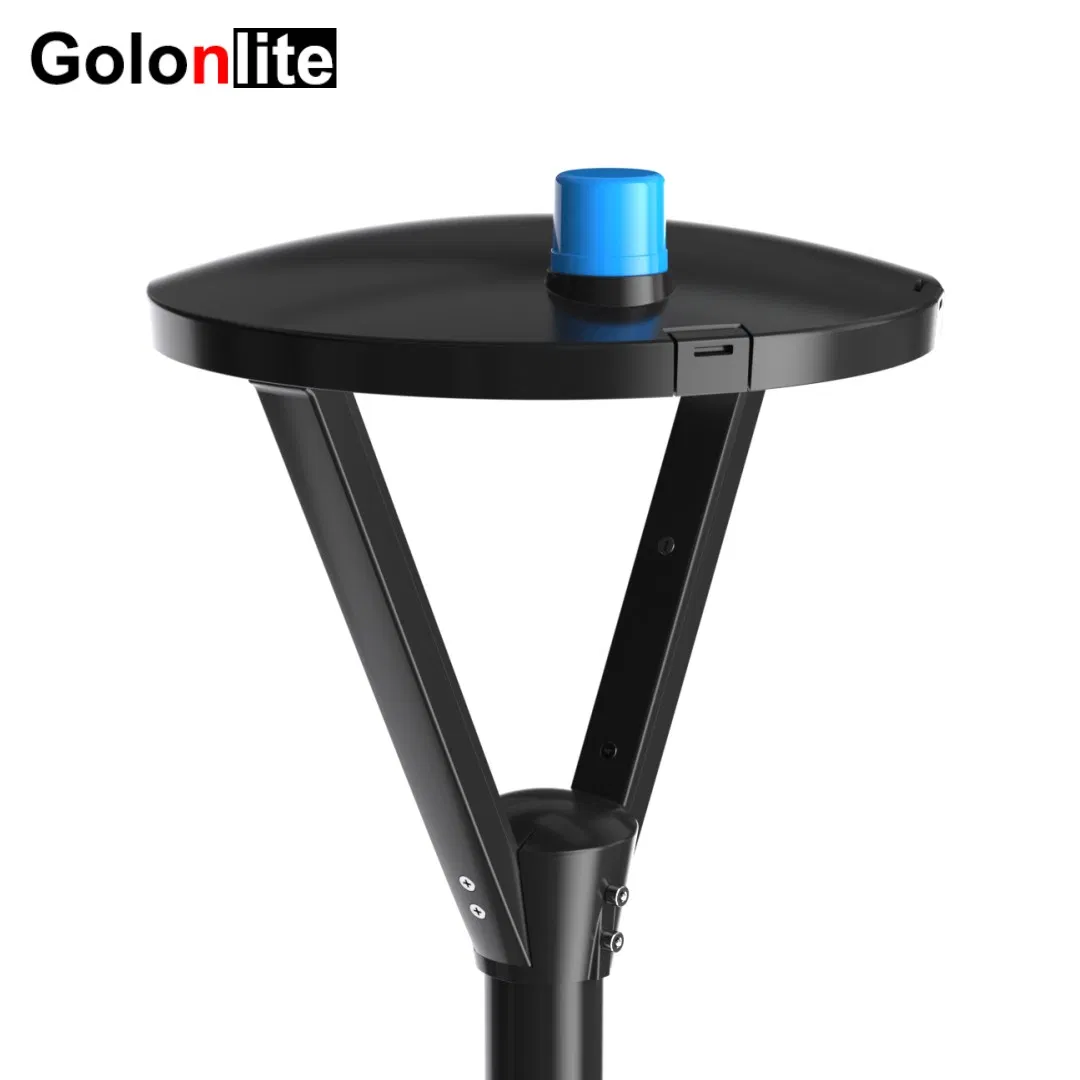

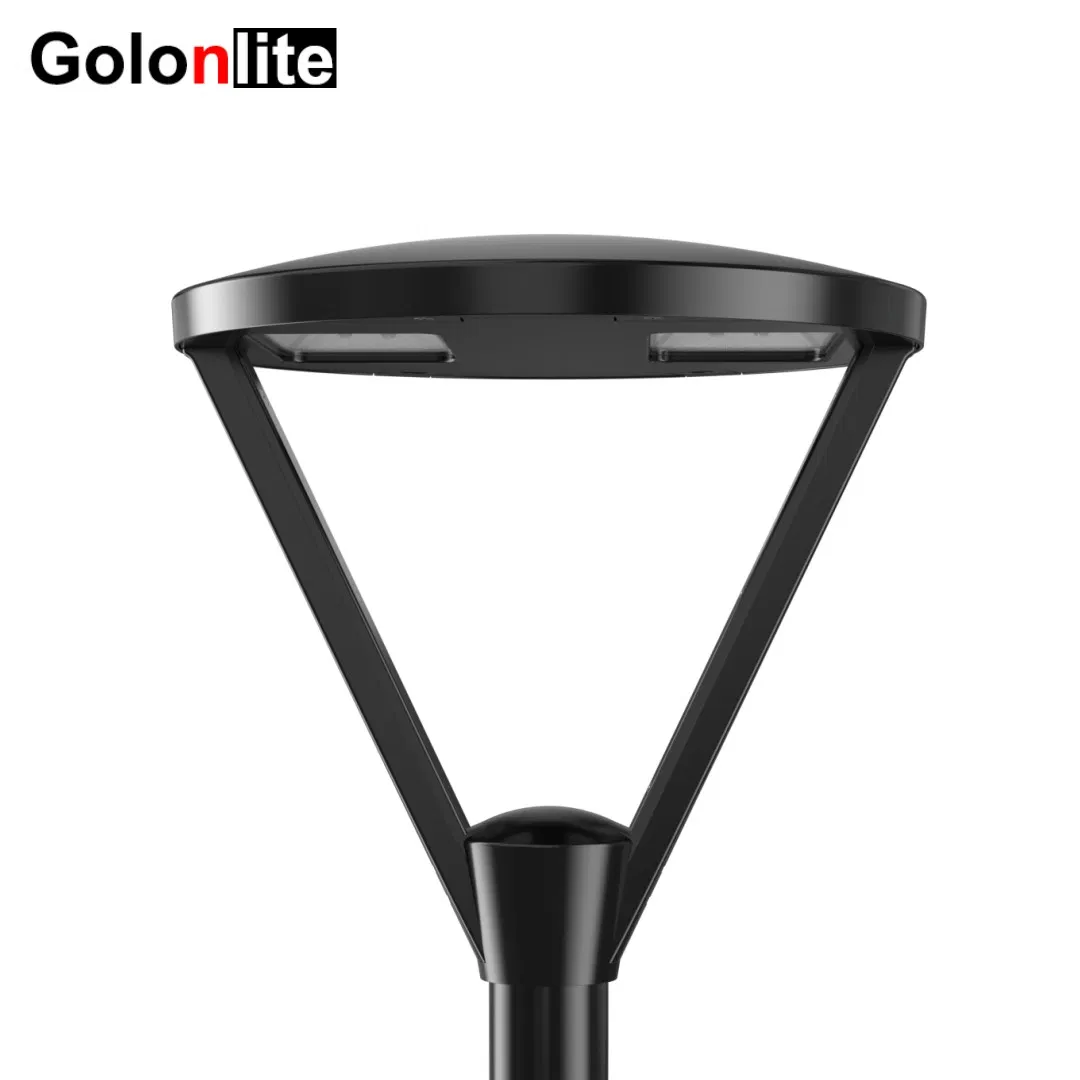

Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
1 / 5
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W
Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W

Lorawan Photocell Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting 50W 60W 90W 120W 150W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Lamp Body:Die Casting Aluminum + PC Lens + Tempered Glass
Power Range:30W - 200W Options
Application:Highway, Garden, Street, Parking Lot, Park
IP/IK Rating:IP66 / IK08
Certification:CE, EMC, LVD, RoHS
Input Voltage:100-277VAC 50/60Hz
LED Chips:SMD3030 / SMD5050
Warranty:5/7 Years
SPD:6kv / 10kv / 20kv
Smart Control:LoRaWAN / Zigbee / NEMA Socket
Dimmable:0-10V / PWM / DALI
HS Code:9405409000
Product Overview

Intelligent LED Street Area Light for Outdoor Urban Road Public Lighting

High-efficiency outdoor road lantern providing 150LM/W - 180LM/W. Designed for durability and smart city integration with tool-free opening for easy maintenance.

Lighting Performance Electrical & Structure
Luminous Efficiency 150Lm/W - 180Lm/W Input Voltage
CCT(K) 1700K - 6500K 100-277VAC / 347V / 480VAC
CRI > Ra80/70 Beam Angle
Lifespan > 50,000 Hours 60°/ 90°/ 120°/ 150°/ 70*150°

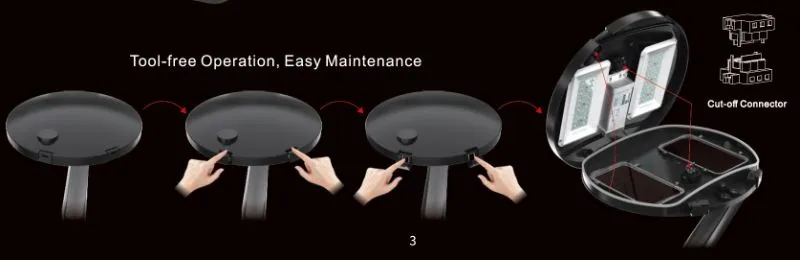

Street Light Series

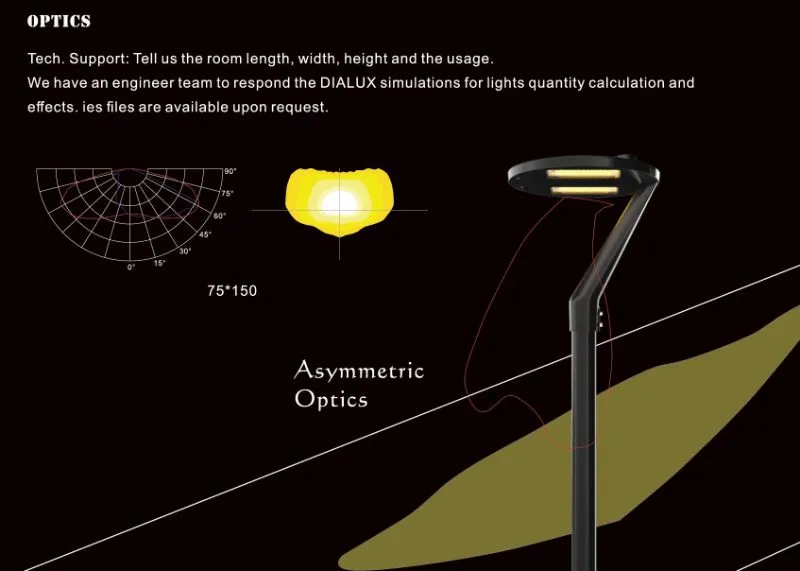

LED Urban Lighting
Key Features
  • ADC12 Die-casting aluminum housing: Superior heat dissipation and structural integrity.
  • Tool-Free Opening: Designed for easy maintenance and field upgrades.
  • Energy Saving: High lumens efficiency >150Lm/W for maximum ROI.
  • Smart Control Ready: 3/5/7 Pins NEMA base for LoRaWAN or Zigbee.
  • Optic Precision: Multiple lens options including Type II, III, and IV.
  • Rugged Design: IP66 waterproof and IK08 impact resistance.
Product View 1

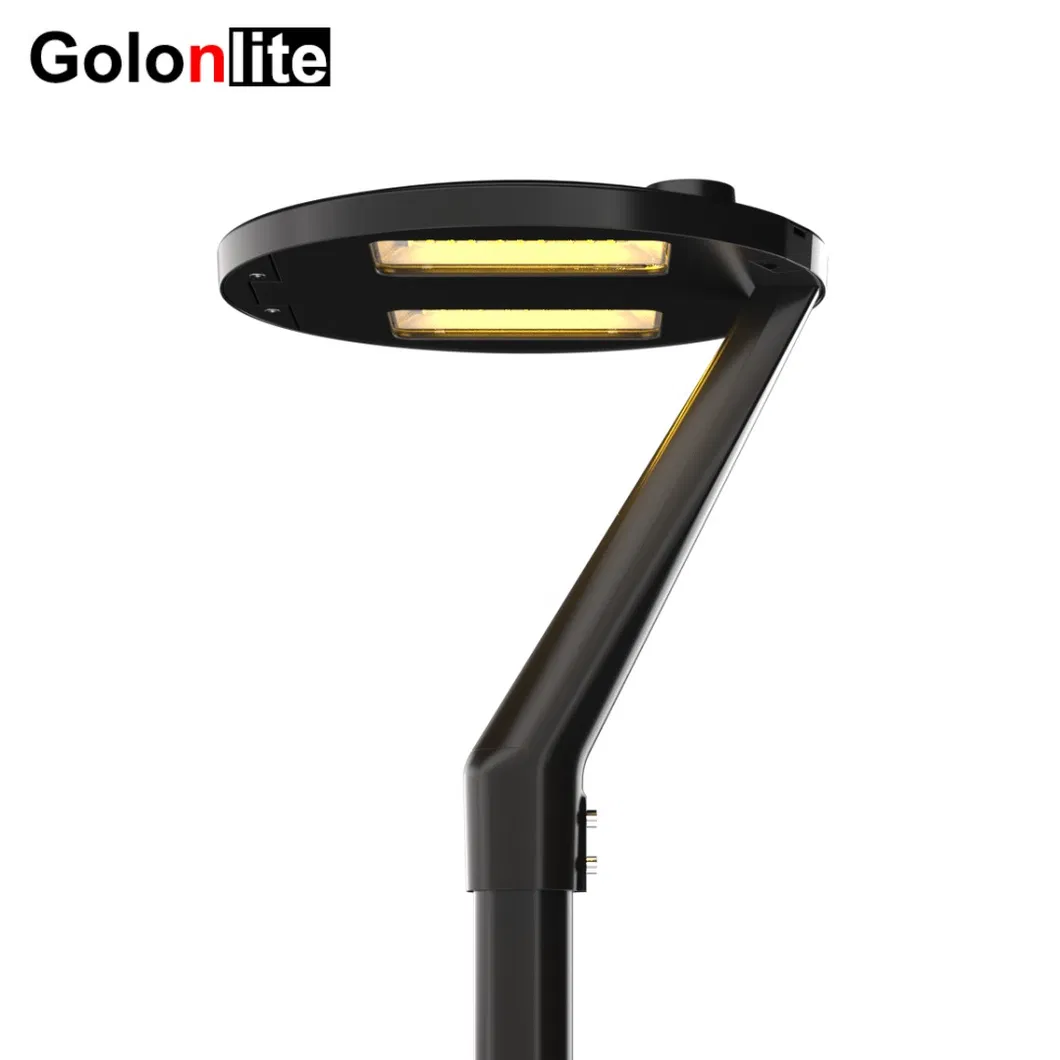

Product View 2
Product View 3
Intelligent Management System

What can the system do?

  • Remote switch on/off and group dimming.
  • Real-time electricity consumption and power saving reports.
  • Automatic fault alarm and status interval reports.
  • Support for color temperature adjustment and camera monitoring.

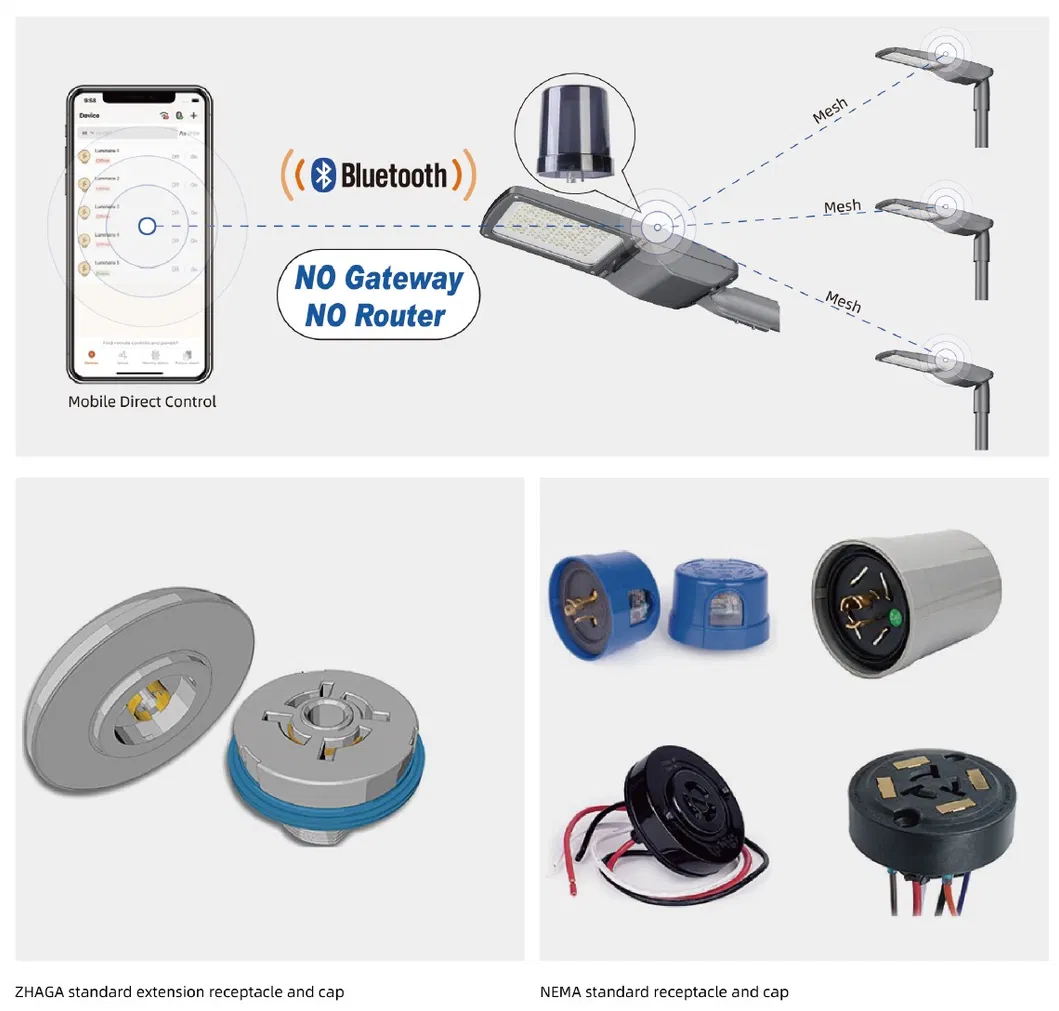

LoRaWAN Smart Control
Installation & Applications

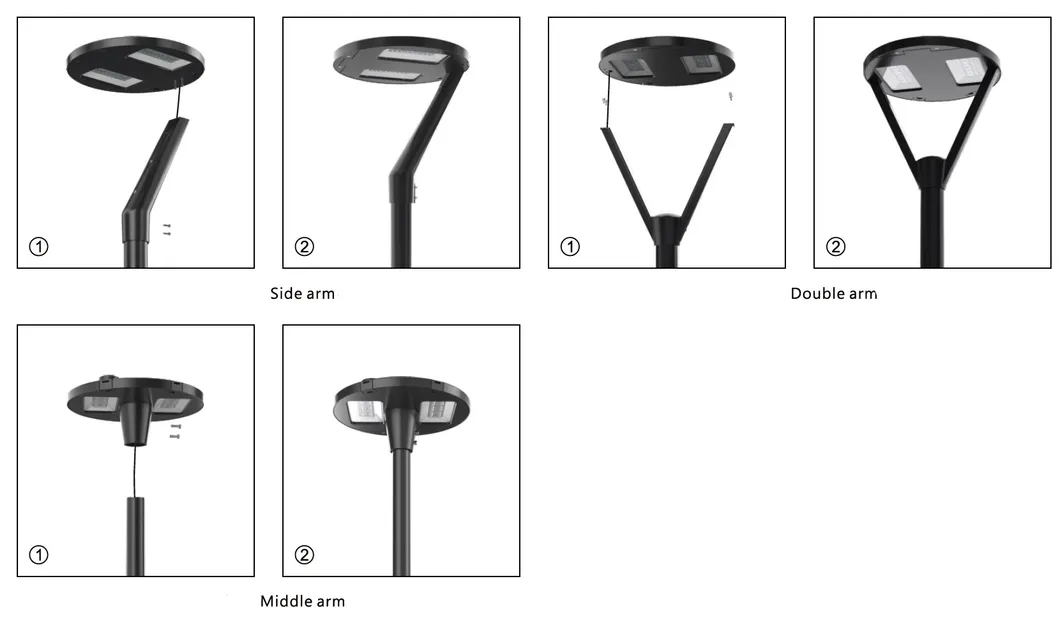

Installation Guide

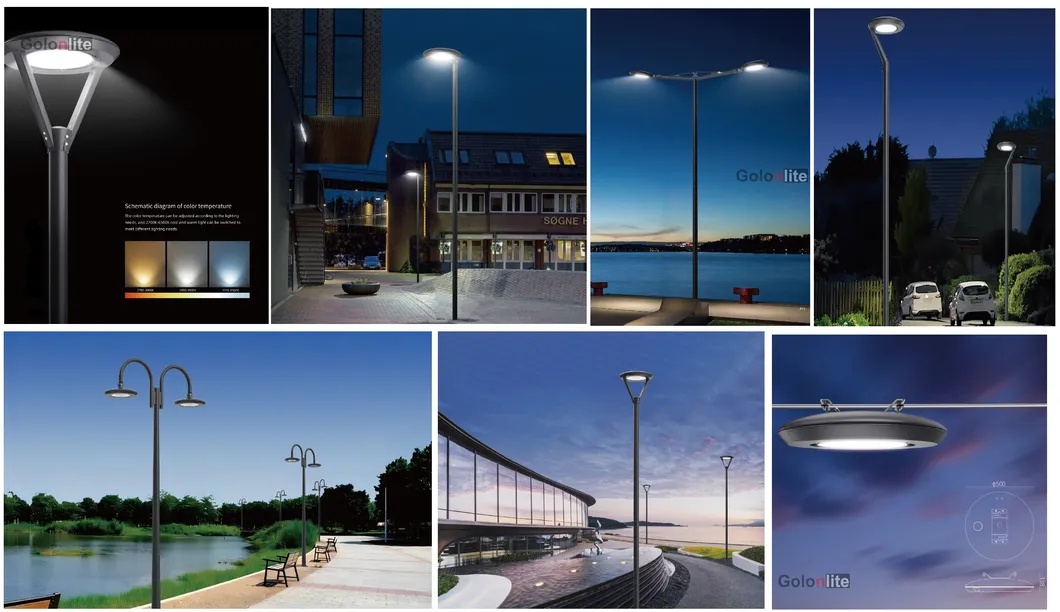

Mounting Details

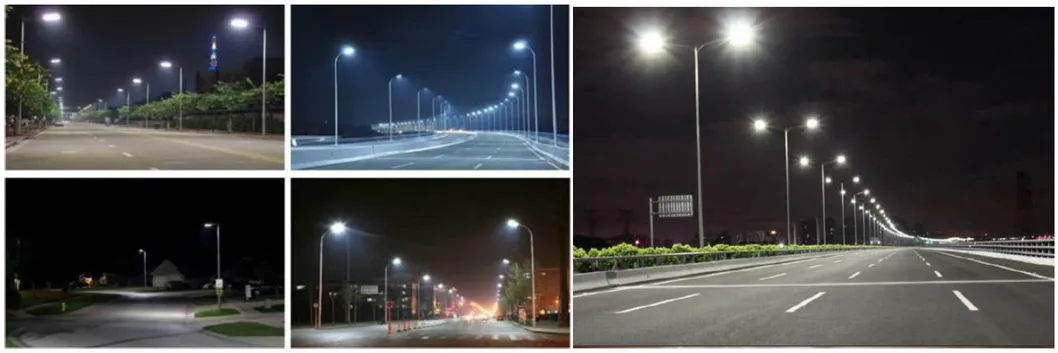

Street Light Application
Professional Services
  • Inquiries replied within 24 hours.
  • OEM and ODM customized solutions.
  • Free Lighting Design: Dialux lighting simulation and IES files provided.
  • Comprehensive after-sales support.
Frequently Asked Questions
Q: What is the luminous efficiency of this street light? A: The light offers high efficiency ranging from 150Lm/W to 180Lm/W depending on the specific configuration.
Q: Does the system support remote monitoring? A: Yes, it supports LoRaWAN and Zigbee smart control systems for remote switching, dimming, and fault alarming.
Q: Is the housing suitable for harsh outdoor environments? A: Absolutely. It features an ADC12 die-casting aluminum body with an IP66 waterproof rating and IK08 impact resistance.
Q: Can I get help with a lighting project design? A: Yes, we provide free Dialux lighting simulations and IES files to help you plan your project effectively.
Q: What are the installation options for the pole? A: The fixtures are designed for standard 60mm or 76mm diameter poles.
Q: What is the standard warranty period? A: We offer a 5-year or 7-year warranty based on the driver and LED chip selection.
