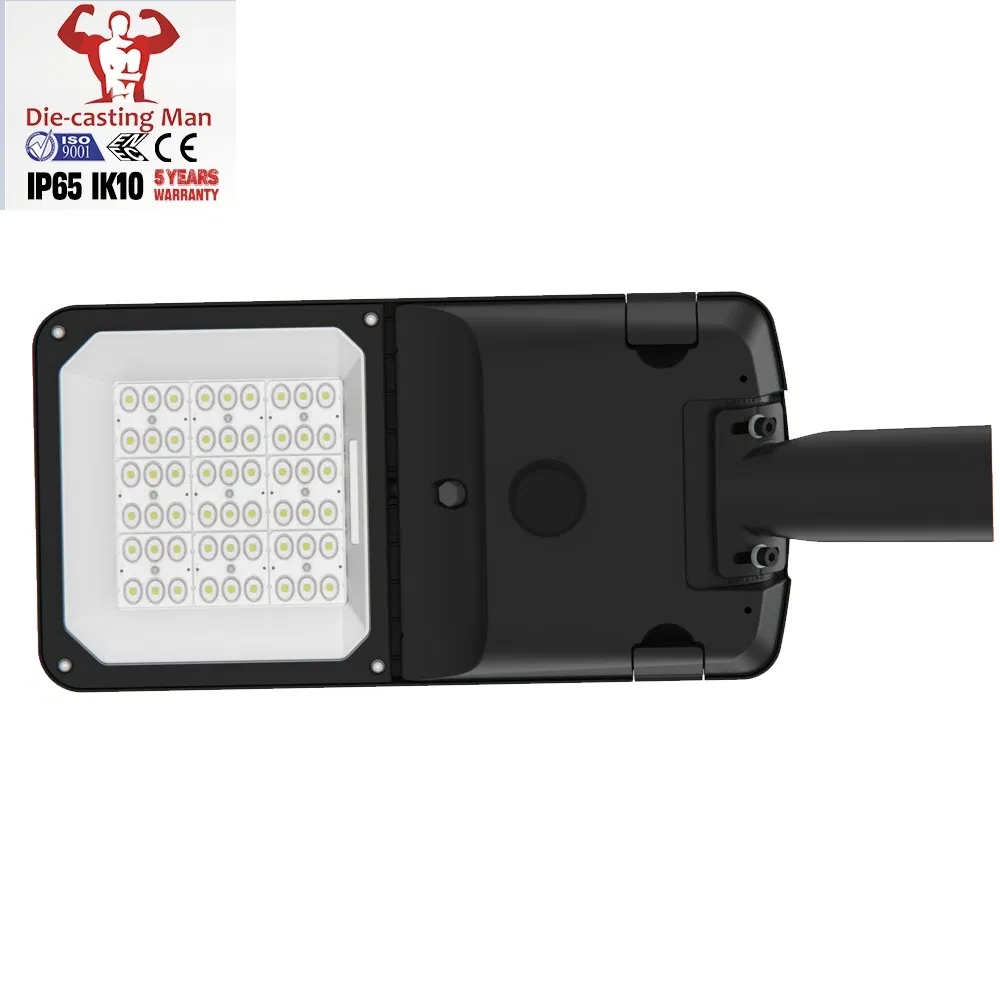

Outdoor Luminaire 50-300W Photocell Smart LED Street Road Light for Urban Roadway Public Area Lighting

Customization:	Available
Light Source:	LED Light
Color Temperature(CCT):	Warm White

📊 Basic Information

Model NO.

YASL-29

Material

Die Casting Aluminum

Lamp Power

120W (Range 30-300W)

Power Supply

AC 90-305V

Average Life

50000h

IP Rating

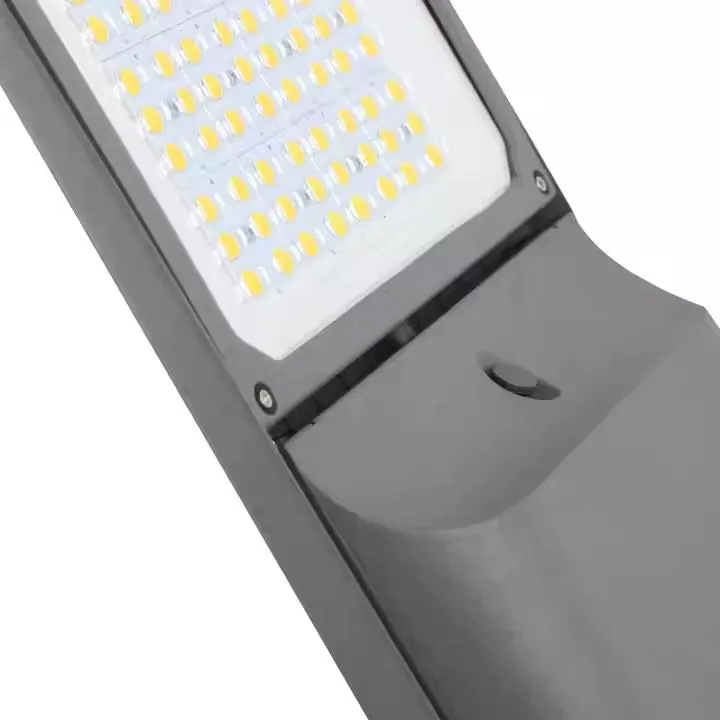

IP66 Waterproof

IK Rating

IK09

Certification

CE, RoHS, ENEC, CB, EMC

Application

Highway, Square, Garden, Urban Roadway

Warranty

5 Years

💡 Product Description

The YASL-29 Street Light series provides high-performance outdoor lighting with a 5-year warranty. These fixtures are engineered for durability and efficiency, suitable for various urban lighting applications.

⚡ Electrical Specs

• Class I or Class II options
• Input Voltage: AC90-305V, 50/60Hz
• Power Factor: >=0.95

🔧 Installation

• Horizontal and Vertical mounting
• Spigot tilted from -15° to +15°

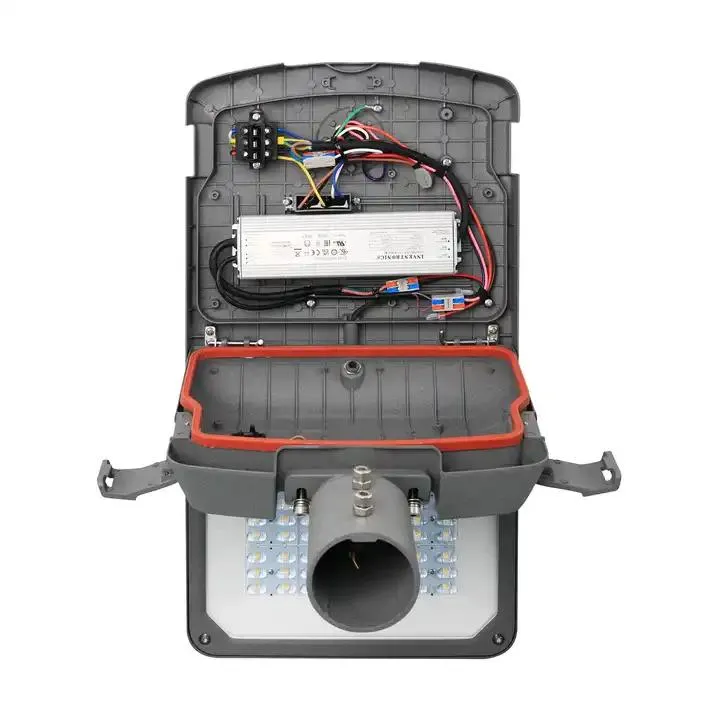

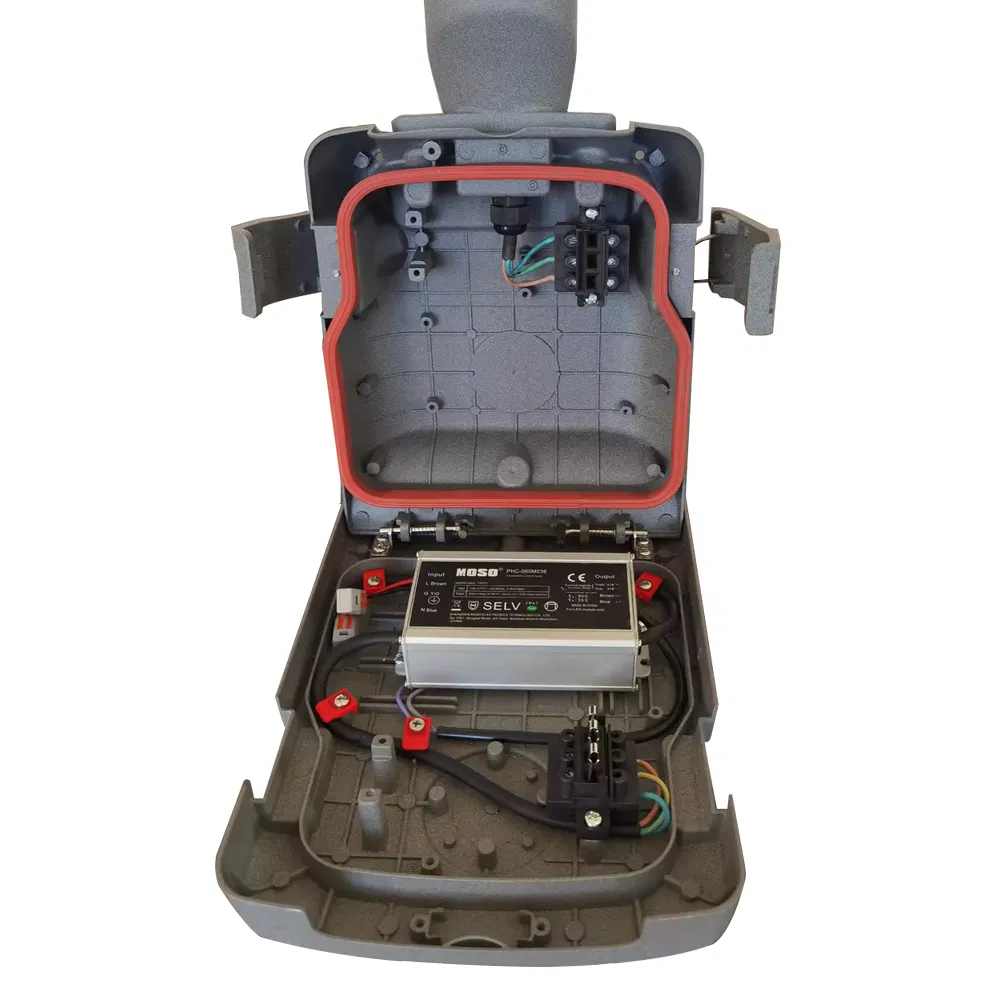

• Tool-free maintenance with disconnector

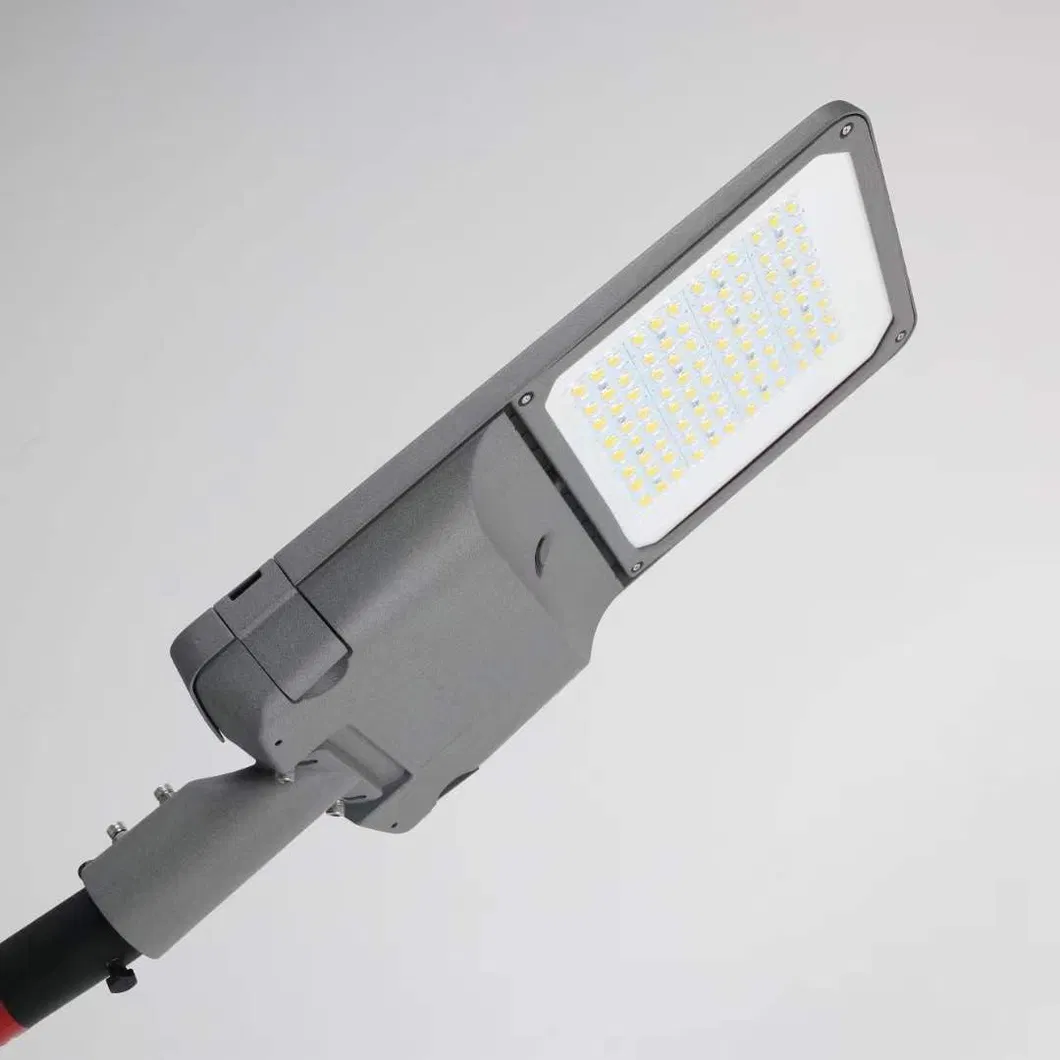

🌟 Optical Performance

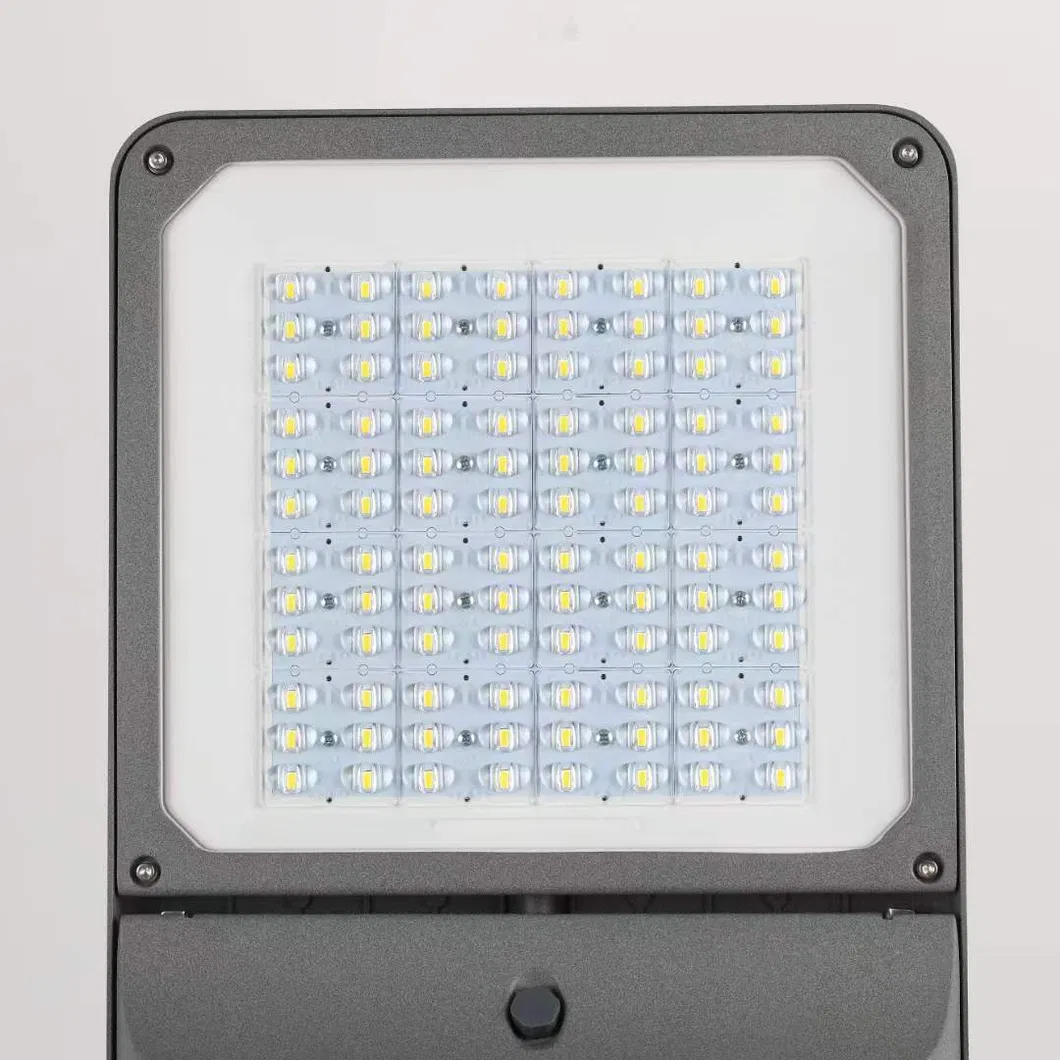

• SMD 3030 / 5050 Chips
• Efficiency: Up to 180 lm/w options
• Various lighting distributions (Type I to V)

🛠️ Customization

• Dimming: Dali, 1-10V, Photocell
• Sensors: Microwave, Time Control
• Logo: Embossed or Laser engraving

📋 Technical Specifications

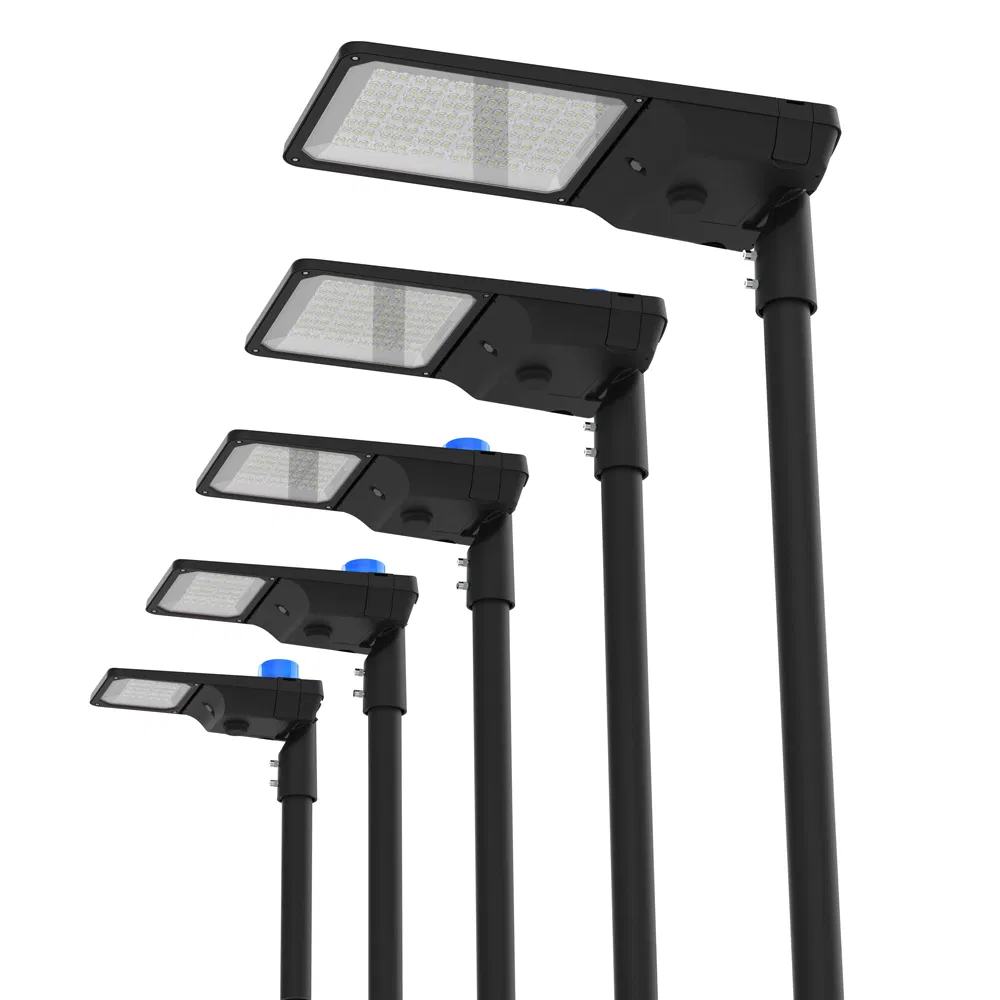

Product Code	YASL-29-40	YASL-29-60	YASL-29-100	YASL-29-160	YASL-29-240
Lamp Power	30~60W	50~90W	80~140W	130~200W	200~300W
Number of Lens	4 (Max 6)	6 (Max 8)	9 (Max 12)	16 (Max 20)	24 (Max 30)
Installation Height	3-6m	4-8m	6-10m	8-14m	12-14m
Net Weight	3.8kg	4.1kg	4.6kg	7.4kg	9.5kg
Dimensions (mm)	576x209x89	593x263x89	646x263x89	709x315x89	812x315x89

🖼️ Product Showcase

🏭 Manufacturing & Quality

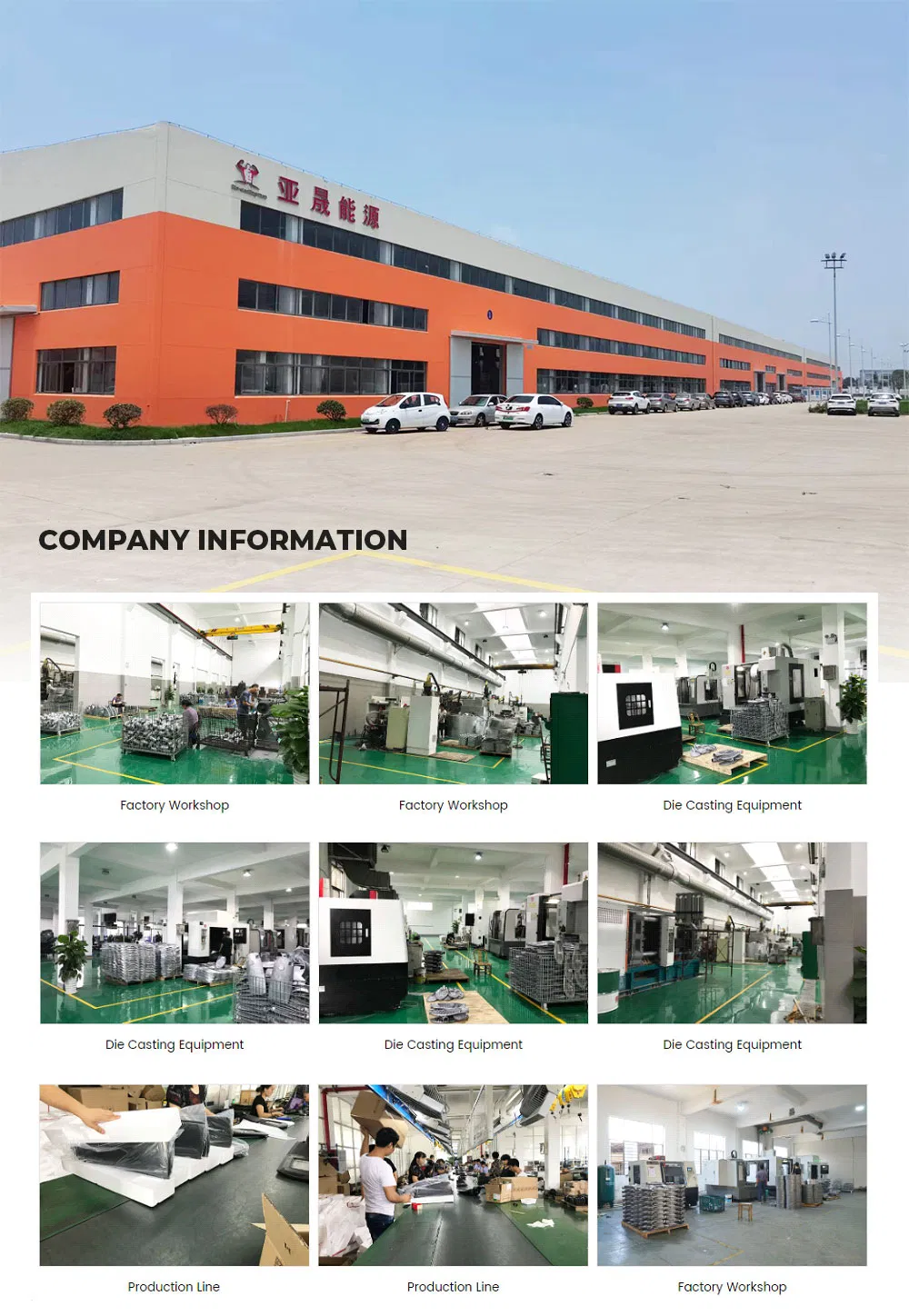

Our manufacturing facility specializes in design, development, and rigorous testing of outdoor luminaires. We offer full-service production including street lights, high bay lights, and OEM die-casting solutions. Our products are designed to meet all EU requirements and undergo strict performance testing in recognized laboratories.

❓ Frequently Asked Questions

1. What are your MOQ requirements?

We accept 1-5 pieces for samples. For mass production, the standard MOQ is 100 pieces, though we can accept smaller quantities for initial trial orders.

2. Which LED chips and drivers do you use?

We can utilize various LED chips (like SMD 3030/5050) and driver brands based on your specific technical requirements.

3. What is the warranty for your street lights?

We offer a 5-year guarantee for our customers, ensuring a lifespan of at least 50,000 hours under normal operating conditions.

4. Can I customize the housing with my own logo?

Yes. Options include screen printing (no MOQ) or die-casting your logo directly onto the housing (MOQ 1000 pieces).

5. How is product quality guaranteed?

We follow a strict protocol: a pre-production sample is always created before mass production, and a final inspection is conducted before every shipment.

6. Do the fixtures support smart controls?

Yes, we support multiple dimming and control modes including Time Control, 0-10V, Optical control, Microwave sensors, and DALI.
